The third-generation Ari Shafer is an adventure-focused gravel bike built around massive tire clearance and a highly modular chassis. Moving away from the traditional cyclocross-adjacent designs of early gravel platforms, the Shafer leans heavily into mountain bike territory. It is designed for riders who prioritize exploration, multi-day bikepacking, and technical endurance events over explosive, short-course racing.
The defining characteristic of the current frame is its ability to accommodate high-volume rubber, officially clearing up to 2.25-inch tires. This high-volume capacity dictates the bike's entire personality, trading snappy acceleration for immense traction and momentum maintenance over rough terrain. Ari also designed the frame to be suspension-corrected, meaning it can accept a short-travel gravel fork without disrupting the handling. The result is a highly adaptable platform that serves as a reliable, comfortable workhorse for long days in unpredictable environments.
| Stack | 560mm |
| Reach | 387mm |
| Top tube | 545mm |
| Headtube length | 95mm |
| Standover height | 750mm |
| Seat tube length | 450mm |
The Shafer utilizes a progressive geometry approach, pairing a longer reach with a taller stack height to create a centered, upright riding posture. This design encourages riders to use shorter stems than they might on a traditional road or cyclocross bike, keeping the steering predictable even when navigating steep descents or loaded with bikepacking gear.
To maintain consistent handling across the size run, Ari implements size-specific chainstay lengths. This ensures that smaller riders do not feel stretched out over the rear wheel, while taller riders maintain adequate traction on steep climbs without their weight shifting too far backward.
A critical element of the Shafer’s geometry is its suspension-corrected fork. The rigid carbon fork features a longer axle-to-crown measurement than typical gravel bikes. This allows riders to swap in a short-travel suspension fork later without drastically raising the front end or altering the head tube angle. Even in its rigid configuration, this taller front end contributes to the bike's stable, endurance-oriented fit, prioritizing long-distance comfort over an aggressive, aerodynamic racing tuck.
Frameset
Frame
Shafer 3.0 SL Carbon, 68mm English Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout, Cache downtube storage. Max tire clearance 58c.
Fork
Shafer 3.0 SL Carbon, 12x100mm thru-axle, flat-mount disc, dynamo routing. Max tire clearance 58c.
Groupset
Shift levers
SRAM Rival HRD E1, 1x13, Hydraulic
Rear derailleur
SRAM Rival XPLR, Direct mount, 1x13
Cassette
SRAM XG-1351 XPLR E1, 13-speed, 10-46T
Chain
SRAM Rival Flat top E1, 13-speed
Crankset
SRAM Rival XPLR AXS Power Meter, DUB, Wide 1x13, Alloy, SRAM X-sync Alloy 40T
Bottom bracket
SRAM Dub English BSA
Front brake
SRAM Rival HRD Shift-Brake System
Rear brake
SRAM Rival HRD Shift-Brake System
Front rotor
SRAM Centerline 180mm
Rear rotor
SRAM Centerline 180mm
Wheelset
Front wheel
WTB Speedterra i25, Tubeless Ready
Rear wheel
WTB Speedterra i25, Tubeless Ready
Front tire
Schwalbe G-One RS, V-Guard, ADDIX 700x55c, Tubeless Ready
Rear tire
Schwalbe G-One RS, V-Guard, ADDIX 700x55c, Tubeless Ready
Cockpit
Stem
ZIPP Service Course 31.8mm alloy, 6 degree, 4-bolt bar clamp
Handlebars
ZIPP Service Course SL 70 XPLR Alloy. 31.8 diameter, 70mm reach, 115mm drop, 11-degree flare
Saddle
WTB Gravelier Medium Steel
Seatpost
Ari Carbon Dual Bolt, 27.2
Grips
Ari Super-Shock Pro w/ Anti-Slip, Black
The Shafer lineup spans five builds, all utilizing the same carbon frame and fork. The frame features practical, mechanic-friendly standards, including a threaded bottom bracket, a universal derailleur hanger, and an external seatpost clamp. It also includes internal downtube storage and is designed to accommodate larger brake rotors front and rear for increased stopping leverage.

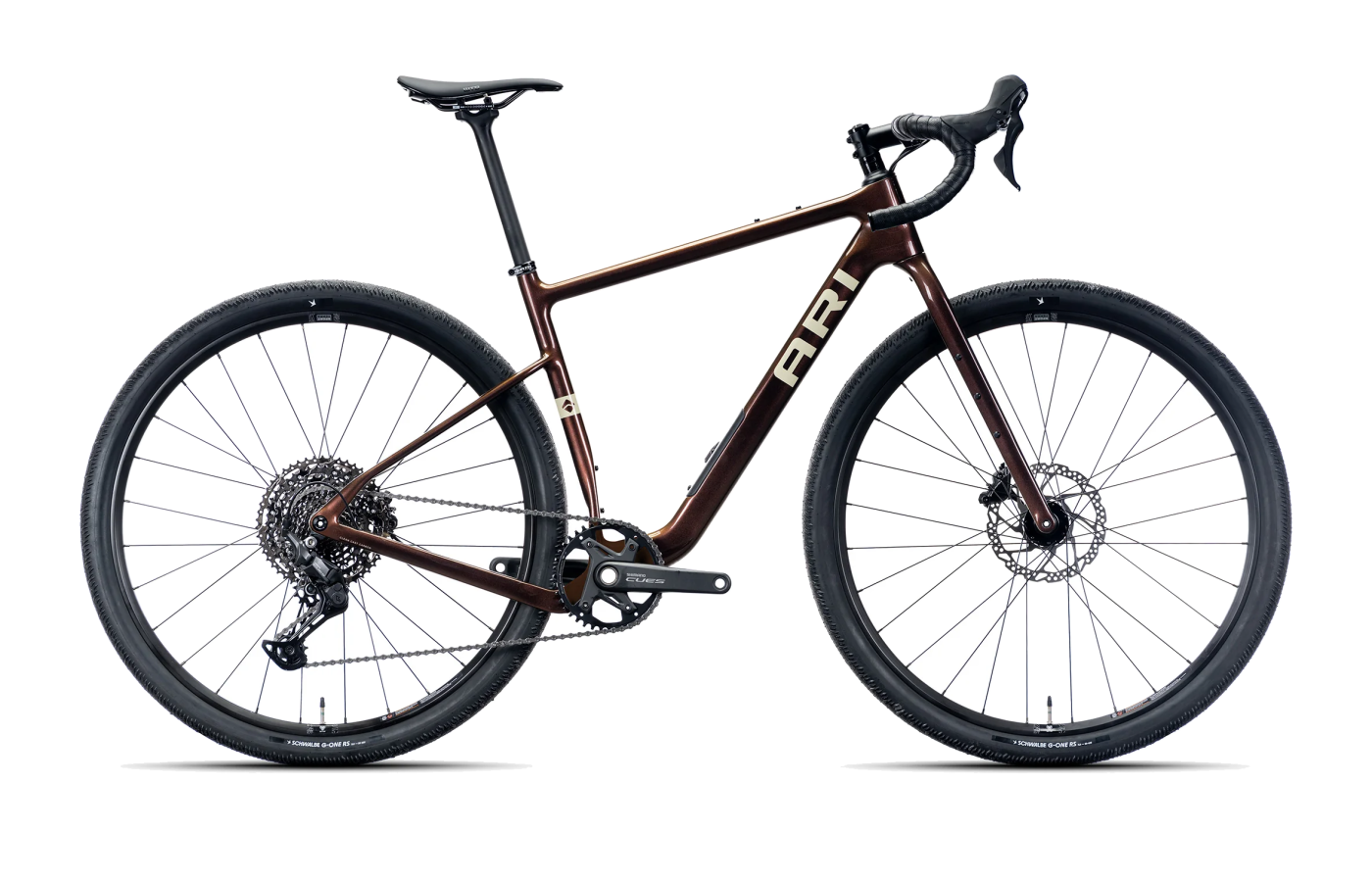

The range starts with the Sport and Comp models, which rely on mechanical 1x drivetrains from Shimano and SRAM, paired with alloy wheels. These entry-level options offer the same massive tire clearance and geometry benefits as the top-tier bikes, making them a strong value for riders looking to upgrade components over time.

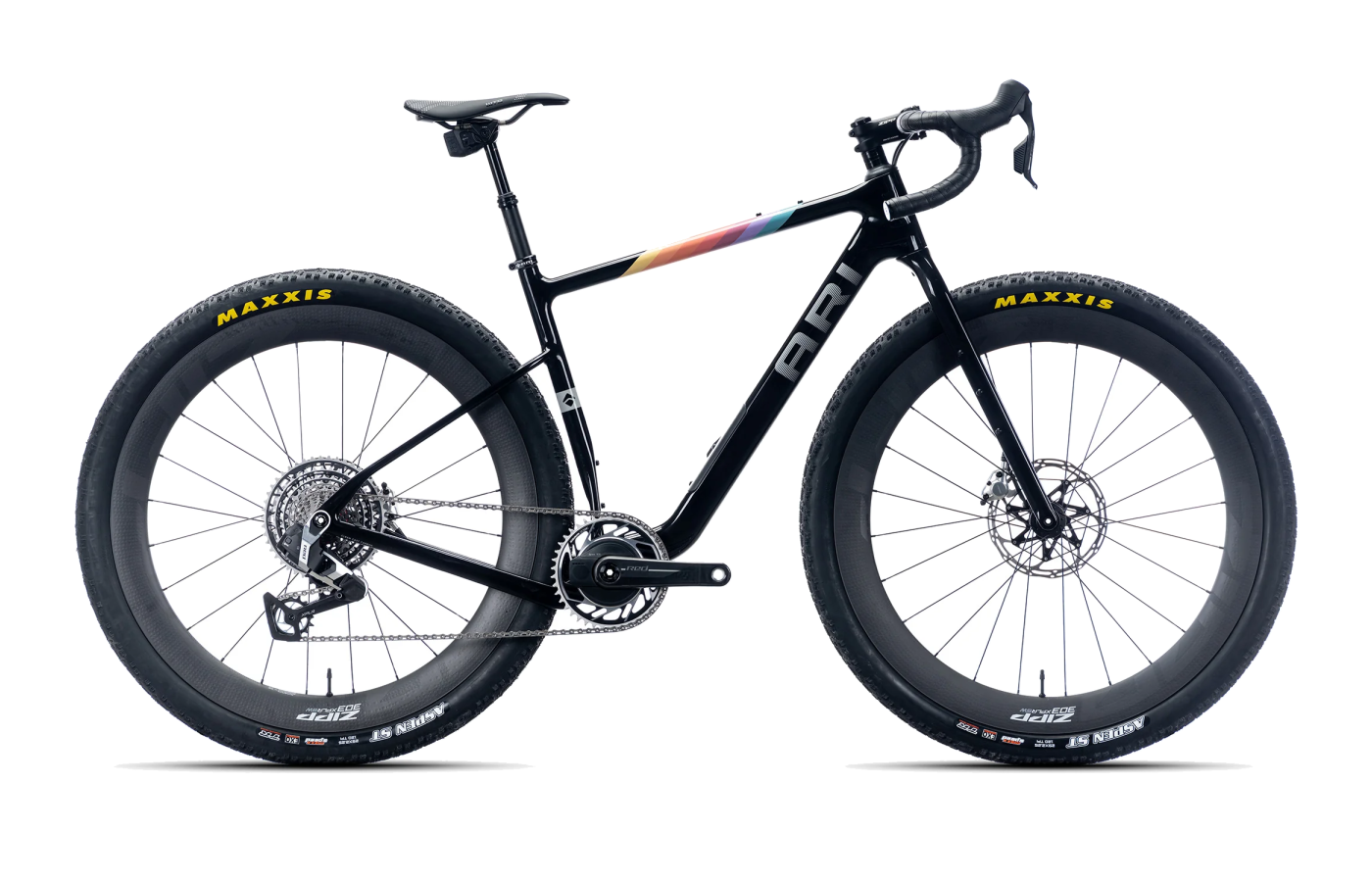

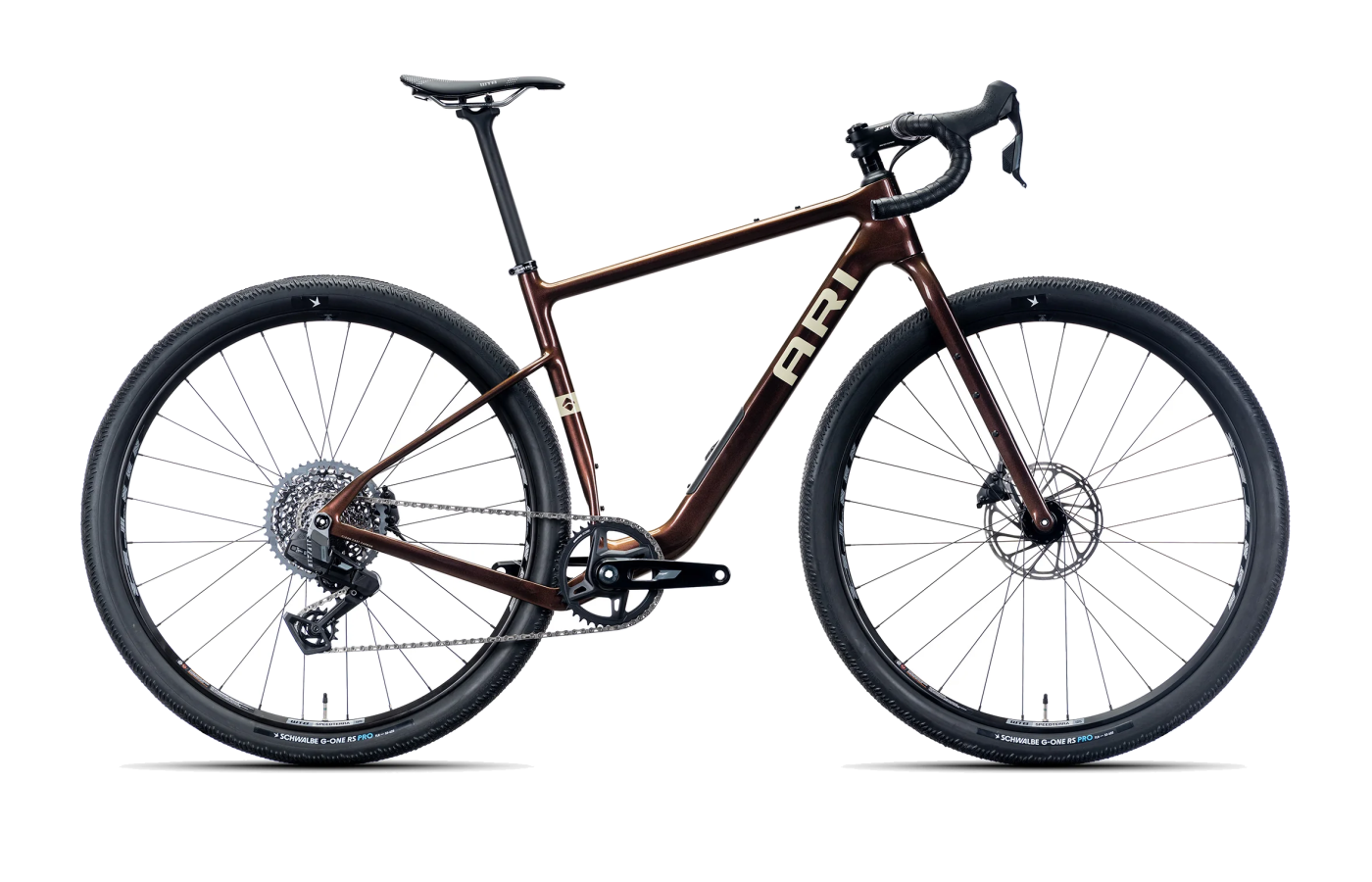

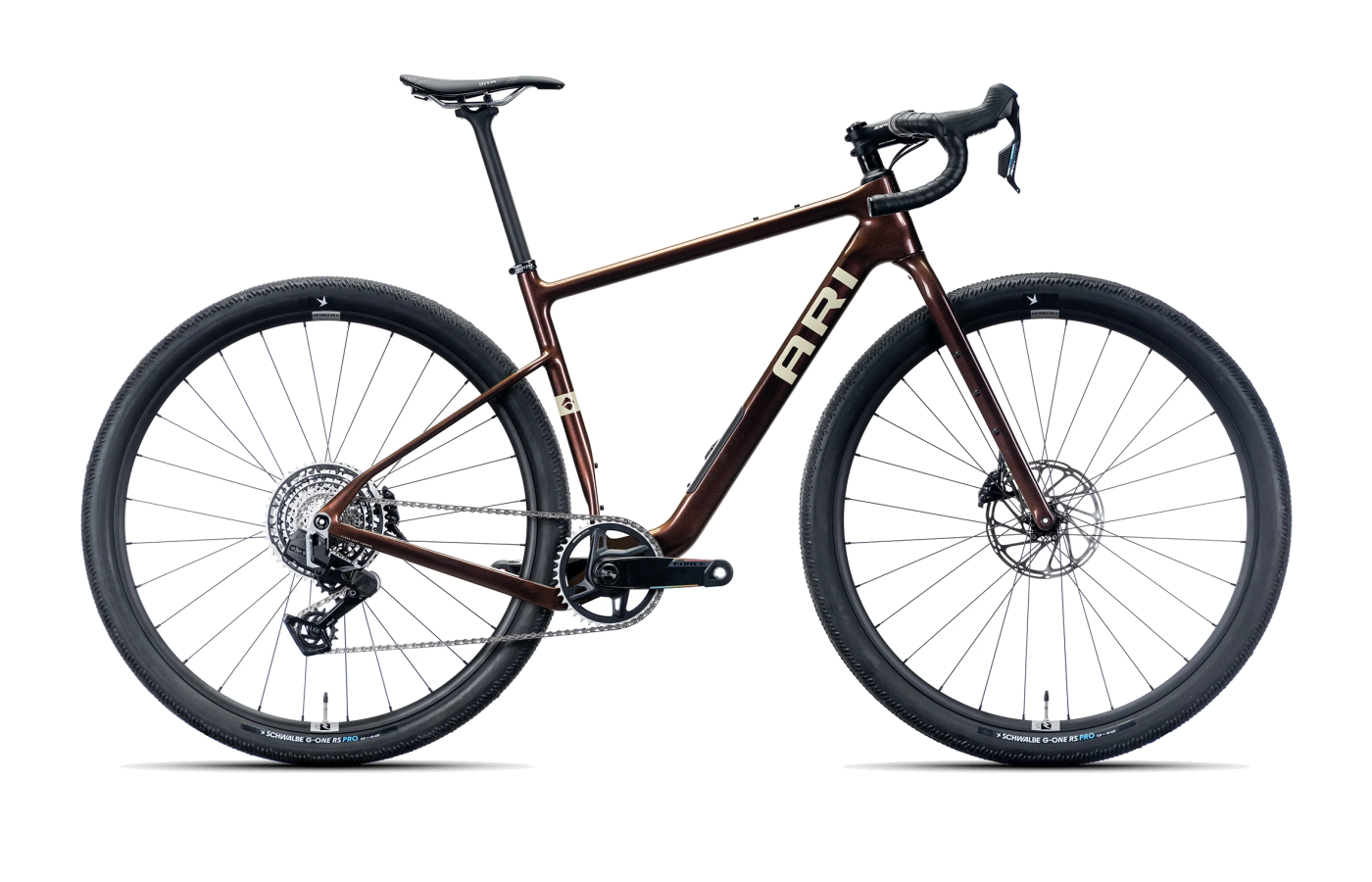

Moving into the Elite, Pro, and Team builds introduces SRAM’s 13-speed XPLR AXS wireless drivetrains, with all three of these upper tiers including crank-based power meters. The Elite and Pro models feature alloy wheels, while the flagship Team build upgrades to a Zipp carbon wheelset and a wireless dropper post. Ari’s direct-to-consumer model allows buyers to customize contact points like stem length and handlebar width at checkout, ensuring the bike fits correctly before it ships.
Reviewers consistently characterize the Shafer as a highly stable, momentum-focused machine that excels in rough terrain. The massive tire volume acts as the primary suspension, allowing riders to run low pressures that deliver a "heightened level of vibration dampening" (YouTube) over rocks and washboard surfaces. Testers note that the bike tracks exceptionally well through deep sand and technical descents, with one reviewer highlighting how it "keeps a straight line even when things are getting insanely loose" (YouTube).
This stability comes with a distinct tradeoff in initial acceleration and paved cornering. The rotational weight of the large tires makes the bike feel less reactive from a standstill, prompting riders to "slowly plot my way up" (YouTube) steep, loose climbs rather than attacking them out of the saddle. On smooth tarmac, the handling can feel slightly vague; one tester noted that crossing thick painted road lines "feels a little squirmy" (YouTube), mimicking the sensation of transitioning into soft dirt.
Despite these quirks on pavement, the consensus points to a highly capable off-road platform. The frame’s stiffness ensures efficient power transfer once up to speed, while the geometry and tire volume combine to create a "luxurious ride feel" (YouTube) that reduces fatigue during long endurance efforts.
