Frameset
Frame
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
Fork
Advanced SL-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

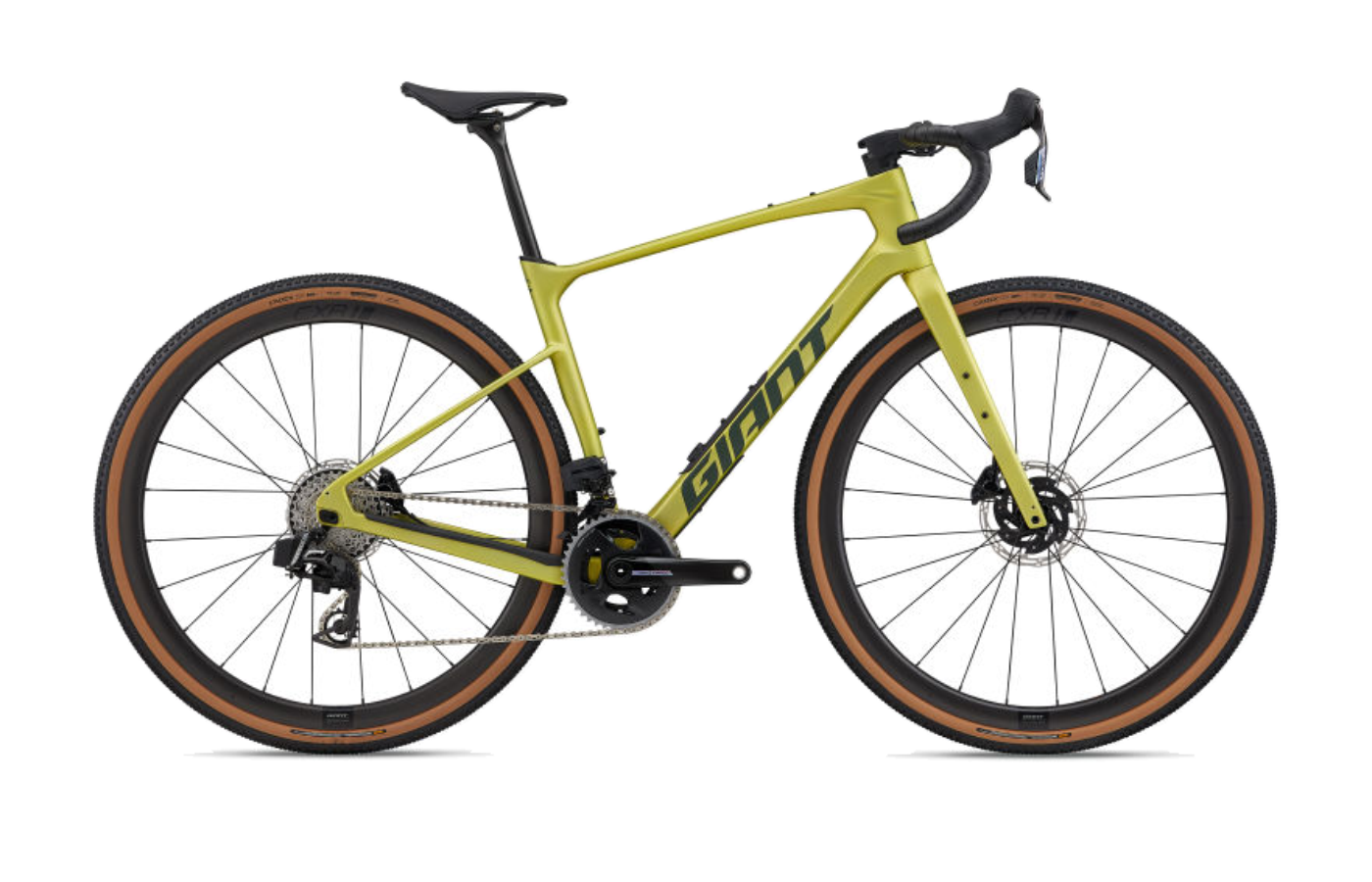

Revolt Advanced Pro 0
The fourth-generation Giant Revolt Advanced Pro refines a proven gravel racing platform by integrating modern storage and routing solutions while preserving its signature ride quality. Positioned as a versatile carbon all-roader, it bridges the gap between a dedicated race machine and a long-distance adventure bike. The core silhouette remains familiar, but this iteration introduces a downtube storage compartment for ride essentials and routes cables internally through the headset for a cleaner cockpit. Giant retains the adjustable rear dropout, allowing riders to alter the wheelbase and tire clearance to suit different terrain. This generation appeals to privateer racers seeking a lightweight, efficient chassis, as well as endurance riders who prioritize long-haul comfort over nervous, hyper-aggressive handling. It remains a highly adaptable platform designed to cover ground quickly without punishing the rider.
$7,000Gen 4th generation
Build
Size
Inventory
| Stack | 570mm |
| Reach | 381mm |
| Top tube | 550mm |
| Headtube length | 135mm |
| Standover height | 740mm |
| Seat tube length | 450mm |
Fit and geometry
The Revolt Advanced Pro utilizes a geometry that favors endurance and stability over an ultra-aggressive racing posture. A defining feature is the 80mm bottom bracket drop, which sits lower than many direct competitors. This deep drop places the rider's center of gravity further down between the wheels, enhancing high-speed stability and cornering grip on loose surfaces. The stack height is relatively generous—586mm on a size medium—encouraging a slightly more upright position that reduces lower back and neck strain during long events.
Handling characteristics can be tuned via the Flip Chip rear dropout. In the short setting, the 425mm chainstays keep the rear end tucked in for quicker responses on tarmac and smooth dirt. Flipping the chip to the long position extends the chainstays to 435mm, lengthening the wheelbase and slightly increasing fork trail. This adjustment adds a measure of stability for rougher descents and expands rear tire clearance from 42mm to 53mm. Rider comfort is further managed by the proprietary D-Fuse seatpost and handlebars, which are engineered to flex directionally, damping high-frequency vibrations before they reach the saddle and grips.
Full specs
Groupset
Shift levers
SRAM Force AXS E1, 2x12
Front derailleur
SRAM Force AXS D2
Rear derailleur
SRAM Force AXS E1
Cassette
SRAM Force E1, 12-speed, 10-36
Chain
SRAM Force E1
Crankset
SRAM Force D2 DUB, 30/43 (XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm)
Bottom bracket
SRAM DUB, press fit
Front brake
SRAM Force AXS E1 hydraulic
Rear brake
SRAM Force AXS E1 hydraulic
Front rotor
SRAM CenterLine 160mm
Rear rotor
SRAM CenterLine 160mm
Wheelset
Front wheel
Giant CXR 1 WheelSystem, 35mm
Rear wheel
Giant CXR 1 WheelSystem, 35mm
Front tire
CADEX GX, 700x40c, tubeless
Rear tire
CADEX GX, 700x40c, tubeless
Cockpit
Stem
Giant Contact AeroLight, -10 degree (XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm)
Handlebars
Giant Contact SLR XR D-Fuse, 31.8mm (XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm)
Saddle
Giant Grit SL
Seatpost
Giant D-Fuse SLR, composite, -5/+15mm offset
Grips
Stratus Lite 3.0
Builds
The Revolt Advanced Pro lineup is concise, offering two carbon builds that share the same Advanced-grade composite frame, Advanced SL-grade composite fork, and 2x SRAM AXS electronic drivetrains. Both models ship with Giant's D-Fuse carbon seatpost, D-Fuse carbon handlebars, and 40mm Cadex GX tubeless tires.
The flagship Advanced Pro 0 sits at the top of the ladder, equipped with a SRAM Force AXS groupset and Giant's CXR 1 Carbon WheelSystem. These wheels feature DT Swiss hub internals and a lightweight hookless rim profile that helps keep the overall bike weight low for competitive racing. The Advanced Pro 1 steps down to a SRAM Rival AXS groupset and Giant CXR 2 Carbon wheels. This build retains the exact same gear ratios—a 43/30T crankset paired with a 10-36T cassette—providing the same wide range for steep gravel climbs, but with a slight weight penalty in the drivetrain and wheelset. Both builds represent strong value within the premium gravel category, offering carbon wheels and wireless shifting at price points that significantly undercut similarly equipped models from competing major brands.

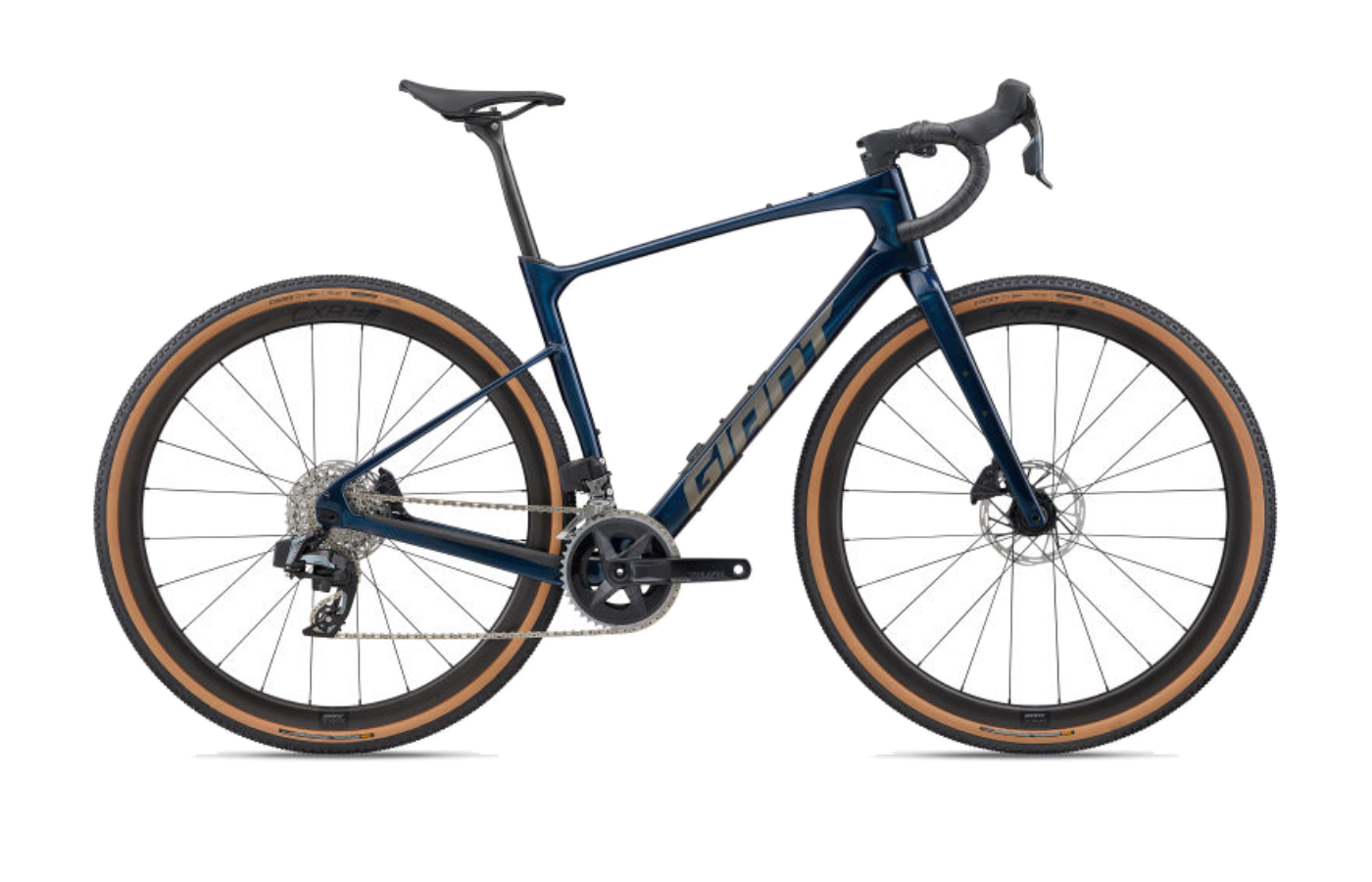

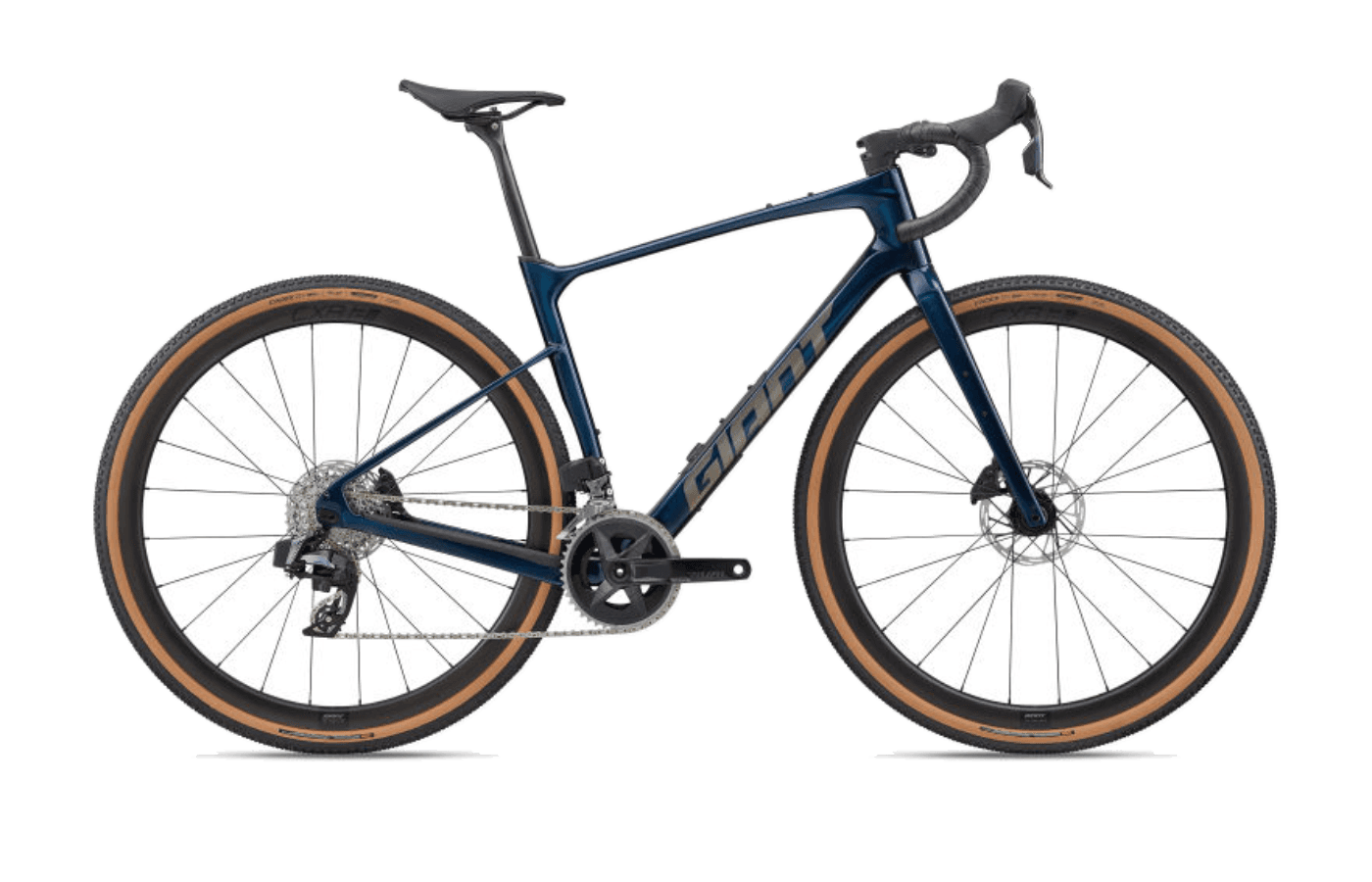

1
$5,600

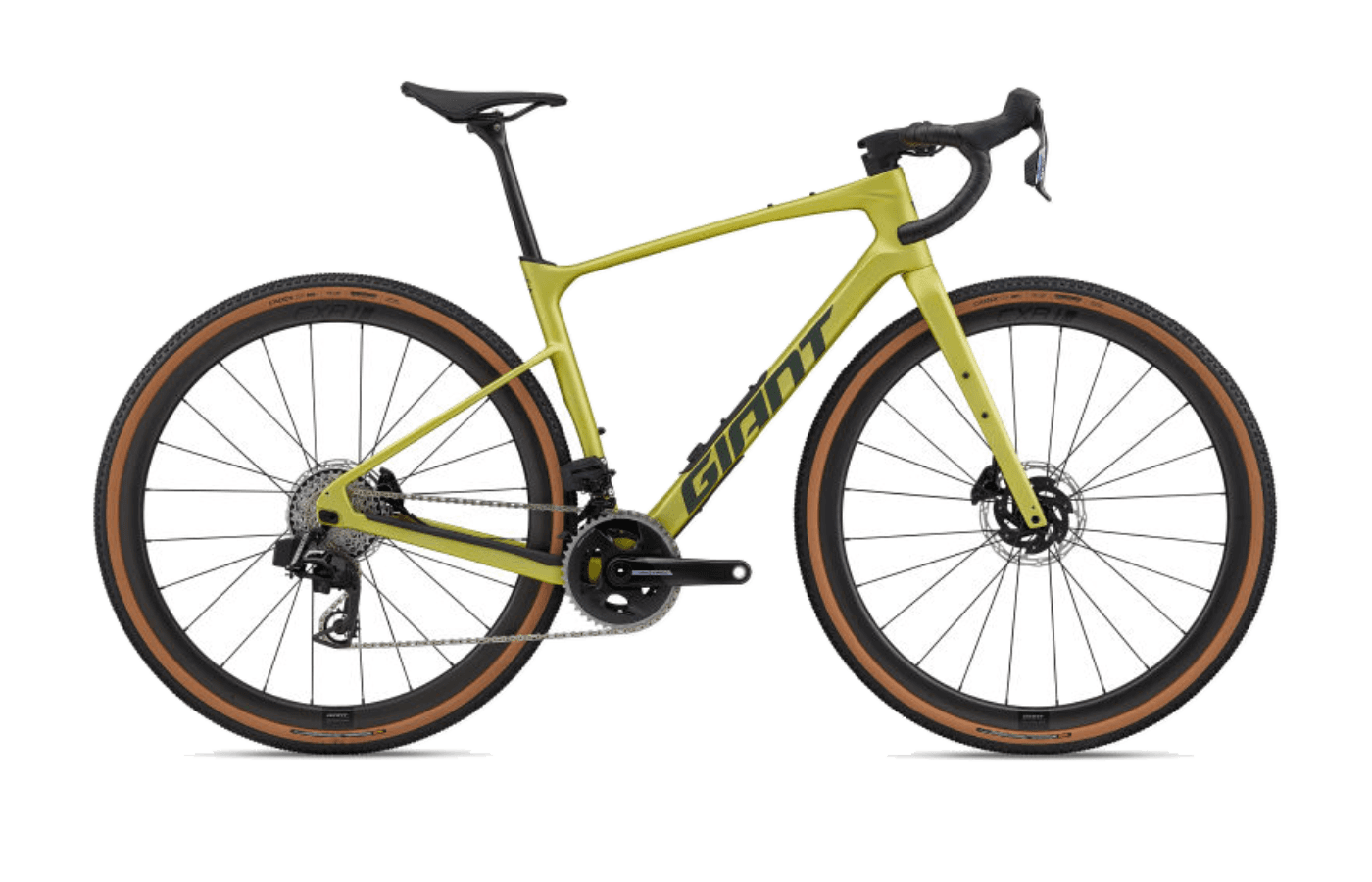

0
$7,000
Selected
Reviews
Reviewers consistently praise the Revolt Advanced Pro for balancing race-day efficiency with exceptional comfort. Rather than relying on mechanical suspension, the frame and D-Fuse touchpoints work together to mute harsh impacts. Testing the bike on rough terrain, one reviewer noted that the seatpost provides a "floating sensation" that effectively absorbs impacts without the bucking effect common to some flex-based designs (Flow Mountain Bike). The handling is widely described as composed and predictable, leaning toward stability rather than twitchy aggression. On fast descents and choppy double-track, the bike "rides light, with plenty of composure when things get technical" (BikeRadar).
While the ride quality earns high marks, reviewers point out a few distinct compromises in the frame's modern updates. The transition to through-the-headset cable routing creates a cleaner aesthetic but is flagged as a potential maintenance headache. Additionally, the decision to retain the adjustable rear dropout means the frame is not compatible with the Universal Derailleur Hanger (UDH). Multiple testers found this omission frustrating on a newly updated platform, calling it a "head-scratcher" that limits future drivetrain upgrades (Flow Mountain Bike). Despite these mechanical critiques, the consensus remains that the bike delivers an outstanding, fatigue-reducing ride on the road and trail.
