Kona

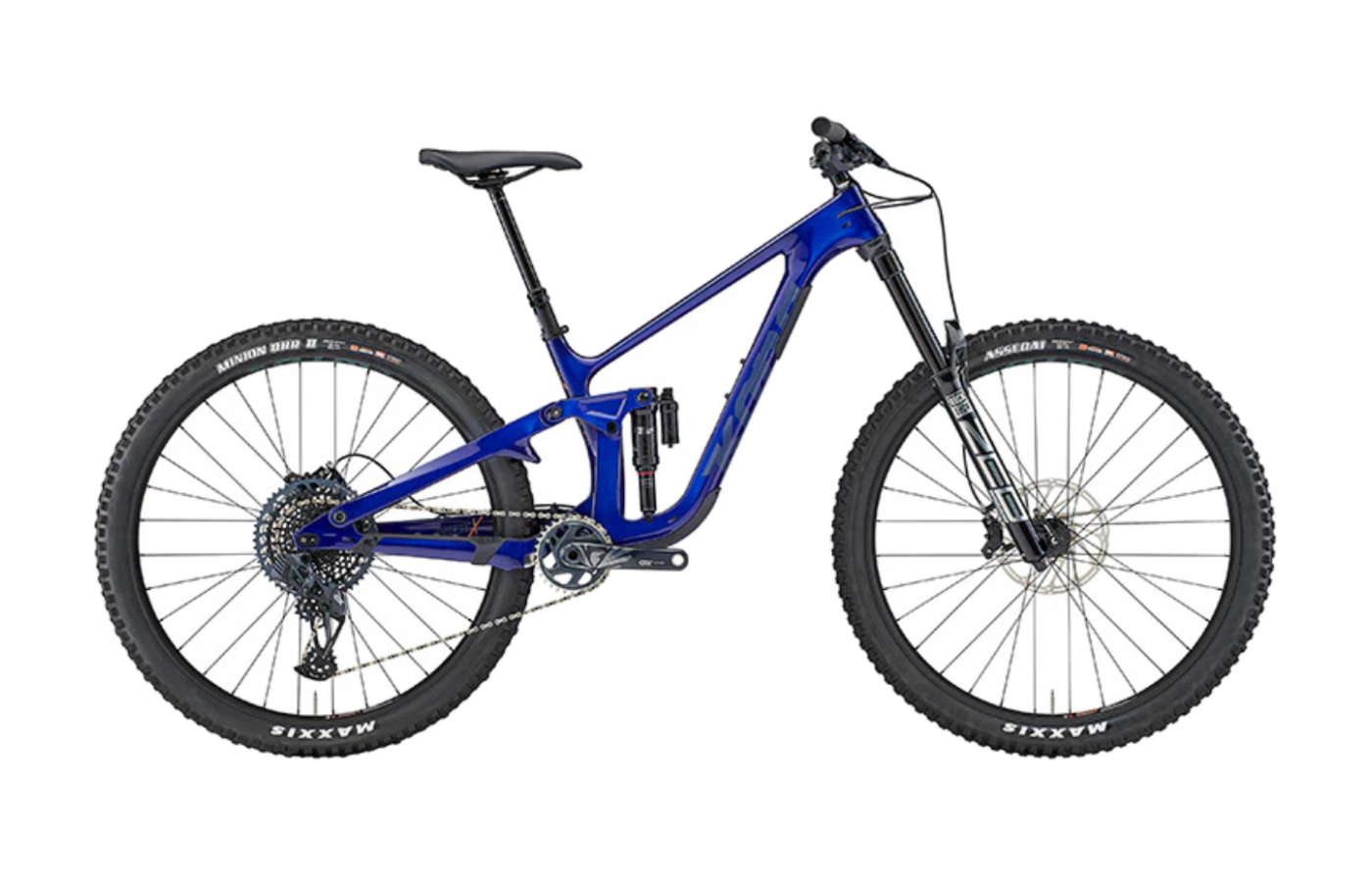

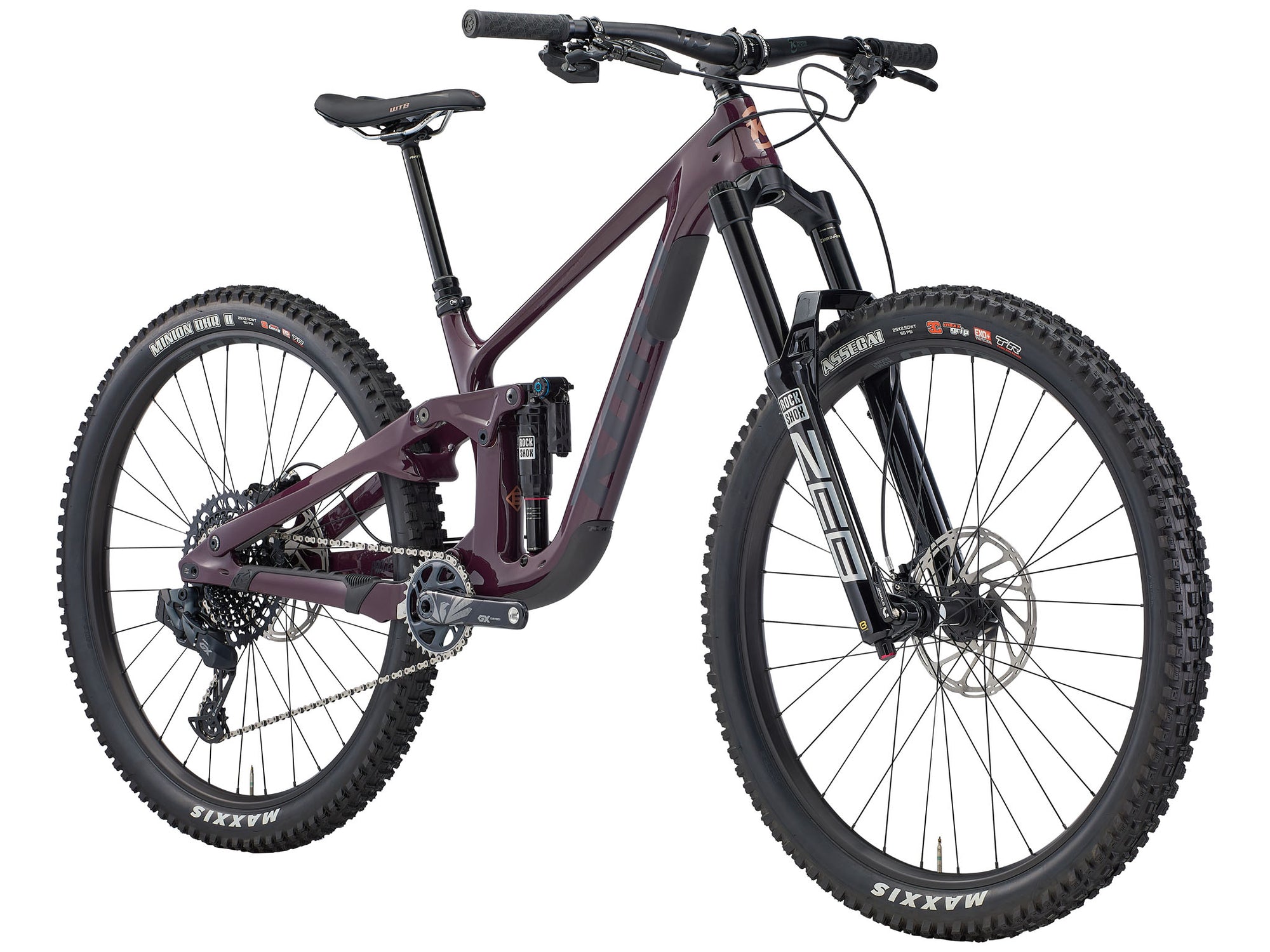

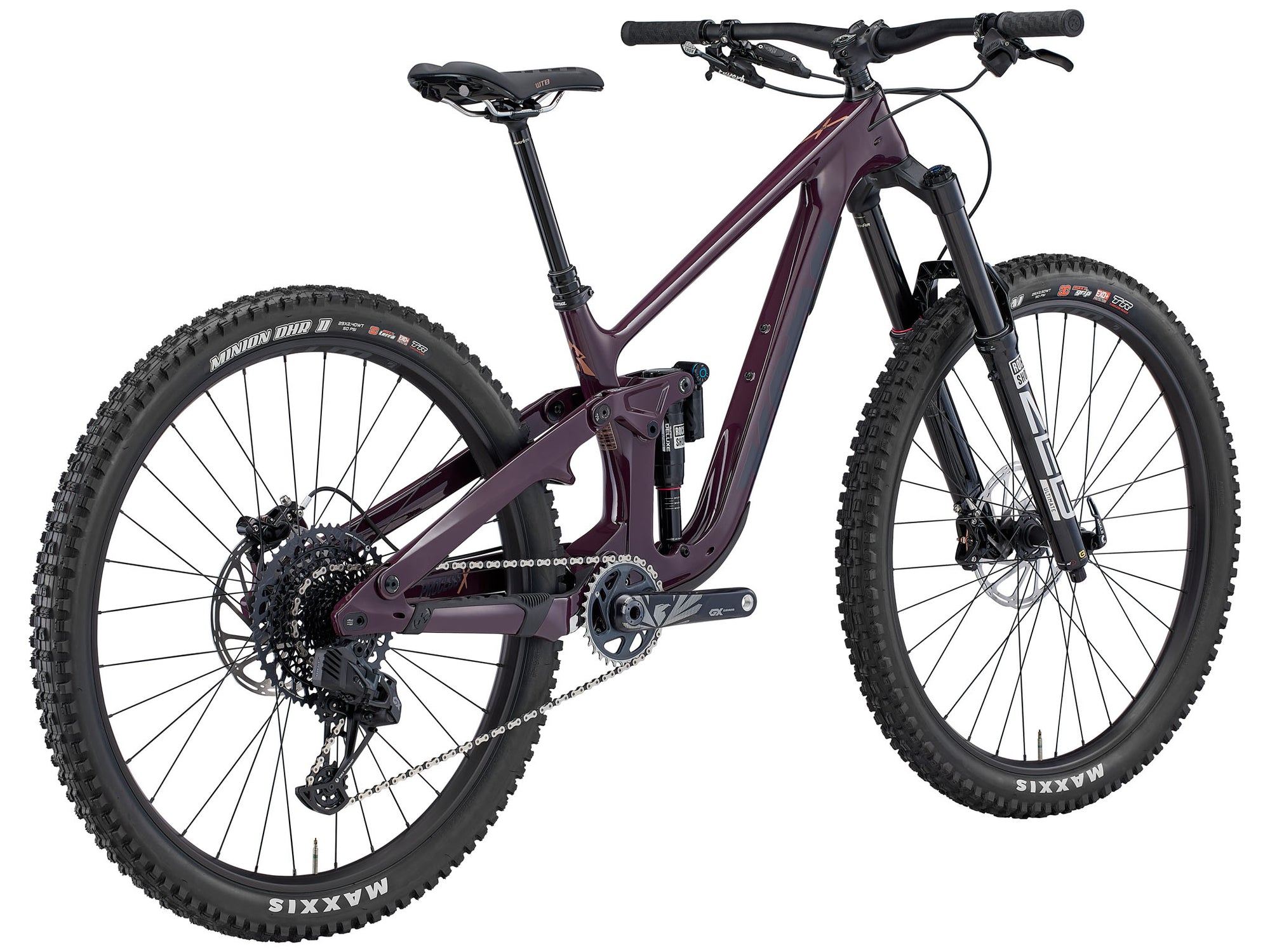

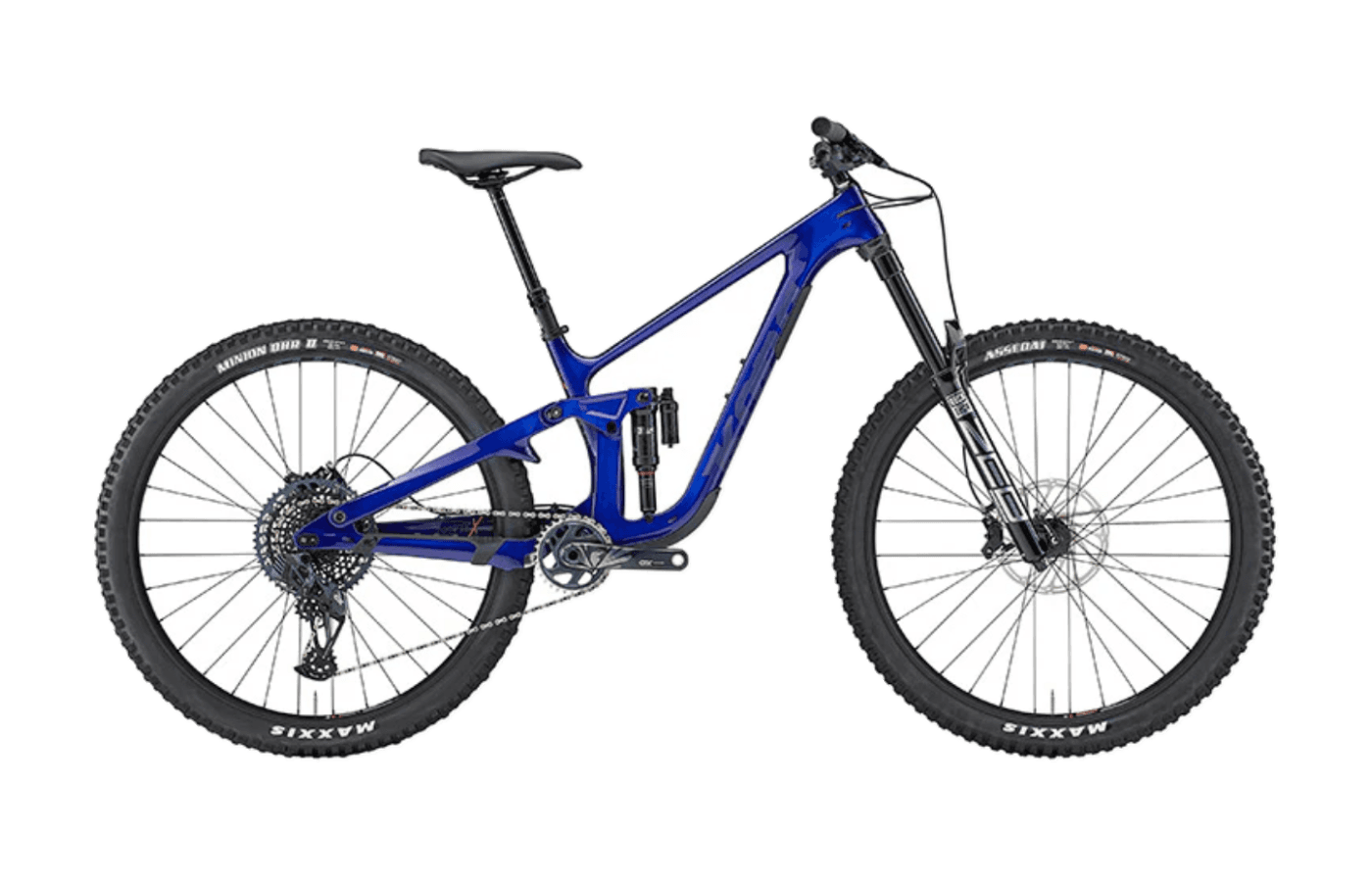

Process X CR/DL
Gallery
Images
geometry
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Stack | 637mm | 632mm | 632mm | 641mm |
| Reach | 490mm | 465mm | 440mm | 525mm |
| Headtube length | 115mm | 110mm | 110mm | 120mm |
| Headtube angle | 63.5deg | 63.5deg | 63.5deg | 63.5deg |
| BB height | 345mm | 345mm | 345mm | 345mm |
| BB drop | 30mm | 30mm | 20mm | 30mm |
| Trail | — | — | — | — |
| Fork length | 585mm | 585mm | 585mm | 585mm |
| Fork offset | 44mm | 44mm | 44mm | 44mm |
| Front center | 838mm | 808mm | 783mm | 878mm |
| Chainstay length | 440mm | 440mm | 440mm | 440mm |
| Wheelbase | 1276mm | 1246mm | 1221mm | 1316mm |
| Top tube | 623mm | 594mm | 569mm | 662mm |
| Standover height | 710mm | 700mm | 700mm | 720mm |
| Seat tube length | 420mm | 380mm | 380mm | 450mm |
| Seat tube angle | 77.8deg | 77.9deg | 77.9deg | 77.8deg |
Spec geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Crank length | — | — | — | — |
| Stem length | — | — | — | — |
| Handlebar width | — | — | — | — |
| Handlebar reach | — | — | — | — |
| Handlebar drop | — | — | — | — |
| Saddle width | — | — | — | — |
| Dropper post travel | — | — | — | — |
| Seatpost offset | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Kona Carbon, 162mm rear travel
Suspension

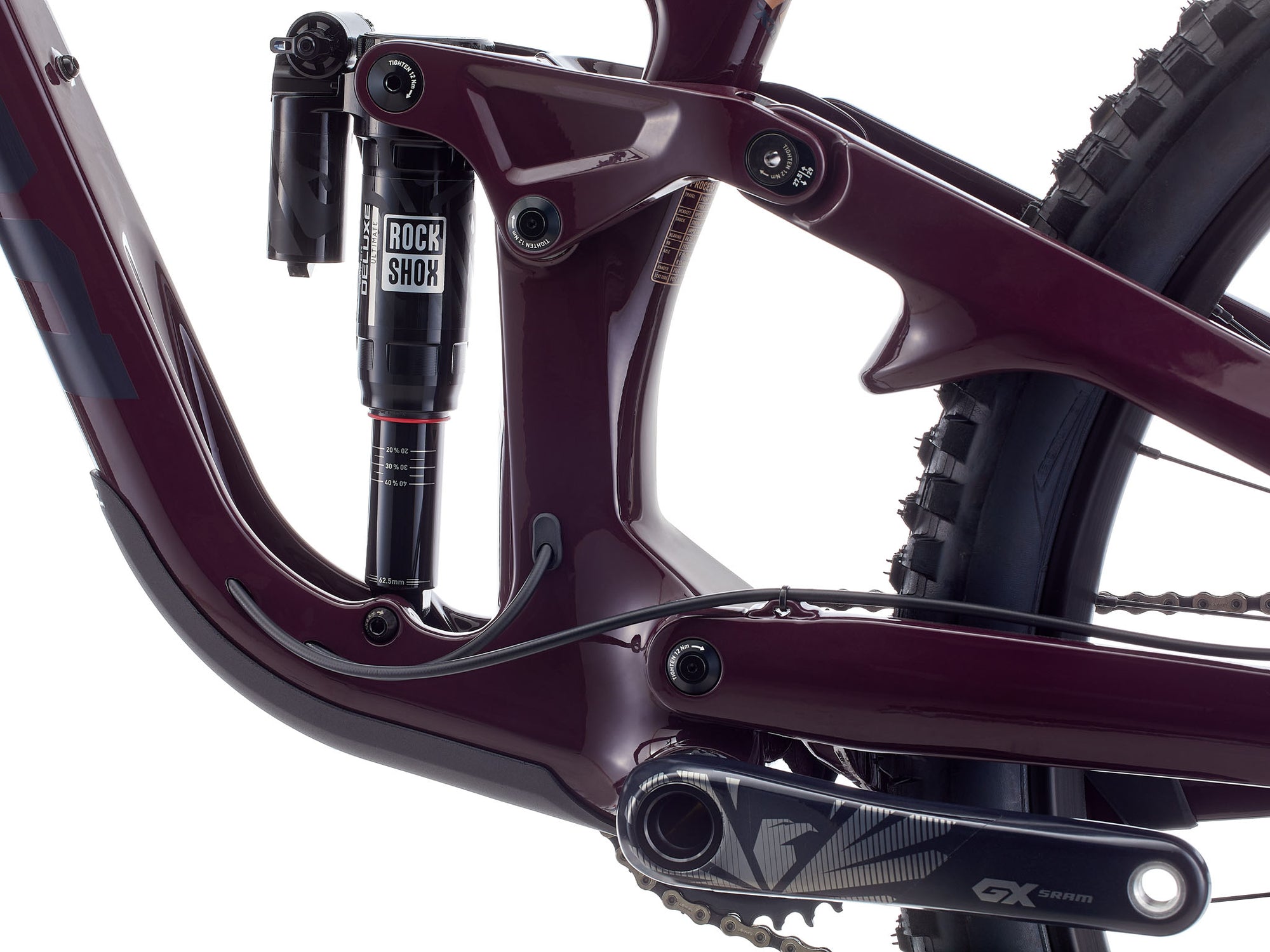

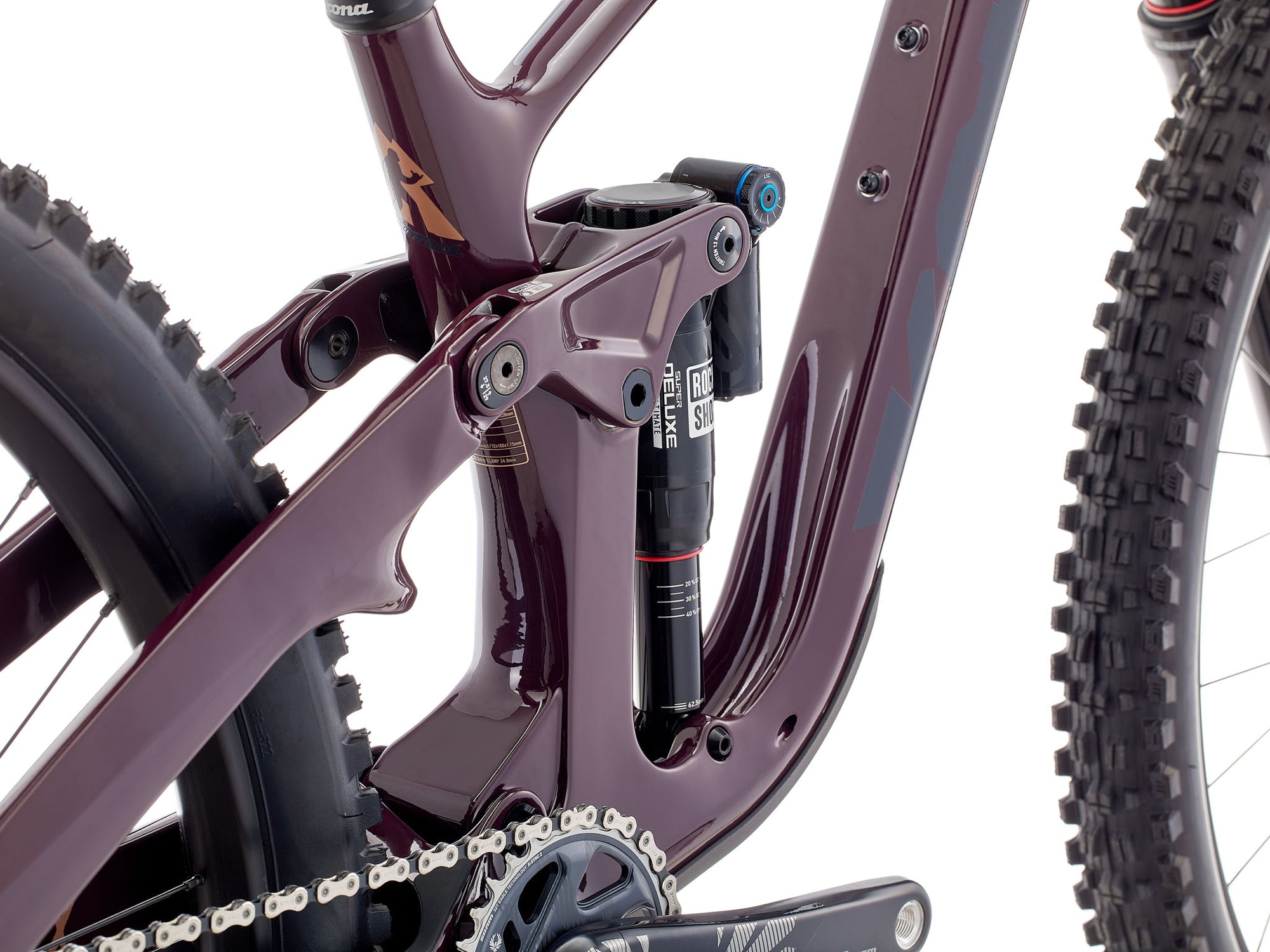

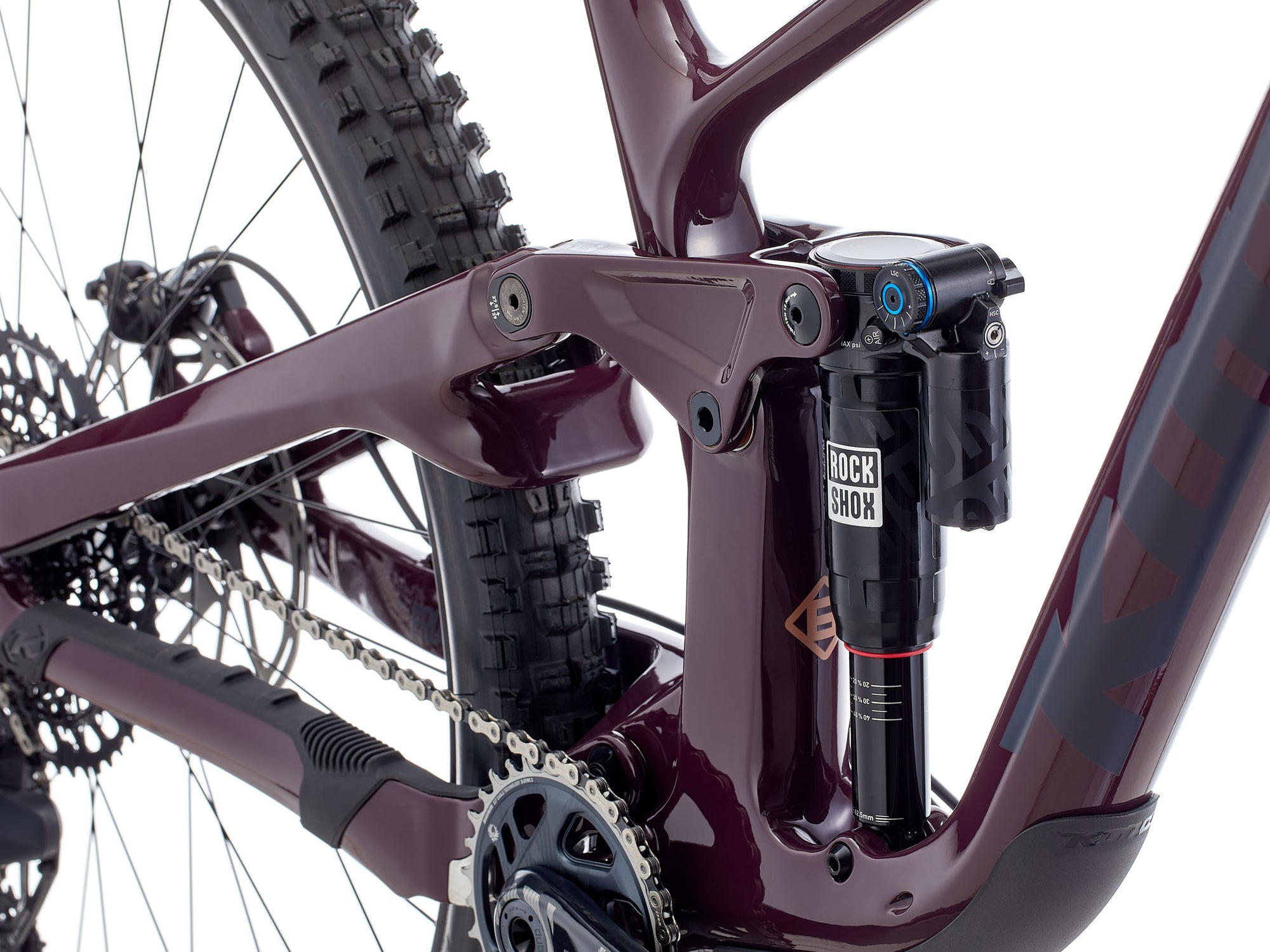

Rear shock
RockShox Super Deluxe Ultimate, Trunnion mount
Fork
RockShox ZEB Ultimate RC2, Charger 2.1, DebonAir, 170mm, tapered, 110mm spacing
Brakes
Front brake
SRAM Code RSC
Rear brake
SRAM Code RSC
Front rotor
SRAM CenterLine, 200mm
Rear rotor
SRAM CenterLine, 200mm
Drivetrain
Shift levers
SRAM GX AXS
Rear derailleur
SRAM GX AXS
Cassette
SRAM X01 Eagle, 12-speed, 10-52T
Chain
SRAM GX Eagle
Crankset
SRAM GX Eagle Carbon DUB crankarms with 32T X-Sync Eagle chainring
Bottom bracket
SRAM DUB PF92
Cockpit
Stem
Kona XC/BC 35
Handlebars
Kona XC/BC 35
Grips
Kona Key Grip
Saddle
WTB Volt
Seatpost
RockShox Reverb, 31.6mm, with 1x remote lever
Wheels & Tires
Front wheel
WTB KOM Trail i30 TCS; DT Swiss 350, 110x15mm; Double-butted spokes, 14/15/14g
Rear wheel
WTB KOM Trail i30 TCS; DT Swiss 350, 148x12mm; Double-butted spokes, 14/15/14g
Front tire
Maxxis Assegai, EXO+ TR, 3C, 29x2.5 WT
Rear tire
Maxxis Minion DHR II, EXO+ TR, 3C, 29x2.4 WT (S size: 27.5x2.4 WT)
