Mondraker

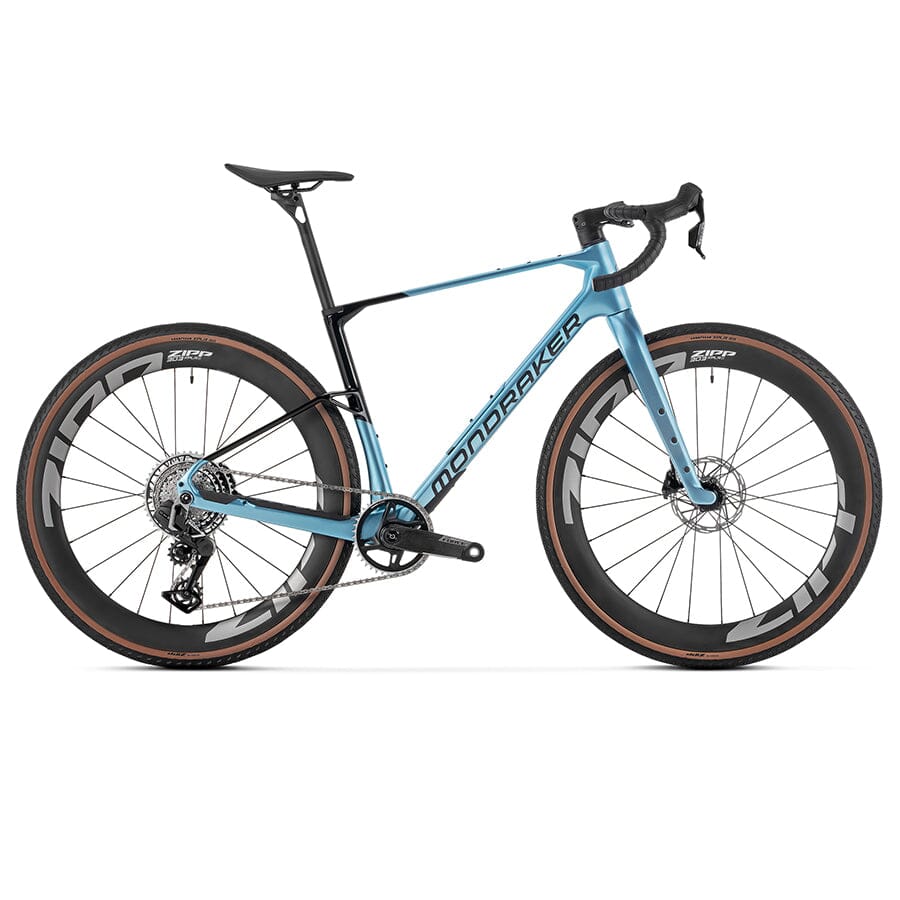

Arid Carbon RR
Gallery
Images
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | M/L | S | XL |
|---|---|---|---|---|---|
| Stack | 619mm | 572mm | 591mm | 548mm | 642mm |
| Reach | 423mm | 386mm | 411mm | 363mm | 446mm |
| Headtube length | 175mm | 125mm | 145mm | 100mm | 200mm |
| Headtube angle | 70deg | 70deg | 70deg | 70deg | 70deg |
| BB height | 269mm | 269mm | 269mm | 269mm | 269mm |
| BB drop | -75mm | -75mm | -75mm | -75mm | -75mm |
| Trail | — | — | — | — | — |
| Fork length | 420mm | 420mm | 420mm | 420mm | 420mm |
| Fork offset | 45mm | 45mm | 45mm | 45mm | 45mm |
| Front center | — | — | — | — | — |
| Chainstay length | 425mm | 425mm | 425mm | 425mm | 425mm |
| Wheelbase | 1089mm | 1035mm | 1067mm | 1003mm | 1121mm |
| Top tube | 600mm | 550mm | 580mm | 520mm | 630mm |
| Standover height | — | — | — | — | — |
| Seat tube length | 510mm | 450mm | 480mm | 410mm | 540mm |
| Seat tube angle | 73deg | 73deg | 73deg | 73deg | 73deg |
Spec geometry
| Geometry | L | M | M/L | S | XL |
|---|---|---|---|---|---|
| Crank length | 172.5mm | 170mm | 172.5mm | 170mm | 175mm |
| Stem length | 80mm | 70mm | 70mm | 60mm | 90mm |
| Handlebar width | 460mm | 440mm | 460mm | 440mm | 460mm |
| Handlebar reach | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — |
| Saddle width | 140mm | 140mm | 140mm | 140mm | 140mm |
| Dropper post travel | — | — | — | — | — |
| Seatpost offset | 15mm | 15mm | 15mm | 15mm | 15mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1x drivetrain design, Flatmount brake compatible
Suspension
Fork
Stealth Air Carbon fork, tapered steerer tube, HHG internal routing, flat-mount integrated fork
Brakes
Front brake
SRAM Force eTap AXS 2-piece caliper, steel-backed organic pads
Rear brake
SRAM Force eTap AXS 2-piece caliper, steel-backed organic pads
Front rotor
SRAM Paceline 160mm Center Lock rotor
Rear rotor
SRAM Paceline 160mm Center Lock rotor
Drivetrain
Shift levers
SRAM Force eTap AXS (12-speed) shift/brake levers
Rear derailleur
SRAM Force XPLR eTap AXS, 12-speed
Cassette
SRAM XG-1271, 12-speed, 10-44T
Chain
SRAM Force, 12-speed, PowerLock
Crankset
SRAM Force 1 Carbon, power meter, DUB axle — crank length: S 170mm / M 170mm / ML 172.5mm / L 172.5mm / XL 175mm; chainline 47.5mm
Bottom bracket
SRAM DUB T47 (BSA), sealed bearings, 85.5mm
Cockpit
Stem
OnOff Semi-Integrated stem, 31.8mm bar bore, -7° — length: S 60mm / M 70mm / ML 70mm / L 80mm / XL 90mm
Handlebars
OnOff S9 GR Carbon, 16° flare — width: S 440mm / M 440mm / ML 460mm / L 460mm / XL 460mm
Grips
OnOff HEX bar tape
Saddle
Fizik Terra Argo X5, 140mm
Seatpost
OnOff S9 Carbon 15-R, 27.2mm diameter, 15mm offset — length: S 400mm / M 400mm / ML 400mm / L 450mm / XL 450mm
Wheels & Tires
Front wheel
Mavic Allroad Pro Carbon SL (UST), 25mm internal, 42mm depth, hookless, 24 spokes; Mavic, 12x100mm, IS 6-bolt; Mavic steel double-butted flat spokes
Rear wheel
Mavic Allroad Pro Carbon SL (UST), 25mm internal, 42mm depth, hookless, 24 spokes; Mavic Infinity hub, 12x142mm, XD / ID360 ratchet system, IS 6-bolt, XDR freehub; Mavic steel double-butted flat spokes
Front tire
Maxxis Reaver 700x45, tubeless ready, dual compound, EXO protection, 120 TPI, folding bead
Rear tire
Maxxis Reaver 700x45, tubeless ready, dual compound, EXO protection, 120 TPI, folding bead
Weight
Weight
19.4 lbs
