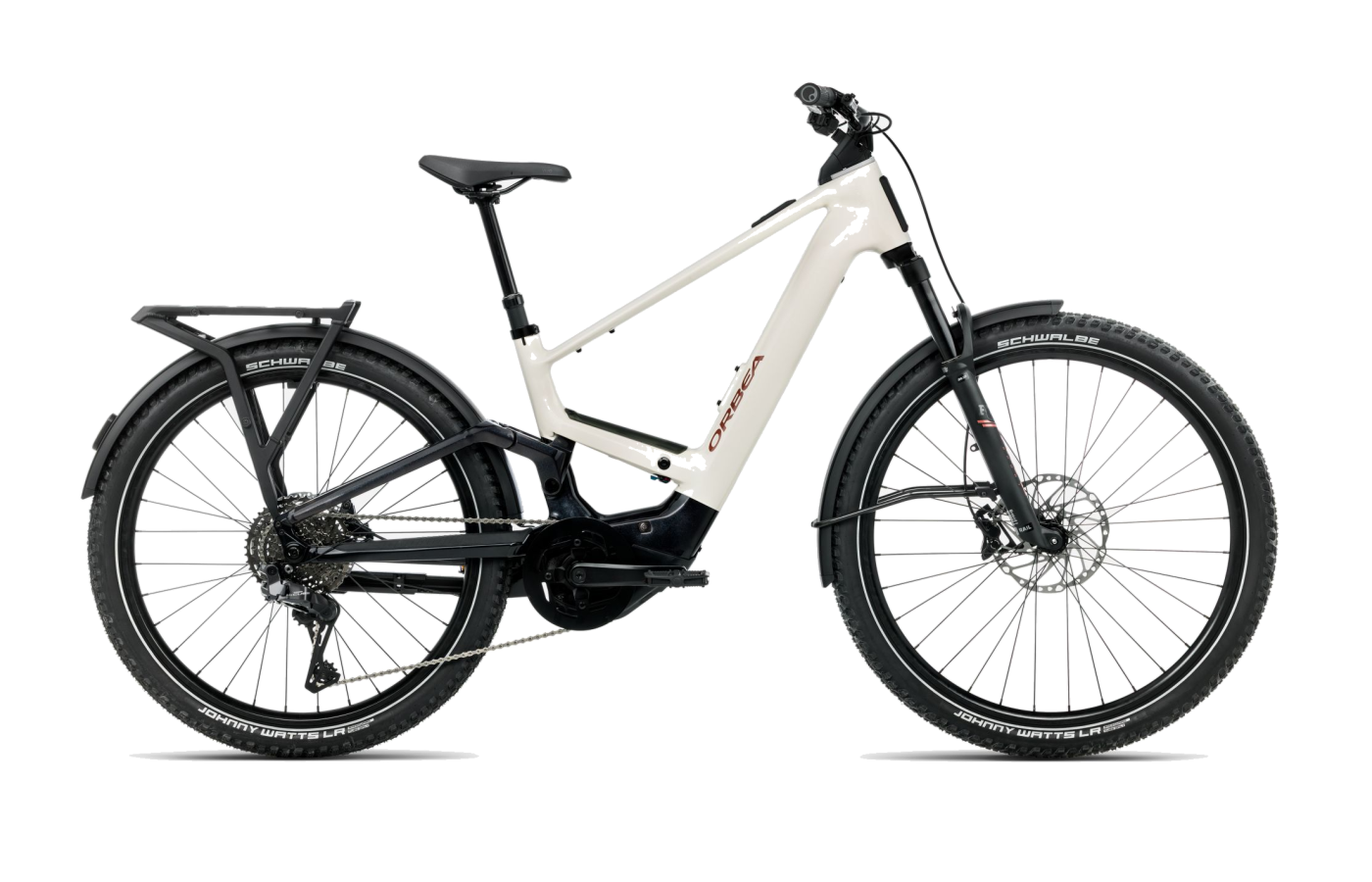

Muga

The Orbea Muga is a full-suspension utility e-bike designed to bridge the gap between daily urban commuting and light off-road touring. Introduced for 2026, the hydroformed alloy frame pairs 115mm of rear suspension with a 120mm fork, creating a platform that prioritizes comfort and cargo capacity over aggressive trail performance. Orbea equips the Muga with a Bosch Performance Line CX motor and integrates a suite of practical features, including a 30-kilogram-rated rear rack, full fenders, and a comprehensive onboard lighting system.

The bike rolls on a mixed-wheel setup—a 29-inch front wheel and a 27.5-inch rear—aimed at maintaining maneuverability despite the substantial weight of the motor, battery, and utility hardware. It suits riders looking for a single, highly capable machine to handle loaded grocery runs, rough city streets, and weekend gravel excursions without needing to swap bikes or add aftermarket accessories.

Build

Size

Stack	675mm
Reach	495mm
Top tube	663.3mm
Headtube length	155mm
Standover height	787mm
Seat tube length	430mm

Fit and geometry

The Muga utilizes a geometry concept borrowed from modern mountain bikes but adapted for touring and utility. A 66.5-degree head tube angle provides high-speed stability and predictable steering, keeping the front wheel tracking straight when the bike is heavily loaded. This is paired with a steep 76-degree seat tube angle across all sizes, which centers the rider over the bottom bracket. This upright, forward-biased seated position improves pedaling efficiency and prevents the front wheel from wandering on steep climbs.

To maintain maneuverability, Orbea uses relatively compact 466.5mm chainstays. This keeps the rear wheel tucked in, allowing the bike to navigate tight urban corners more easily than a traditional long-wheelbase cargo bike. A 36mm bottom bracket drop keeps the center of gravity low, aiding balance at low speeds.

Fit is highly customizable through a proprietary four-position adjustable cockpit, allowing riders to toggle between a relaxed, upright stance for city traffic and a lower, stretched-out posture for longer trekking routes. Additionally, every frame size comes standard with a dropper seatpost, enabling riders to quickly lower their saddle for stable footing at stoplights or a lower center of gravity on descents.

Builds

The Muga lineup features two primary builds, both utilizing the Bosch Performance Line Speed CX motor and a hydroformed alloy frame. The entry-level Muga 30 28mph includes a 600Wh internal battery, a mechanical 11-speed Shimano Cues U6000 drivetrain, and an SR Suntour Mobie34 air fork. It delivers the core utility and suspension benefits of the platform at a more accessible price.

Stepping up to the Muga 20 28mph introduces significant electronic and suspension upgrades. This build increases battery capacity to 750Wh for extended range and swaps to a Shimano Cues Di2 electronic rear derailleur, ensuring precise gear changes under heavy motor load. The front suspension also upgrades to a Fox 34 Float AWL Sport fork, matching the Fox Float Performance rear shock shared across both models.

Both builds feature identical utility hardware, including the integrated lighting system, custom kickstand, and heavy-duty rear carrier. They roll on the same alloy wheels wrapped in reflective Schwalbe Johnny Watts tires and rely on Shimano MT420 hydraulic disc brakes to manage the bike's weight. The Muga 20 is ideal for riders wanting maximum range and refined shifting, while the 30 offers strong value for those content with traditional mechanical components.

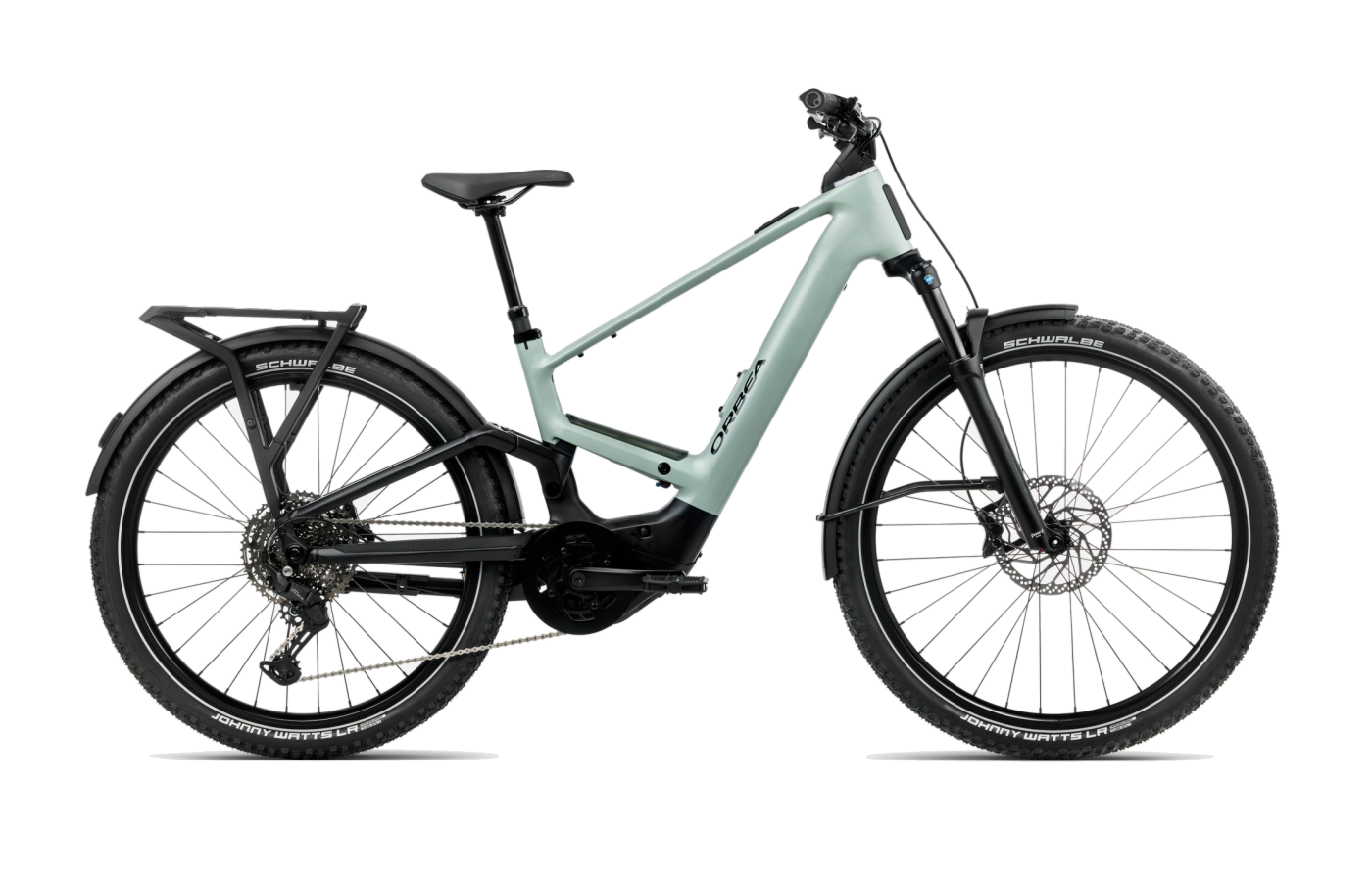

30 28mph

$4,999

20 28mph

$5,999

Reviews

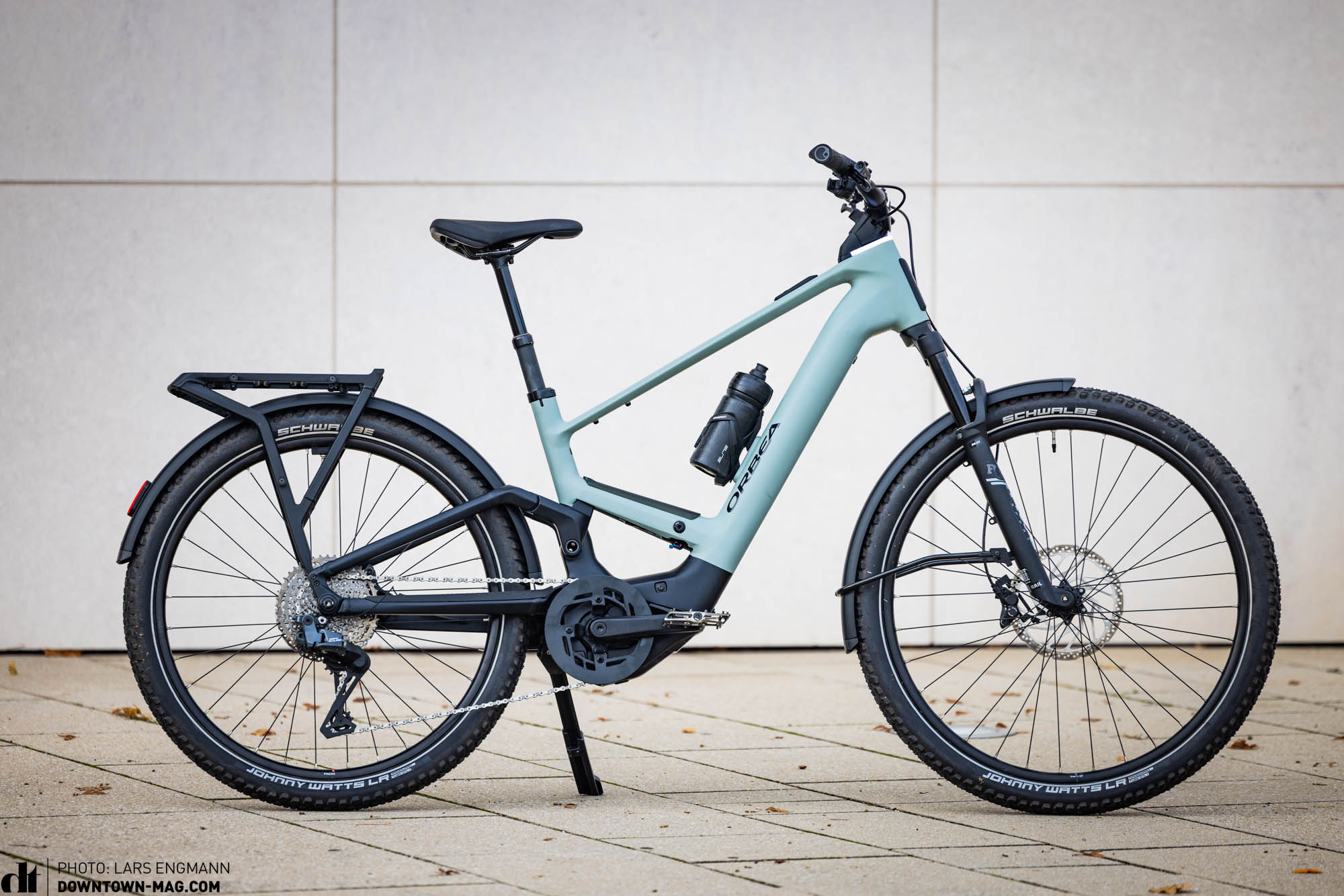

Reviewers characterize the Muga as a highly versatile trekking machine that manages its substantial mass with surprising grace. Despite weighing over 28 kilograms, testers found the bike "responds instantly to steering input, feeling agile rather than sluggish" (Downtown-mag) when navigating tight city streets or winding paths. The suspension kinematics and frame construction earn consistent praise for their refinement. Multiple outlets noted the bike's silent operation over rough surfaces, with one tester observing that the integrated fenders and internal routing are so secure that riders "hear nothing but birdsong" (Downtown-mag) in the woods.

On dirt and gravel, the suspension is tuned for momentum and comfort rather than large impacts. The setup is "soft over small bumps, which are barely felt" (Cyclingelectric), making it highly effective for long days on corrugated fire roads. However, testers caution that the moderate rear travel requires careful line choices on rocky singletrack.

While the ride quality is highly regarded, reviewers pointed out a few ergonomic and design tradeoffs. The proprietary adjustable cockpit, while useful for dialing in fit, is mechanically complex to adjust. Additionally, the permanent integration of the battery into the downtube means the entire bike must be brought to an outlet for charging. Finally, one reviewer noted that the bike's mass "feels a little balanced toward the back" (Cyclingelectric), a trait that becomes more pronounced when the rear rack is fully loaded.
