Urrun 20 20mph

The 2025 Orbea Urrun is a 29-inch electric hardtail designed for long-distance trail riding, rugged commuting, and steep backcountry ascents. Orbea redesigned the aluminum frame for this generation, focusing on improved compliance and updated geometry to handle the demands of a high-torque mid-drive motor. By pairing front suspension with a rigid rear end, the bike creates a highly efficient pedaling platform that maximizes battery range and motor output. Rather than chasing lightweight agility, the Urrun embraces its mass to deliver a stable, grounded ride. It suits adventure riders and explorers who prioritize reliable traction and climbing power over aerial maneuvers or aggressive downhill speed.

$3,799630 Wh battery; Shimano EP6 RS Gen 2 MC; Shimano Cues 6000 11s; Marzocchi Z2 120 mm
Orbea Urrun 20 20mph
Build
Size
Stack639mm
Reach455mm
Top tube624mm
Headtube length115mm
Standover height791mm
Seat tube length450mm

Fit and geometry

The 2025 redesign brings modern trail geometry to the Urrun platform, highlighted by a longer reach and significantly shorter seat tubes. Reach measurements now span 410mm to 475mm across the four sizes, stretching the rider's stance for better balance on steep terrain. To accommodate this longer front center, Orbea shortened the seat tubes—dropping the large frame from 483mm to 450mm—and removed internal interruptions. This allows riders to run longer-travel dropper posts, getting the saddle completely out of the way on descents.

The front end is anchored by a 66-degree head tube angle and a 120mm fork, providing a steady steering feel that resists wandering on climbs. A 63mm bottom bracket drop keeps the rider's center of gravity low, enhancing cornering stability. Chainstays remain a moderate 445mm, balancing rear-wheel traction with enough length to keep the front tire planted when the high-torque motor surges on steep pitches.

Full specs

Frameset

Frame

Orbea Urrun

Fork

Marzocchi Bomber Z2 120 QR15x110 E-Bike Optimized

Groupset

Shift levers

Shimano Cues SL-U6000

Rear derailleur

Shimano Cues U6000 GS Shadow

Cassette

Shimano CS-LG400 11-50t 11-Speed

Chain

Shimano LG500

Crankset

Shimano EN500; Crank Length: 170mm, Alloy EP8/6 32t

Bottom bracket

Shimano EP600 RS Gen2 MC

Front brake

Shimano MT420 Hydraulic Disc

Rear brake

Shimano MT420 Hydraulic Disc

Front rotor

null

Rear rotor

null

Wheelset

Front wheel

Alloy, Tubeless, 29", 29c, 32H

Rear wheel

Alloy, Tubeless, 29", 29c, 32H

Front tire

Schwalbe Smart Sam Performance, 29x2.35, Addix, Black

Rear tire

Schwalbe Smart Sam Performance, 29x2.35, Addix, Black

Cockpit

Stem

OC Mountain Control MC20, 0º; S: 40mm, M-XL: 50mm

Handlebars

OC Mountain Control MC31, Rise20, Width 800; S: 720mm, M-XL: 800mm

Saddle

Fortune QF-3091

Seatpost

OC Mountain Control MC22, 31.6mm, Dropper; S-M: 408/125mm, L-XL: 458/150mm

Builds

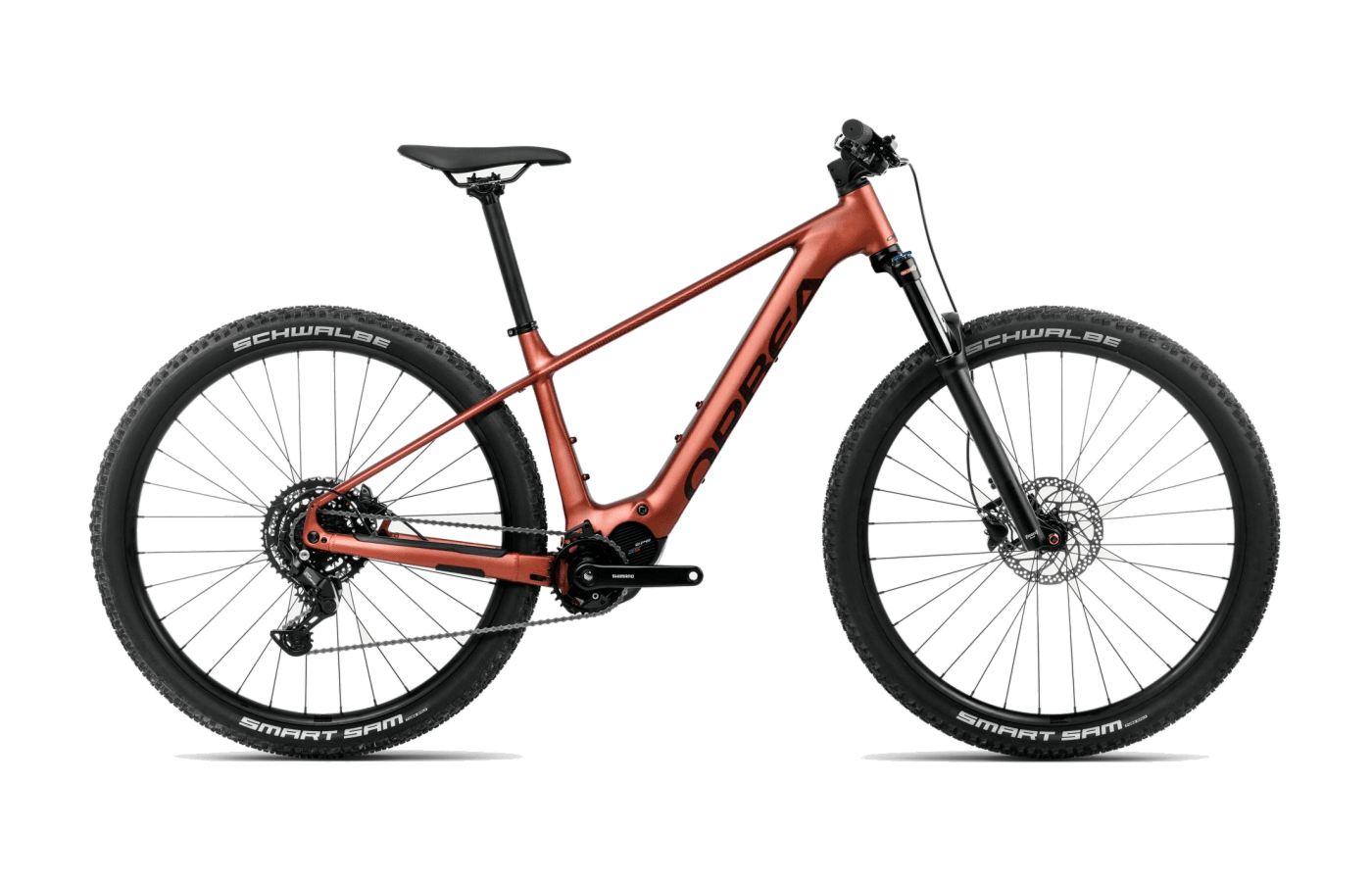

The Urrun lineup spans three builds, ranging from $2,999 to $4,499, all utilizing the same redesigned aluminum frame and Shimano RS Gen2 MC electronics. The entry-level Urrun 30 features a 540Wh battery, a 9-speed Shimano Cues drivetrain, and a coil-sprung SR Suntour XCR32 fork. It serves as a utilitarian entry point, though it lacks a dropper post.

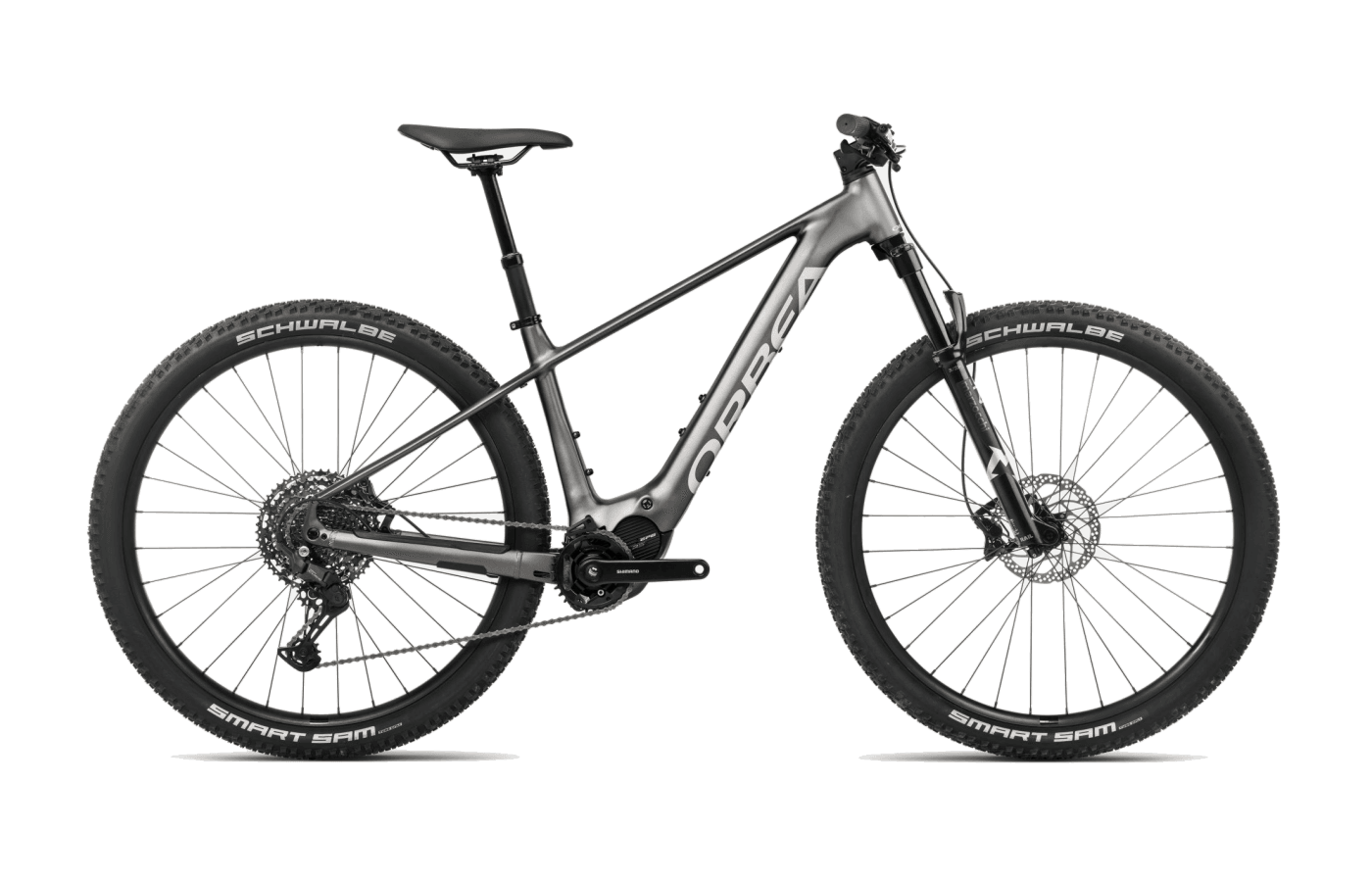

Moving to the Urrun 20 introduces significant upgrades, including a larger 630Wh battery, an 11-speed Cues drivetrain, and a Marzocchi Bomber Z2 air fork. This mid-tier model also adds a dropper post and four-piston front brakes, making it a highly capable option for regular trail use. The flagship Urrun 10 retains the 630Wh battery and Marzocchi fork but upgrades to a 12-speed Shimano XT drivetrain and four-piston brakes front and rear. The XT group provides faster, more precise shifting under the motor's heavy load, representing the best performance value for riders tackling demanding backcountry routes.

Reviews

Critics characterize the Urrun as a highly capable climber that favors stability over playfulness. The 85Nm Shimano motor is a focal point, with testers noting that the substantial torque makes "steep, technical climbs feel much less brutal" (Opticycles). Reviewers praise the motor's power delivery as smooth and predictable, allowing riders to tackle long ascents with minimal fatigue. On the way down, the bike's weight and 29-inch wheels help it stay "controlled on fast, rough descents" (Opticycles), effectively damping trail chatter despite the lack of rear suspension.

However, this grounded nature comes with a clear handling tradeoff. The combined mass of the aluminum frame, motor, and internal battery limits the bike's agility. Testers point out that "manual moves and big jumps feel harder to execute" (Opticycles) compared to lighter e-mountain bikes. Consequently, reviewers recommend the Urrun for endurance-focused trail riders and commuters rather than those looking for a poppy, jump-ready hardtail.
