Frameset
Frame
Shuttle SL
The Pivot Shuttle SL is Pivot’s lightweight e-trail bike built around a full-carbon dw-link chassis, the Fazua Ride 60 drive unit, and a fixed 430 Wh battery. In a market crowded with 50-plus-pound full-power e-MTBs, the Shuttle SL is defined by its low system weight, compact motor integration, and a ride character that aims to preserve the feel of a modern analog trail bike. The platform uses 132 mm of rear travel with a 140–150 mm fork, 29-inch wheels, internal routing, UDH compatibility, Super Boost 157 spacing, and a low/high geometry adjustment, all pointing to a bike designed around precise handling and efficient power transfer rather than maximum travel or maximum motor output.
What makes this generation distinctive is how deliberately it balances trail-bike manners with light-assist capability. The dw-link suspension gives it a notably supportive pedaling platform, while the Fazua system’s 60 Nm output keeps the bike in the super-light category instead of chasing full-power numbers. That places the Shuttle SL at the premium end of the light-assist segment, aimed at riders who want to cover more ground and climb faster without giving up the responsiveness, pop, and line choice of a conventional 29er trail bike. It is less a mini-downhill e-bike than a fast, technical, highly refined trail tool for experienced riders who prioritize handling and efficiency over brute-force stability and huge range.

| Stack | 645mm |
| Reach | 480mm |
| Top tube | 647mm |
| Headtube length | 130mm |
| Standover height | 679mm |
| Seat tube length | 432mm |
The published geometry is modern but not extreme, and it helps explain why the Shuttle SL is widely described as quick, precise, and easy to maneuver. In size Large, the bike has a 480 mm reach, 645 mm stack, 64.5-degree head tube angle, 76.9-degree seat tube angle, 444 mm chainstays, and a 1266 mm wheelbase. That combination points to a centered riding position with efficient seated climbing and reasonably aggressive front-center length, but without the ultra-long, ultra-slack layout of gravity-focused e-bikes. The relatively steep 76.9-degree seat angle should keep rider weight forward on climbs, while the 64.5-degree head angle is slack enough for confidence without pushing the bike into a plow-oriented handling style.
Across the size range, the geometry stays very consistent: all sizes use 444 mm chainstays, while reach runs from 425 mm on XS to 500 mm on XL. The moderate wheelbase figures and 24 mm BB drop on most sizes suggest a bike that will change direction readily and feel responsive in tighter terrain. That aligns with reviewer feedback that the Shuttle SL excels on flow trails and technical climbs but can feel less planted than heavier, longer e-bikes when speeds rise and the terrain gets especially rough. The stack numbers are not especially tall for the category, so some riders—particularly those spending a lot of time on steep climbs or rough descents—may prefer a higher-rise bar or cockpit tweaks to add front-end height.
Frameset
Frame
Shuttle SL
Groupset
Shift levers
Build Kit: Pro X0 Eagle Transmission
Rear derailleur
Sram X0 Eagle Transmission 12-Speed
Cassette
Sram X0 1295 Eagle Transmission 10-52t
Chain
Sram X0 Eagle Flattop 12-Speed
Crankset
Praxis Alloy eCranks E-MTB 34t - 160mm
Bottom bracket
Build Kit: Pro X0 Eagle Transmission
Front brake
Sram Motive Silver 4-piston
Rear brake
Sram Motive Silver 4-piston
Front rotor
Sram Motive Silver 4-piston
Rear rotor
Sram Motive Silver 4-piston
Wheelset
Front wheel
DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 15x110 F/12x157 R
Rear wheel
DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 15x110 F/12x157 R
Cockpit
Stem
Build Kit: Pro X0 Eagle Transmission
Handlebars
Build Kit: Pro X0 Eagle Transmission
Saddle
Phoenix WTB Pro High Tail Trail (SM), Phoenix RaceGrip Pro Saddle (XS, MD-XL)
Seatpost
Build Kit: Pro X0 Eagle Transmission

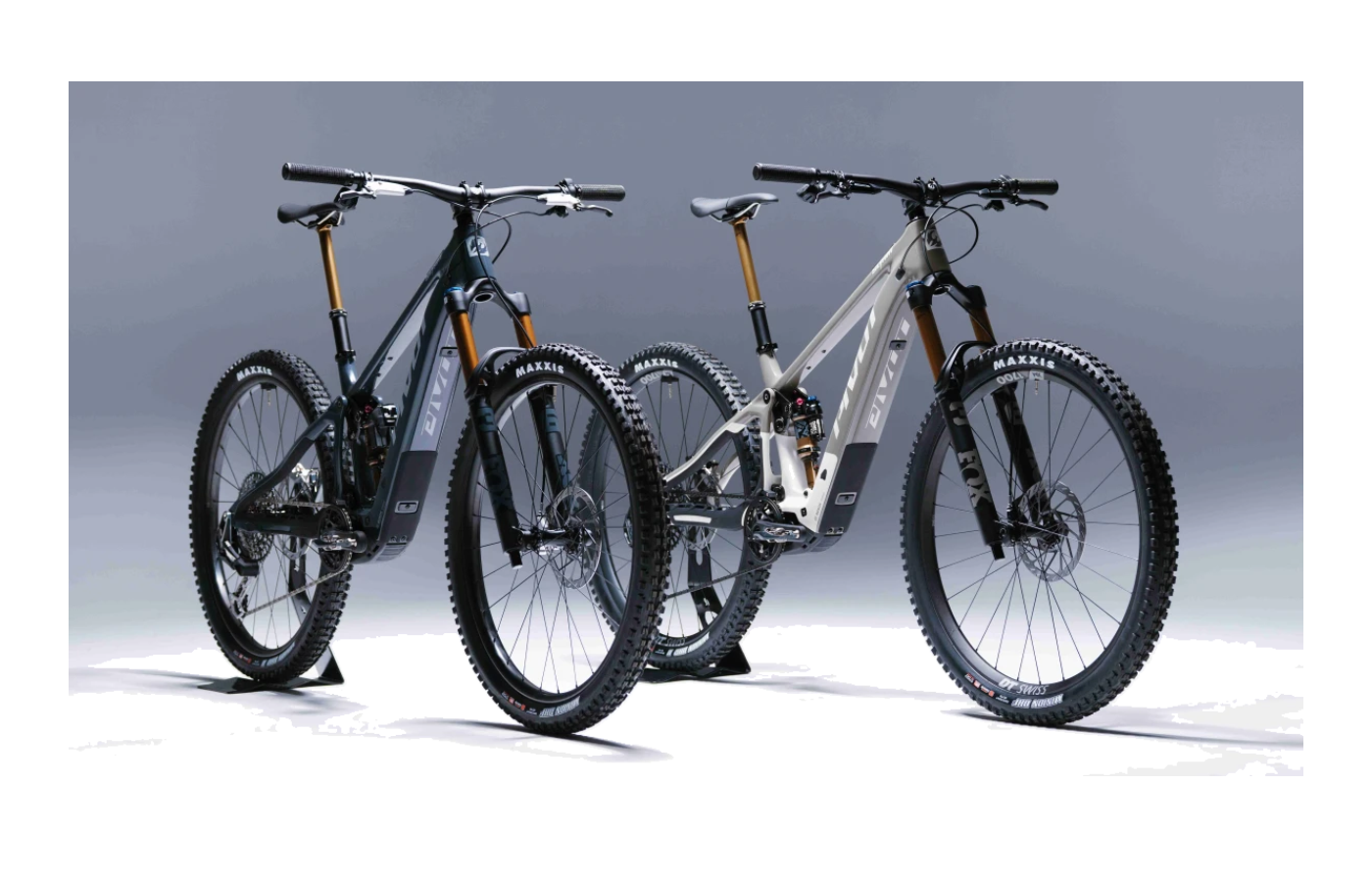

The Shuttle SL lineup spans from the Ride Eagle 70/90 at $8,499 to the Pro X0 Eagle Transmission at $11,199 and the Team XX Eagle Transmission at $13,199. Even the entry point sits firmly in premium territory, which reflects the carbon frame, Fazua Ride 60 system, and boutique positioning more than aggressive value pricing. The range is structured in a familiar way: the Ride model is the access point for riders who want the same chassis and motor platform at the lowest cost, while the Pro and Team builds move into high-end drivetrain territory with SRAM Transmission-equipped packages.
Review coverage focused heavily on the upper-end builds, where the bike’s low weight is reinforced by premium components. Testers specifically praised high-end wheel packages such as Reynolds Blacklabel carbon wheels with Industry Nine Hydra hubs on top trims for contributing to the bike’s sharp acceleration and lively feel. At the same time, reviewers questioned whether certain stock parts fully matched the asking price, especially the use of fast-rolling Maxxis Dissector tires and a 180 mm rear rotor on expensive builds. That means the pricier versions deliver the lightest, most responsive interpretation of the Shuttle SL concept, but some buyers may still budget for tire or brake upgrades depending on terrain and riding style.
Reviewers were broadly aligned on the Shuttle SL’s core appeal: it feels unusually close to a non-motorized trail bike for an e-MTB. Blister measured its Team XTR test bike at 39.38 lb, and multiple outlets described the bike as lively, playful, and easy to preload or place accurately on trail. Mountain Bike Action and Blister both emphasized how the lower mass changes braking points and cornering compared with heavier e-bikes, while Jeff Kendall-Weed and others noted that getting it airborne requires body English much closer to a regular enduro or trail bike than a 50-pound full-power machine. The 132 mm dw-link rear suspension also drew consistent praise for feeling deeper than the number suggests, with Blister calling out excellent bottom-out resistance and Enduro MTB highlighting its combination of small-bump sensitivity and strong support when pumping terrain.
Climbing performance was another recurring strength. Mountain Bike Action described it as one of the best-climbing mountain bikes they had ridden, and several reviewers credited the dw-link platform for minimizing bob while maintaining traction. The Fazua Ride 60 system was widely praised for its quiet operation and natural, punchy delivery, with some testers noting that Pivot’s tuning makes the bike feel more eager than other Fazua-equipped models. At the same time, reviewers also identified clear trade-offs. Enduro MTB, Ebike-MTB, and 99 Spokes all noted that the Shuttle SL’s direct, stiff chassis can be demanding in rough terrain, feeding more trail feedback to the rider than heavier, more muted e-bikes. In high-speed chunder, some found it darty or less composed than longer, heavier alternatives, and several criticized stock choices such as the Maxxis Dissector tires and 180 mm rear rotor for underserving the bike’s descending capability. Early Fazua-related issues including delayed engagement, remote complaints, and isolated motor problems were also noted, though most reviewers said later firmware updates improved the system substantially.
![[R]eviewed // Pivot Shuttle SL - [R]evolution MTB](https://paklmrfyhygqlkyhjcnf.supabase.co/storage/v1/object/public/storage/review-images/pivot/shuttle-sl/generation-2023-present/review-581821dc1ea5.jpg)
Revolutionmtb

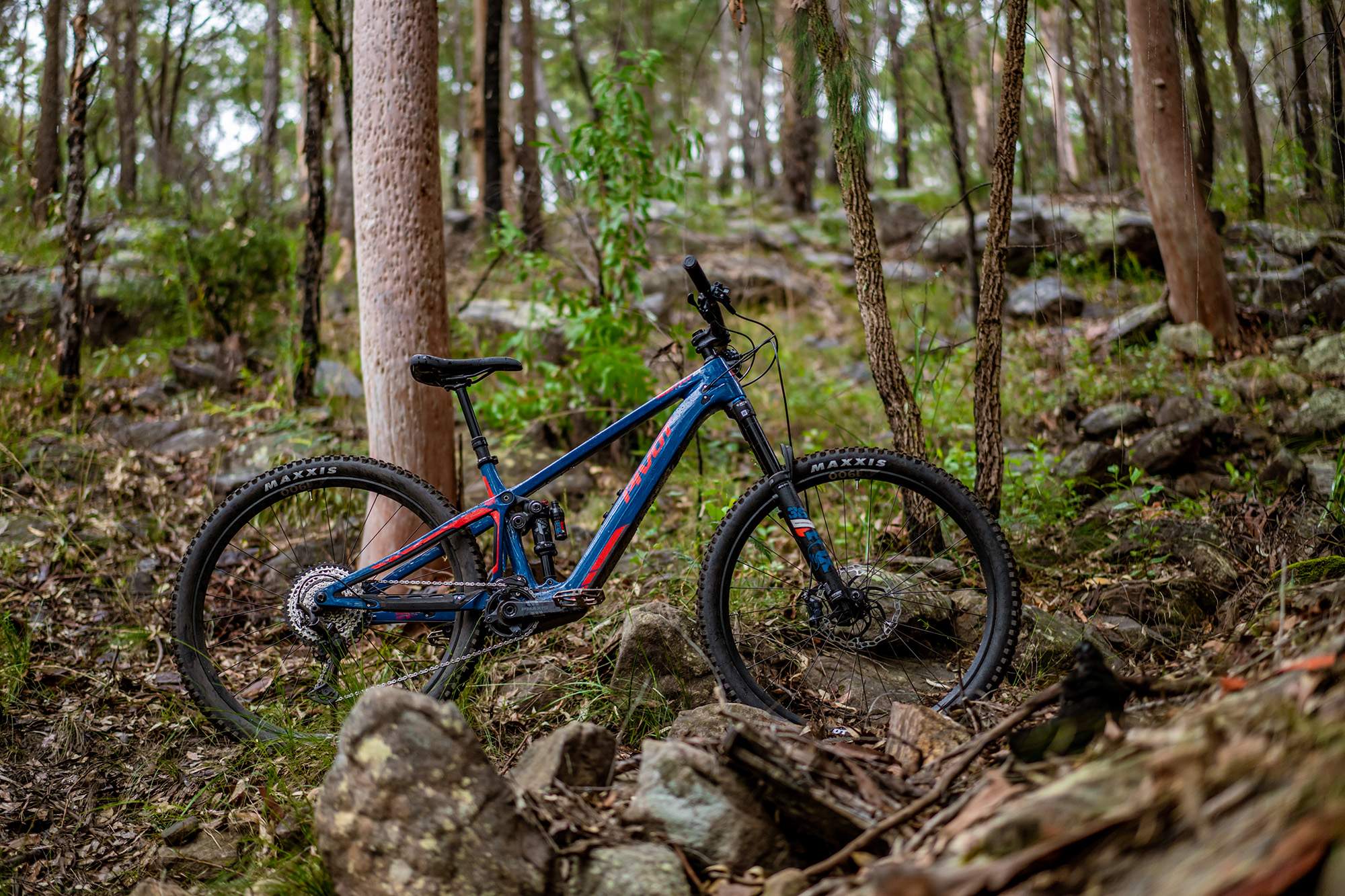

[R]eviewed // Pivot Shuttle SL - [R]evolution MTB

Theloamwolf

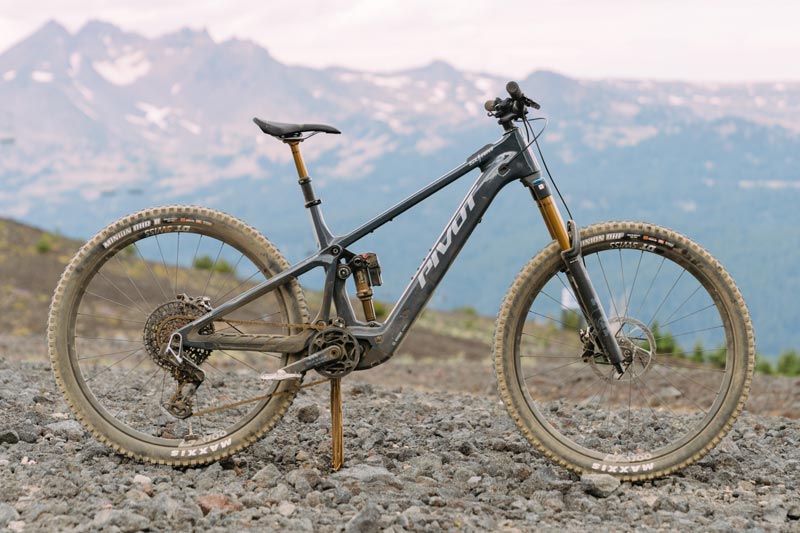

PIVOT SHUTTLE SL/AM REVIEW

Theloamwolf

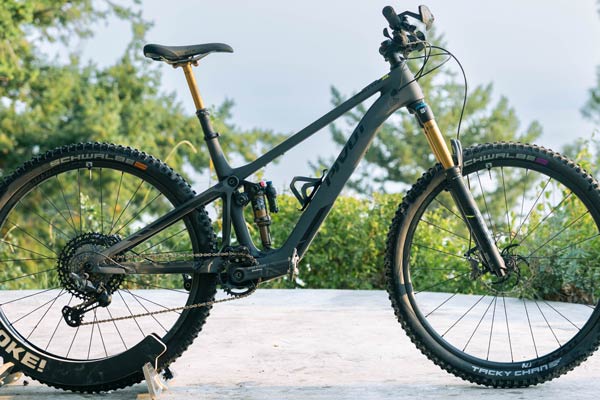

Pivot Shuttle SL Lightweight eMTB Review - The Loam Wolf

Blisterreview

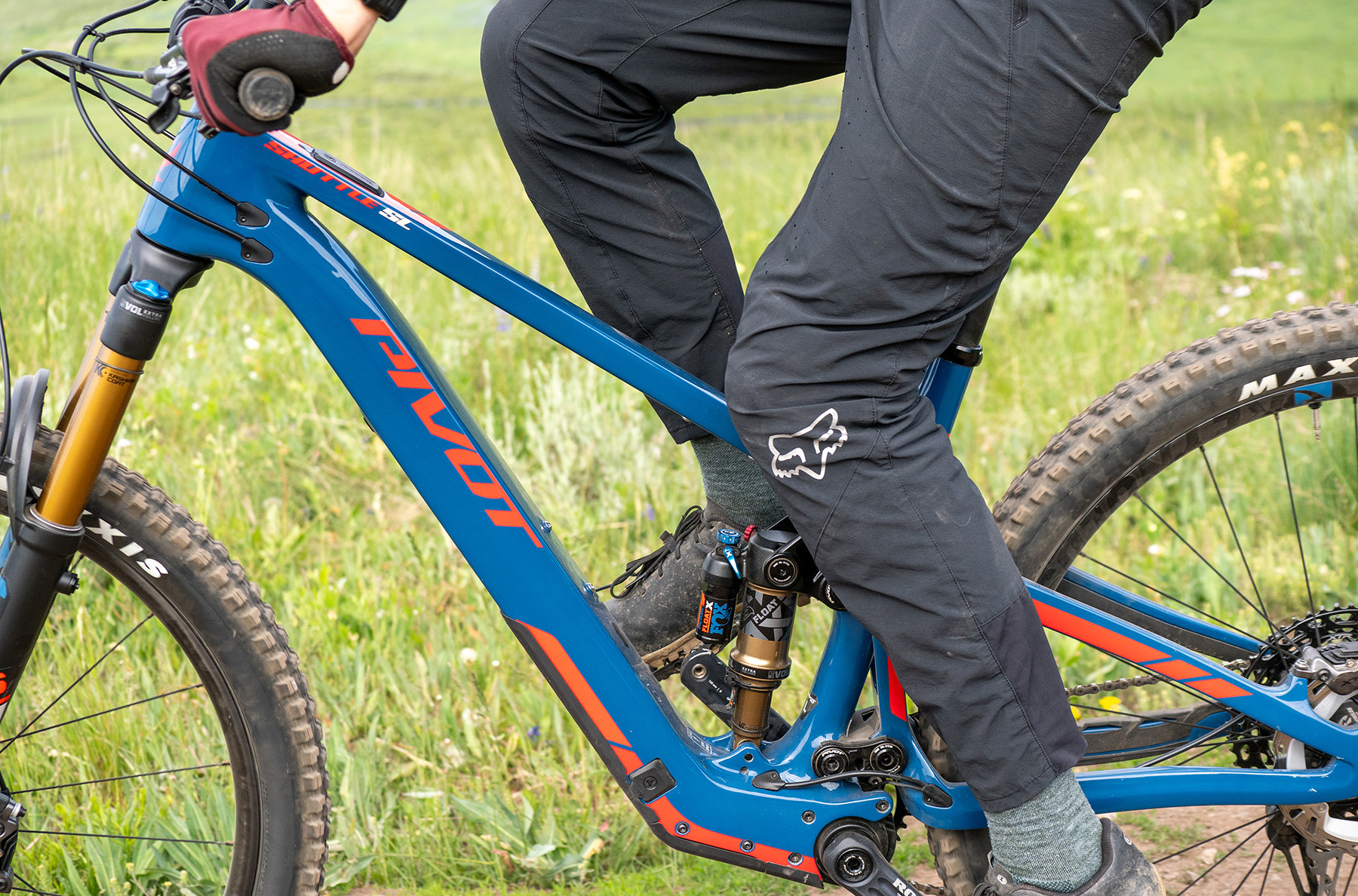

Pivot Shuttle SL - Blister Review

YouTube

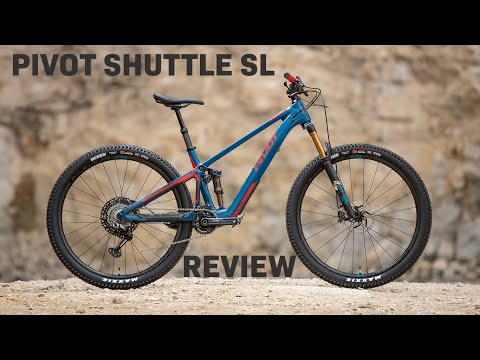

Average Joe Pivot Shuttle SL Review - YouTube

YouTube

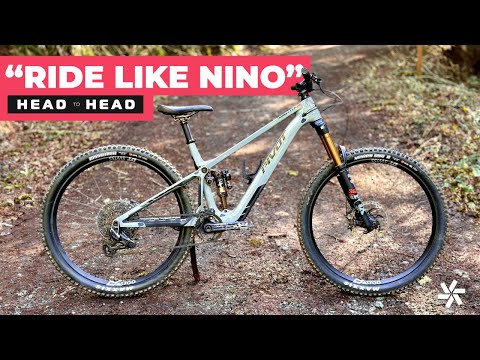

Pivot Shuttle SL Review: 2024 Lightweight E-MTB Group Test

Skibase

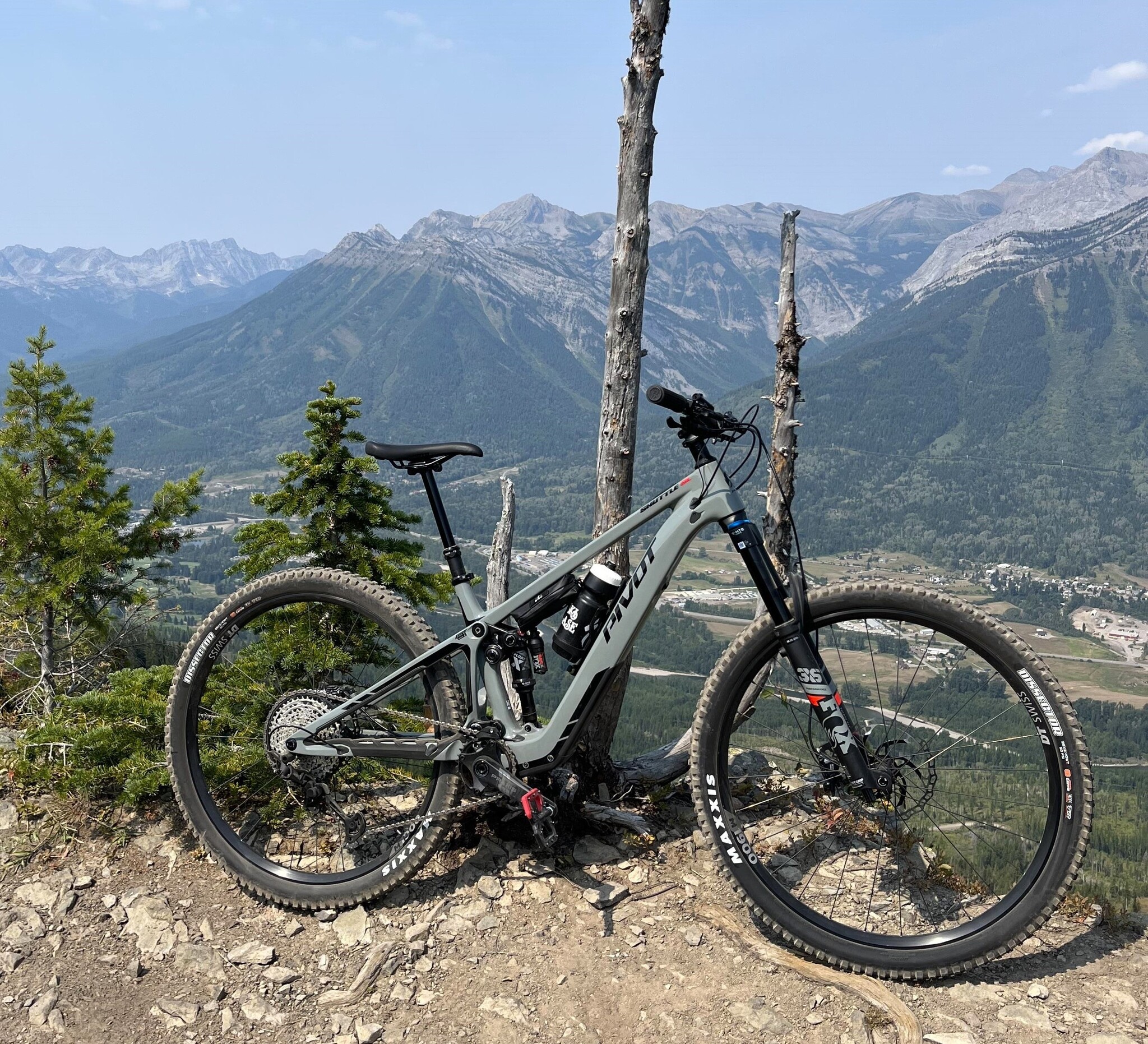

Jeff's Pivot Shuttle SL E-Mtb Review - Ski Base

YouTube

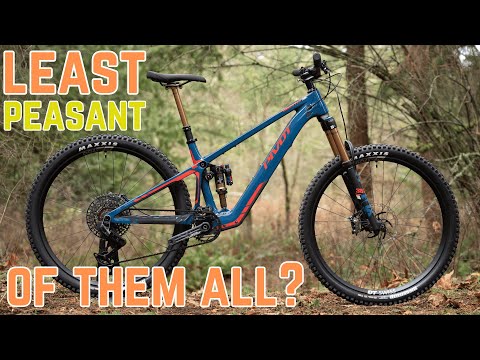

Pivot Shuttle SL Review - YouTube

YouTube
Pivot Shuttle SL Speed and Sound Test - how is it so fast and quiet??

YouTube
Light, Fast, Playful - Pivot Shuttle SL Review | 2023 eMTB SL Roundup
![Is Pivot Shuttle SL Team XTR A Perfect Selection? - [Pivot Shuttle SL Team XTR Review]](https://paklmrfyhygqlkyhjcnf.supabase.co/storage/v1/object/public/storage/review-images/pivot/shuttle-sl/generation-2023-present/review-604f2c825c23.jpg)
Bestbikeselect

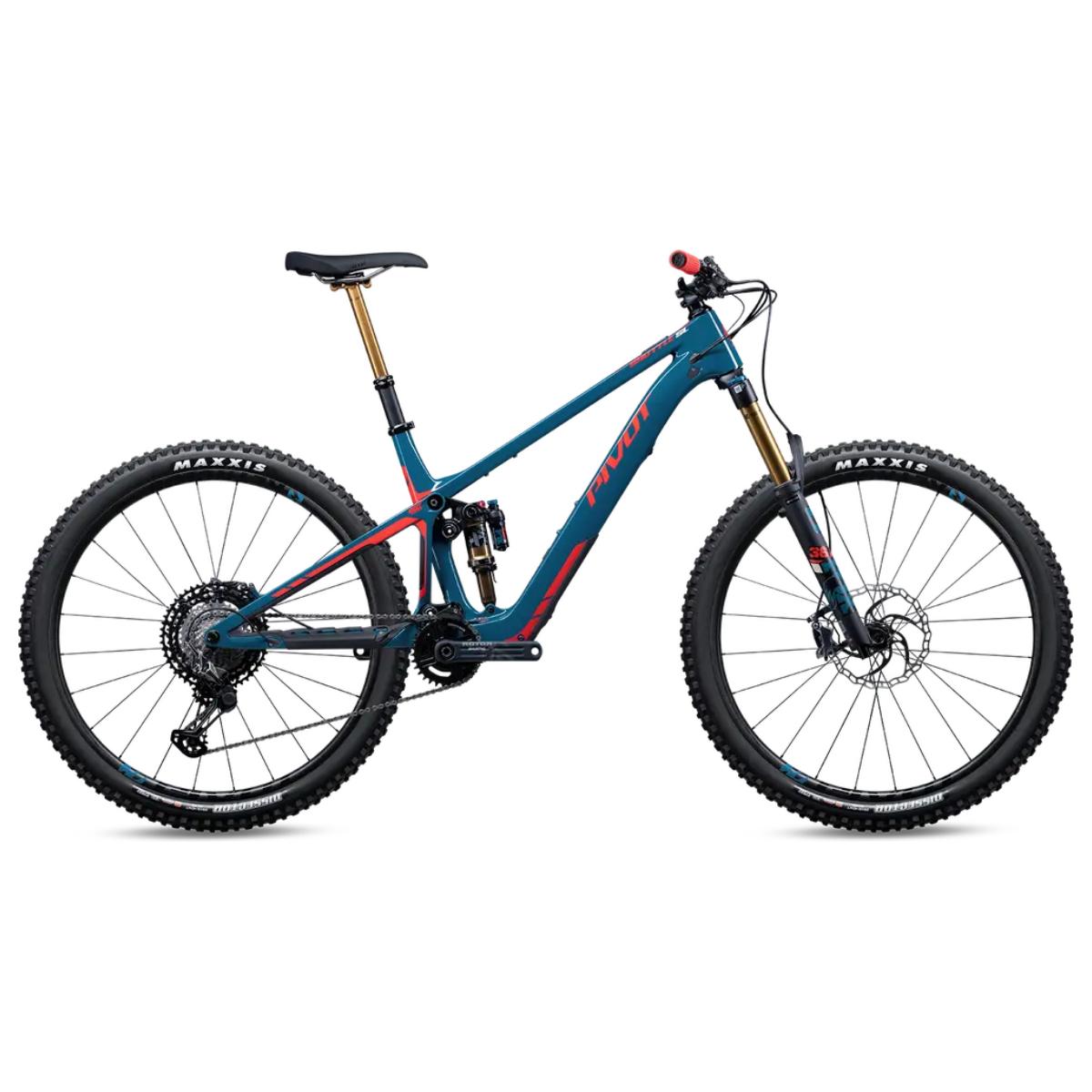

Is Pivot Shuttle SL Team XTR A Perfect Selection? - [Pivot Shuttle SL Team XTR Review]

Mountain Bike Action
PIVOT SHUTTLE SL LIGHTWEIGHT ELECTRIC MOUNTAIN BIKE ...

Emtb-test

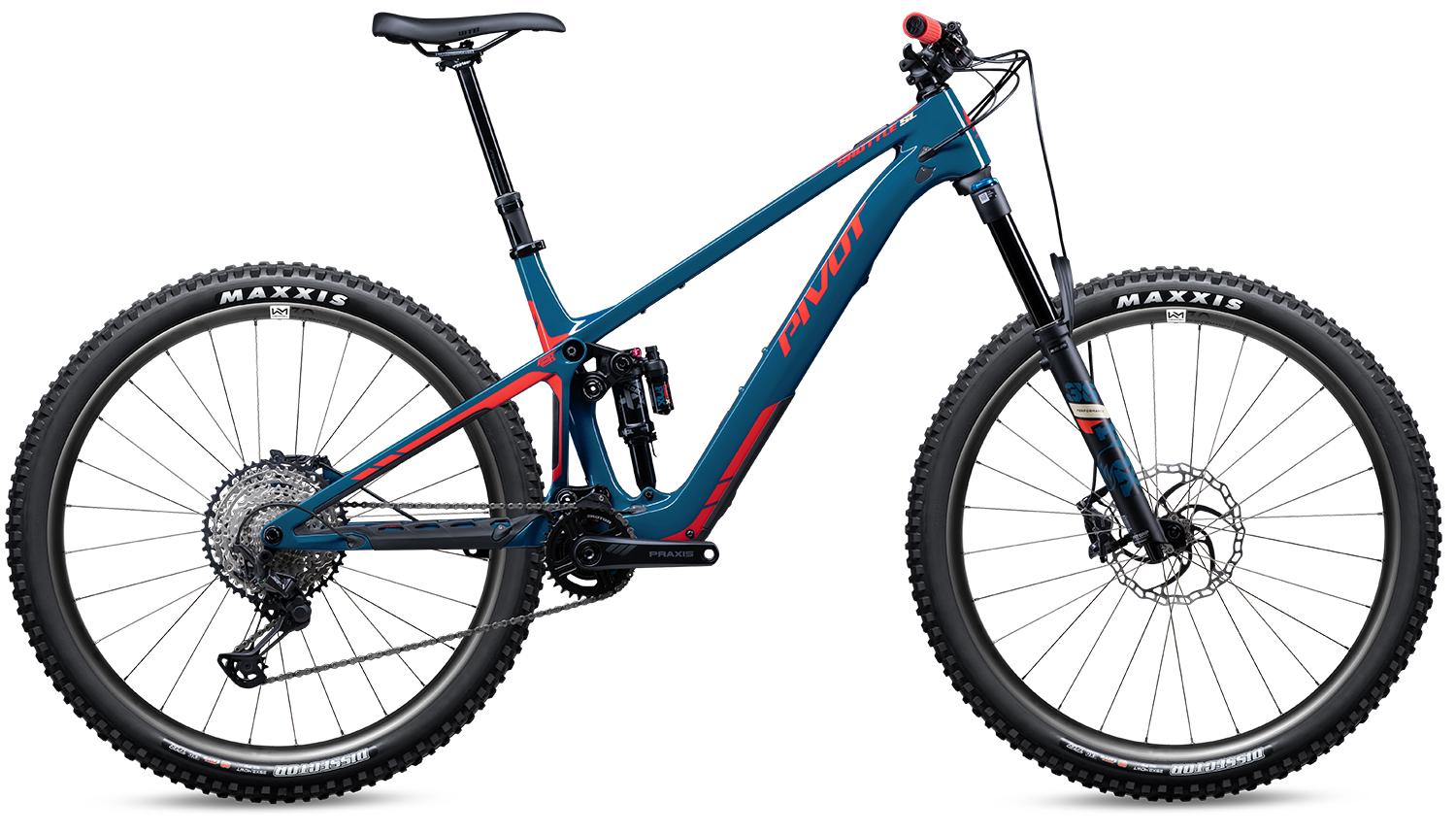

Pivot Shuttle SL Ride SLX/XT 2022 Review

Enduro MTB
Pivot Shuttle SL Pro X01 - in our “Best Light-eMTB of 2023” group test | ENDURO Mountainbike Magazine

Ebike-mtb

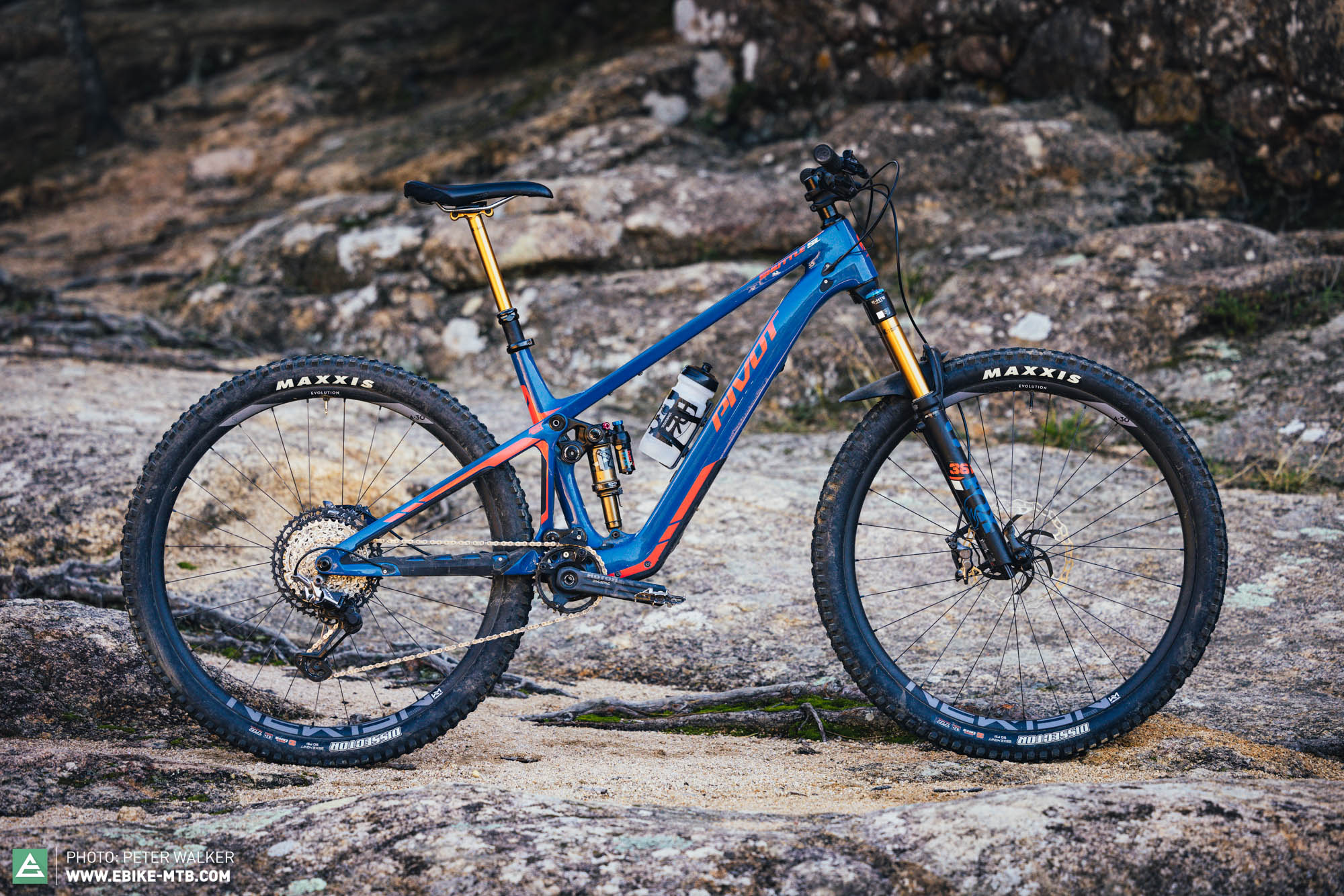

The Pivot Shuttle SL Pro X01 – In our huge “Best e-mountainbike of ...

Ambmag
TESTED: PIVOT SHUTTLE SL 2023 - Australian Mountain Bike

Ebike-mtb

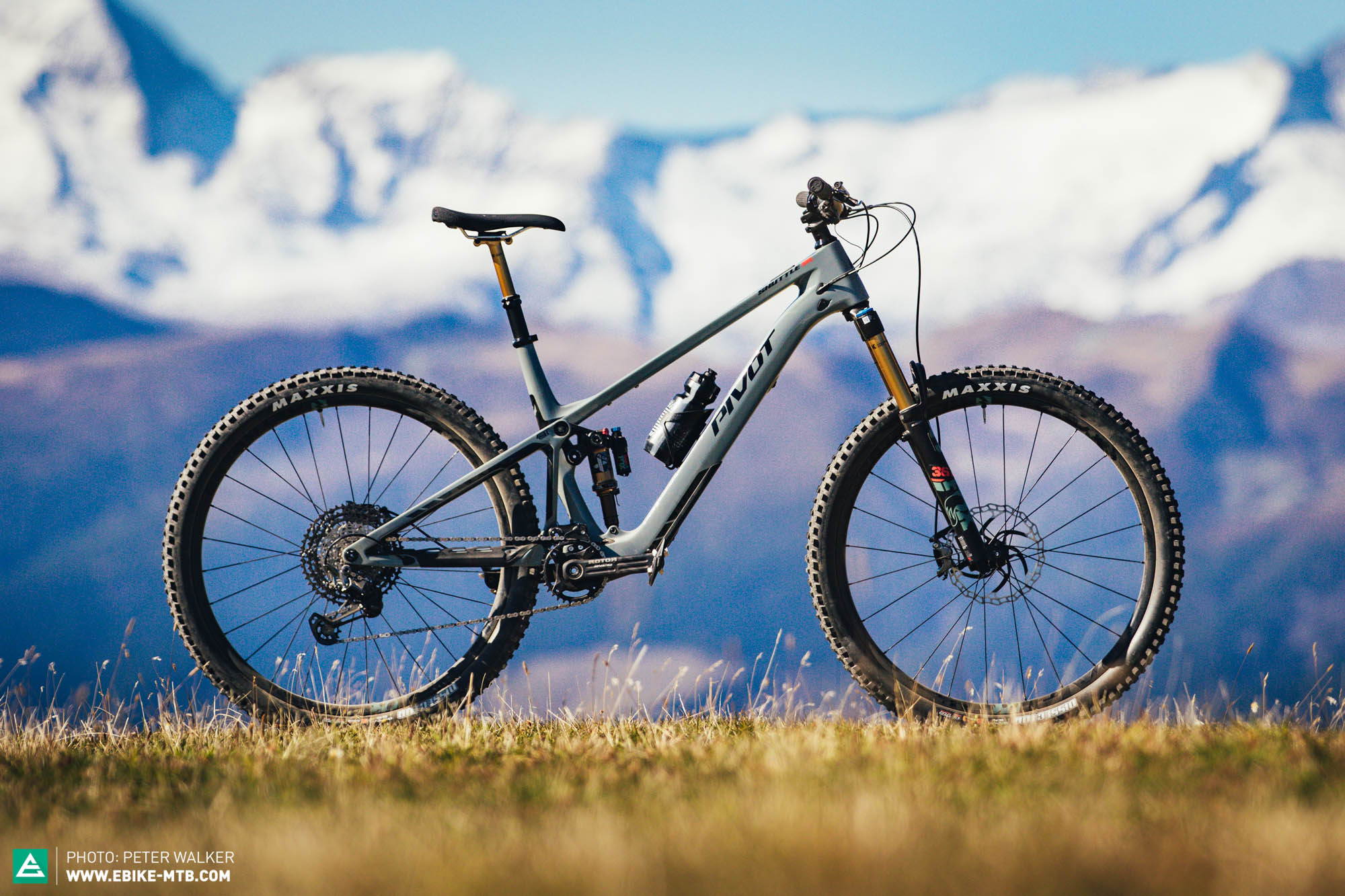

First ride review of the 2023 Pivot Shuttle SL Team XTR featuring the ...
