Scale Gravel 20

The Scott Scale Gravel is not a conventional gravel bike with a flat bar added as an afterthought; it is a rigid, Scale-derived XC platform repurposed for fast off-road riding, mixed-surface adventure use, and riders who want mountain-bike control without suspension. Across the range, Scott pairs 29-inch wheels with roughly 2.35–2.4-inch tires, a rigid carbon fork, and geometry that sits much closer to a modern hardtail than a traditional gravel bike. That makes this generation distinctive in a market where most gravel bikes still prioritize drop-bar fit, narrower tires, and road-adjacent handling.

The design choices are unapologetically MTB-influenced. Carbon models add an adjustable headset with ±0.6° head-angle change, fully integrated Syncros cable routing, and modern hardtail standards including UDH, PF92/BB92, and Boost spacing. Multiple mounting points underline the bikepacking and adventure brief, but the underlying character is still about efficiency and confidence on rough terrain rather than touring softness or road speed. In the market, the Scale Gravel sits between aggressive gravel and lightweight XC: a niche option for riders who want a fast, fully rigid off-road bike with flat-bar familiarity, rather than a drop-bar all-rounder.

$1,600Article 4254928332014

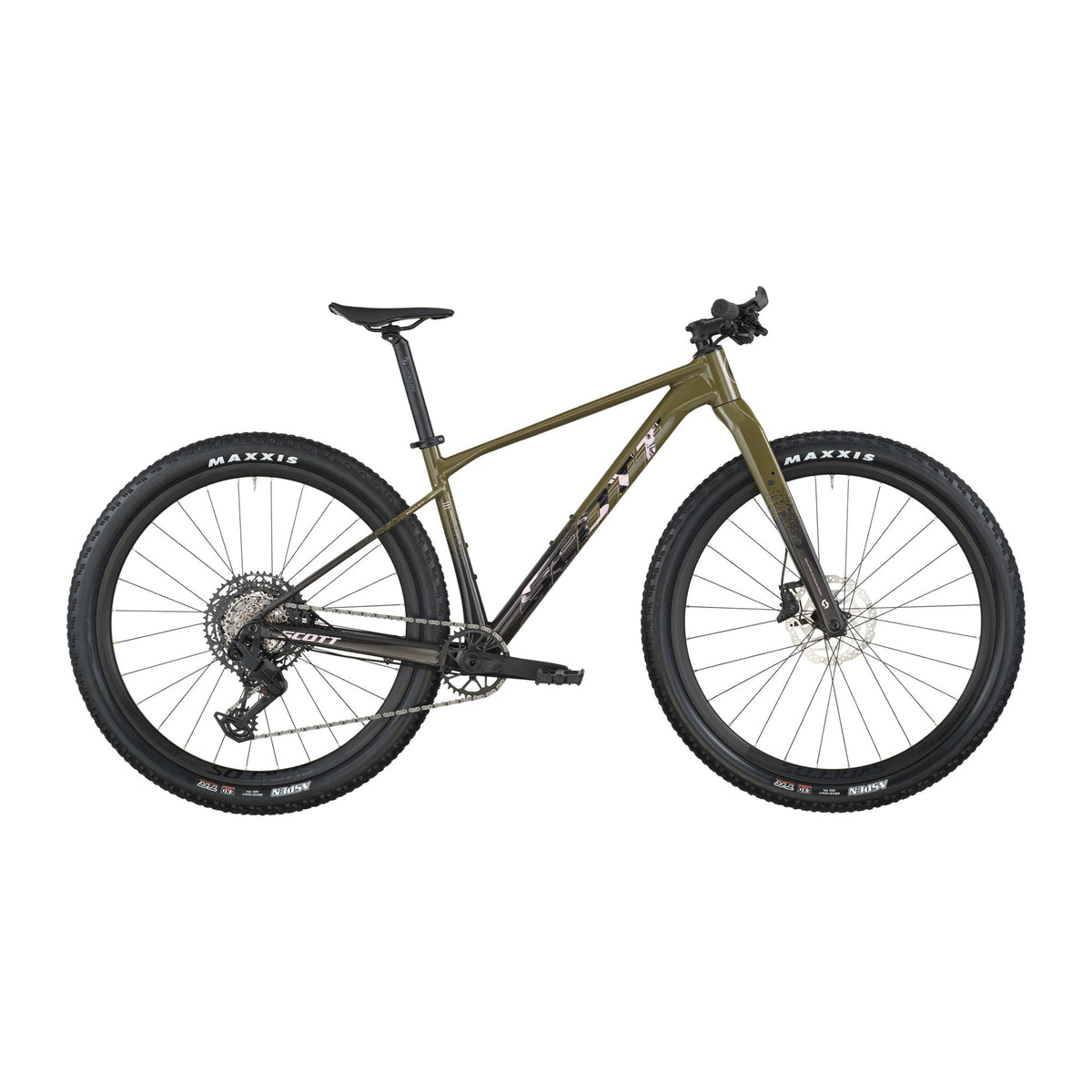

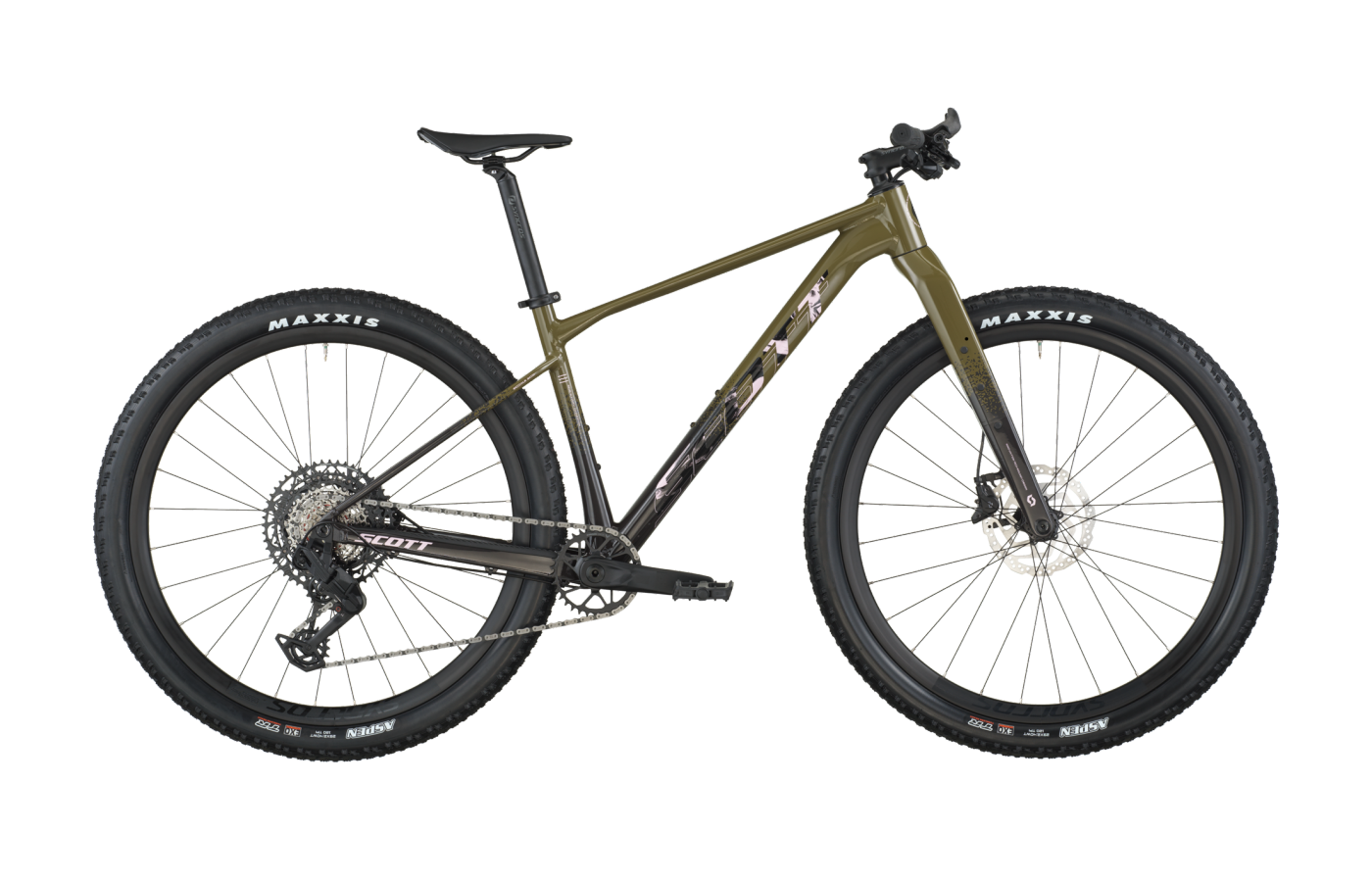

Scott Scale Gravel 20
Build
Size

Inventory

Stack618.9mm
Reach463.6mm
Top tube626mm
Headtube length110mm
Standover height800mm
Seat tube length480mm

Fit and geometry

The published geometry makes it clear that the Scale Gravel is built around modern XC handling rather than conventional gravel-bike proportions. A 67.9° head tube angle is very slack for the gravel category, and combined with 105 mm of trail it points to notably calm, stable steering on rough descents and loose surfaces. The 75.3–75.4° seat tube angle is relatively steep, keeping the rider centered for seated climbing and helping balance the long front center. Chainstays are short at 425 mm across all sizes, which should keep the rear end responsive and prevent the bike from feeling overly long or sluggish despite its off-road bias.

The fit numbers also support an MTB-like riding position. In size M, the bike has 604.9 mm of stack and 442.3 mm of reach, while the L stretches to 618.9/463.6 mm. Those are generous front-end dimensions for a gravel-adjacent bike and should produce an upright, confident cockpit with flat-bar control rather than a low, stretched road posture. Wheelbase is substantial at 1131.1 mm in M and 1158 mm in L, reinforcing straight-line composure and stability at speed. The -62 mm BB drop is moderate for a 29er off-road bike, balancing planted cornering feel with pedal clearance on rougher terrain.

Full specs

Frameset

Frame

Scale Alloy 6061 Custom Butted Tubing, Syncros Cable Integration System BB92, UDH Interface, 12x148mm with 55mm Chainline

Fork

Scale Rigid HMF Postmount Disc Standard Tapered Carbon steerer

Weight

11.4 (Tubless setup without pedals) kg

Groupset

Shift levers

SRAM Eagle 70 Trigger

Rear derailleur

SRAM Eagle 70 Transmission 12 Speed

Cassette

SRAM Eagle XS 1270 V2 Transmission 10-52

Chain

SRAM CN Eagle 70 Transmission

Crankset

SRAM Eagle 70 Transmission DUB, 55mm CL, 34T CHAINGUIDE SCOTT custom

Bottom bracket

SRAM DUB PF 92 MTB Wide, shell 41x92mm

Front brake

Shimano MT401 Disc Brake

Rear brake

Shimano MT401 Disc Brake

Front rotor

Shimano SM-RT10 CL, 180/F and 160/R

Rear rotor

Shimano SM-RT10 CL, 180/F and 160/R

Wheelset

Front wheel

Formula CL-811, 15x110mm, Stainless Black 15G, 1.8mm

Rear wheel

Formula CL-3248, 12x148mm, Stainless Black 15G, 1.8mm

Front tire

Maxxis Aspen, 29x2.4", 120TPI Foldable Bead Tubeless Ready, EXO

Rear tire

Maxxis Aspen, 29x2.4", 120TPI Foldable Bead Tubeless Ready, EXO

Cockpit

Stem

Syncros DC 3.0 Syncros Cable Integration System 0° rise, 6061 Alloy, 31.8mm, 1 1/8"

Handlebars

Syncros Alloy 6061 T shape Flat, 9°, 740mm Syncros Performance XC lock-on grips

Saddle

Syncros Belcarra V2.5 Cut Out

Seatpost

Syncros, 31.6x400mm

Builds

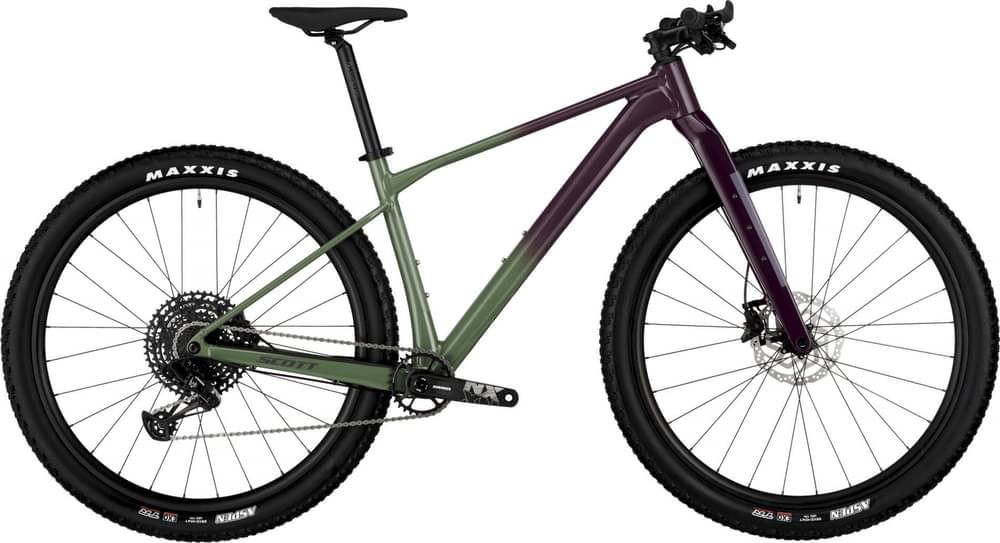

The Scale Gravel range is spread across three clearly separated price points: the aluminum Scale Gravel 20 at $1,599.99, the carbon Scale Gravel 10 at $2,899.99, and the top-end carbon Scale Gravel RC at $5,199.99. That gives the line a broad reach, from a relatively accessible entry into the concept up to a premium carbon version for riders who want lower weight and higher-end equipment. Based on the supplied build data, the 20 uses an aluminum frame with carbon fork, SRAM NX Eagle 1x12 mechanical transmission, 34t chainring, 11-50 cassette, Shimano hydraulic disc brakes, and a claimed weight of 11.3 kg.

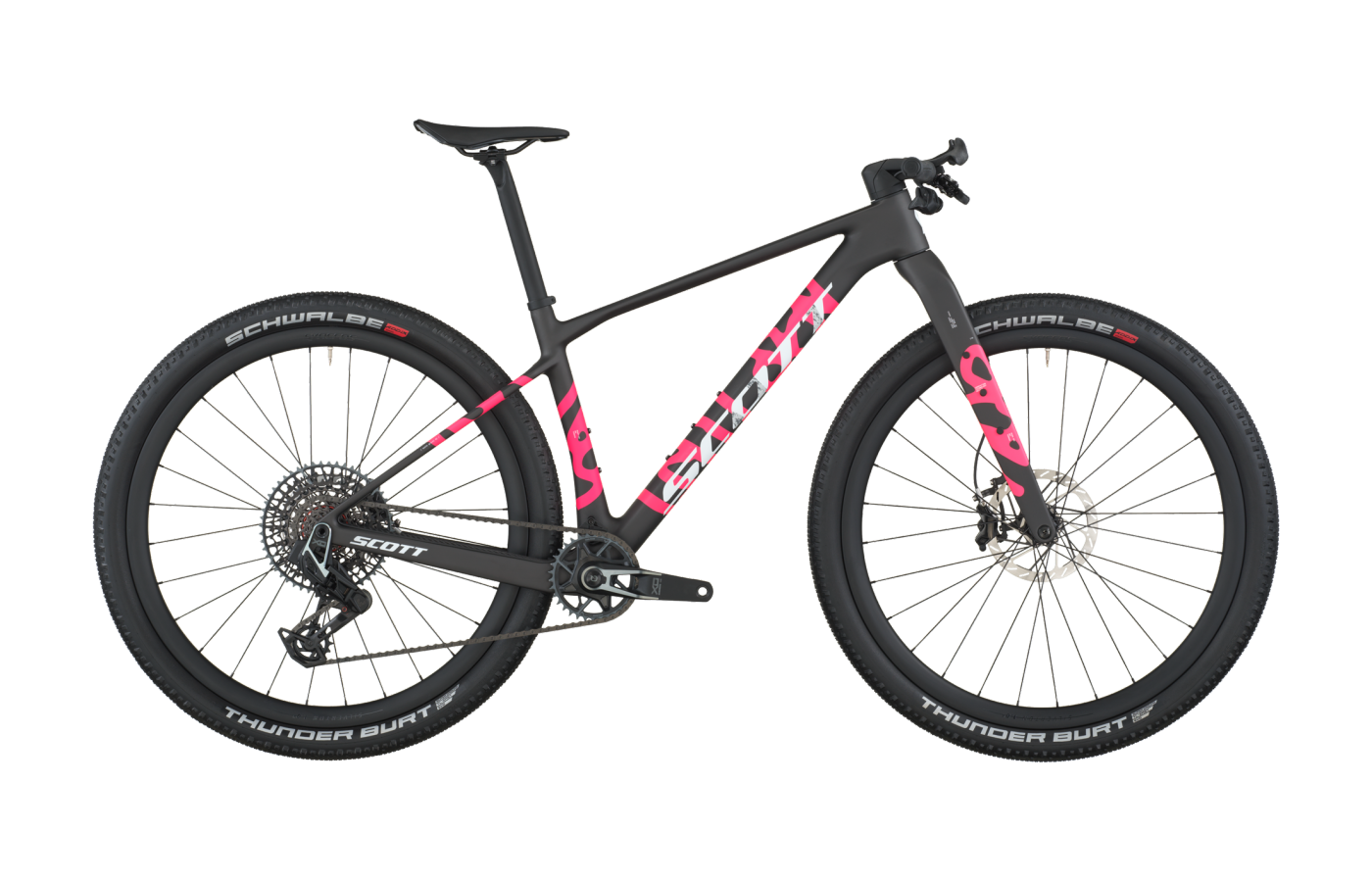

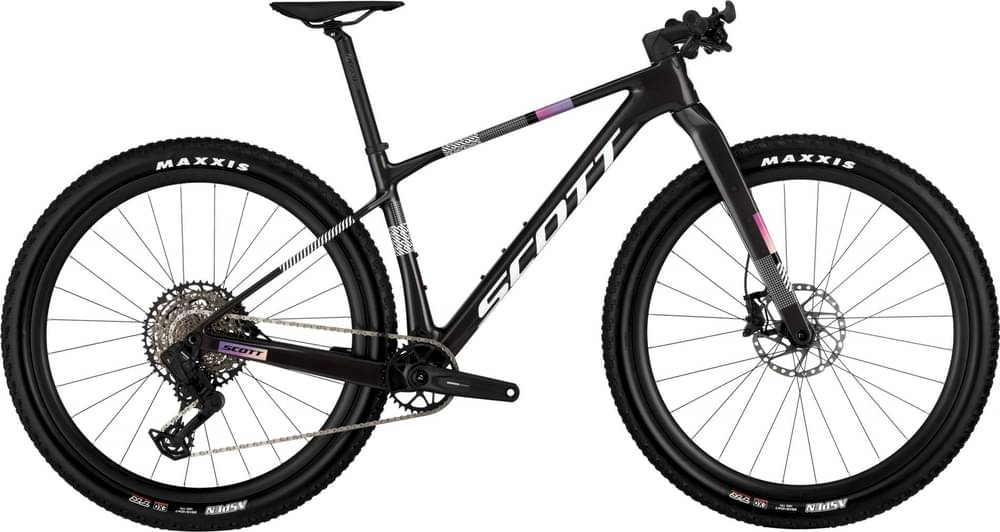

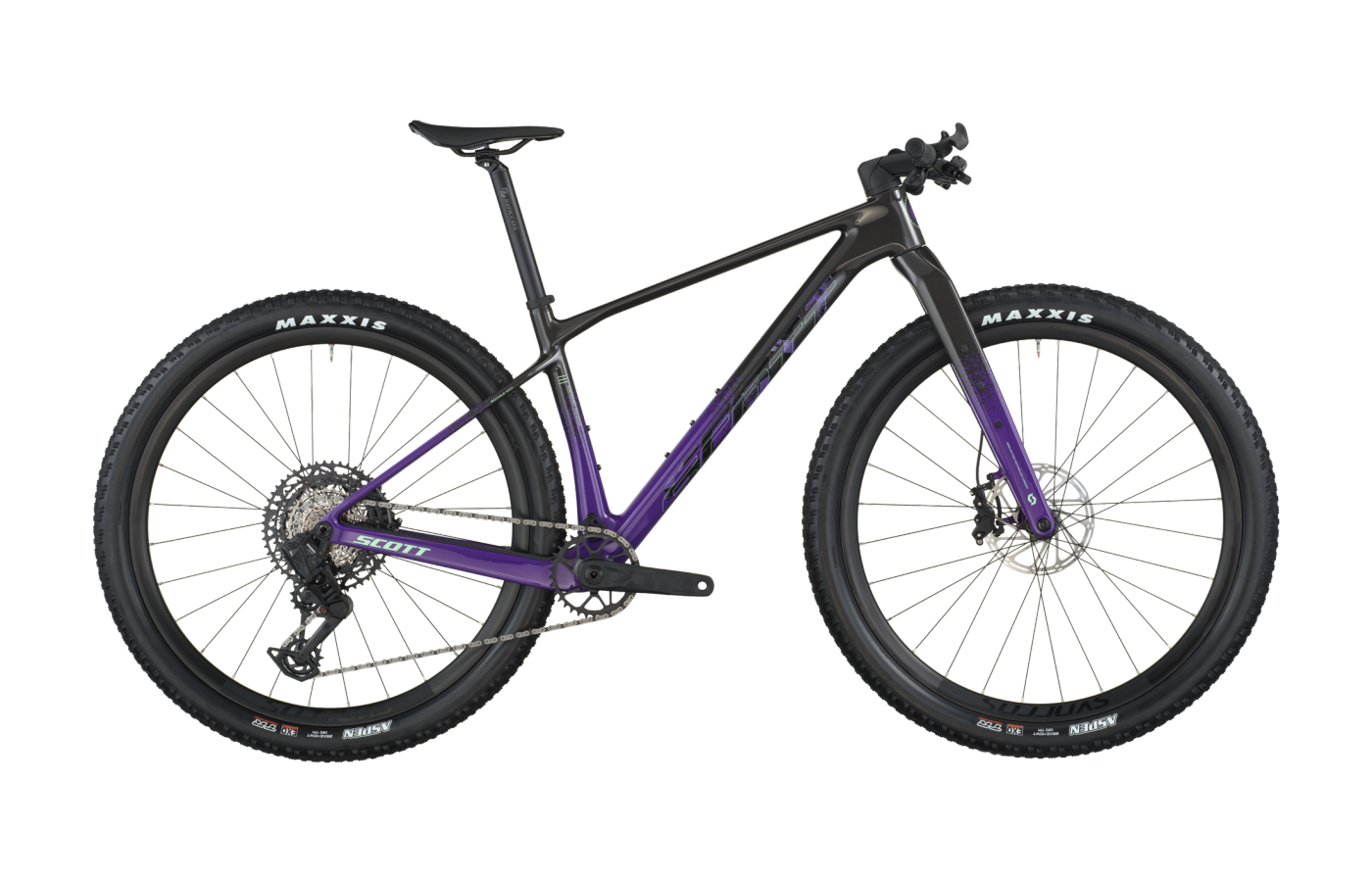

The Scale Gravel 10 moves to a carbon frame and keeps the carbon fork, dropping claimed weight to 10.7 kg while upgrading to a 1x12 electronic setup listed as SRAM RED AXS with S1000 Eagle Transmission and a wider 10-52 cassette. That makes the 10 the obvious sweet spot for riders who want the full carbon-frame concept without RC-level pricing. The RC sits as the halo model at just over $5,199, though no detailed spec list is provided here beyond its place at the top of the carbon range. Overall, the lineup appears structured around the same core platform and tire-forward off-road intent, with the main differences being frame material, drivetrain level, and corresponding weight and price.

Reviews

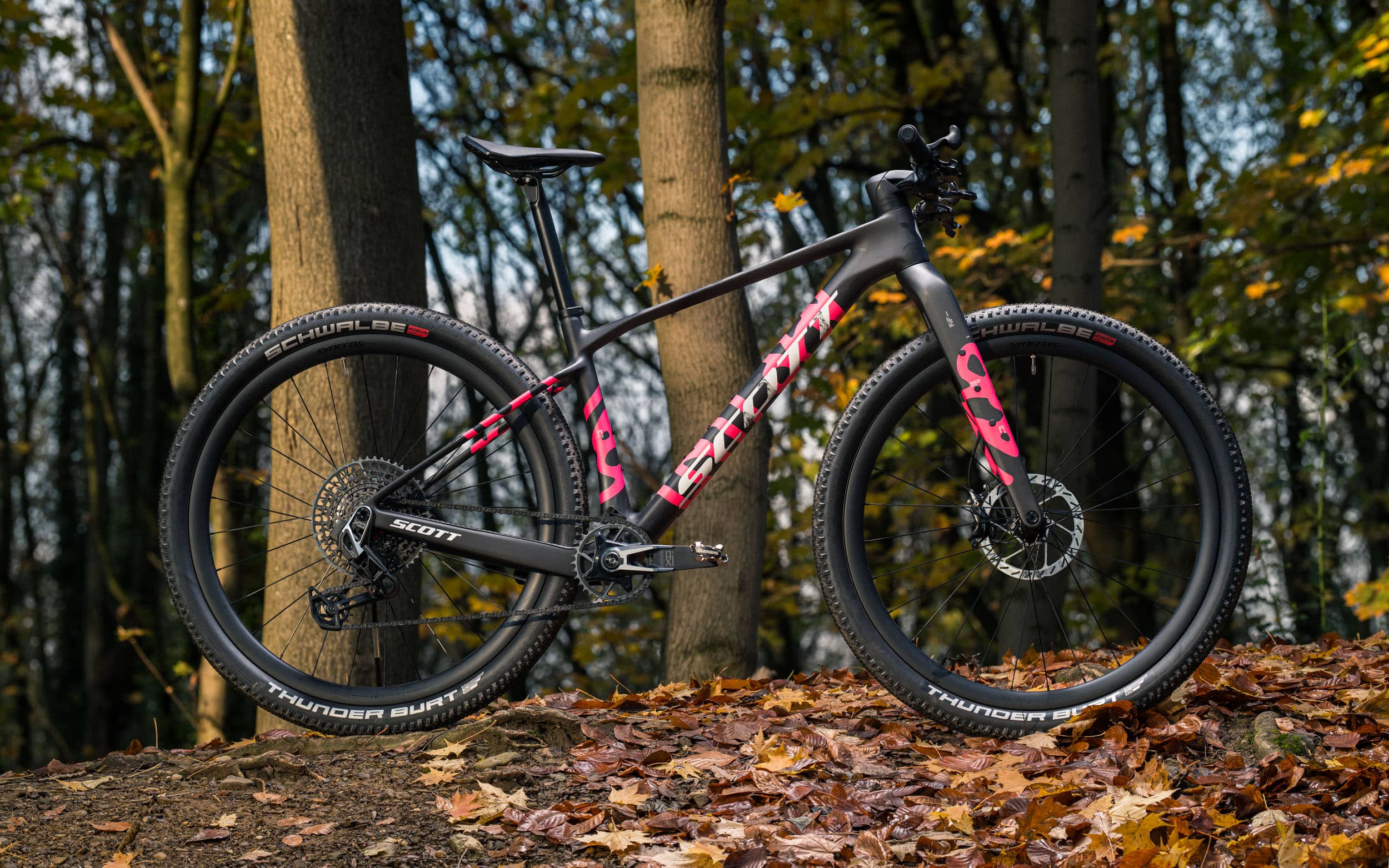

Review coverage consistently describes the Scale Gravel as a bike that makes sense once it is understood as a rigid MTB-gravel crossover rather than judged against traditional gravel expectations. Pianeta Mountain Bike calls it a symbol of gravel's return toward off-road roots, noting that Scott effectively adapted the 2023 Scale hardtail into a more versatile, adventure-oriented package. Vojo reaches a similar conclusion after several weeks of testing, emphasizing that the bike preserves the efficiency, precision, and light weight of an XC hardtail while aiming at fast tracks, forest roads, and long off-road rides.

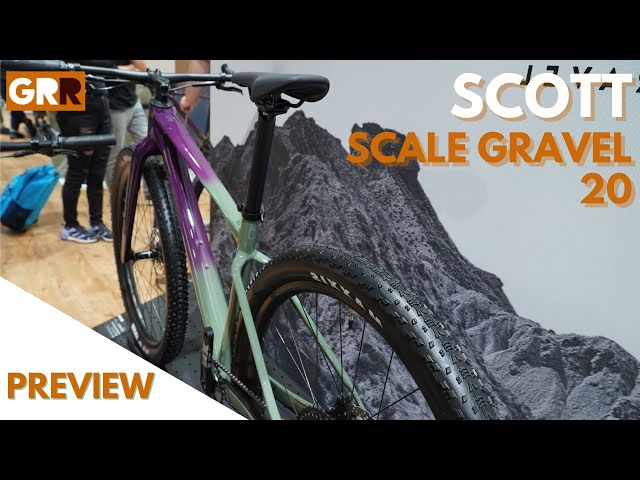

Specific strengths mentioned by reviewers center on control and confidence. Opticycles highlights the 29 x 2.4-inch tire setup as a defining trait, saying it gives the bike a confidence-inspiring feel. Their summary of the Scale Gravel 10 adds that the Maxxis 29x2.4 setup is stable on loose gravel and surprisingly secure on light singletrack, while the adjustable head angle broadens the handling range between quicker and more stable settings. The tradeoff, implied across the reviews, is that this is not a bike for gravel purists or riders seeking classic gravel-bike sensations. Gravelingreview explicitly says it is not for purists of either gravel or MTB, and Vojo frames the whole test around the fact that it rejects the usual drop-bar gravel formula. In other words, reviewers see the concept as coherent and capable, but also specialized: its strengths come from leaning heavily into XC DNA, which will not suit every rider's idea of gravel.
