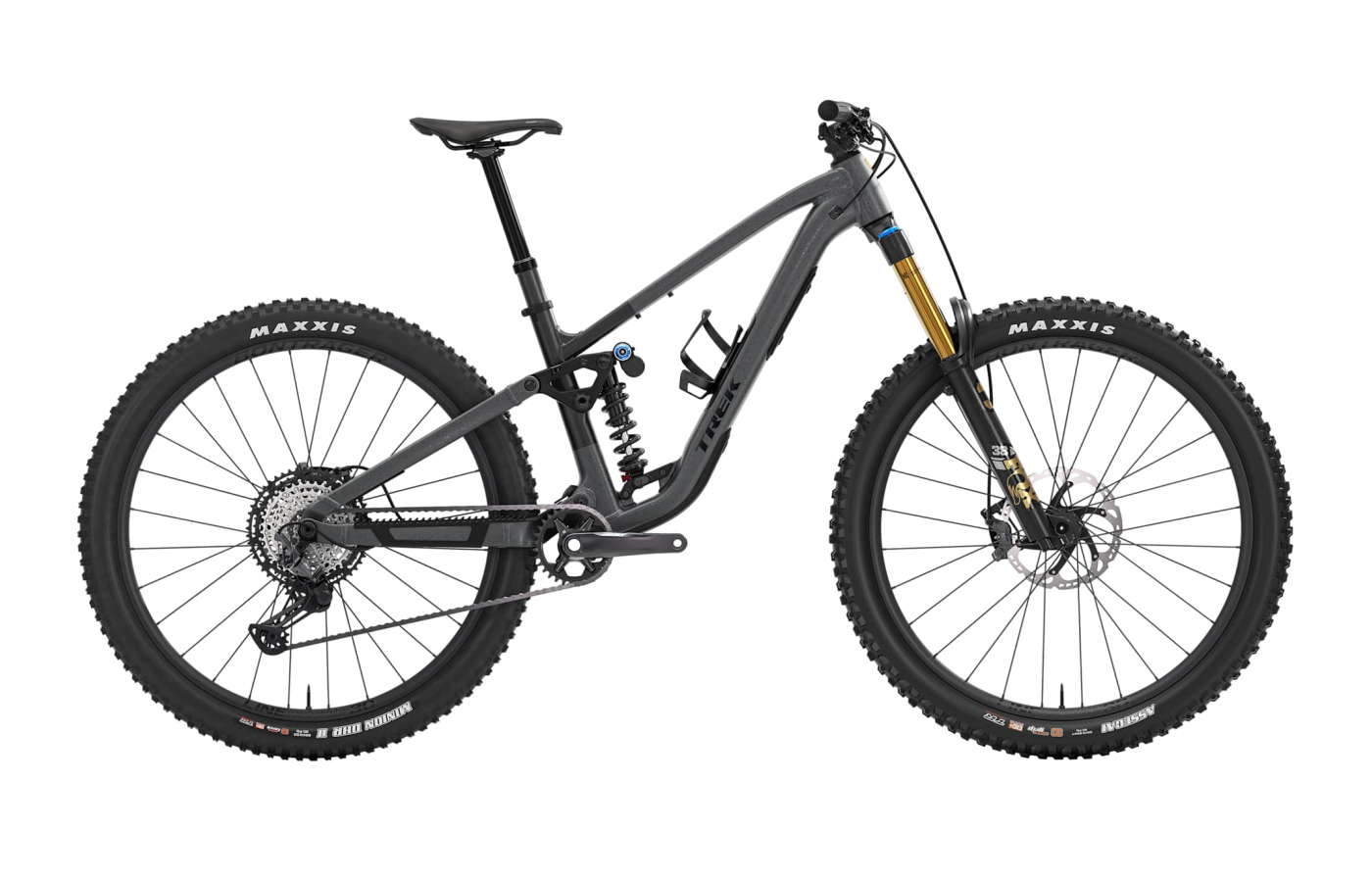

Fuel LX 9 XT Gen 7

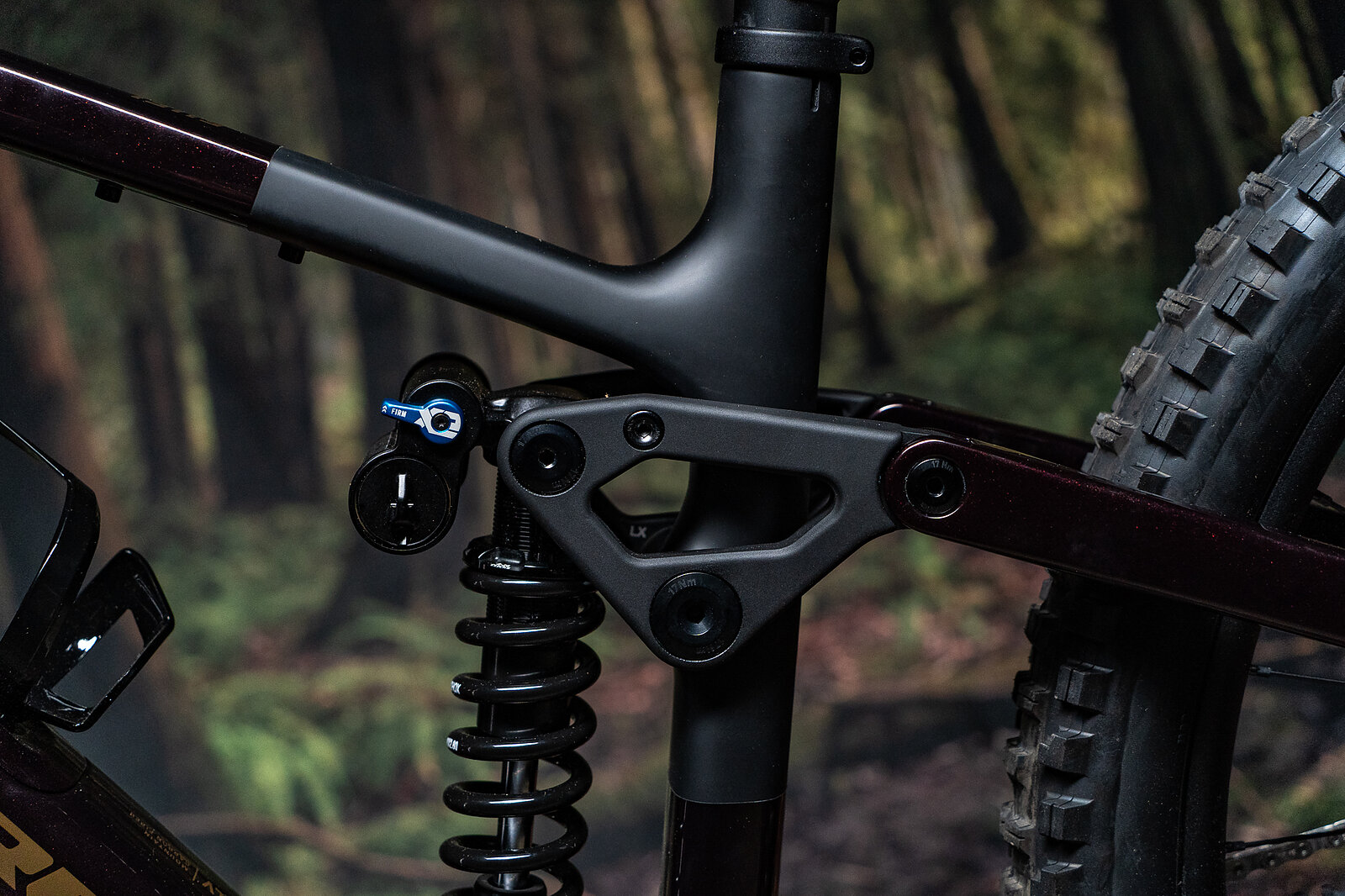

The Trek Fuel LX represents the most aggressive configuration of the brand's seventh-generation modular trail platform. By pairing a specific rocker link and longer-stroke shock with a 170mm fork, Trek pushes the standard Fuel frame into near-enduro territory. Delivering 160mm of rear travel and rolling on dual 29-inch wheels, the LX is designed for riders who frequent steep, technical terrain but prefer the predictable manners of a traditional trail bike over a dedicated race sled.

Because it shares its core architecture with the shorter-travel Fuel EX, it retains a pedaling platform meant for long days in the saddle. It serves as the heavy-hitting option in the Fuel family, built to handle bike park laps and rugged descents while remaining efficient enough to reach the summit under rider power.

Price TBDGen Gen 7
Trek Fuel LX 9 XT Gen 7
Build
Size

Inventory

Fit and geometry

The LX configuration significantly alters the baseline Fuel geometry, primarily driven by the longer fork and dedicated rocker link. This setup kicks the head tube angle back to a slack 63.5 degrees, prioritizing stability on steep descents. The longer fork also raises the front end, increasing the stack height by 17mm on larger sizes. This taller cockpit puts the rider in a more upright, comfortable posture that reduces fatigue during long climbs and provides a commanding position when navigating vertical drops.

Because the frame pivots around the same bottom bracket location as the shorter-travel variants, the taller front end slightly shortens the reach—measuring 473.2mm on a size Large—and slackens the seat tube angle to 76.4 degrees. While some riders might prefer a steeper seat angle for grinding up fire roads, the slightly shorter reach keeps the steering manageable despite the bike's overall length. The Gen 7 frame also moves to a standard ZS 56/49 headset, allowing riders to easily install aftermarket angle-adjust cups, and utilizes a 34.9mm seat tube that accommodates dropper posts up to 200mm on medium through double-extra-large frames.

Full specs

Frameset

Frame

Alpha NEXT Platinum aluminum, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm

Fork

Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 170mm travel

Rear shock

Fox DHX2, 205mm x 65mm (coil spring rate by size: S 250lb / M 350lb / L 400lb / XL 450lb)

Weight

M - 17.79 kg / 39.23 lbs (with TLR sealant, no tubes)

Groupset

Shift levers

Shimano XT M8100, 12-speed

Rear derailleur

Shimano XT M8100, long cage

Cassette

Shimano XT M8200, 12-speed, 10-51T

Chain

Shimano XT M8100, 12-speed

Crankset

Shimano XT M8120, 30T, 55mm chainline, 170mm length

Bottom bracket

Shimano BB-MT501 BSA

Front brake

Shimano XT M8220 4-piston hydraulic disc

Rear brake

Shimano XT M8220 4-piston hydraulic disc

Front rotor

Shimano RT86, 6-bolt, 203mm

Rear rotor

Shimano RT86, 6-bolt, 180mm

Wheelset

Front wheel

Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29"

Rear wheel

Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle, 29"

Front tire

Maxxis Assegai, Tubeless Ready, 3C, EXO+ casing, MaxxGrip, 29x2.5"

Rear tire

Maxxis Minion DHR II, Tubeless Ready, 3C, EXO+ casing, MaxxTerra, 29x2.5"

Cockpit

Stem

Bontrager Elite, 35mm, 0 degree, 45mm length

Handlebars

Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width

Saddle

Verse Short Comp, steel rails, 145mm width

Seatpost

Bontrager Line Dropper, MaxFlow, internal routing, 34.9mm (S: 150mm/410mm; M: 170mm/450mm; L-XL: 200mm/515mm)

Grips

Trek Line Elite, lock-on

Builds

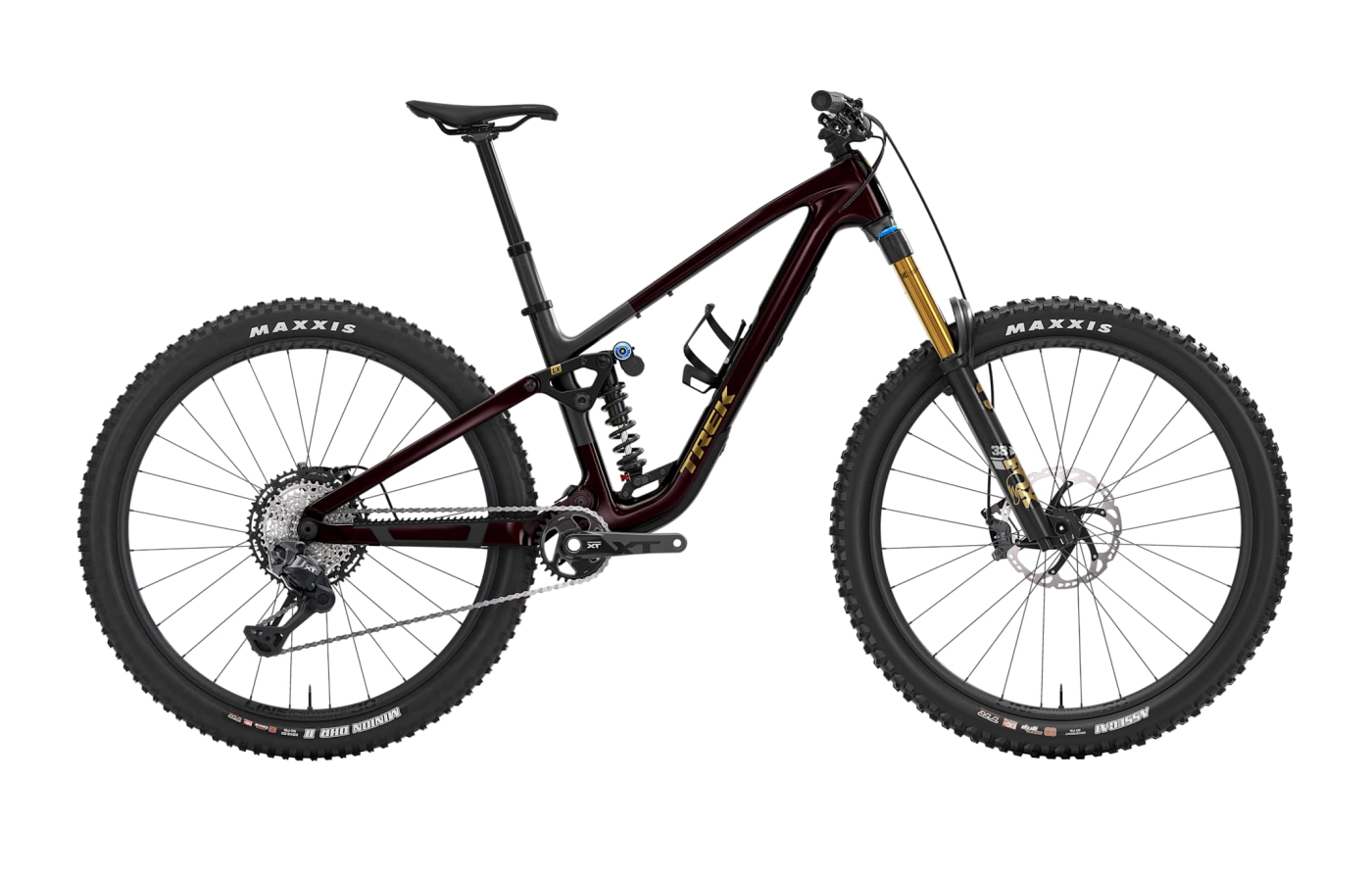

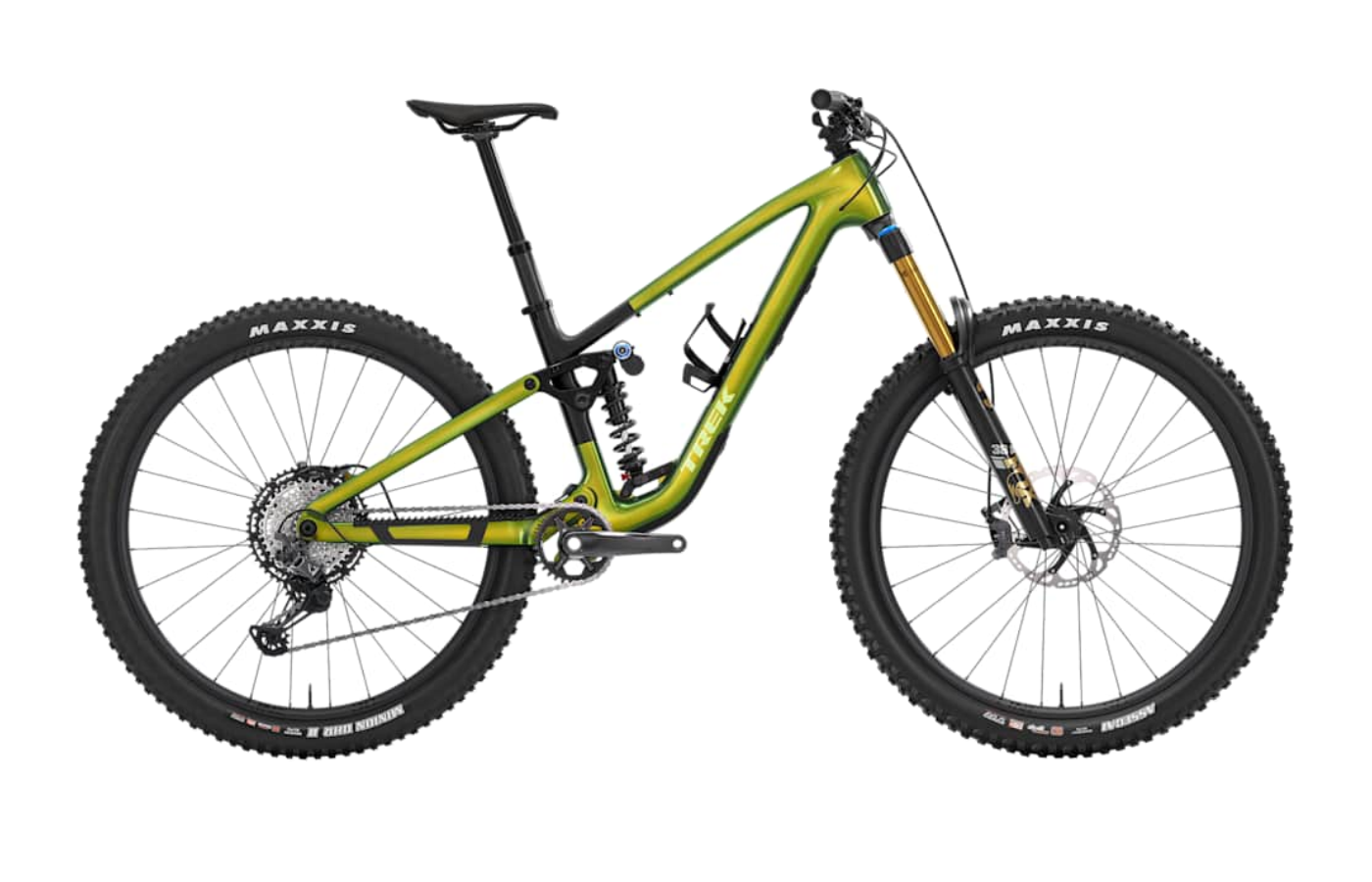

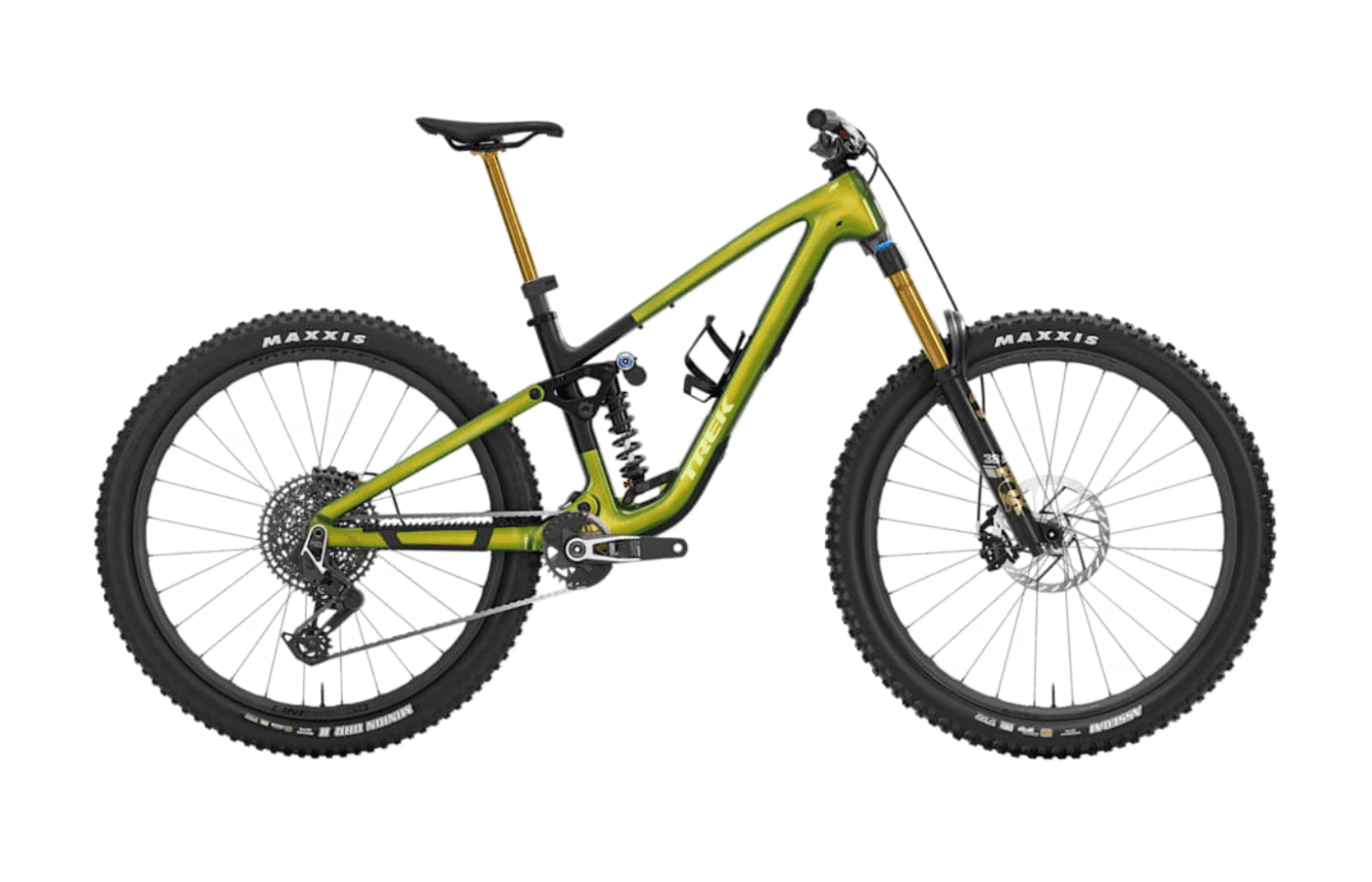

The Fuel LX lineup is split evenly between Alpha NEXT Platinum aluminum frames, designated by the 9 tier, and OCLV Mountain Carbon frames in the 9.8 and 9.9 tiers. Trek prioritizes suspension performance across the entire range; every LX build comes equipped with a Fox Factory 38 fork and a Fox DHX2 coil shock, featuring size-specific spring rates straight from the factory.

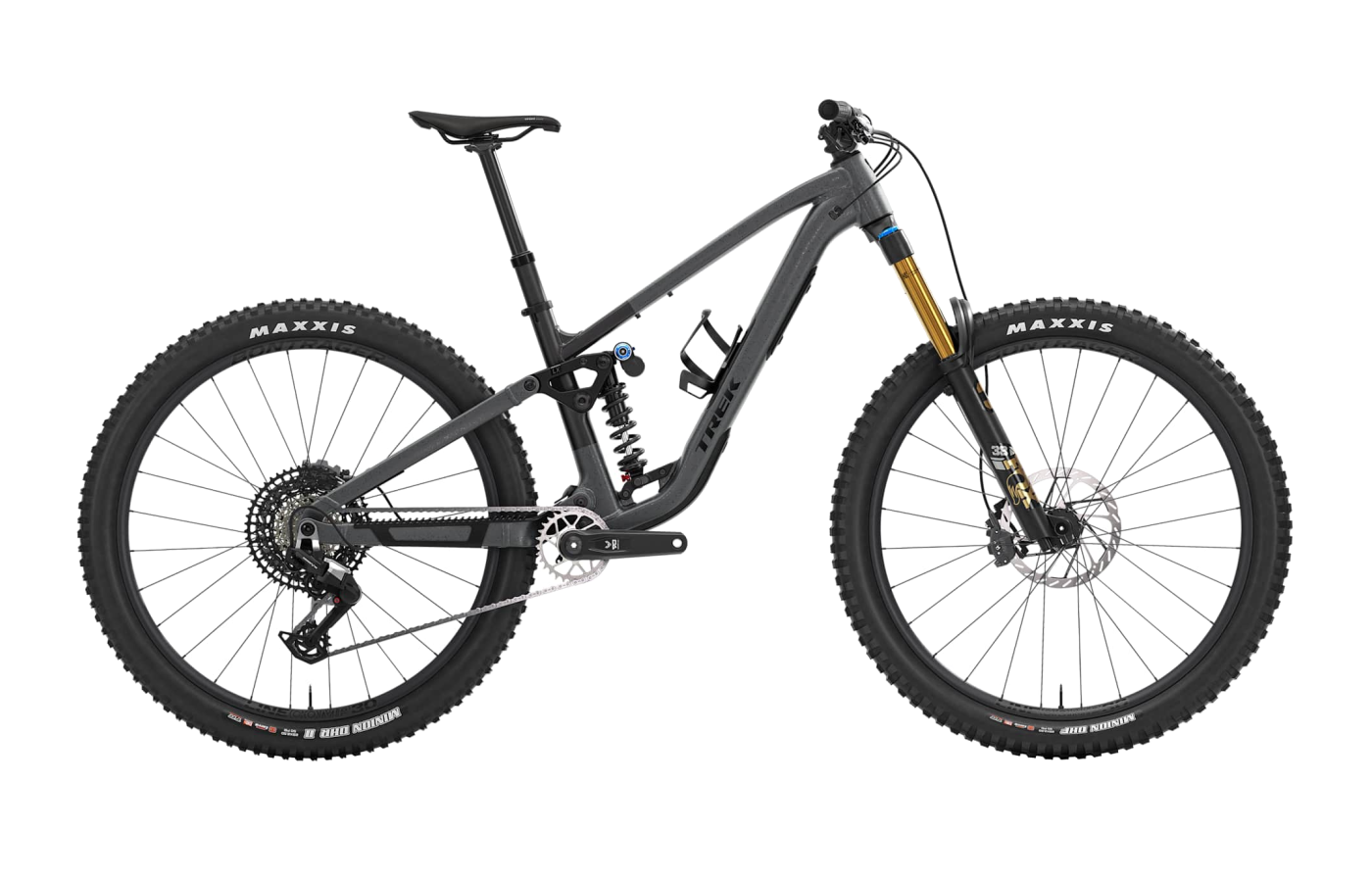

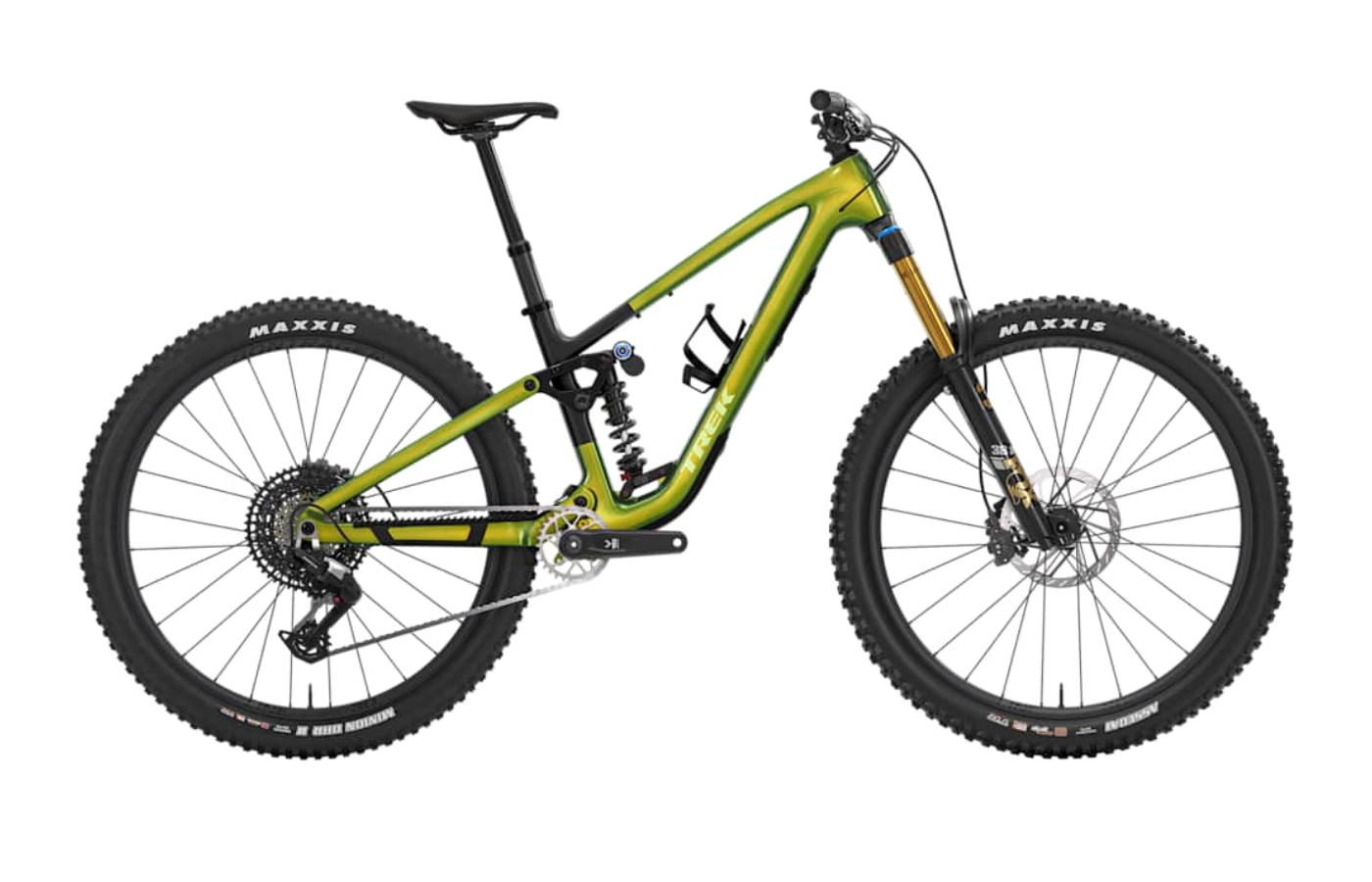

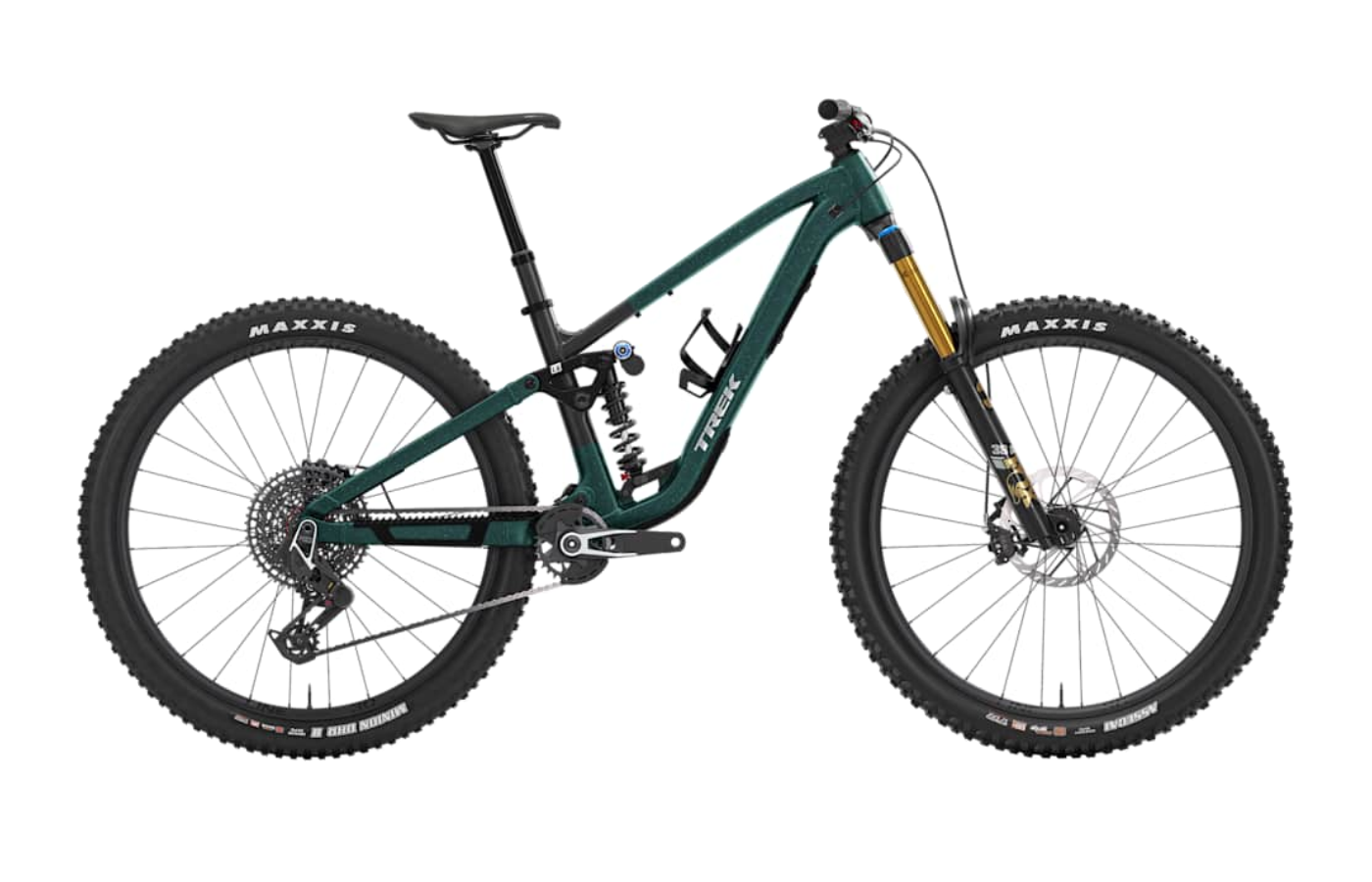

Drivetrain options are divided between SRAM and Shimano. Riders can choose SRAM's wireless T-Type transmissions, ranging from Eagle 90 to X0 AXS, or opt for Shimano's 12-speed XT and XT Di2 systems. Braking duties are handled by heavy-duty four-piston calipers across the board, utilizing either SRAM Maven Bronze and Silver or Shimano XT, paired with large 200mm or 203mm front rotors.

The aluminum builds represent the sweet spot for value. By pairing the exact same elite-tier Fox Factory dampers and robust Maxxis Assegai and Minion DHR II EXO+ tires with the metal frame, these models deliver the same downhill traction and control as the carbon versions at a significantly lower price point. All builds roll on Bontrager Line 30 wheels, with the 9.9 tier upgrading to carbon rims.

Reviews

Reviewers position the Fuel LX as a highly capable descender that manages to avoid the sluggish pedaling dynamics often associated with 170mm-travel forks. On the trail, the bike exhibits a dual personality. Testers found that it "pedals remarkably well for its travel range" (Freehub), remaining efficient enough for long transition climbs without requiring constant use of the shock lockout.

When pointed downhill, the LX utilizes its highly progressive leverage curve to manage large impacts and rough terrain. Rather than feeling like a plow, the suspension provides a supportive platform that keeps the rider engaged. One tester noted that the bike feels "part-way between trail bike and enduro bike" (Cycling Magazine), offering a massive safety net on steep trails. In high-speed, rugged sections, the chassis remains "staid and composed" (Freehub), tracking predictably through chunk.

The primary tradeoff for this high-speed stability is a slight reduction in low-speed agility. Compared to mixed-wheel or shorter-travel alternatives, the dual 29-inch wheels and long wheelbase make the LX slightly harder to snap through tight, back-to-back corners. However, testers generally agreed that the bike avoids feeling overly cumbersome, summarizing it as a machine that is "fun to ride, not just fun to ride fast" (Cycling Magazine) for aggressive trail riders.
