Marin Four CornersvsGestalt
Marin's Four Corners and Gestalt might share drop bars and an appetite for adventure, but they carve out distinctly different paths for getting there. The Four Corners is a committed expedition rig, built for comfort and carrying capacity on epic journeys. The Gestalt, by contrast, is a more aggressive all-road option, leaning into gravel with a lighter frame for spirited exploration.
Overview
The Marin Four Corners is purpose-built for the long haul. This is a bike designed for fully loaded touring, bikepacking, and extended commutes where comfort, stability, and cargo capacity are paramount. Its chromoly steel frame, particularly the Series 3 double-butted on the Four Corners 2, is engineered to soak up miles of varied terrain, from smooth tarmac to rough gravel paths. Wheel sizes are specific to frame size, with smaller sizes getting 650B and larger frames on 700C, a thoughtful touch for consistent handling. Conversely, the Marin Gestalt, especially in its XR trim, takes a more agile, gravel-leaning approach to the 'beyond road' concept. Built around a Series 3 6061 aluminum frame and a full carbon fork, it aims for a livelier ride and slightly more aggressive capability off the beaten path. While the Four Corners embraces a leisurely, dependable character, the Gestalt seeks to offer a more responsive experience for riders who want to tackle rougher roads and light trails with a bit more speed. Both bikes share extensive mounting points, underscoring Marin's commitment to versatility, but their core design philosophies diverge significantly in how they approach adventure.
Ride and handling
The Four Corners 2 delivers a ride defined by exceptional comfort and rock-solid stability, especially under load. Its Series 3 double-butted chromoly steel frame and fork, paired with generous 44mm Vee Tire Rocket Man tires, create a
Specifications
Drivetrain differences between the Four Corners 2 and Gestalt XR highlight their distinct purposes. The Four Corners 2 goes all-in on wide range and simplicity with a SRAM Apex 1x12 drivetrain, featuring a massive 10-52T cassette and a 40T crank. This offers an enormous gear spread, making it adept at spinning up the steepest ascents with a full touring load. By contrast, the Gestalt XR opts for a Shimano GRX 1x11 setup with an 11-42T cassette and a 42T chainring. This is still a wide-range system, but with one less gear and a slightly narrower overall spread, it leans more towards spirited gravel riding where sustained high speeds might be less critical than finding the perfect ratio for varied terrain. Lower Gestalt builds, like the 1, 2, and Base, use 2x Shimano Claris or GRX setups with narrower 8 or 10-speed cassettes, making them more road-biased and less capable on steep, loaded climbs than either the Four Corners 2 or Gestalt XR. Braking power and feel also vary across the lines. The Four Corners 2 features SRAM Apex 1 hydraulic disc brakes, which are praised for their robust, low-maintenance performance and excellent stopping power. The Gestalt XR similarly uses Shimano GRX hydraulic discs, known for their strong, reliable performance. However, lower-tier Four Corners 1 builds resort to TRP Spyre-C mechanical discs, which are considered top-tier for cable-actuated brakes but inherently lack the nuanced power and lighter lever feel of hydraulics. Similarly, the Gestalt Base and X builds use Tektro mechanical discs. The move to hydraulic systems on the higher-end builds of both bikes is a significant upgrade for control and reducing hand fatigue on long, steep descents. Wheelsets and tires further differentiate the models. Both the Four Corners 2 and Gestalt XR come with Marin's own tubeless-compatible double-wall aluminum rims and Vee Tire Co. Rocket Man 700x44c tires, indicating a shared capability for mixed-surface riding and easy tubeless conversion for enhanced puncture protection. This tire choice is versatile but, as some reviewers note, might be swapped for narrower, smoother options for pure road efficiency or wider, knobbier ones for more aggressive off-road use. However, the Four Corners 1 uses non-tubeless compatible rims and 700x45mm Vee Tire Quickstyk tires, a minor drawback for modern gravel riders. The Gestalt 2, on the other hand, comes with narrower 700x35c Vee Zilent tires, suggesting a greater lean towards paved or smoother gravel roads, but its rims are still tubeless-ready, allowing for wider tire upgrades if desired.
| Corners | Gestalt | |
|---|---|---|
| FRAMESET | ||
| Frame | Series 1 CrMo, Size-Specific Wheels (XS, S = 650B; M, L, XL = 700C), Biometric Geometry, Fender and Rack Mounts, Disc Mount | Marin Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
| Fork | Series 1 CrMo, Fender, Rack, and Bottle Cage Eyelets, IS Disc Mount | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Rear shock | — | — |
| GROUPSET | ||
| Shift levers | MicroSHIFT Sword Black, 2x9-speed (integrated brake/shift levers) | microSHIFT Advent X 10-Speed (shift levers) |
| Front derailleur | — | — |
| Rear derailleur | MicroSHIFT Sword Black, 9-speed | microSHIFT SWORD 10-Speed Wide-Range |
| Cassette | MicroSHIFT, 9-speed, 11-38T | SunRace 10-Speed, 11-51T |
| Chain | KMC X9 | KMC X10 |
| Crankset | Forged Aluminum, 46-29T | Forged Alloy 1x10, Hollow CrMo Spindle, Narrow Wide 42T |
| Bottom bracket | Square taper, sealed bearing | External Sealed Cartridge Bearings |
| Front brake | Tektro Spyre-C Road mechanical disc | Tektro MD-C500 Dual Piston Road Mechanical Disc (160mm rotor) |
| Rear brake | Tektro Spyre-C Road mechanical disc | Tektro MD-C500 Dual Piston Road Mechanical Disc (160mm rotor) |
| WHEELSET | ||
| Front wheel | Marin Aluminum, Double Wall, Disc Specific; Forged Aluminum Alloy, Disc, 32H; 14g Black Stainless Steel | Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific; Forged Aluminum Alloy, Disc, 32H; 14g Black Stainless Steel |
| Rear wheel | Marin Aluminum, Double Wall, Disc Specific; Forged Aluminum Alloy, Disc, 32H; 14g Black Stainless Steel | Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific; Forged Aluminum Alloy, Disc, 32H; 14g Black Stainless Steel |
| Front tire | Vee Tire Co., GPVee, 700/650x40 | Vee Tire Co., Rocket Man, 700x44, Tubeless Compatible |
| Rear tire | Vee Tire Co., GPVee, 700/650x40 | Vee Tire Co., Rocket Man, 700x44, Tubeless Compatible |
| COCKPIT | ||
| Stem | Marin 3D Forged Alloy | Marin 3D Forged Alloy |
| Handlebars | Marin Butted Alloy, Compact 16º Flared Drop | Marin Butted Alloy, Compact 16º Flared Drop |
| Saddle | Marin MTB | Marin Beyond Road Concept |
| Seatpost | Marin Alloy, 27.2mm | Marin Alloy, 27.2mm |
| Grips/Tape | Marin Comfort Bar Tape, Shock Absorbing Gel Pads | Marin Shock Absorbing Perforated Tape |
Geometry and fit comparison
The Marin Four Corners (M size) presents a distinctly upright and stretched-out riding posture, with a stack of 618.0mm and a reach of 403.3mm. Its head tube length of 188.0mm is generous, leading to what reviewers describe as a "tall AF" front end. This geometry prioritizes long-distance comfort and a relaxed, back-friendly position, making it ideal for multi-day tours. The slack 71.0-degree head tube angle, combined with a long 450.0mm chainstay length and a 1087.0mm wheelbase, ensures exceptional stability, especially when carrying heavy loads. This stable platform comes at the expense of twitchy responsiveness; it's a bike that holds its line reliably but doesn't encourage quick, aggressive maneuvers. One reviewer at 6'1" even considered sizing down to a medium from a large due to the bike's inherent length, highlighting the need for careful sizing given its ample effective top tube. Specific geometry data for the Gestalt XR (or any Gestalt size) is not available, but reviews offer general insights into its fit and handling characteristics. The Gestalt is described as having a relaxed position with a slack 71.5-degree head angle and a reasonably long 1,040mm wheelbase (for a 56cm frame), creating predictably relaxed steering. It tends to use shorter-than-average stems (e.g., 90mm on a 54cm+ frame) in conjunction with wider bars to keep handling controlled. This suggests a geometry that, while stable, aims for a slightly more engaged feel than the dedicated touring posture of the Four Corners, suitable for varied terrains without becoming overly sluggish. The Gestalt's geometry makes it a solid choice for a confident, comfortable ride over mixed surfaces, though likely less stretched out and upright than the Four Corners. For riders, these geometry differences translate into distinct experiences. The Four Corners, with its towering stack and elongated wheelbase, is for those who value ultimate comfort and stability above all, particularly when burdened with gear. It's built for spinning out long miles in a relaxed position, ideal for extended adventures where efficiency of power transfer is less critical than endurance. The Gestalt, on the other hand, likely caters to riders who want a comfortable but still somewhat dynamic ride for everyday versatility. Its blend of relaxed angles and a more compact front end would suit riders seeking a capable all-road bike that can handle commutes, fitness rides, and light gravel explorations without feeling like an overly specialized machine.
| FIT GEO | Corners | Gestalt | |
|---|---|---|---|
| Stack | 648 | — | — |
| Reach | 412.6 | — | — |
| Top tube | 617 | — | — |
| Headtube length | 209 | — | — |
| Standover height | 777 | — | — |
| Seat tube length | 495 | — | — |
| HANDLING | Corners | Gestalt | |
|---|---|---|---|
| Headtube angle | 71 | — | — |
| Seat tube angle | 72.5 | — | — |
| BB height | 288.5 | — | — |
| BB drop | 72 | — | — |
| Trail | — | — | — |
| Offset | 49 | — | — |
| Front center | — | — | — |
| Wheelbase | 1107 | — | — |
| Chainstay length | 450 | — | — |
Who each one is for

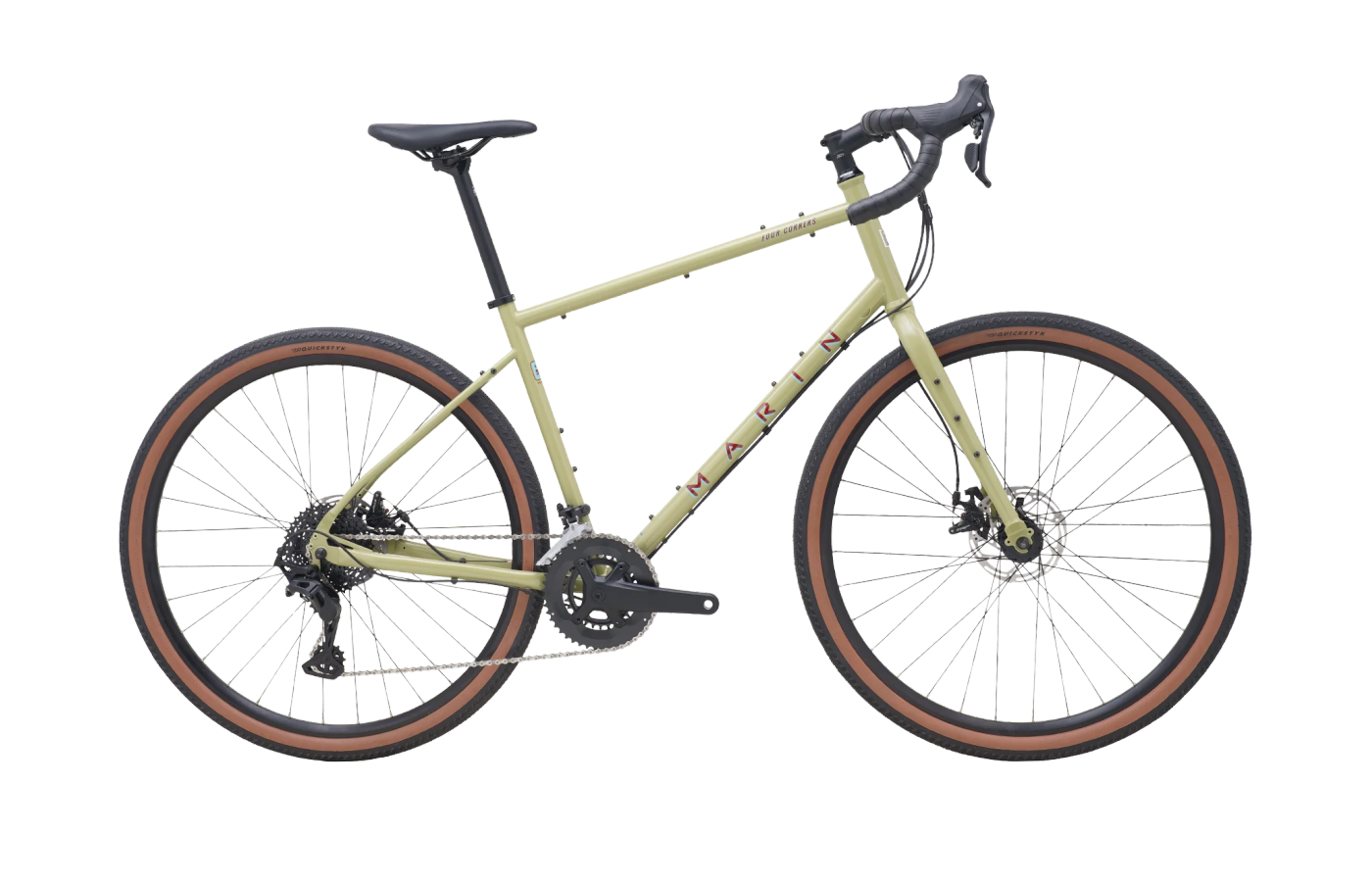

Marin Four Corners
The Marin Four Corners 2 is for the rider who dreams of long, self-supported expeditions, whether it's a cross-country tour or a multi-month bikepacking trip through remote areas. If you regularly load your bike with panniers and frame bags, needing a stable, supremely comfortable platform that shrugs off rough roads and miles, this is your machine. It’s also an excellent choice for the year-round commuter who faces varied road conditions and appreciates a bombproof, low-maintenance rig with ample carrying capacity for groceries or work essentials. Think long, steady efforts over challenging surfaces, not quick sprints.

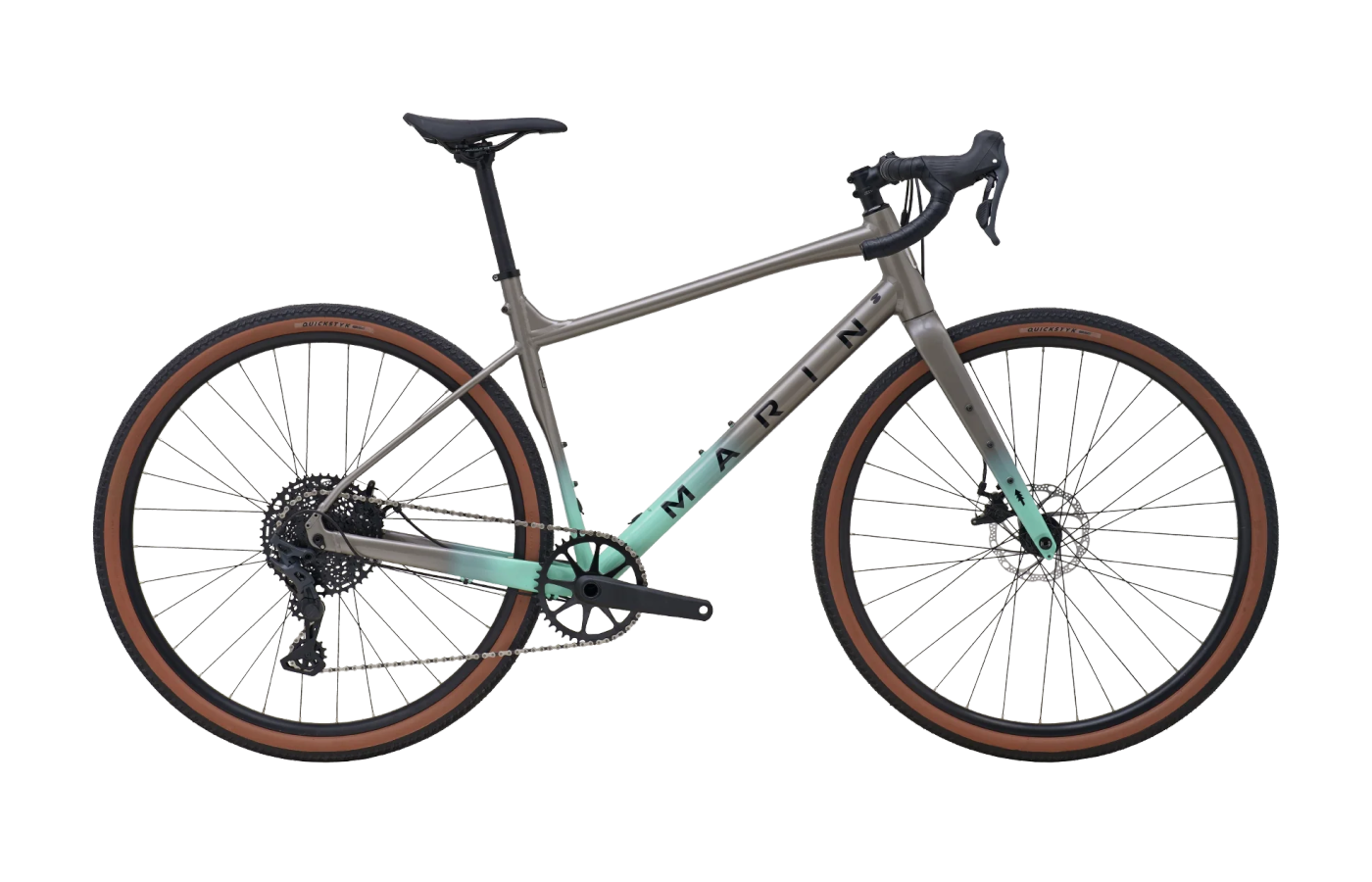

Marin Gestalt
The Marin Gestalt XR is for the rider who wants one bike to do a little bit of everything, leaning towards spirited gravel exploration and capable mixed-surface commuting. If your typical week involves fast-paced rides on pavement, exploring local rail trails, and occasionally tackling some light singletrack, the Gestalt XR offers a responsive, comfortable, and affordable solution. It’s also well-suited for someone looking for a robust, versatile travel bike that can handle varied conditions without the financial risk or logistical hassle of a high-end carbon machine. This bike is for getting out and exploring, without needing to break any speed records doing it.
