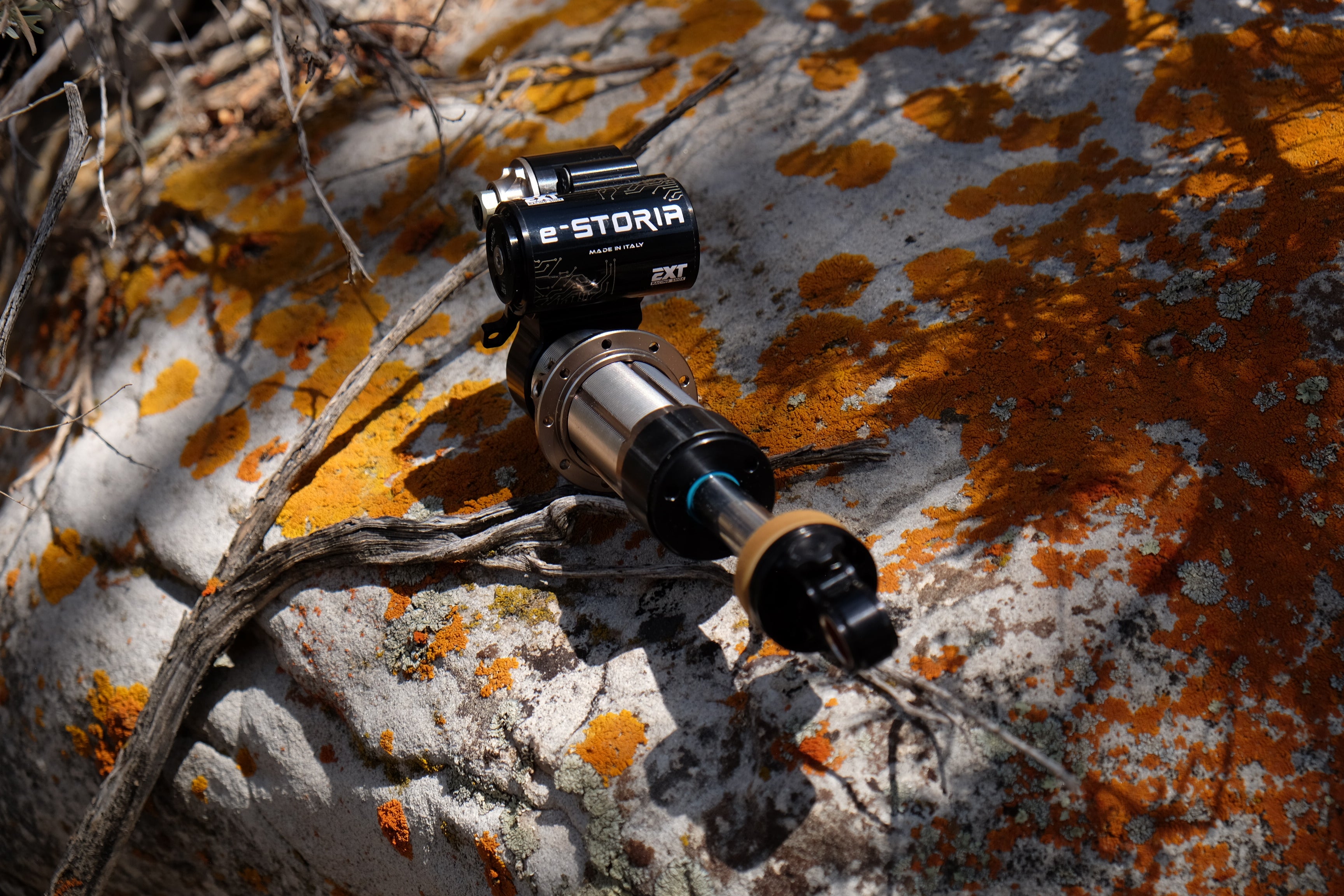

EXT e-Storia

The e-Storia includes the following features: Integrated reservoir head design to increase eyelet/trunnion mount fitment Stronger body construction Chromoly shaft with low friction coating Reservoir with large volume bladder design Dedicated spring platform to accommodate stiffer springs Internal negative spring to avoid harsh top-out and improve bike platform stability Lok 2.0 New rebound adjustment to increase tuning range New compression valve design to increase adjustability range and provide more supple low speed characteristics. Low hysteresis to improve dynamic response Completely independent compression/rebound adjustment New check valve with low inertia to control damping even at really high frequency New externally adjustable HBC and more efficient design to increase bottom out protection New seal design to reduce friction New main piston design with high flow to improve sensitivity and tunability All valves with turbulent flow to assure consistent damping with different temperature and under extreme use/conditions A new high viscosity index oil for longer consistent riding in all different situations and seasons Springs available up to 800lb Weight 460g (Metric 210x55 without sping) Price is for damper only. NOTE: Orders Requiring an HD spring (650lb+) will ship with one spring only. However, an additional HD spring may be purchased for $50. AFMLOW RIDERS: Due to the tight frame clearance on Amflow frames, we are recommending a maximum rider weight of 230lbs. To ensure frame clearance, riders over a 170lb will most likely require and be shipped with a C55 spring-size. C55 spring rates max out at 650lbs rate, which calculates to a 230lb rider weight. If you are over the recommended maximum rider weight, your spring may touch your frame under full compression.
