Specialized Demo 11: SRAM-Developed HighGear System Redefines DH Drivetrain Tech

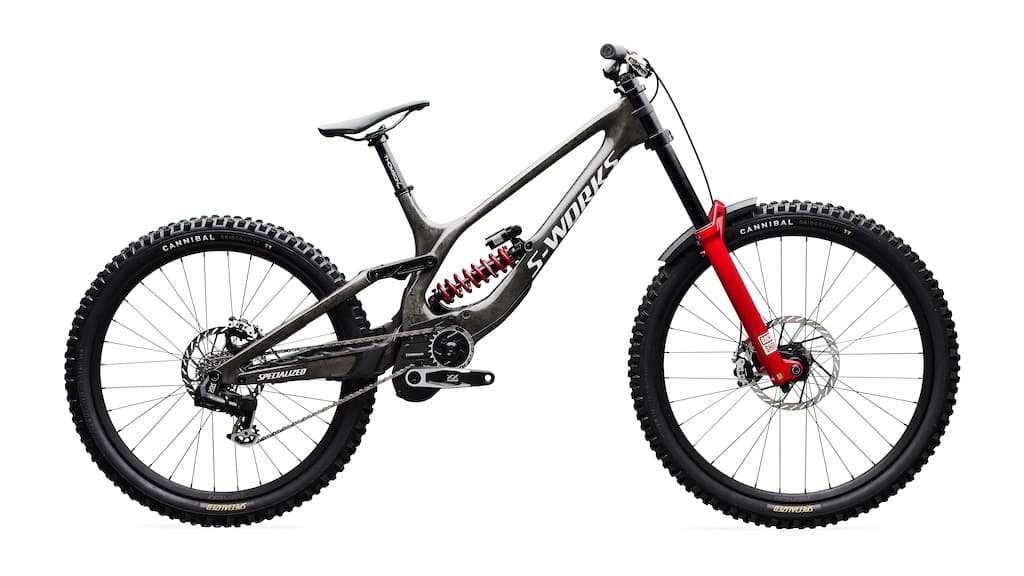

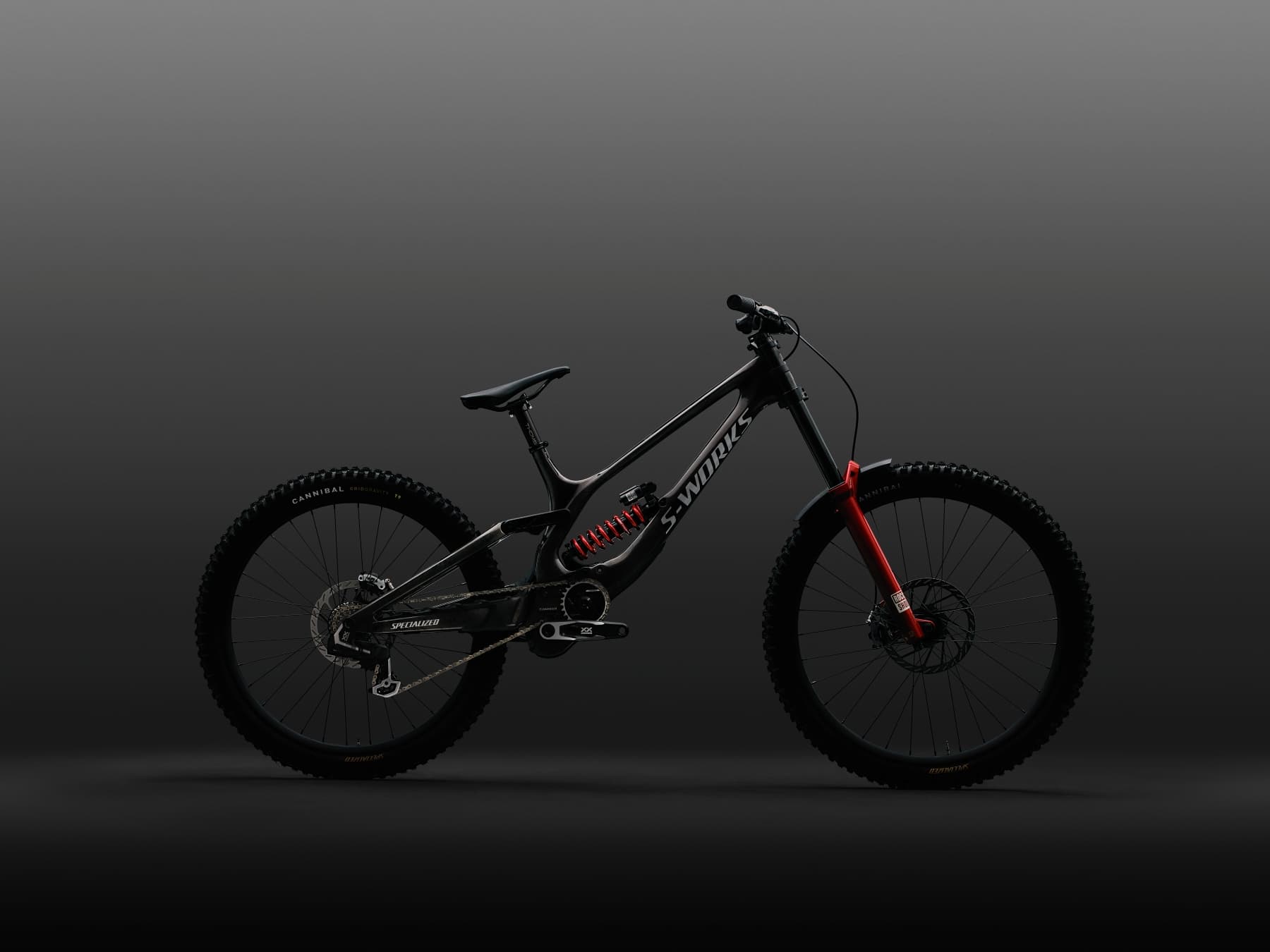

Specialized has unveiled the Demo 11, a fully carbon downhill race bike built around two technologies the brand developed in partnership with SRAM: HighGear, an enclosed dual-chain jackshaft drive system, and OBB (Over Bottom Bracket), a suspension linkage design that allows engineers to tune axle path, leverage rate, and braking behavior independently of one another. Three years in development — prototype versions were first spotted under Loïc Bruni and Finn Iles on the World Cup circuit as far back as 2022 — the Demo 11 delivers 200mm of front and rear travel, runs a 29-inch front and 27.5-inch rear wheel, and starts at $6,500 for the frameset alone.

HighGear is the Demo 11's headline innovation and the most direct read-through of the SRAM partnership. Rather than connecting the cranks to a conventional chainring, Specialized mounts a compact inner chainring to the crank spindle; that ring drives a jackshaft housed inside a sealed compartment near the bottom bracket. Mounted to the jackshaft is an external drive ring sitting significantly higher and further forward than a standard chainring, connected via a second chain to the rear cassette. Because the drive ring's position relative to the suspension's main pivot is fixed, chain length on the outboard run stays constant throughout the full 200mm of travel — decoupling pedal forces from suspension movement and, Specialized claims, virtually eliminating pedal kickback. The system adds 30mm of ground clearance versus the previous Demo and keeps the inner drivetrain protected from direct rock strikes.PinkBikeBlisterEnduro MTBBikeRumor

OBB describes how the rear suspension transmits force to the shock. The chainstay is a single long carbon unit that extends through the rear of the main frame, where it pulls downward on a first link hidden behind the HighGear compartment; that link drives a second, longer link which compresses the shock. Specialized describes this as a 'pulling' rather than 'pushing' architecture — the analogy offered is a wagon pulled by its handle, which tracks straight, versus one pushed from behind. The practical outcome is a self-aligning chassis that keeps the rear wheel in-plane under load, improving predictability at speed and under hard braking. The linkage geometry gives engineers discrete control over three parameters — axle path, leverage rate, and braking influence — that are typically coupled and force compromise in conventional designs.BlisterEnduro MTBBikeRumor

The suspension kinematics Specialized settled on are deliberately measured. The leverage curve is slightly regressive for the first 10mm of travel, then progresses smoothly to 24% overall — toward the softer end of the DH spectrum, chosen for compliance over sharp trail features. The axle path moves rearward early in the stroke, peaking at about 13mm of rearward growth at 100mm into the travel, then transitions forward again through the remaining stroke. That reversal limits wheelbase growth at bottom-out, a deliberate engineering choice to keep the bike manageable deep in the travel rather than chasing maximum rearward tracking throughout.PinkBikeBlisterRoad.cc

The frame is built from Specialized's FACT 11m carbon and is offered in three sizes — S3, S4, and S5 — a step up from the previous Demo's S2–S4 range. Reach figures run 445/475/500mm in the neutral headset position, and a replaceable headset-cup system borrowed from the Santa Cruz V10 allows 6mm of fore-aft adjustment at each size, giving an effective reach window of 439–506mm across the range. Chainstays scale with size: 435mm on S3, 445mm on S4, 455mm on S5, and each grows a further 10mm at sag to maintain consistent weight distribution. A flip chip at the rocker link adjusts bottom bracket height by 7mm and shifts the head tube angle; in the high setting with a neutral headset cup, the S4 runs a 62.5-degree head tube angle, 640mm stack, and an estimated 355mm BB height. The S-Works complete bike weighs 19.03kg (41.94lb) in size S4 — heavier than many carbon DH frames, a direct consequence of the HighGear hardware, but Specialized's position is that low-and-central mass placement offsets the number.PinkBikeBlisterBikeRumor

For now, the Demo 11 is available in exactly one build configuration — the S-Works — and as a bare frameset. The complete S-Works ships with a RockShox Boxxer Ultimate fork (52mm offset), RockShox Vivid Coil Ultimate DH shock, SRAM Maven Ultimate B1 brakes with 220mm front and 200mm rear rotors, SRAM XX DH AXS T-Type wireless drivetrain, HighGear 165mm cranks, Roval Traverse Gravity alloy rims on DT Swiss 350 hubs, and Specialized Cannibal GRID Gravity 2.4-inch tires. Two colorways are offered: Gloss Charcoal / Dolomite Metallic / White and Satin Powder Indigo Tint / Black Tint Carbon / White. The frameset kit includes the RockShox Vivid Coil Ultimate DH shock and the HighGear cranks and chainrings.PinkBikeBlisterBikeRumor

Pricing is $11,000 USD for the complete S-Works and $6,500 for the frameset (€12,499 and €7,499 respectively in Europe). Those numbers position the Demo 11 at the premium end of a DH market that has been trending toward consolidated component partnerships — the SRAM co-development of HighGear is notable because it deepens a relationship that already sees SRAM's RockShox suspension, Maven brakes, and XX drivetrains spec'd throughout. For Specialized, launching a design that prototype-raced to multiple World Cup podiums under Loïc Bruni before its public announcement compresses the normal risk window considerably. Whether the HighGear jackshaft system proves durable and serviceable enough for privateer racers — rather than factory teams with dedicated mechanics — is the practical question that first-ride reviews will have to answer.PinkBikeRoad.ccEnduro MTBBikeRumor
