Frameset
Frame
ALUXX SL-Grade Aluminum
Fork
Giant Crest 34 RCL, 130mm, Boost 15x110

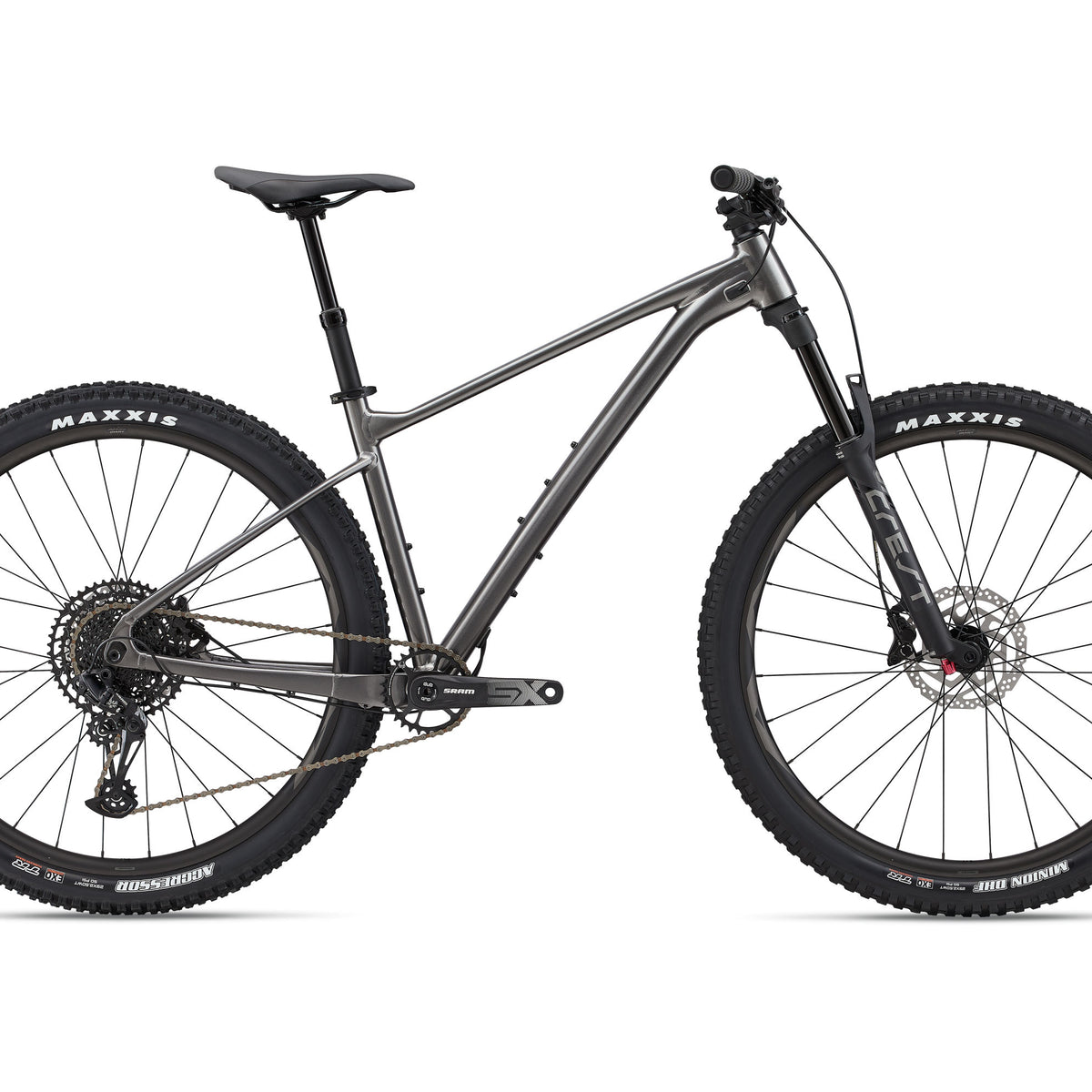

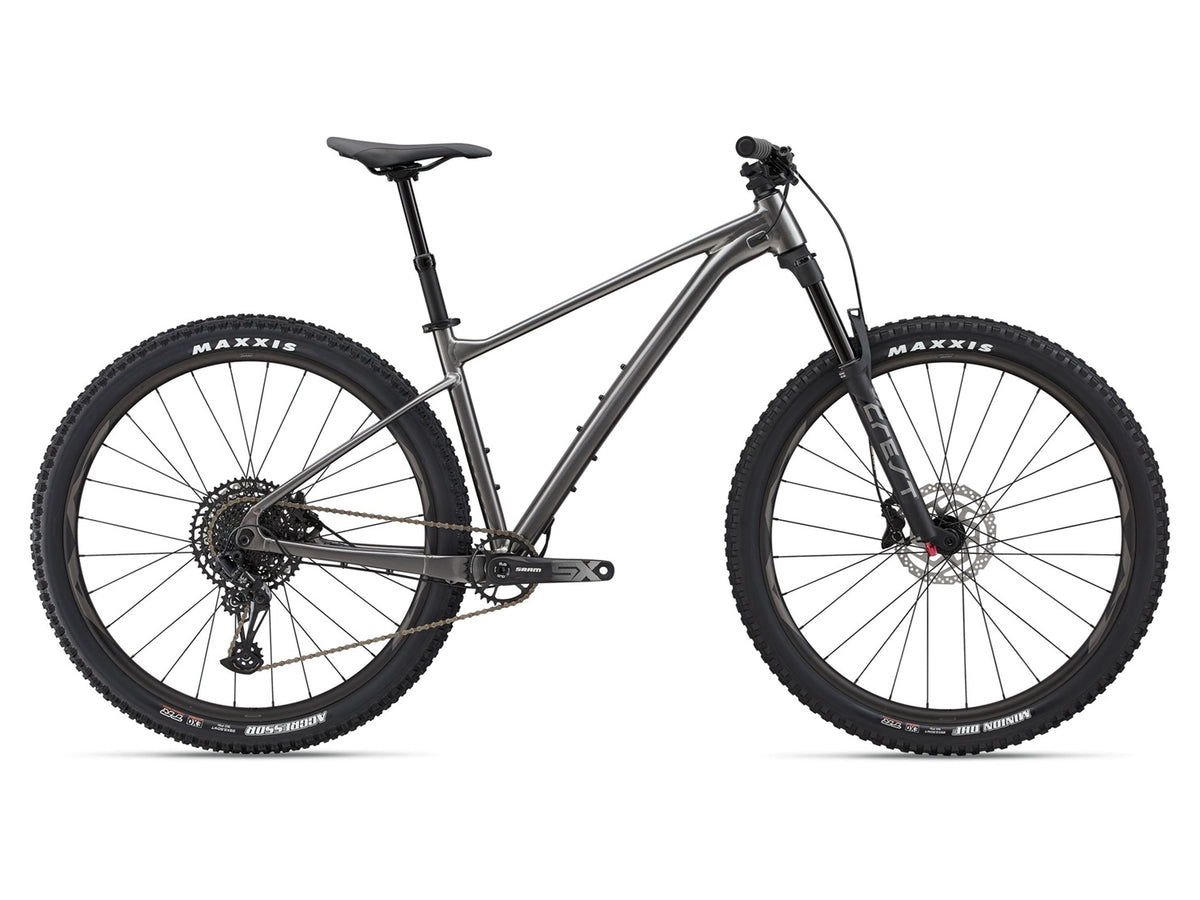

Fathom 29 1 (2021)
The Giant Fathom 29 represents a deliberate shift from traditional cross-country design into modern trail territory. Built around an ALUXX SL aluminum frame, this generation abandons steep, twitchy handling in favor of a slacker, more stable platform designed for natural, technical terrain. Giant positions the Fathom as an accessible yet highly capable hardtail, equipping it with high-volume 29-inch tires, a dropper post, and a robust suspension fork right out of the box. It suits riders looking for a forgiving, damped ride quality that mitigates the harshness often associated with alloy frames. Rather than focusing on raw pedaling efficiency or race-day weight, the Fathom prioritizes downhill composure and traction. It serves as a versatile middle ground, offering enough stability for aggressive descents while remaining balanced enough for long days of mixed trail riding.
Price TBD
Build
Size
Inventory
| Stack | 622.3mm |
| Reach | 424.18mm |
| Top tube | 591.82mm |
| Headtube length | 93.98mm |
| Standover height | 728.98mm |
| Seat tube length | 381mm |
Fit and geometry
The Fathom 29 utilizes a modern trail geometry characterized by a slack 66-degree head tube angle and a steep 75-degree seat tube angle. This combination creates a balanced posture that centers the rider between the wheels, providing stability on steep descents while maintaining an efficient, upright position for seated climbing.
However, the frame sizing runs generous. With a relatively long reach and extended top tubes across the size range, the bike feels substantial on the trail. Shorter riders may find the cockpit slightly stretched, sometimes requiring the saddle to be pushed forward on the rails to achieve an optimal pedaling position. Those between sizes might consider sizing down to retain low-speed maneuverability.
The inclusion of a size-specific Giant Contact Switch dropper post allows riders to easily get the saddle out of the way on technical terrain. Recent frame updates also relocated the water bottle bosses, allowing for deeper seatpost insertion and longer-travel droppers. Overall, the geometry strikes a moderate middle ground—stable enough for high-speed sections without stretching into the extreme, ultra-slack dimensions of a dedicated enduro hardtail.
Full specs
Groupset
Shift levers
SRAM SX Eagle
Rear derailleur
SRAM NX Eagle
Cassette
SRAM SX Eagle, 12-speed, 11-50T
Chain
SRAM SX Eagle
Crankset
SRAM SX Eagle, DUB, 30t
Bottom bracket
SRAM DUB, press fit
Front brake
Shimano MT420 (4-piston hydraulic disc)
Rear brake
Shimano MT400 (2-piston hydraulic disc)
Front rotor
180mm
Rear rotor
180mm
Wheelset
Front wheel
Giant AM 29 wheelset, alloy, 30mm inner width
Rear wheel
Giant AM 29 wheelset, alloy, 30mm inner width
Front tire
Maxxis Minion DHF, tubeless, 29x2.5 WT, foldable, EXO, TR
Rear tire
Maxxis Aggressor, tubeless, 29x2.5 WT, foldable, EXO, TR
Cockpit
Stem
Giant Contact TR 35
Handlebars
Giant Contact Trail, 35
Saddle
Giant Romero
Seatpost
Giant Contact Switch dropper post with remote, 30.9
Builds
Giant splits the Fathom 29 lineup into accessible tiers that share the same ALUXX SL aluminum frame and proprietary Crest 34 suspension fork. The frame features modern standards, including Boost 12x148mm rear spacing, a press-fit bottom bracket, and internal cable routing supported by rubber grommets to prevent rattling.
The entry point, the Fathom 29 2, utilizes a reliable 10-speed Shimano Deore drivetrain paired with a 30-tooth chainring and an 11-46t cassette. It relies on Tektro two-piston hydraulic brakes for stopping power. Stepping up to the Fathom 29 1 introduces a wider gear range via a 12-speed SRAM SX and NX Eagle mixed drivetrain, alongside an upgrade to Shimano four-piston brakes up front for increased descending control.
Across all builds, Giant prioritizes high-quality rolling stock. The bikes feature 30mm internal width alloy rims wrapped in tubeless-ready, 2.5-inch Maxxis Minion DHF and Aggressor tires with EXO casings. This consistent tire and fork specification ensures that the core ride character—focused on traction and front-end damping—remains intact regardless of which drivetrain tier a rider chooses.
1 (2021)
Price TBD
Selected
Reviews
Reviewers consistently praise the Fathom 29 for a ride quality that defies the typical rigidity of budget aluminum hardtails. The frame construction and tube shaping work together to absorb vibrations, resulting in a "generally muted feel" (BikeRadar) that keeps the bike composed through rough sections. A major factor in this comfort is the proprietary Giant Crest 34 fork, which testers found highly responsive to "subtle trail chatter" (BikeRadar) while maintaining support through repeated impacts.
On the trail, the bike leans heavily into descending capability. The stock 2.5-inch Maxxis tires provide immense traction that encourages riders to push harder on technical downhills. However, this aggressive rubber introduces a noticeable tradeoff. Testers noted that the heavy tread pattern can feel "hard-going" (BikeRadar) on smooth climbs and flat transitions. While the bike is relatively light for its class, the rolling resistance of the stock tires means it favors a steady, seated climbing cadence over rapid accelerations. Overall, the consensus points to a highly capable descender that justifies its slightly sluggish rolling speed with excellent control and a "coherent overall package" (Bike-test) that delivers strong value.
