Pinarello

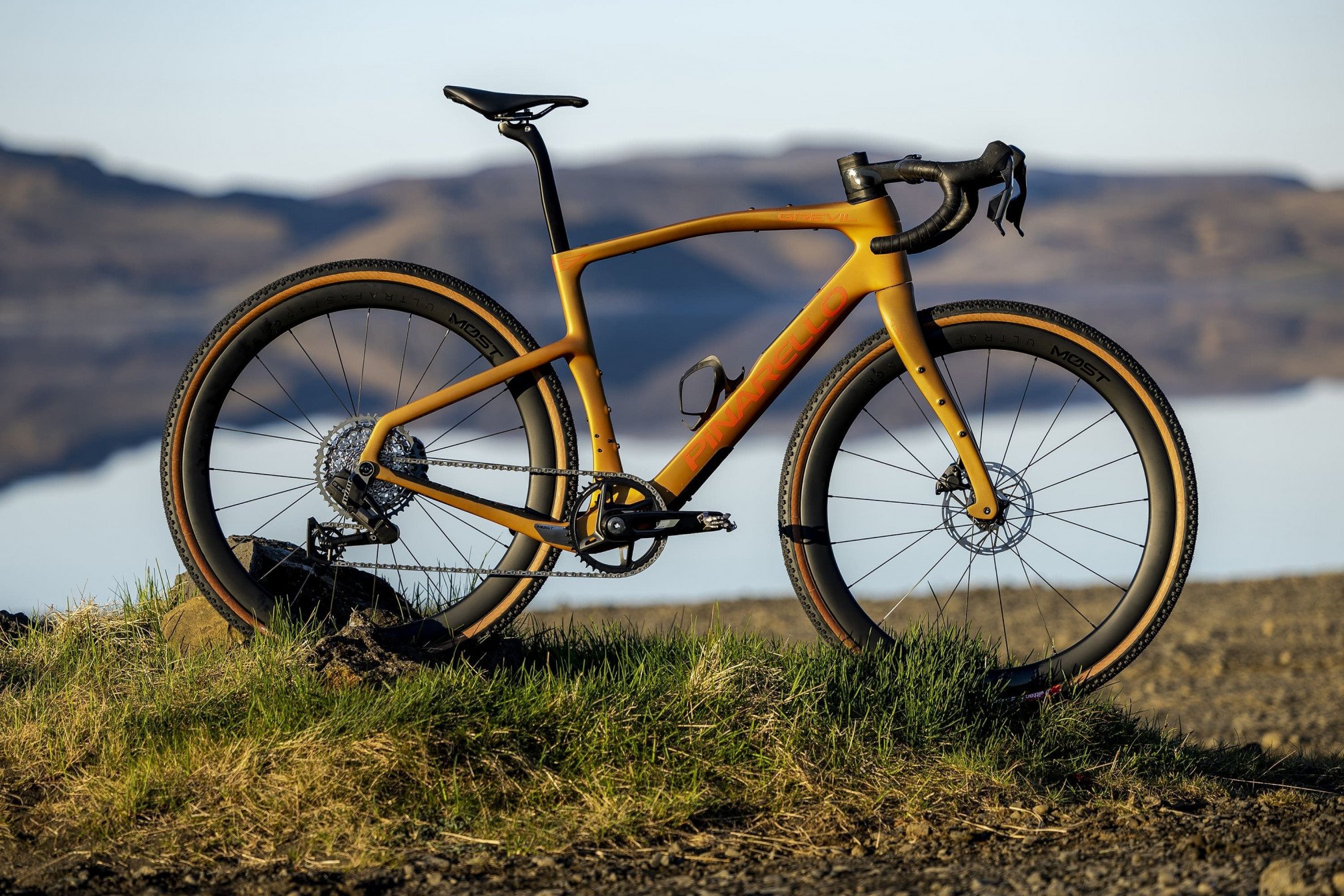

Grevil F F5 SRAM Rival XPLR AXS
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 410 | 440 | 470 | 490 | 510 | 545 |
|---|---|---|---|---|---|---|
| Stack | 553.2mm | 568.3mm | 583.2mm | 598.4mm | 613.6mm | 633.7mm |
| Reach | 368.4mm | 376.1mm | 383.7mm | 390.4mm | 398.2mm | 406.9mm |
| Headtube length | 115mm | 130mm | 150mm | 160mm | 175mm | 195mm |
| Headtube angle | 70.25deg | 70.5deg | 70.75deg | 71.75deg | 72deg | 72.25deg |
| BB height | — | — | — | — | — | — |
| BB drop | 72mm | 72mm | 67mm | 67mm | 67mm | 67mm |
| Trail | — | — | — | — | — | — |
| Fork length | 430mm | 430mm | 430mm | 430mm | 430mm | 430mm |
| Fork offset | 55mm | 55mm | 55mm | 50mm | 50mm | 50mm |
| Front center | 603.9mm | 614.5mm | 625.8mm | 621.9mm | 631.9mm | 644.3mm |
| Chainstay length | 405mm | 405mm | 405mm | 405mm | 405mm | 405mm |
| Wheelbase | 1023.5mm | 1034.2mm | 1047mm | 1043mm | 1053.1mm | 1065.5mm |
| Top tube | 530mm | 545mm | 558mm | 570mm | 587mm | 607mm |
| Standover height | — | — | — | — | — | — |
| Seat tube length | 470mm | 500mm | 530mm | 550mm | 575mm | 600mm |
| Seat tube angle | 74.5deg | 74deg | 73.75deg | 73.5deg | 73deg | 72.5deg |
Spec geometry
| Geometry | 410 | 440 | 470 | 490 | 510 | 545 |
|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — |
| Stem length | — | — | — | — | — | — |
| Handlebar width | — | — | — | — | — | — |
| Handlebar reach | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame

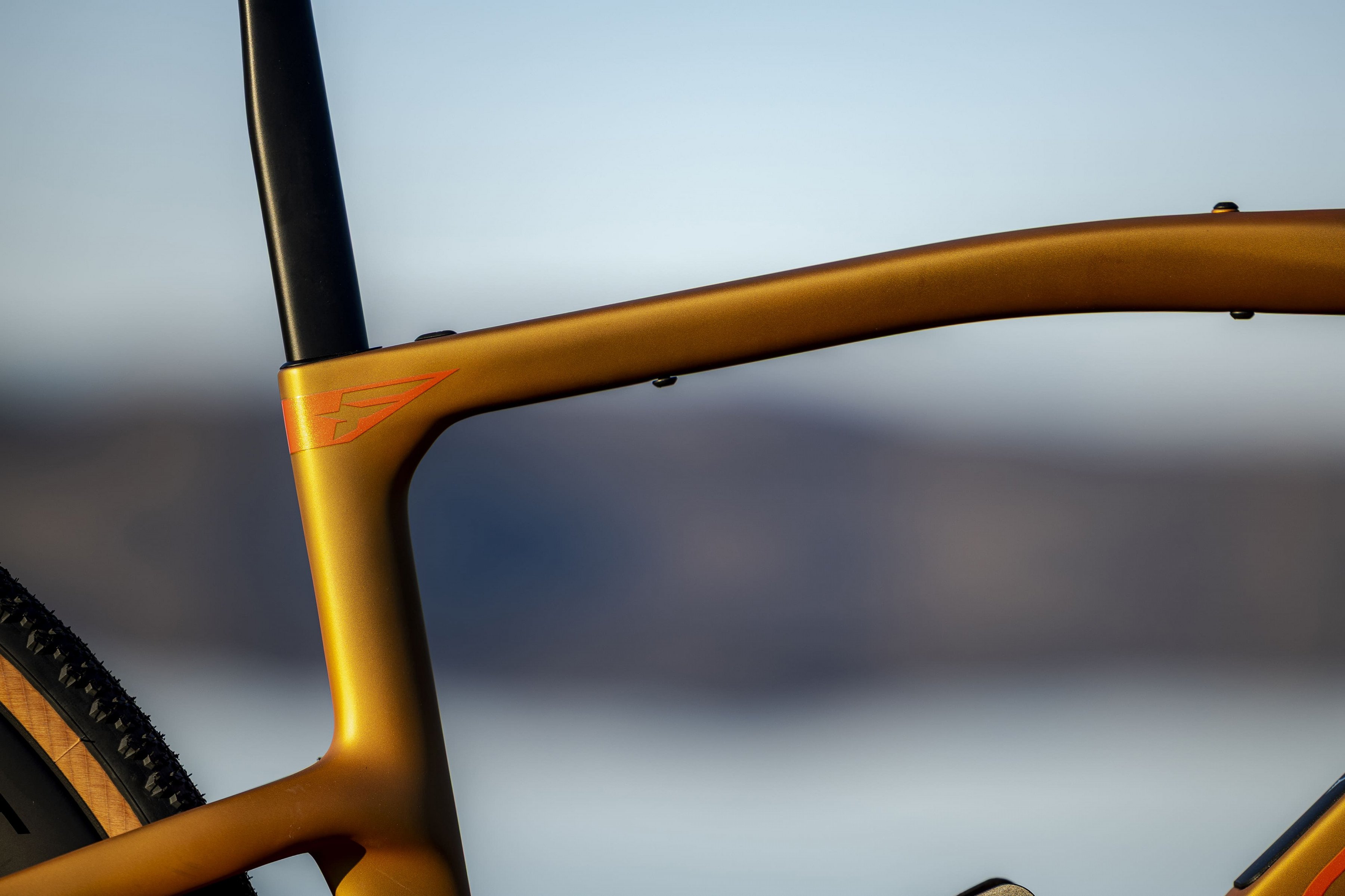

TORAY T700 UD carbon frame
Suspension
Fork
F Onda Fork with ForkFlap™, tapered steerer/head tube
Brakes
Front brake
SRAM Rival hydraulic disc brake (2-piston)
Rear brake
SRAM Rival hydraulic disc brake (2-piston)
Front rotor
160mm
Rear rotor
160mm
Drivetrain
Shift levers
/SRAM Rival AXS (XPLR)
Rear derailleur
SRAM Rival AXS XPLR rear derailleur (13-speed)
Cassette
SRAM Rival cassette
Chain
SRAM Rival chain
Crankset
SRAM Rival AXS XPLR 1x13 crankset and chainrings
Bottom bracket
SRAM DUB Italian 70mm (Road Wide) bottom bracket
Cockpit
Stem
TIGER ALU AERO TICR stem
Handlebars
JAGUAR XA GR TICR handlebar
Saddle
MOST Lynx My26 saddle
Seatpost
D-shape seatpost
Wheels & Tires
Front wheel
MOST Gravel Carbon 45 wheelset (front)
Rear wheel
MOST Gravel Carbon 45 wheelset (rear)
Front tire
Vittoria Terreno T50 45
Rear tire
Vittoria Terreno T50 45
