Revel

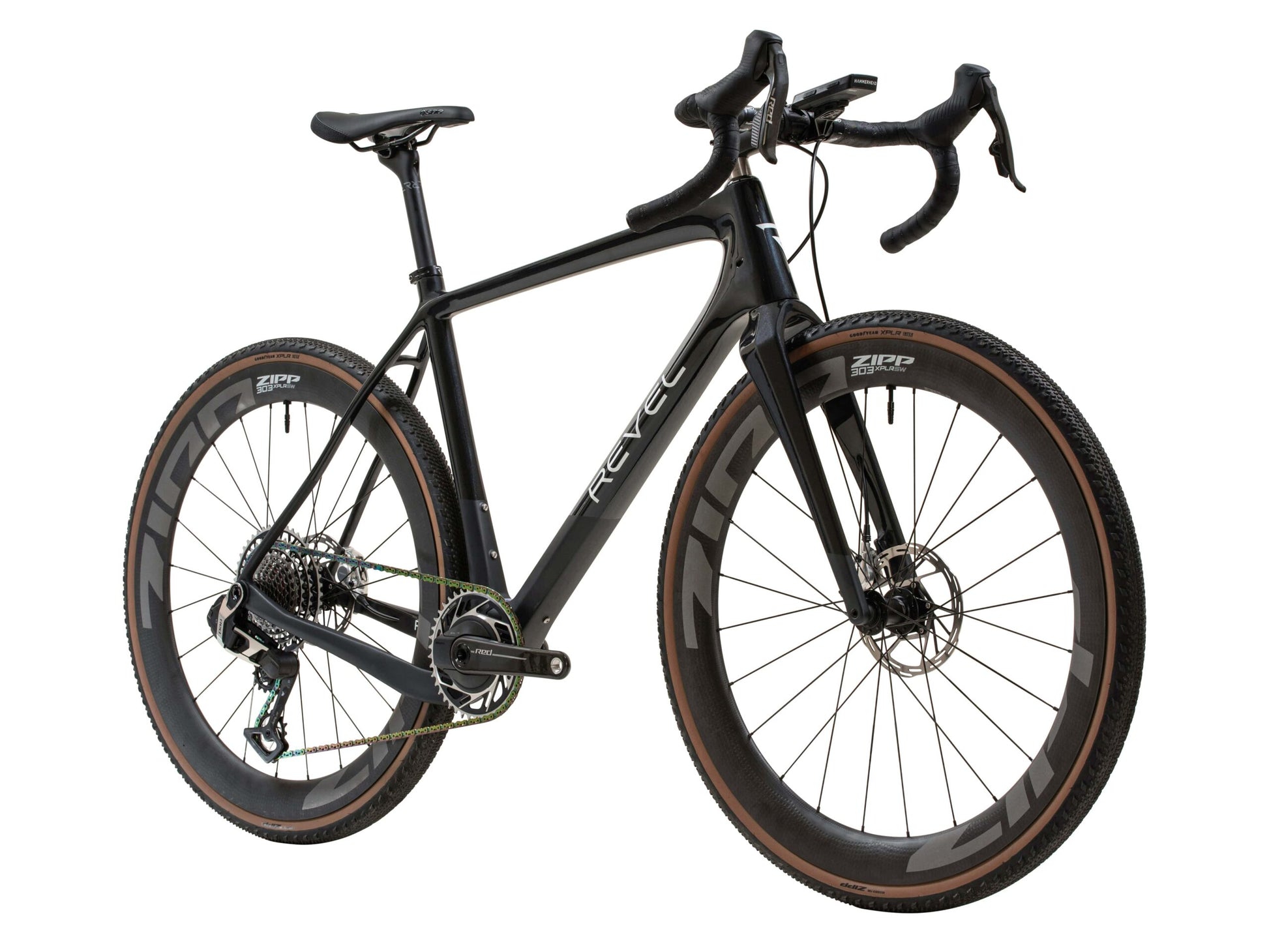

Rover Shimano GRX 12
Price TBD
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | Large | Medium | Small | XL | XXL |
|---|---|---|---|---|---|
| Stack | 580mm | 560mm | 535mm | 600mm | 625mm |
| Reach | 415mm | 407mm | 397mm | 523mm | 433mm |
| Headtube length | 157mm | 136mm | 110mm | 178mm | 205mm |
| Headtube angle | 71.5deg | 71.5deg | 71.5deg | 71.5deg | 71.5deg |
| BB height | 285mm | 285mm | 285mm | 285mm | 285mm |
| BB drop | 70mm | 70mm | 70mm | 70mm | 70mm |
| Trail | 69mm | 69mm | 69mm | 69mm | 69mm |
| Fork length | 395mm | 395mm | 395mm | 395mm | 395mm |
| Fork offset | 47mm | 47mm | 47mm | 47mm | 47mm |
| Front center | — | — | — | — | — |
| Chainstay length | 420mm | 420mm | 420mm | 420mm | 420mm |
| Wheelbase | 1049mm | 1034mm | 1016mm | 1064mm | 1082mm |
| Top tube | 570mm | 557mm | 540mm | 583mm | 600mm |
| Standover height | 775mm | 747mm | 709mm | 803mm | 831mm |
| Seat tube length | 520mm | 490mm | 450mm | 550mm | 580mm |
| Seat tube angle | 75deg | 75deg | 75deg | 75deg | 75deg |
Specs
Full specs
>
Specs
Full specs
No specs available yet.
