Time

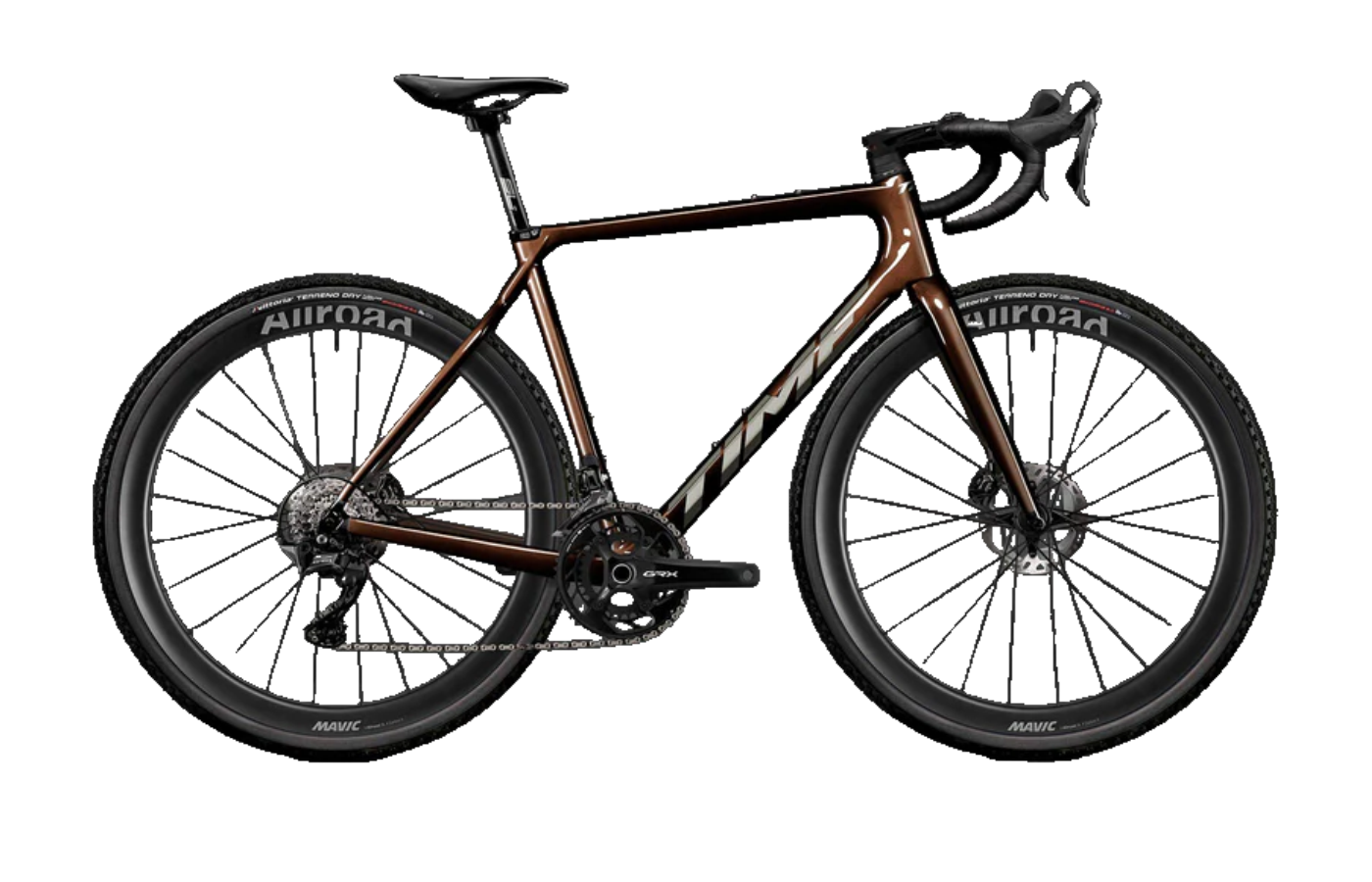

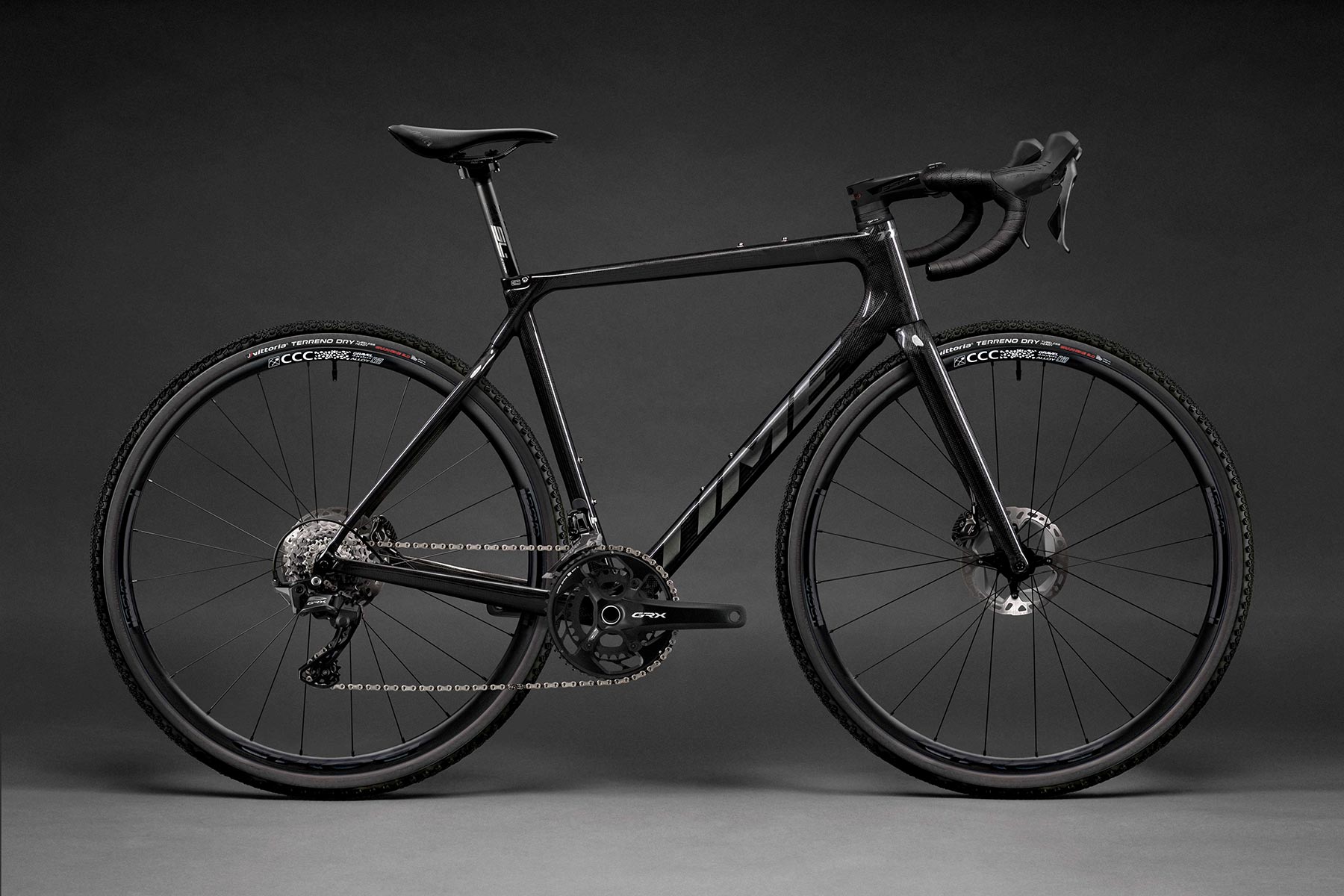

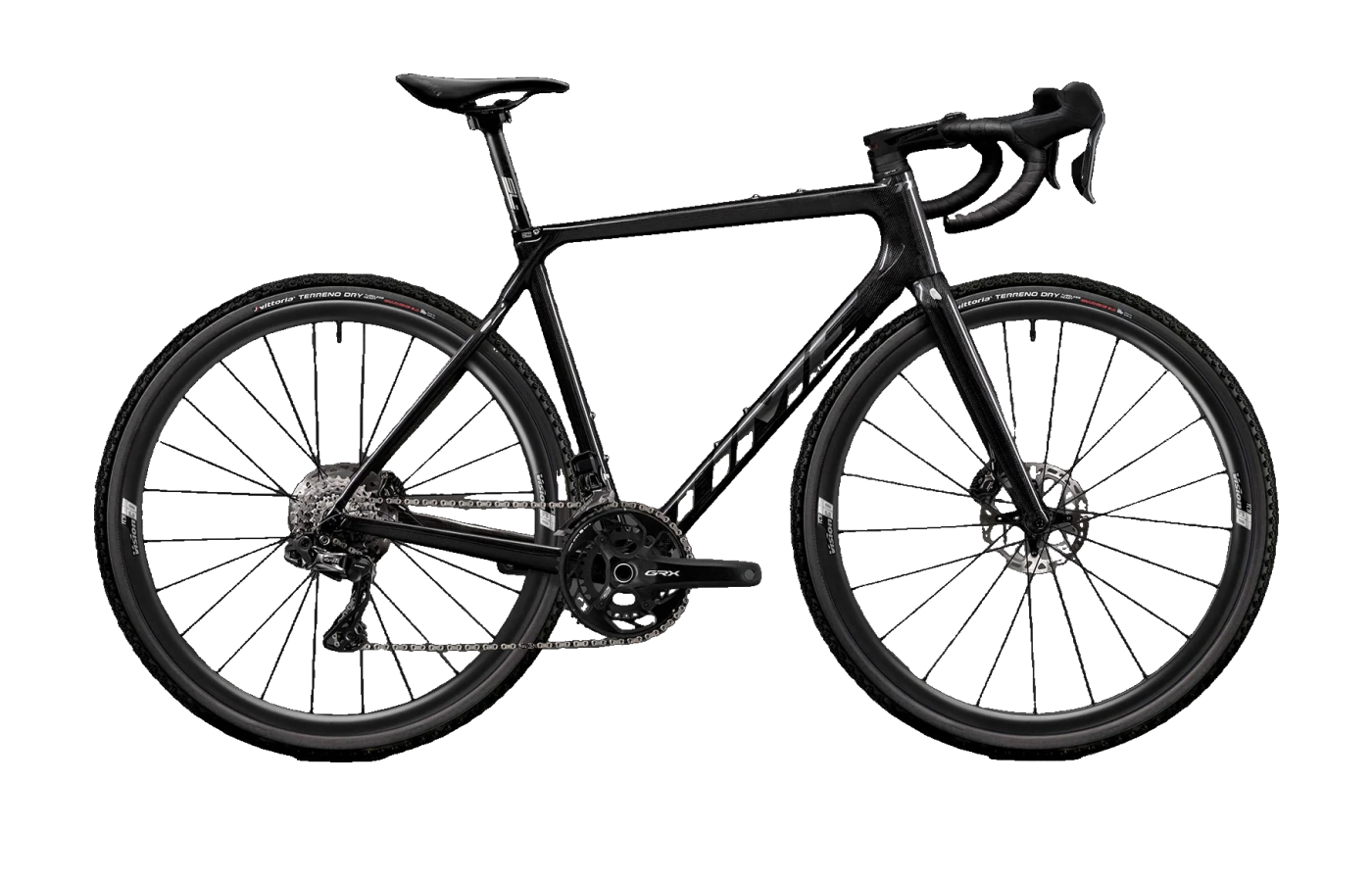

ADHX 45 Shimano GRX Mechanical 2x 12sp
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL | XS |
|---|---|---|---|---|---|
| Stack | 583mm | 564mm | 543mm | 603mm | 532mm |
| Reach | 390mm | 381mm | 371mm | 395mm | 364mm |
| Headtube length | 169mm | 149mm | 131mm | 188mm | 123mm |
| Headtube angle | 72.3deg | 72.3deg | 71.3deg | 72.8deg | 70.3deg |
| BB height | — | — | — | — | — |
| BB drop | 71mm | 71mm | 71mm | 71mm | 71mm |
| Trail | 59mm | 59mm | 65mm | 57mm | 71mm |
| Fork length | 383mm | 383mm | 383mm | 383mm | 383mm |
| Fork offset | 53mm | 53mm | 53mm | 53mm | 53mm |
| Front center | 613mm | 598mm | 591mm | 618mm | 589mm |
| Chainstay length | 430mm | 430mm | 430mm | 430mm | 430mm |
| Wheelbase | 1033mm | 1018mm | 1011mm | 1038mm | 1009mm |
| Top tube | 568mm | 553mm | 537mm | 578mm | 519mm |
| Standover height | 829mm | 804mm | 785mm | 849mm | 763mm |
| Seat tube length | 530mm | 500mm | 480mm | 550mm | 455mm |
| Seat tube angle | 72.8deg | 72.8deg | 72.8deg | 72.8deg | 73.5deg |
Spec geometry
| Geometry | L | M | S | XL | XS |
|---|---|---|---|---|---|
| Crank length | — | — | — | — | — |
| Stem length | — | — | — | — | — |
| Handlebar width | — | — | — | — | — |
| Handlebar reach | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — |
| Saddle width | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
ADHX 45 frame — BCS Carbon Fiber, Dyneema® Enhanced
Suspension
Fork
ADHX 45 fork (steerer: tapered 1-1/8" to 1-1/2")
Brakes
Front brake
Shimano GRX RX820 disc brake, flat-mount
Rear brake
Shimano GRX RX820 disc brake, flat-mount
Front rotor
Shimano MT800 Center Lock, 160mm
Rear rotor
Shimano MT800 Center Lock, 160mm
Drivetrain
Shift levers
Shimano GRX (2x12 mechanical)
Rear derailleur
Shimano GRX RX825 Mechanical, 12-speed
Front derailleur
Shimano GRX Mechanical
Cassette
Shimano HG8101, 12-speed, 11-34T
Chain
Shimano HG7100, 12-speed
Crankset
Shimano GRX RX820, 48/31T
Bottom bracket
PF BB386
Cockpit
Stem
FSA SMR II
Handlebars
FSA A-Wing AGX
Saddle
Selle Italia Novus Boost EVO Superflow
Seatpost
FSA SL-K, 27.2mm
Wheels & Tires
Front wheel
Wheelset options: VISION SC 30 AGX / MAVIC ALLROAD SL / BOYD CCC ALLOY
Rear wheel
Wheelset options: VISION SC 30 AGX / MAVIC ALLROAD SL / BOYD CCC ALLOY
Front tire
Vittoria T50, 700x45c
Rear tire
Vittoria T50, 700x45c
