The 2026-present Ventum NS1 is a substantial redesign rather than a light refresh. Ventum retained several practical features from the previous platform—T47 threaded bottom bracket, flat-mount disc brakes, UDH compatibility, full internal routing, and clearance for 700x35c tires—but reshaped the bike around a more aggressive aero front end. The defining visual and functional changes are the deeper leading edge projecting ahead of the steerer, an hourglass-shaped head tube, and deeper fork legs, paired with a lighter higher-modulus layup. That combination places the NS1 squarely in the modern aero-road category: a race-oriented bike that still acknowledges current expectations around serviceability and tire clearance.
| Stack | 541mm |
| Reach | 388mm |
| Top tube | 553mm |
| Headtube length | 133mm |
| Standover height | 770mm |
| Seat tube length | 473mm |
The NS1's geometry is contemporary but not extreme. Across the core sizes, the bike uses a consistent 410 mm chainstay and 69 mm BB drop, with a 73-degree head tube angle on M through XL. Reach numbers are moderate for an aero road bike—388 mm in M, 397 mm in M/L, 405 mm in L—while stack rises from 541 mm in M to 615 mm in XL, reflecting Ventum's stated move toward slightly taller stack and reach, especially in the larger sizes. In practice, that should give riders a race-capable position without pushing the fit as low and long as some pure WorldTour-style aero frames.
Frameset
Frame
Ventum NS1 road frame | Full carbon fiber construction | Internal cable routing | T47 threaded BB | Flat mount disc brake | UDH
Fork
Ventum NS1 fork | Tapered carbon steerer | Internal brake routing | Flat mount disc brake | Carbon dropouts
Groupset
Shift levers
SRAM Red AXS HRD shifters 2x12 speed | Electronic shifting | Hydraulic braking
Front derailleur
SRAM Red AXS | 2x12 speed | Electronic shifting
Rear derailleur
SRAM Red AXS | 2x12 speed | Electronic shifting
Cassette
SRAM Red | XG 1290 | 10-36T
Chain
SRAM Red E1 12-speed chain
Crankset
SRAM Red AXS Power Meter Crankset | 48/35T chainrings; XS: 165mm, S: 165mm, M: 170mm, M/L: 170mm, L: 172.5mm, XL: 172.5mm
Bottom bracket
SRAM DUB T47
Front brake
SRAM Red AXS hydraulic disc brakes
Rear brake
SRAM Red AXS hydraulic disc brakes
Front rotor
SRAM Centerlock Paceline X | 160mm
Rear rotor
SRAM Centerlock Paceline X | 140mm
Wheelset
Front wheel
ZIPP 353 NSW | Tubeless, disc brake | Carbon
Rear wheel
ZIPP 353 NSW | Tubeless, disc brake | Carbon | XDR Driver
Front tire
Schwalbe One | Performance RaceGuard | 700x30c
Rear tire
Schwalbe One | Performance RaceGuard | 700x30c
Cockpit
Stem
Ventum CR2 one-piece cockpit; XS: 90mm stem, S: 90mm stem, M: 90mm stem, M/L: 90mm stem, L: 100mm stem, XL: 100mm stem
Handlebars
Ventum CR2 one-piece cockpit; XS: 40cm bar, S: 40cm bar, M: 42cm bar, M/L: 42cm bar, L: 42cm bar, XL: 44cm bar
Saddle
Fizik Vento Argo R5 | 140mm
Seatpost
Ventum carbon post | 10mm offset
Grips
FSA Powertouch, black

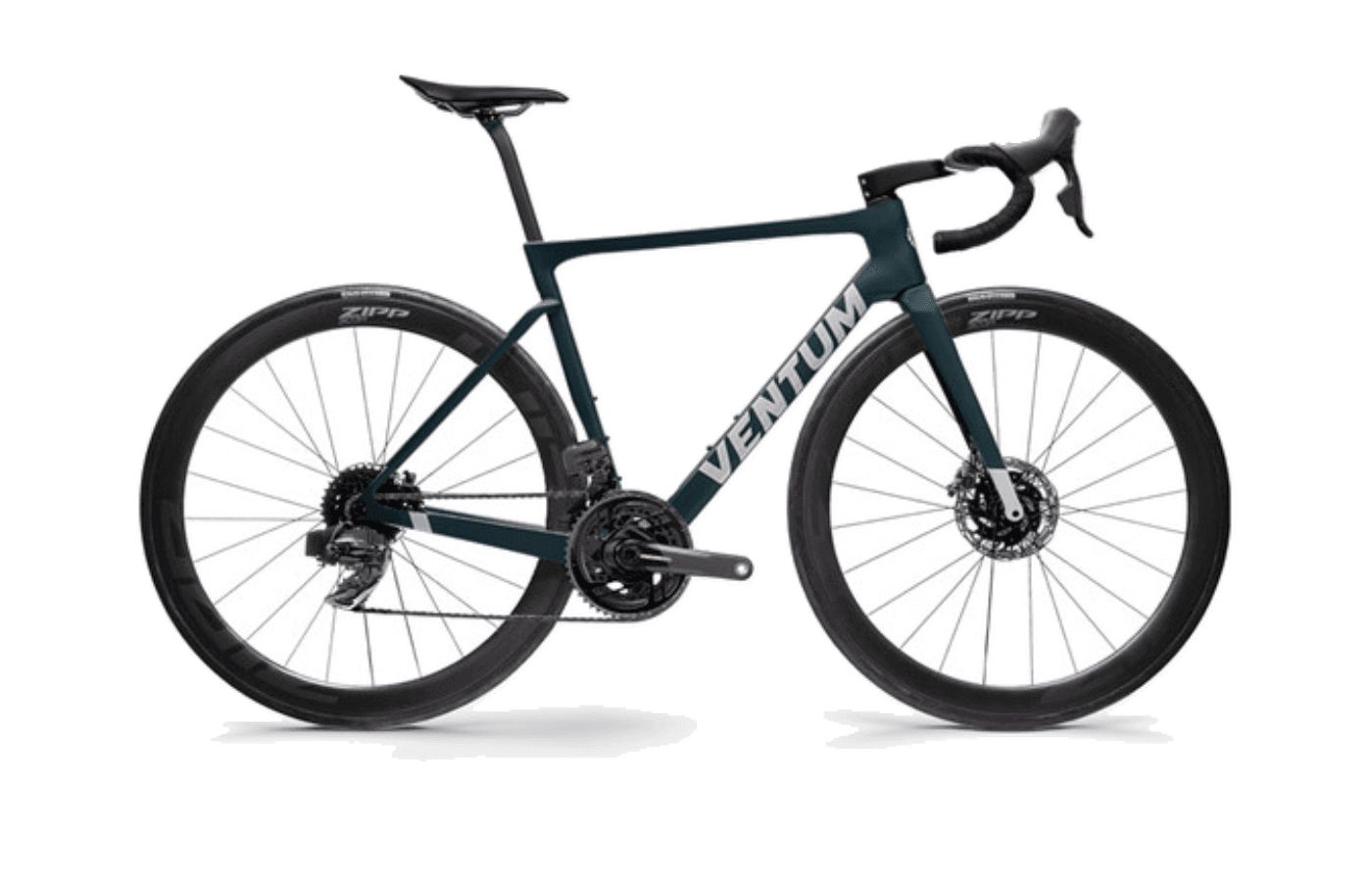

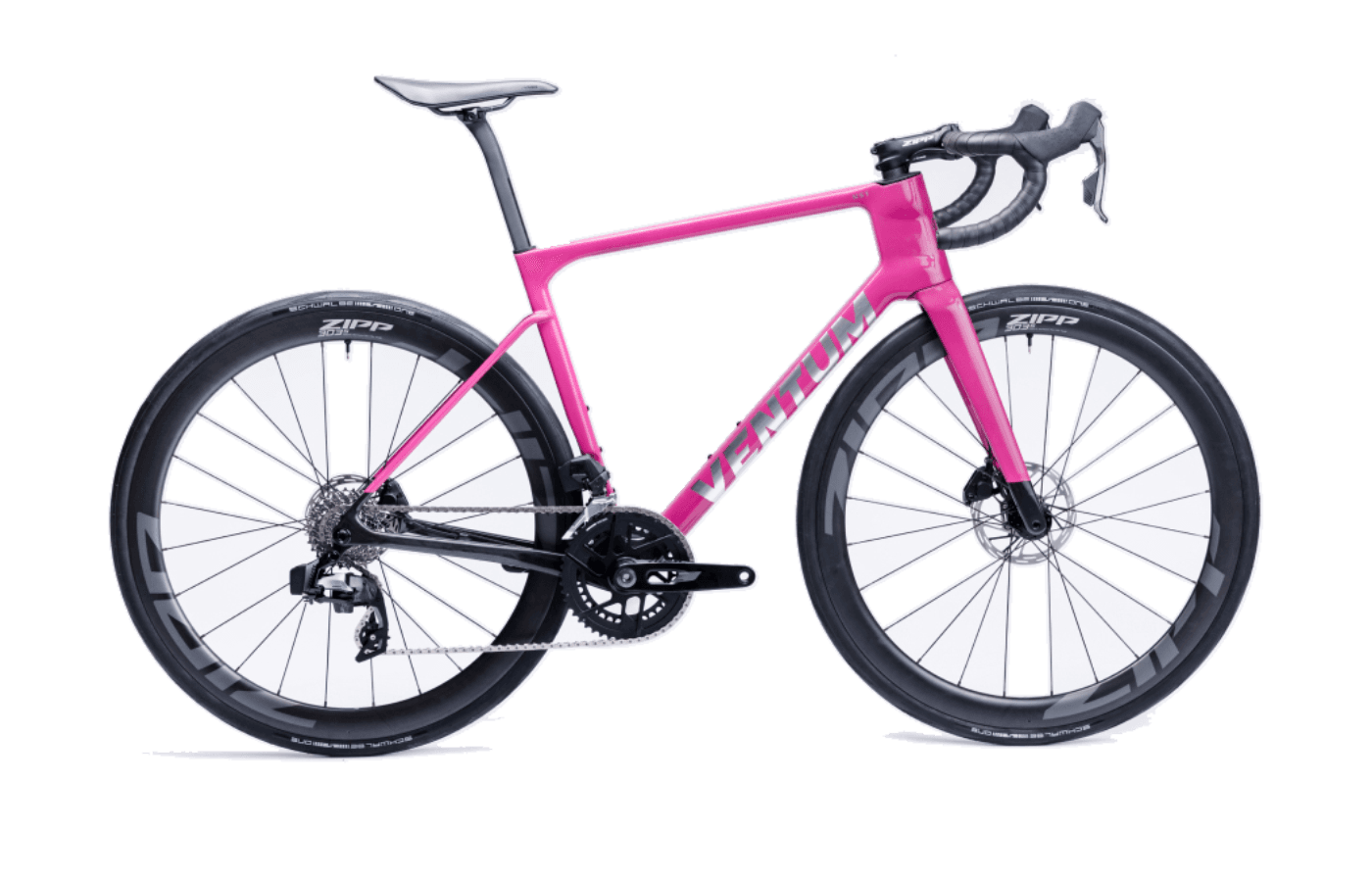

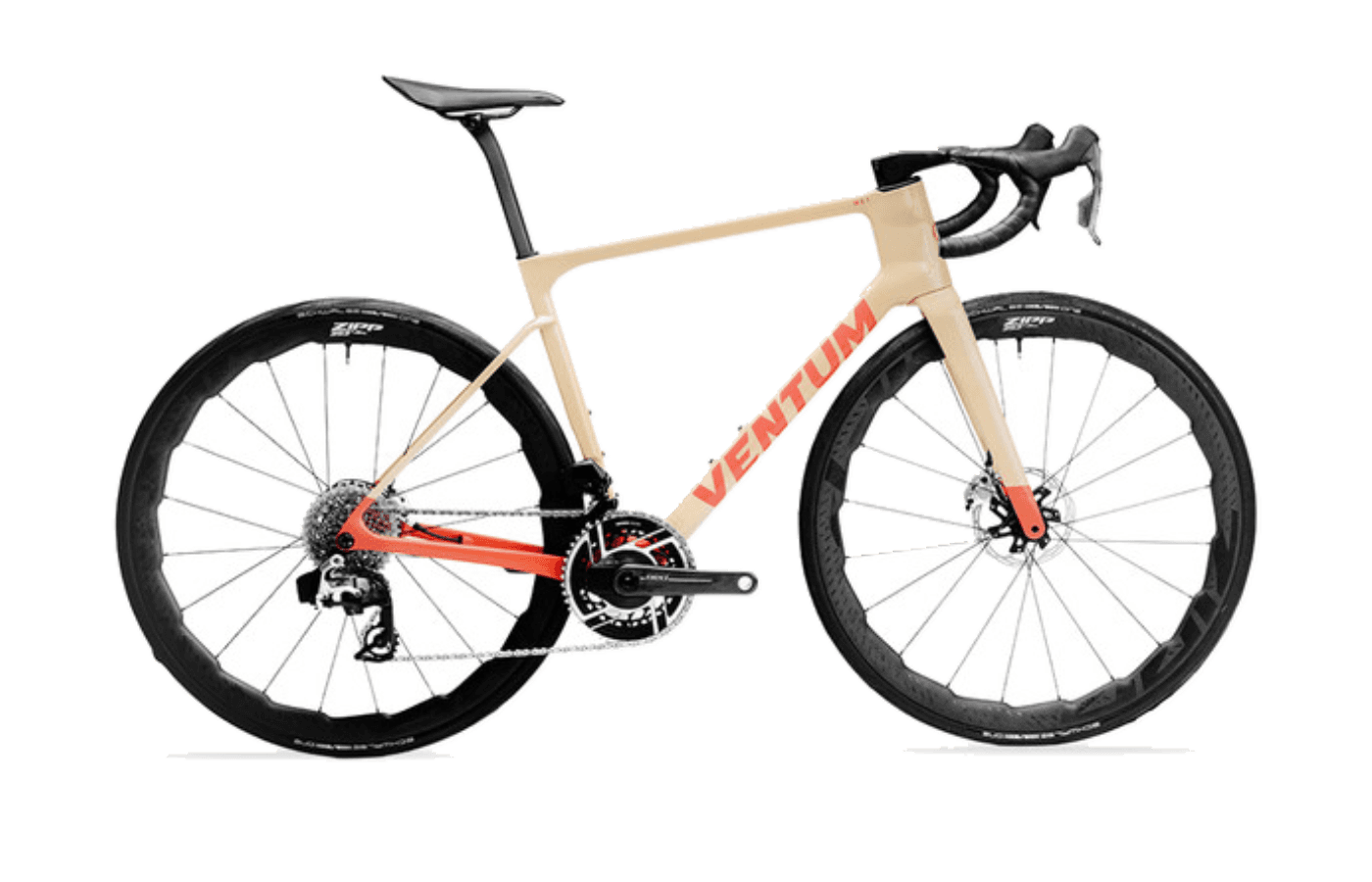

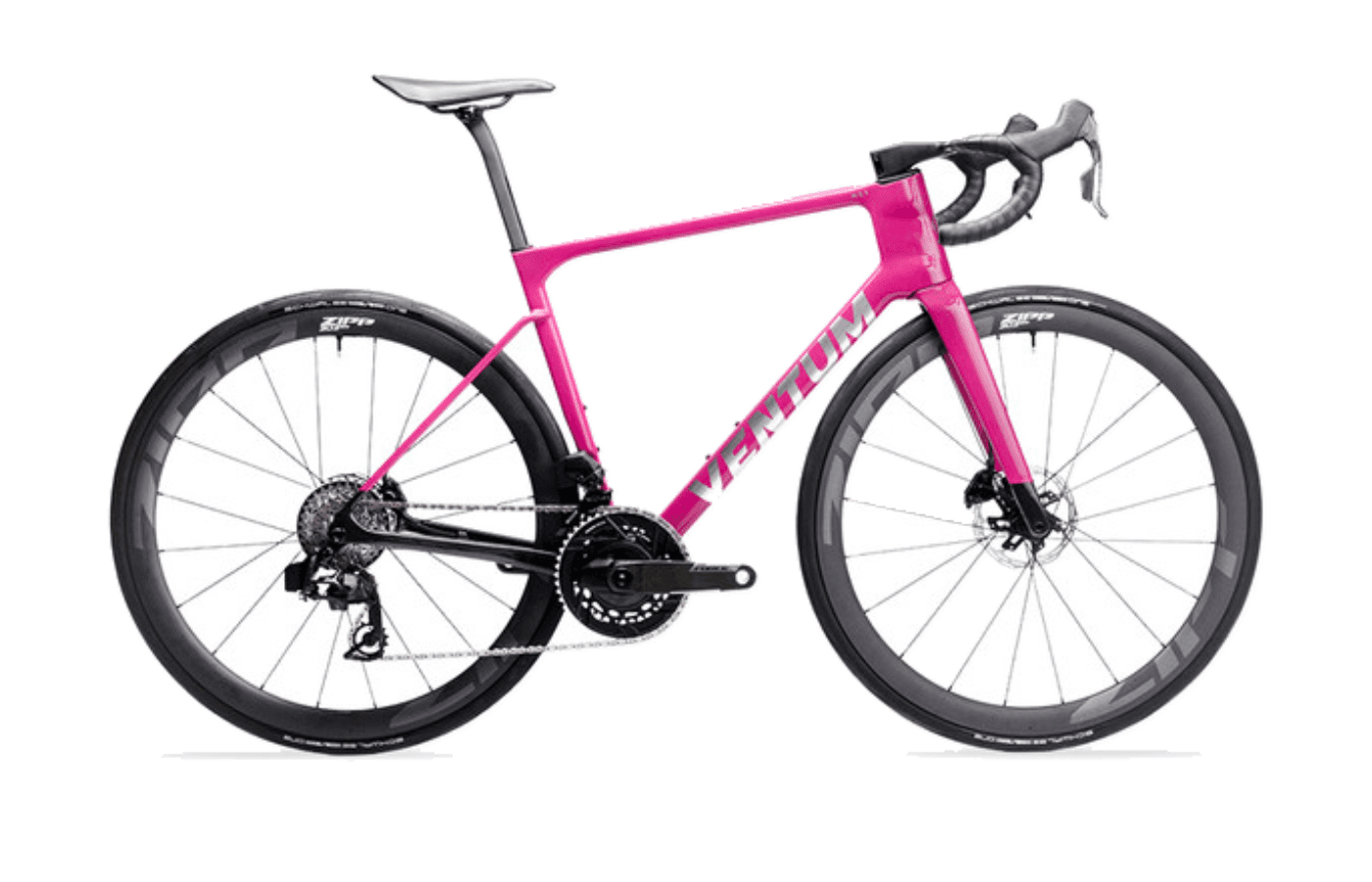

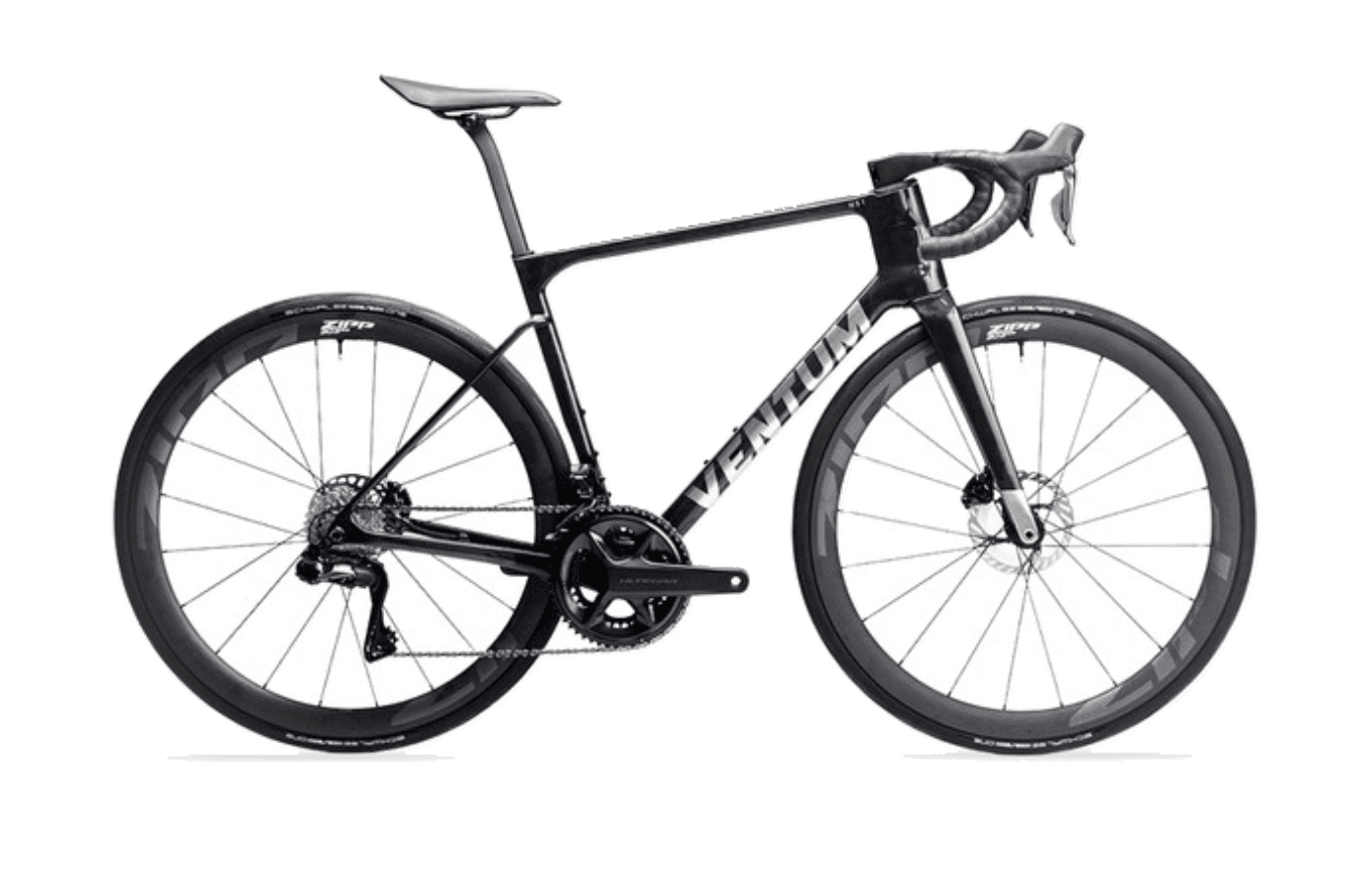

The NS1 range spans from a $5,599 Rival AXS model to flagship builds at $10,999 for Red AXS and $11,299 for Dura-Ace Di2. In the middle of the range, Force AXS is priced at $7,599 and Ultegra Di2 at $7,899, giving buyers a fairly clear split between more attainable electronic-shifting builds and premium top-tier options. The pricing structure suggests Ventum is offering the same core frame platform across the line while letting drivetrain level define most of the jump in cost.
