3T

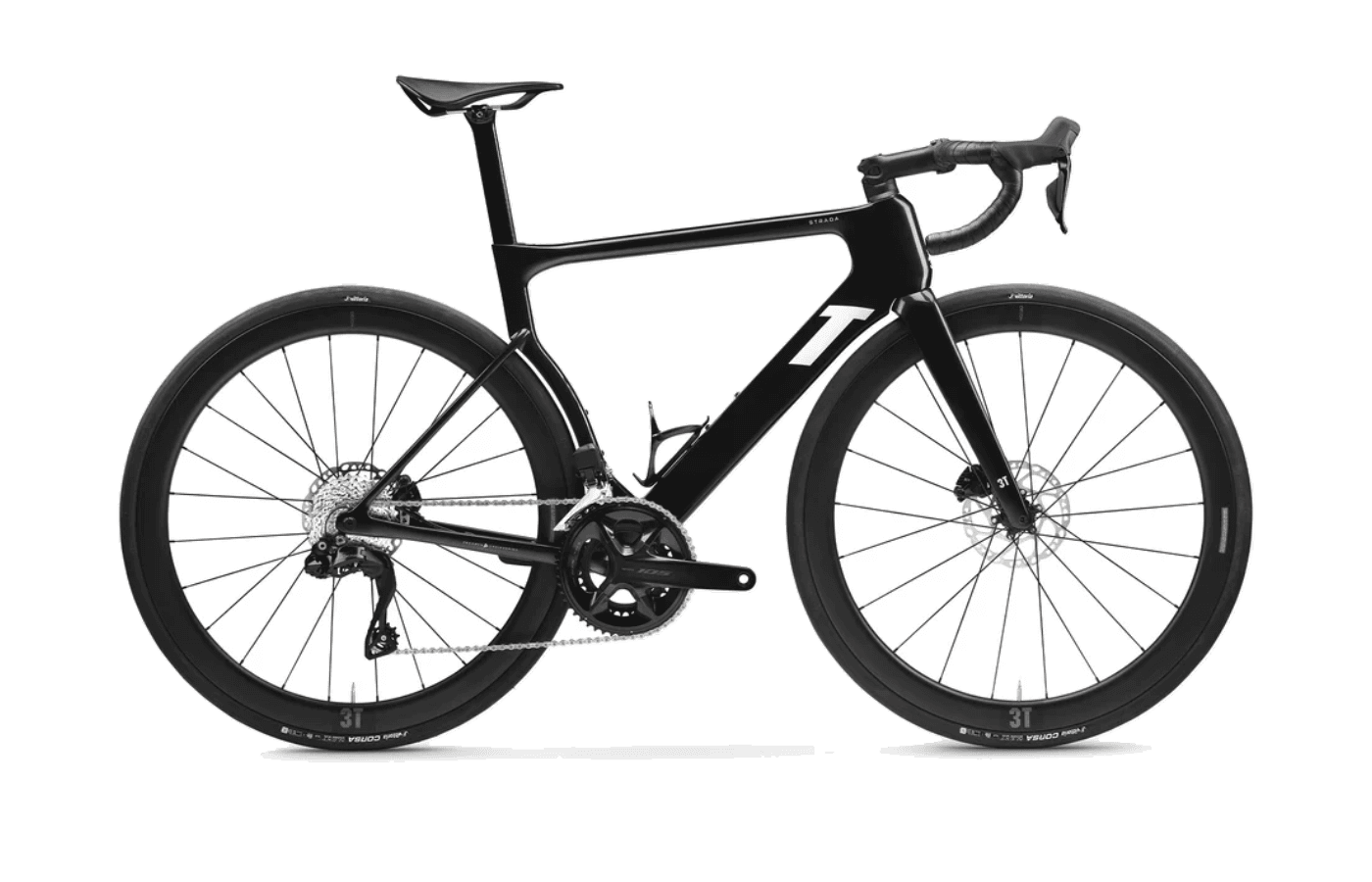

Strada 105 Di2 2x12 Carbon
Gallery
Images
No images available yet.
Geometry
Geometry
>
Geometry
Geometry
Spec geometry
| Geometry | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Crank length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | — |
| Stem length | 70mm | 80mm | 90mm | 100mm | 110mm | 120mm |
| Handlebar width | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
| Handlebar reach | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Unidirectional pre-preg carbon, High-modulus/high-strength performance blend layup
Suspension
Fork
3T Fundi Integrale II
Brakes
Front brake
Shimano BR-R7170 hydraulic disc
Rear brake
Shimano BR-R7170 hydraulic disc
Front rotor
160mm Shimano RT70
Rear rotor
160mm or 140mm Shimano SM-RT70 (depending on availability)
Drivetrain
Shift levers
Shimano 105 Di2 ST-R7170 12s
Rear derailleur
Shimano 105 Di2 RD-R7150 12s
Front derailleur
Shimano 105 Di2 FD-R7150 12s
Cassette
Shimano CS-R7101-12 11-34
Chain
null
Crankset
Shimano 105 FC-R7100 50/34 12s (48: 165mm, 51: 170mm, 54&56: 172.5mm, 58: 175mm)
Bottom bracket
null
Cockpit
Stem
3T Apto Integrale Stealth (48: 70mm, 51: 80mm, 54: 90mm, 56: 100mm, 58: 110mm, 61: 120mm)
Handlebars
3T Superergo Integrale LTD (48: 38cm, 51: 40cm, 54&56: 42cm, 58&61: 44cm)
Saddle
Selle Italia Novus Boost Evo Superflow or Selle Italia Model X Superflow (depending on availability)
Seatpost
3T Strada seatpost for Ritchey clamp
Wheels & Tires
Front wheel
3T Discus 40I30 or Zipp 303 S (depending on availability)
Rear wheel
3T Discus 40I30 or Zipp 303 S (depending on availability)
Front tire
Pirelli or Vittoria (model may vary depending on availability)
Rear tire
Pirelli or Vittoria (model may vary depending on availability)
