Marin

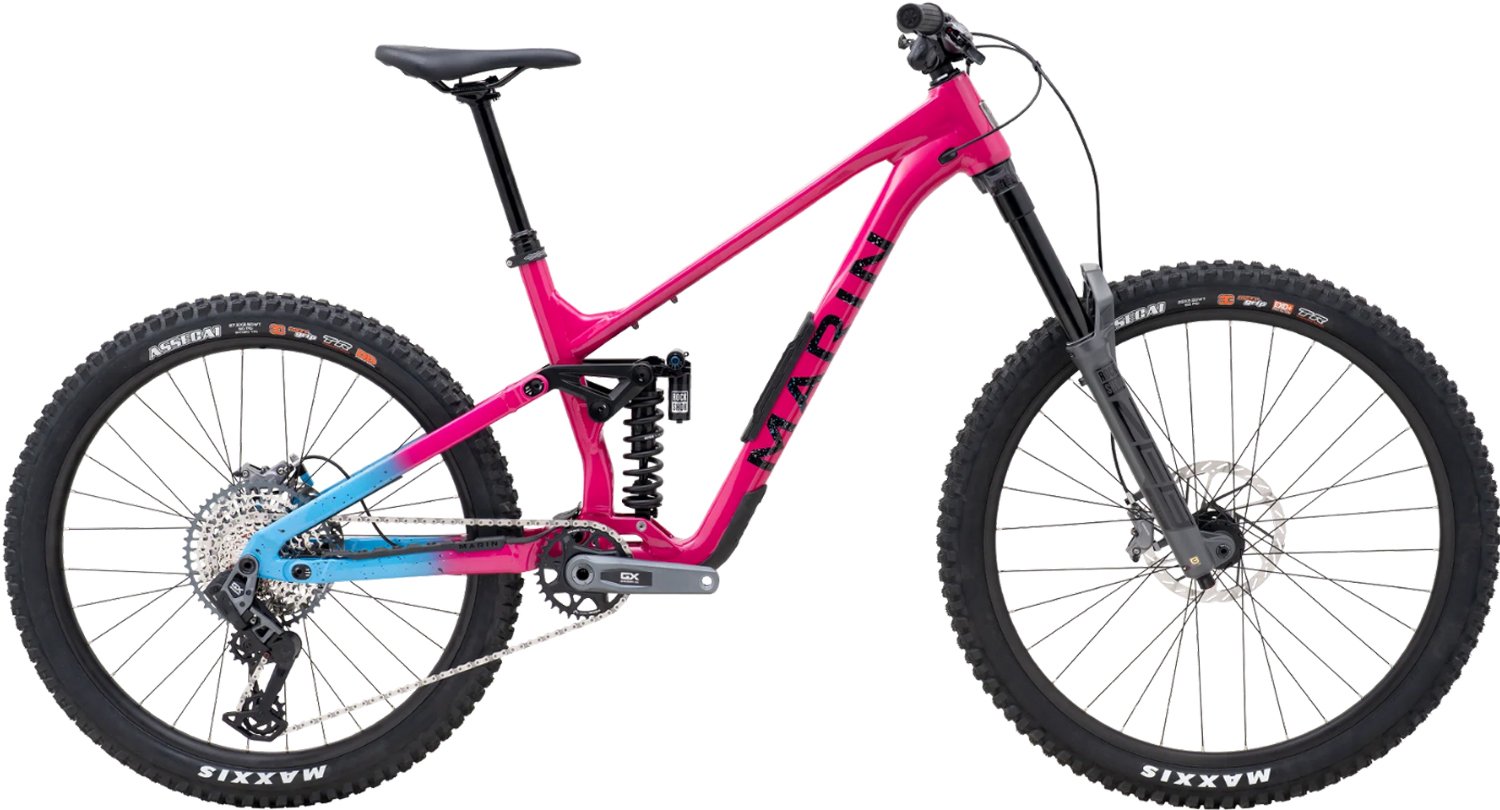

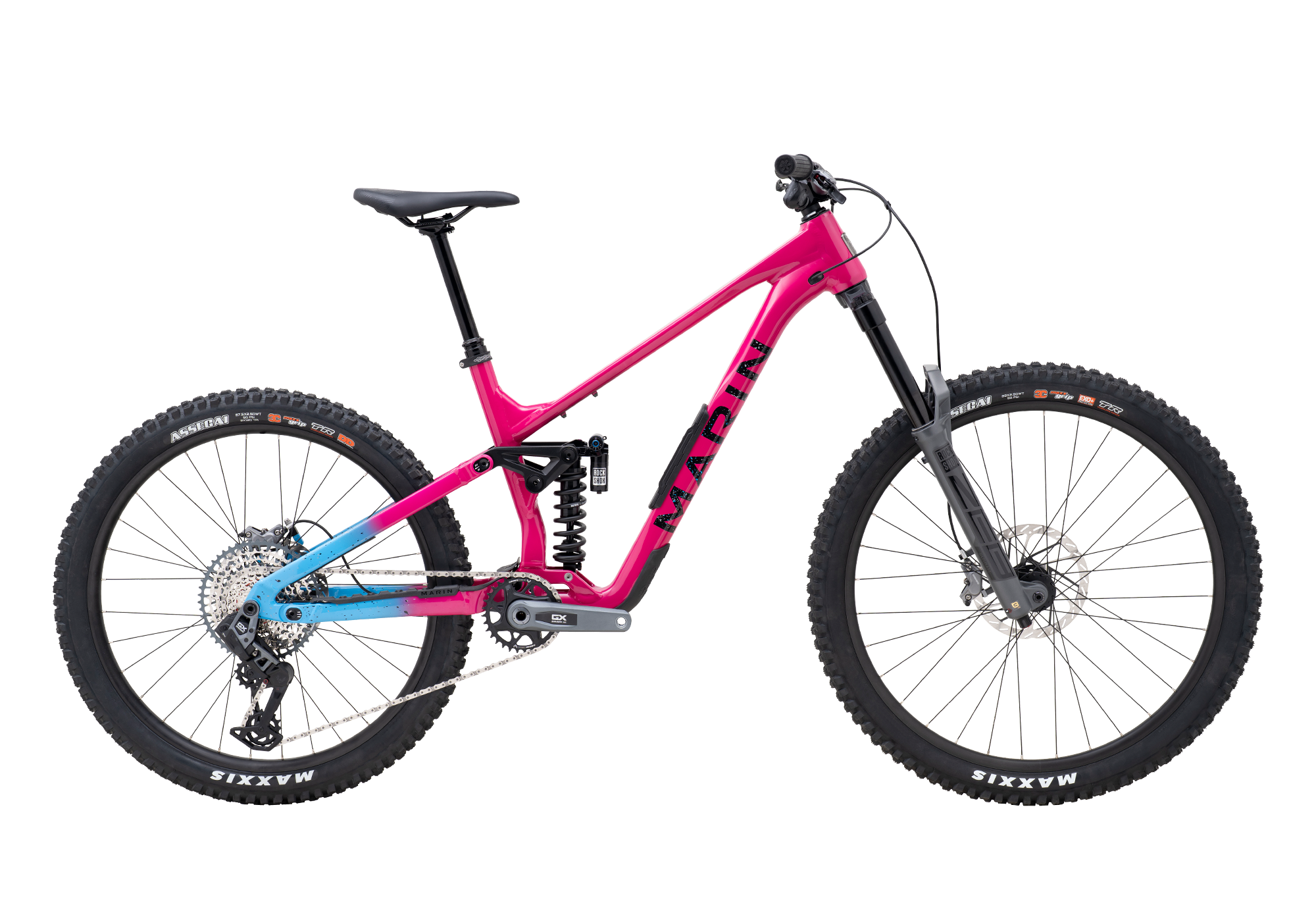

Alpine Trail XR AXS
Gallery
Images
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Stack | 643mm | 634mm | 620mm | 647mm |
| Reach | 490mm | 460mm | 430mm | 520mm |
| Headtube length | 125mm | 115mm | 100mm | 130mm |
| Headtube angle | 63.5deg | 63.5deg | 63.5deg | 63.5deg |
| BB height | 352mm | 352mm | 352mm | 352mm |
| BB drop | 24mm | 24mm | 24mm | 24mm |
| Trail | — | — | — | — |
| Fork length | — | — | — | — |
| Fork offset | 44mm | 44mm | 44mm | 44mm |
| Front center | — | — | — | — |
| Chainstay length | 435mm | 435mm | 435mm | 435mm |
| Wheelbase | 1283mm | 1248mm | 1211mm | 1318mm |
| Top tube | 626mm | 592mm | 556mm | 659mm |
| Standover height | 695mm | 690mm | 683mm | 698mm |
| Seat tube length | 430mm | 420mm | 400mm | 460mm |
| Seat tube angle | 79deg | 79deg | 79deg | 79deg |
Spec geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Crank length | 160mm | 160mm | 160mm | 160mm |
| Stem length | 35mm | 35mm | 35mm | 35mm |
| Handlebar width | 780mm | 780mm | 780mm | 780mm |
| Handlebar reach | — | — | — | — |
| Handlebar drop | — | — | — | — |
| Saddle width | — | — | — | — |
| Dropper post travel | 170mm | 170mm | 150mm | 200mm |
| Seatpost offset | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
All New Series 4 6061 Aluminum, 29” wheels, 160mm travel MultiTrac LT suspension platform, integrated downtube storage, adjustable headset & chainstay length/BB height, full internal cable routing, chainstay-mounted post mount disc brake, 148x12mm Boost thru-axle, 73mm threaded BB w/ ISCG05 tabs
Suspension
Rear shock
RockShox Super Deluxe Coil Ultimate, 205x65, 30xM8 lower hardware, custom tune (S/M = 350 lb spring; L/XL = 450 lb spring)
Fork
RockShox ZEB Ultimate, 170mm travel, 29", 110x15mm Maxle Stealth, 44mm offset
Brakes
Front brake
SRAM Code Bronze 4-piston hydraulic disc
Rear brake
SRAM Code Bronze 4-piston hydraulic disc
Front rotor
SRAM HSC 200mm
Rear rotor
SRAM HSC 180mm
Drivetrain
Shift levers
SRAM AXS POD MMX
Rear derailleur
SRAM GX Eagle AXS T-Type
Cassette
SRAM GX Eagle T-Type 10-52T
Chain
SRAM GX Eagle T-Type
Crankset
SRAM GX Eagle, 32T, 55mm chainline, 170mm length
Bottom bracket
SRAM DUB MTB 73
Cockpit
Stem
Marin CNC, 35mm length, 35mm bar bore
Handlebars
Marin Trail, 35mm clamp, 7000 alloy, 800mm width, 20mm rise, 5° up, 8° back
Grips
Marin Grizzly Lock-On
Saddle
Marin Speed Concept
Seatpost
TranzX YSP39, 1x remote, 34.9mm (S: 150mm travel; M/L: 170mm; XL: 200mm)
Wheels & Tires
Front wheel
Marin double wall alloy, 29mm inner, sleeved joint, disc specific, 32H, tubeless compatible; Formula DC-711, 110x15mm, 6-bolt disc, 32H; 14g black stainless steel
Rear wheel
Marin double wall alloy, 29mm inner, sleeved joint, disc specific, 32H, tubeless compatible; Formula DCL-3482, 148x12mm, 4 sealed bearings, 6-bolt disc, XD driver, 32H; 14g black stainless steel
Front tire
Maxxis Assegai, MAXXGRIP, 29x2.5, EXO+ casing, tubeless compatible
Rear tire
Maxxis (unspecified model), 27.5x2.5, DoubleDown casing, tubeless compatible
