Crafty Race

The 2020-2024 Mondraker Crafty generation is the platform that established the modern Crafty template: a long-travel 29er e-MTB built around Bosch’s fourth-generation Performance CX system and Mondraker’s Zero Suspension layout. In its original 2020 form, the bike paired 150 mm of rear travel with a 160 mm fork, a Stealth Air carbon frame, fixed 455 mm chainstays, a 65.5° head angle, and a 76° seat angle. It also introduced a number of frame details aimed squarely at hard e-MTB use, including oversized 17 mm pivot axles, a carbon monoblock upper link, metric trunnion shock packaging, an integrated dropout speed sensor, and rear brake compatibility centered around 200/203 mm rotors.

$8,499Bosch CX Race, Alloy

Build

Inventory

RA Cycles

$8,499

See deal →

Full specs

Frameset

Frame

Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

Fork

Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

Rear shock

Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

Weight

55,6 lbs

Groupset

Shift levers

Shimano XT M8100, Rapid Fire Plus, 12s

Rear derailleur

Shimano XT M8100, SGS, Shadow+

Cassette

Shimano XT M8100 10-51T Hyperglide+, 12s

Chain

Shimano XT M8100, 12s

Crankset

Race Face Aeffect-R ebike, 160mm

Bottom bracket

null

Front brake

Shimano XT M8120, 4 piston caliper, resin pads with fin

Rear brake

Shimano XT M8120, 4 piston caliper, resin pads with fin

Front rotor

MT800 ICE-Tech 203mm CenterLock rotor

Rear rotor

MT800 ICE-Tech 203mm CenterLock rotor

Wheelset

Front wheel

Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes; Mavic, Boost 15x110mm, IS 6 bolts; Mavic J-bend double butted, contactless lacing

Rear wheel

Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes; Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, MS freehub; Mavic J-bend double butted, contactless lacing

Front tire

Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Rear tire

Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Cockpit

Stem

Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebars

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Saddle

Ergon SM-10

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

Grips

Onoff Desert, 1lock-on, 135mm

Builds

Based on the provided data, the available build information is limited. The listed Race model sits at $8,499 and is notable for using the Bosch CX Race motor in an alloy version of the Crafty. That gives it a more performance-oriented motor spec than a standard CX-equipped build, while still using the same basic 150 mm Crafty platform family described for this generation.

With no fuller build list or component breakdown provided, it is not possible to make a broader comparison across the range. What is clear is that by 2023-2024 Mondraker was offering both carbon and alloy versions under the same general Crafty architecture, with Bosch Smart System-equipped options appearing later in the generation.

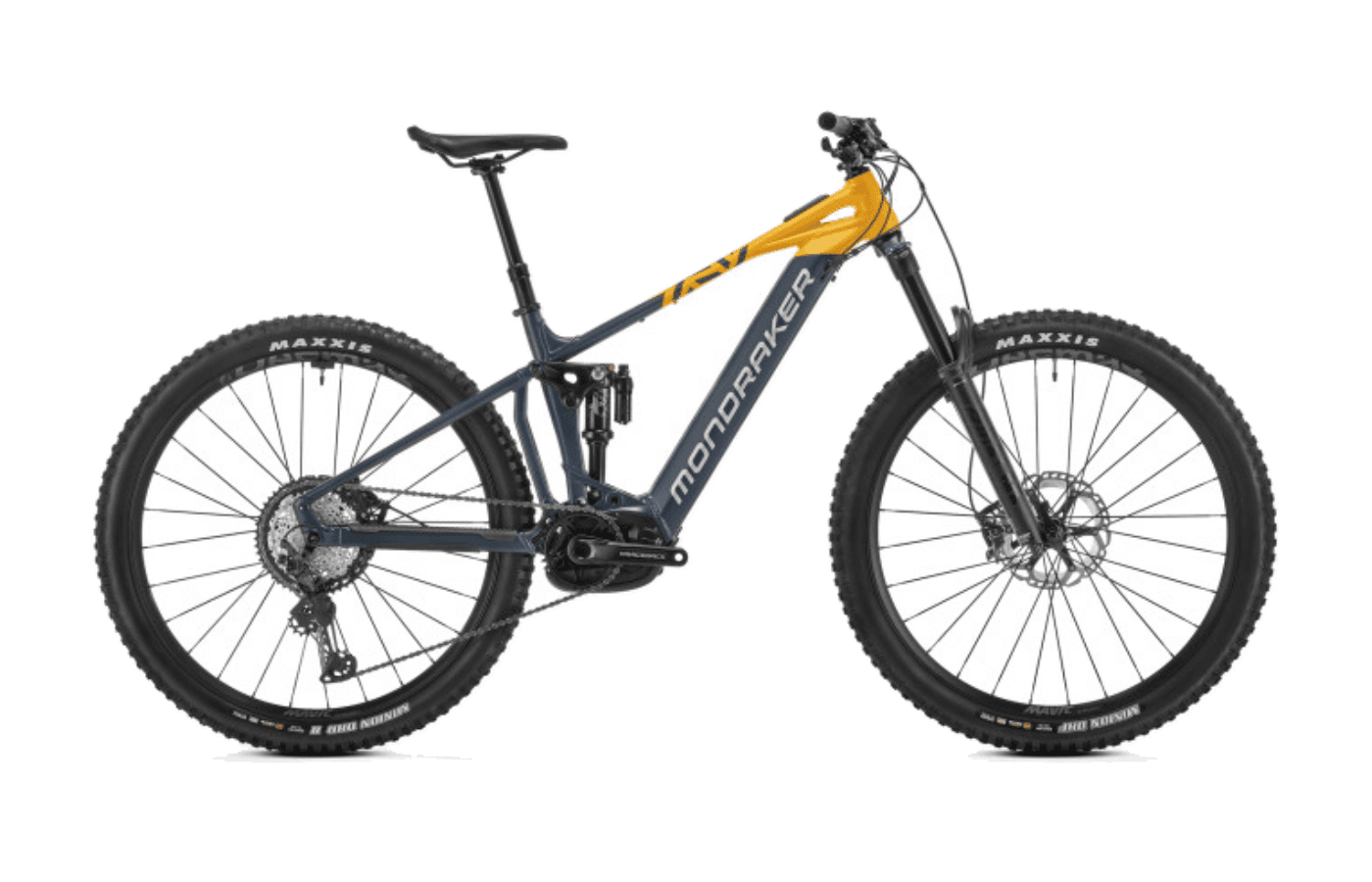

Race

$8,499

Bosch CX Race, AlloySelected
