The current Rallon is no longer just an enduro bike with a gravity bias; it is a shared gravity platform that underpins both the 170mm rear / 180mm fork enduro bike and the 200mm DH version. Orbea’s own technical documentation and product structure make that clear, and the key distinction is in the GravityLink and shock configuration rather than a completely separate chassis. That gives the 2026-generation Rallon a notably modular identity in the market: one OMR frame family aimed at riders who want a race-oriented enduro bike, a park-ready DH bike, or a platform that sits very close to both worlds.
| Stack | 638.2mm |
| Reach | 455mm |
| Top tube | 574.5mm |
| Headtube length | 110mm |
| Standover height | 756mm |
| Seat tube length | 405mm |
The published geometry points to a modern gravity setup with a clear emphasis on stability and steep seated positioning. Across the size range, the head tube angle is 64.3 degrees and the bottom bracket drop is 28mm, both consistent with a bike intended for steep, high-speed descending. Reach figures of 430mm (S), 455mm (M), 478mm (L), and 505mm (XL) are contemporary without being extreme, while the wheelbase grows from 1209.9mm in S to 1298mm in XL. Combined with the standard 442mm chainstay, that should give the bike a planted front-center and predictable composure at speed.
Frameset
Frame
Orbea Rallon OMR. 442mm chainstay length. Concentric Boost 12x148 rear axle. Pure Gravity geometry. Attitude Adjust. ISCG05
Fork
Fox 38 Float Factory 180, Grip X2, QR15x110, Kashima
Rear shock
Fox Float X2 Factory Trunnion 2-Pos Adjust Kashima custom tune 205x62.5mm
Groupset
Shift levers
Shimano SLX M7100 I-Spec EV
Rear derailleur
Shimano XT M8100 SGS Shadow Plus
Cassette
Shimano CS-M7100 10-51t 12-Speed
Chain
Shimano M7100
Crankset
Race Face Turbine 32t; Crank Length: S: 165mm, M: 165mm, L: 170mm, XL: 170mm
Front brake
Shimano XT 8220 Hydraulic Disc
Rear brake
Shimano XT 8220 Hydraulic Disc
Wheelset
Front wheel
Oquo Mountain Control MC32TEAM (29" Front)
Rear wheel
Oquo Mountain Control MC32TEAM (27,5" Rear)
Front tire
Maxxis High Roller III 2.40" 60 TPI 3CG/EXO+/TR MaxxGripp
Rear tire
Maxxis Minion 2.40" 120 TPI 3CT/DD/TR MaxxTerra
Cockpit
Stem
OC Mountain Control MC11 Alu SL, 0º; Stem Length: S: 35mm, M: 40mm, L: 40mm, XL: 50mm
Handlebars
OC Mountain Control MC10 Carbon, Rise 20, Width 800
Saddle
Fizik Terra Ridon X5 145mm
Seatpost
OC Mountain Control MC10, 31.6mm, Dropper; Travel/Length: S: 555/210, M: 555/210, L: 615/240, XL: 615/240

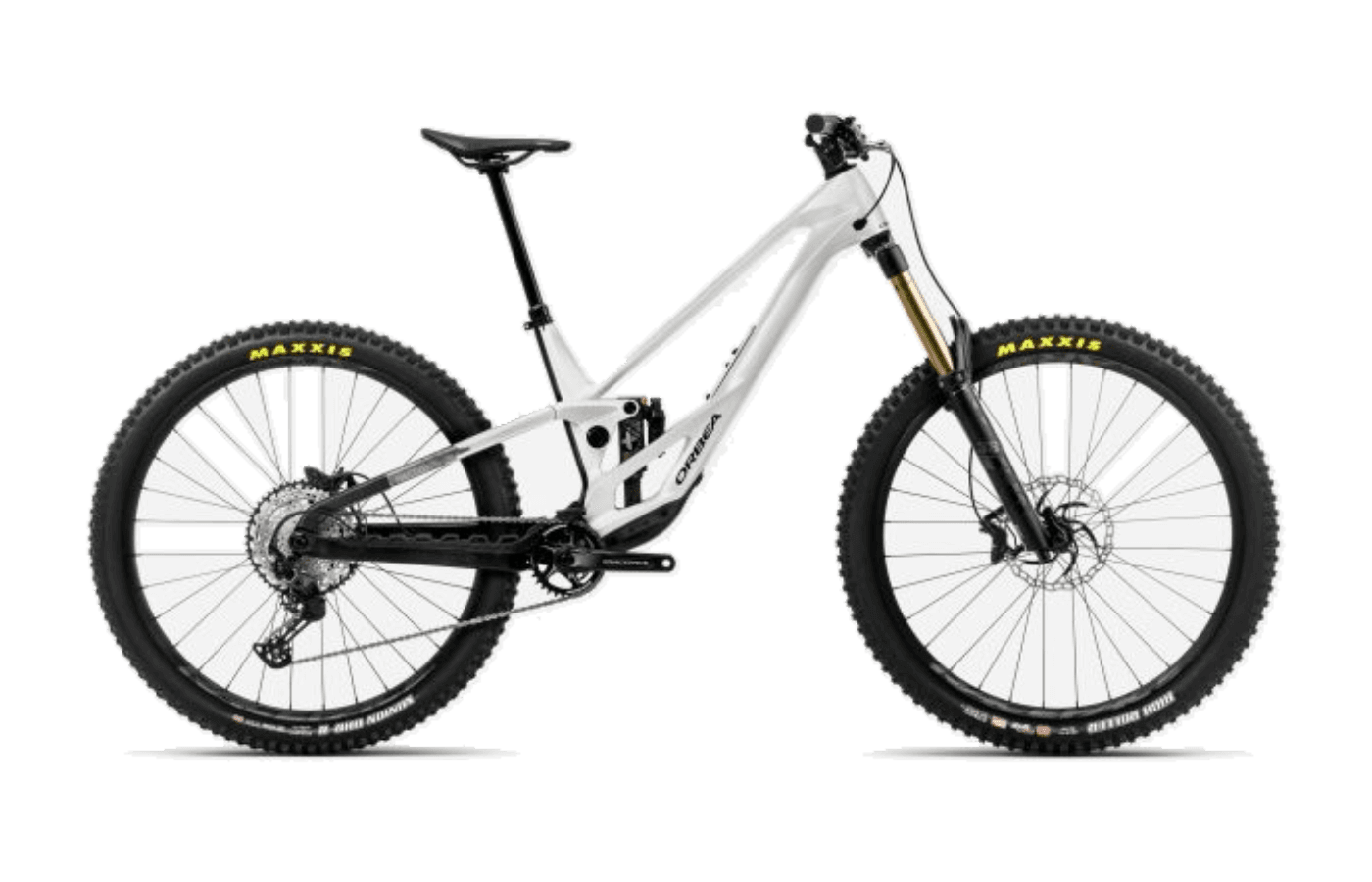

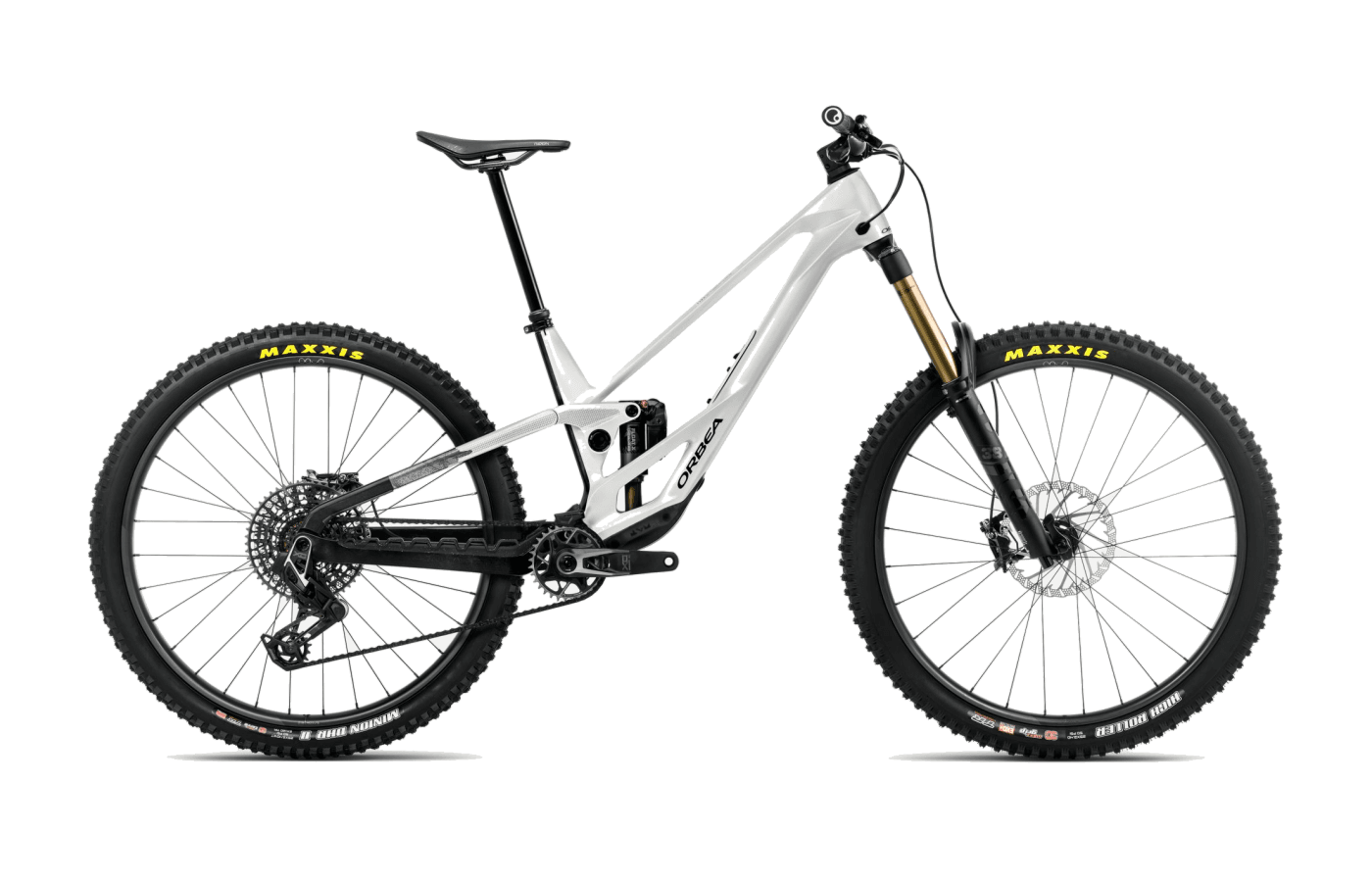

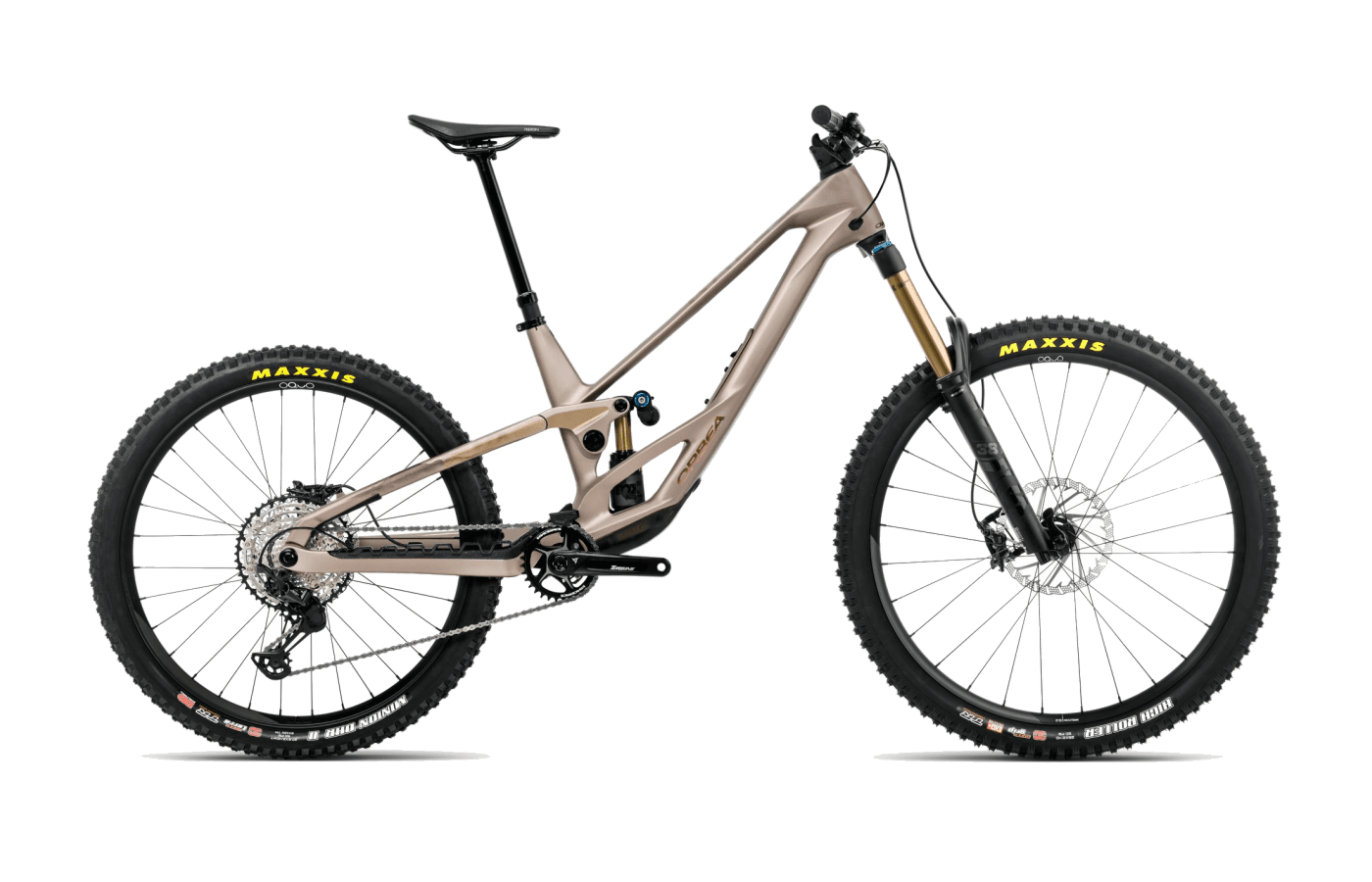

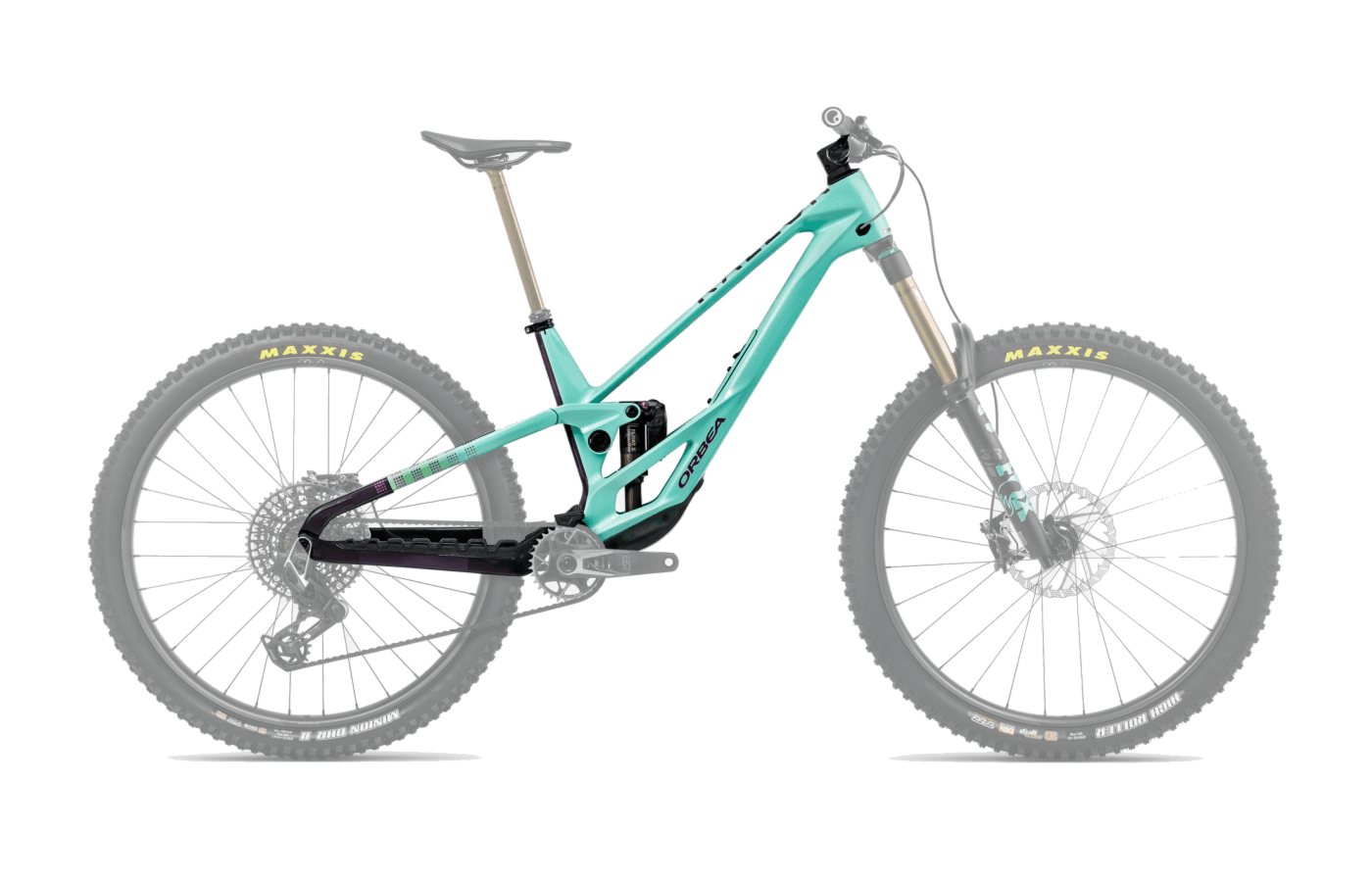

Orbea offers the enduro Rallon in four builds spanning a wide price range: the base Enduro model at $4,299, the E10 at $5,699, the E-Team at $7,199, and the E-LTD at $9,999. That spread puts the bike into several parts of the enduro market, from a comparatively accessible complete bike up to a premium flagship build.
