Specialized Status 170 2 170 DH

Specialized

Status 1702 170 DH

Claimed weight17.19 kg (37 lb, 14.4 oz) (size S3)Complete bike
FrameM5 Alloy chassis and rear…RockShox BoXXer 29, Charger…
GroupsetSRAM GX DH, trigger, 7-…SRAM GX DH, 7-speed, 11-2…
WheelsRoval 29"/27.5" Alloy D…Butcher, GRID GRAVITY casin…

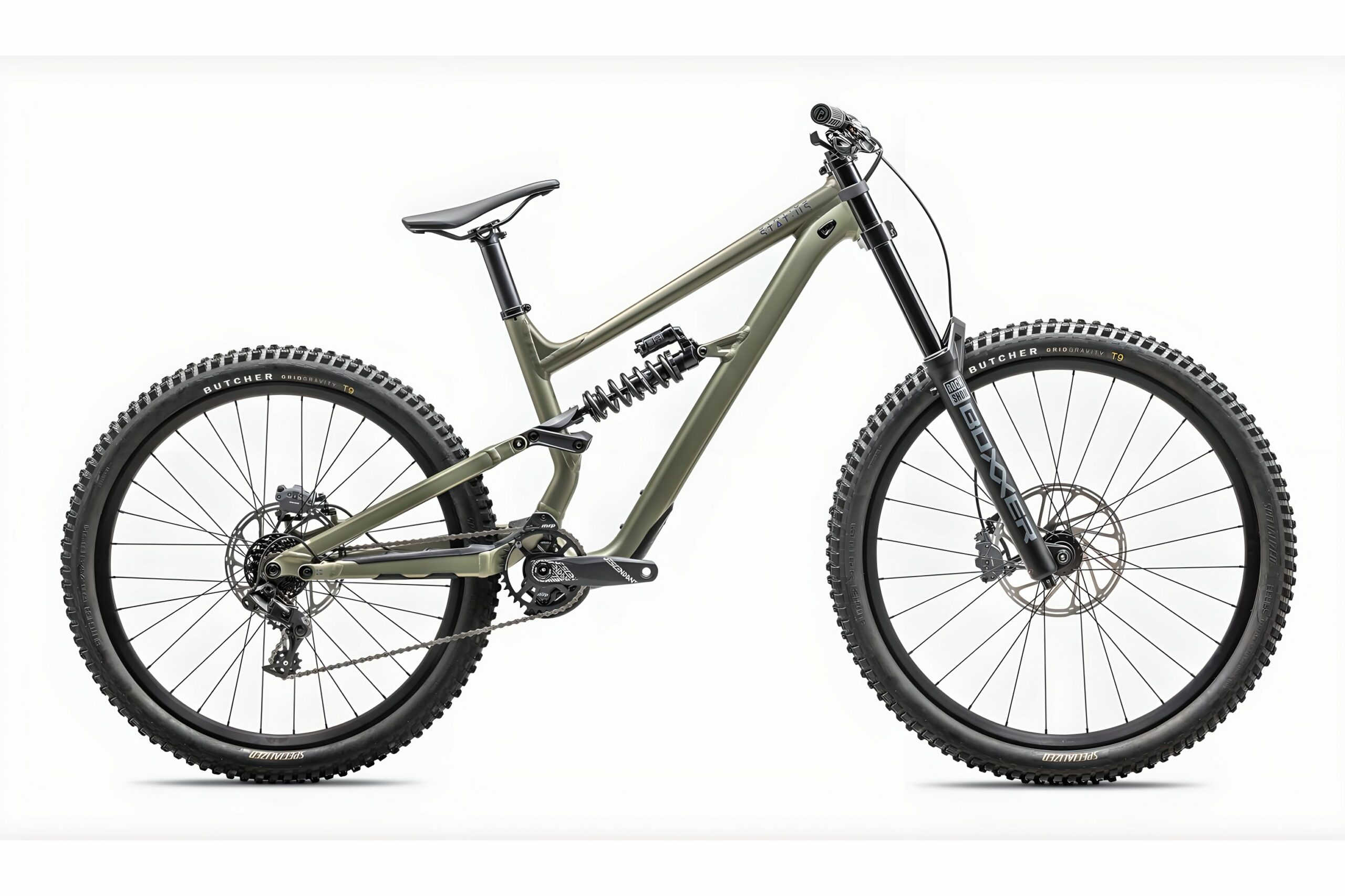

The Specialized Status 2 is a clean-sheet redesign of the brand's dedicated freeride and park platform. Built around a durable M5 alloy chassis, it is intentionally heavy, simple, and focused on gravity riding rather than pedaling efficiency. Specialized expanded the Status 2 into a broader family, offering standard single-crown enduro builds alongside dedicated dual-crown downhill configurations and scaled-down "Zero" models for smaller riders. Across the lineup, the frame adopts modern standards like SRAM UDH compatibility and a Horst-link geometry flip chip. Positioned as an accessible alternative to flagship race bikes, the Status 2 trades lightweight climbing manners for structural resilience. It is designed for riders who want a robust, low-maintenance machine for lift-accessed laps, jump lines, and aggressive trail riding where durability takes priority over outright speed.

Specialized Status 170
Build
Size
01 / Buy

Where to get it.

1 retailer · size S2.

Size
1 retailer · Size S2
02 / Specifications

Spec sheet.

Every component shipped with this build.

01Frameset
4 components
FrameM5 Alloy chassis and rear-end, Trail Geometry, Horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm travel
ForkRockShox BoXXer 29, Charger 3 RC damper, adjustable low-speed compression, adjustable rebound, 20x110mm thru-axle, 44mm offset, 180mm travel
Weight17.19 kg (37 lb, 14.4 oz) (size S3)
02Drivetrain & brakes
10 components
Rear derailleurSRAM GX DH, 7-speed
CassetteSRAM GX DH, 7-speed, 11-25T
CranksetSRAM DESCENDANT DH, DUB, alloy, direct mount, 34T, 55mm chainline, 165mm
Bottom bracketSRAM DUB Threaded Wide
Front rotornull
Rear rotornull
03Wheels & tires
4 components
Front wheelRoval 29"/27.5" Alloy DH, 28mm internal width, 28h, tubeless ready; Alloy, sealed cartridge bearings, 20x110mm, 28h; DT Swiss Elemental
Rear wheelRoval 29"/27.5" Alloy DH, 28mm internal width, 28h, tubeless ready; Specialized alloy rear hub disc, sealed cartridge bearings, 6-bolt, 12x148mm thru-axle, 32h; DT Swiss Elemental
04Cockpit & contact
5 components
HandlebarsSpecialized 6000-series alloy, 6° upsweep, 8° backsweep (S2: 780mm width, 20mm rise; S3-S5: 800mm width, 50mm rise)
SaddleBody Geometry Henge DH, hollow Cro-Mo rails, 130mm
SeatpostSpecialized 2-bolt head, forged alloy, 5mm offset, micro-adjust, 34.9mm
03 / Geometry

Geometry & fit.

4 sizes published.

The Status 2 utilizes Specialized’s reach-based S-Sizing system, allowing riders to choose their frame size based on desired length rather than seat tube height. The geometry is defined by a mixed-wheel setup and a Horst-link flip chip that adjusts the bottom bracket height by 8mm and the head tube angle by half a degree.

In the preferred low setting, the bottom bracket drops to 342mm, sitting the rider deeply between the wheels for high-speed cornering stability. The reach is generous—stretching to 495mm on an S4—but it is paired with relatively short chainstays that help maintain quick directional changes. Reviewers note that the bike features a low stack height, which encourages an active, forward-leaning posture to keep the front wheel weighted. While this aggressive stance aids traction in flat corners, some riders may find the front end feels low on extremely steep chutes unless they are running the taller dual-crown fork.

Reach × Stack · size S2mm

Where the handlebar sits relative to the bottom bracket — the single most important fit pair.

675626578529480STACK ↑345394443491540REACH →UPRIGHTLONG / LOWSize S2445 · 625
01Fit geometry6 values
Stack625 mm
Reach445 mm
Top tube595 mm
Headtube length100 mm
Standover height735 mm
Seat tube length440 mm
02Component geometry5 values
Crank length165 mm
Handlebar width780 mm
Stem length50 mm
Saddle width130 mm
Seatpost offset5 mm
03Handling geometry9 values
Headtube angle63.5°
Seat tube angle77°
BB height342 mm
BB drop34 mm
Trail138 mm
Offset44 mm
Front center789 mm
Wheelbase1221 mm
Chainstay length432 mm

Which size should I buy?

Slide your height to see the recommended size. GearWise's fit algorithm works from the published stack, reach, and ETT — the brand's own recommendation may differ.

Your height
5'8"173 cm
5'0"5'5"5'10"6'3"6'7"
Recommended sizeS2Based on stack, reach & ETT for your height · score 57/100.

Calculated from GearWise's own stack / reach / ETT algorithm — the brand's size chart may recommend a different size, and a proper bike fit beats any calculator.

04 / Other builds

The lineup.

4 builds, ranging $2,500 – $4,500.

The Status 2 lineup splits into three distinct configurations based on intended use. The standard 170 build is geared toward aggressive enduro riding, featuring a single-crown Fox 38 Rhythm fork, a 12-speed Shimano Deore drivetrain, and a dropper post. The 170 DH build strips away pedaling pretenses, swapping in a dual-crown RockShox BoXXer Base fork, a 7-speed SRAM GX DH drivetrain, and a fixed seatpost for dedicated lift-access laps. For smaller riders, the 170 ZERO scales the platform down with a 27.5-inch front and 26-inch rear wheel, paired with a Fox 36 fork and SRAM NX Eagle components.

Across the adult builds, Specialized prioritizes raw stopping power, equipping the DH model with SRAM Maven Bronze four-piston brakes and massive rotors, while the standard 170 uses TRP Trail EVO brakes. The value in these builds sits squarely in the robust frame and powerful brakes, though the cost savings are evident in the entry-level suspension dampers and the use of thinner brake rotors that may heat up under heavier riders.

01
2 170 DH build
· Currently viewing2 170 DH
$4,500On this page
02
2 170 DH build
2 170 DH
$4,500
03
2 170 build
2 170
$2,500
04
2 170 ZERO build
2 170 ZERO
$2,500
05 / Reviews

From the press.

7 reviews from the cycling press.

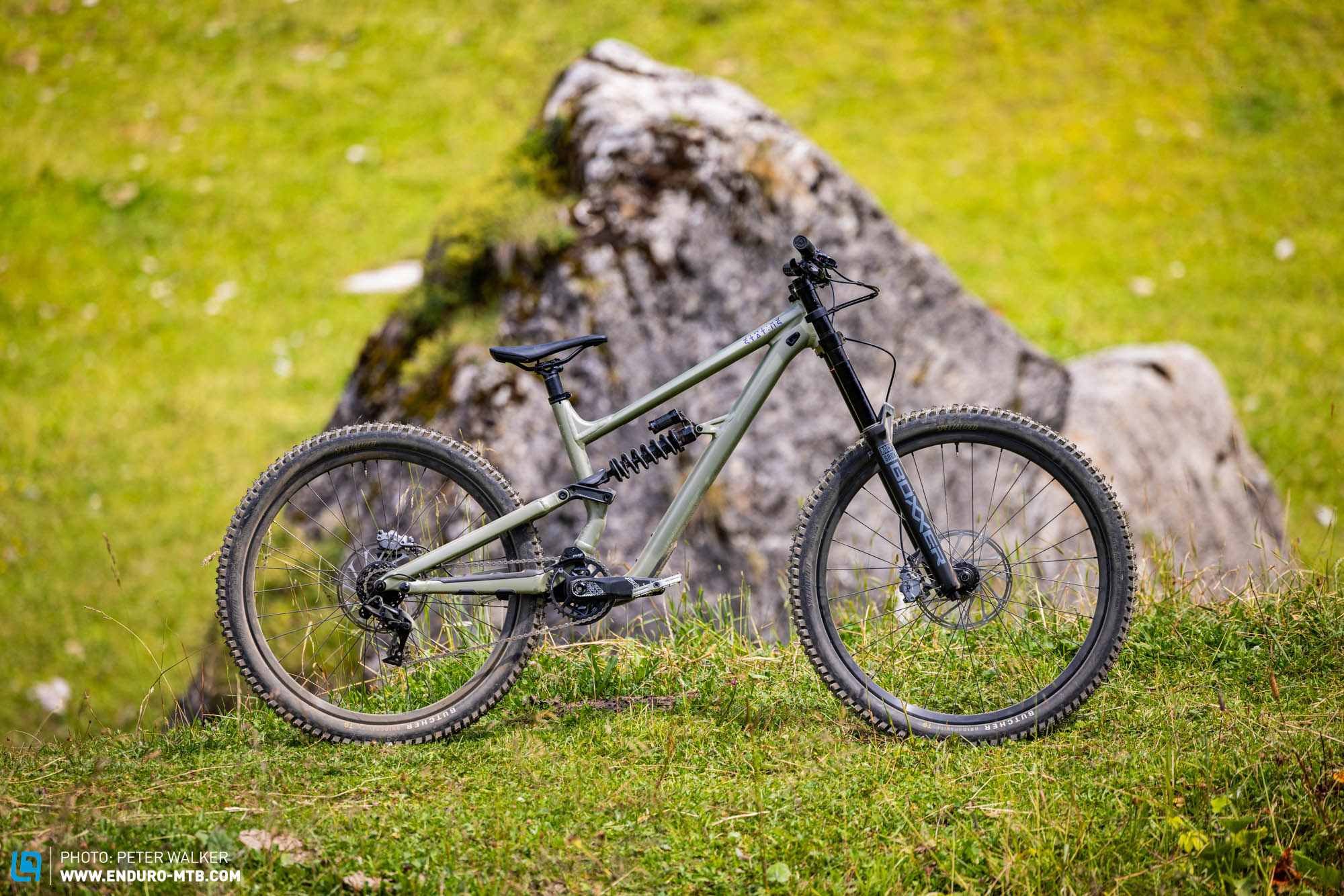

Reviewers consistently characterize the Status 2 as a gravity-focused machine that requires steep terrain to mask its significant weight. On flat or mellow trails, the bike can feel sluggish, but testers agree it finds its rhythm once pointed downhill. The rear suspension receives high praise for its progressive support, making it easy to pump through rollers and generate speed. One tester noted the bike "begs to be thrown around" (Enduro MTB) on jump lines and flow trails.

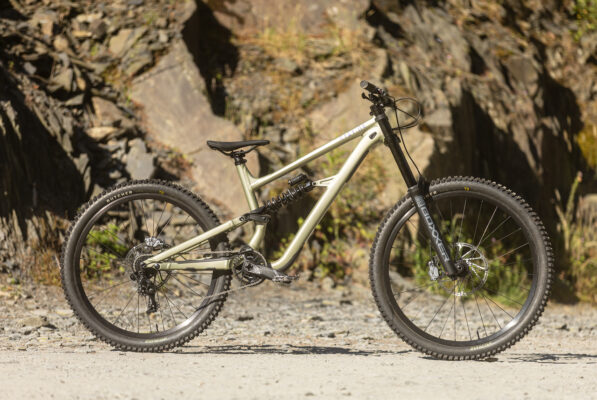

The primary tradeoff lies in the entry-level suspension dampers. Multiple reviewers identified the RockShox BoXXer Base fork on the DH build as a limiting factor in rough terrain, noting it can "smash through the travel" (Mountain Bike Rider) during fast, consecutive hits. Despite this, the M5 alloy frame is widely praised for its stiffness and quiet ride.

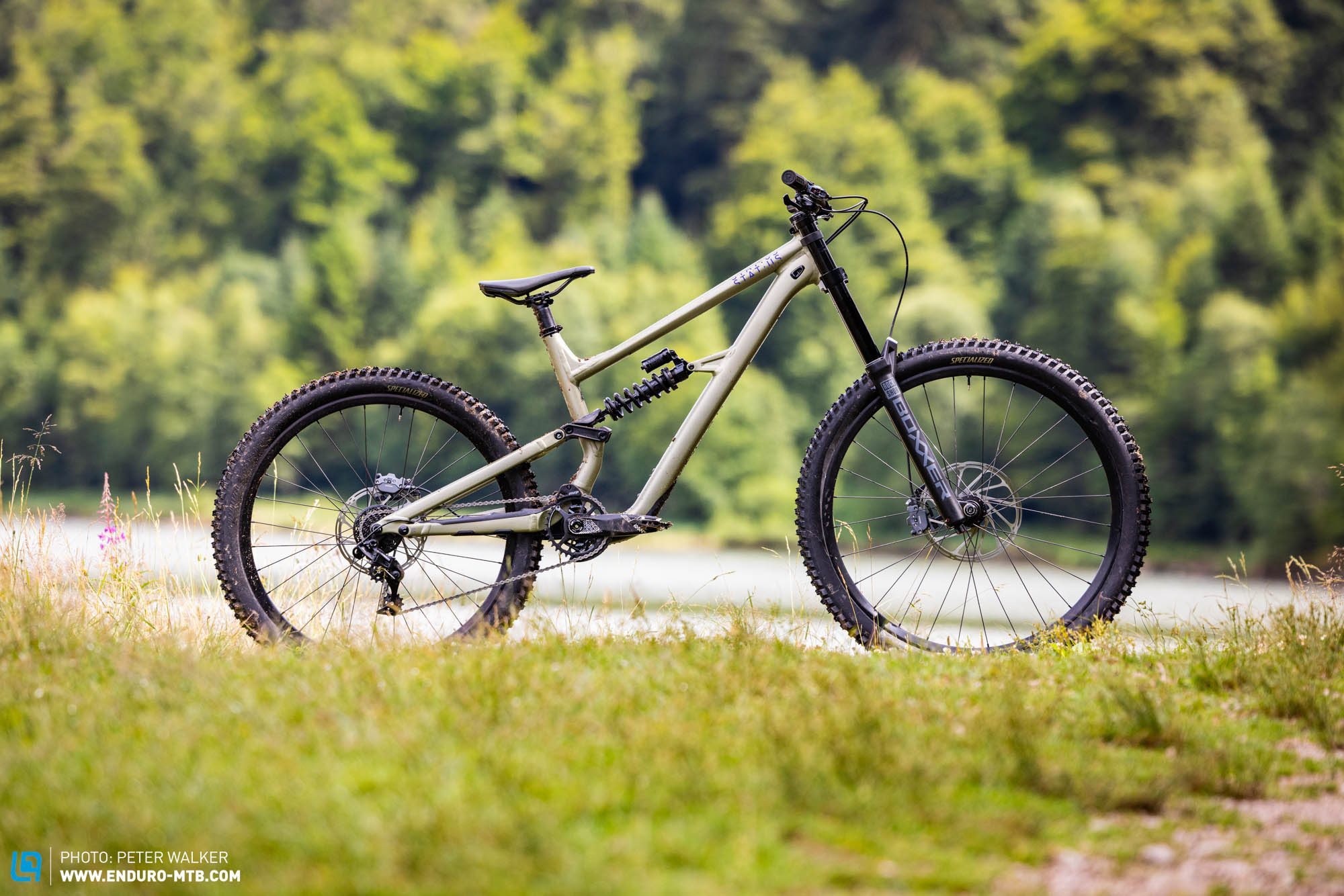

When the trail turns steep and technical, the bike's character depends heavily on the build. The dual-crown fork on the DH model provides a tall front end that testers found reassuring, allowing riders to roll into "committing moves blind" (Bike Magazine). Overall, reviewers view the Status 2 as a highly capable park bike that delivers massive value, provided riders accept its climbing limitations and basic fork damping.
