Trek

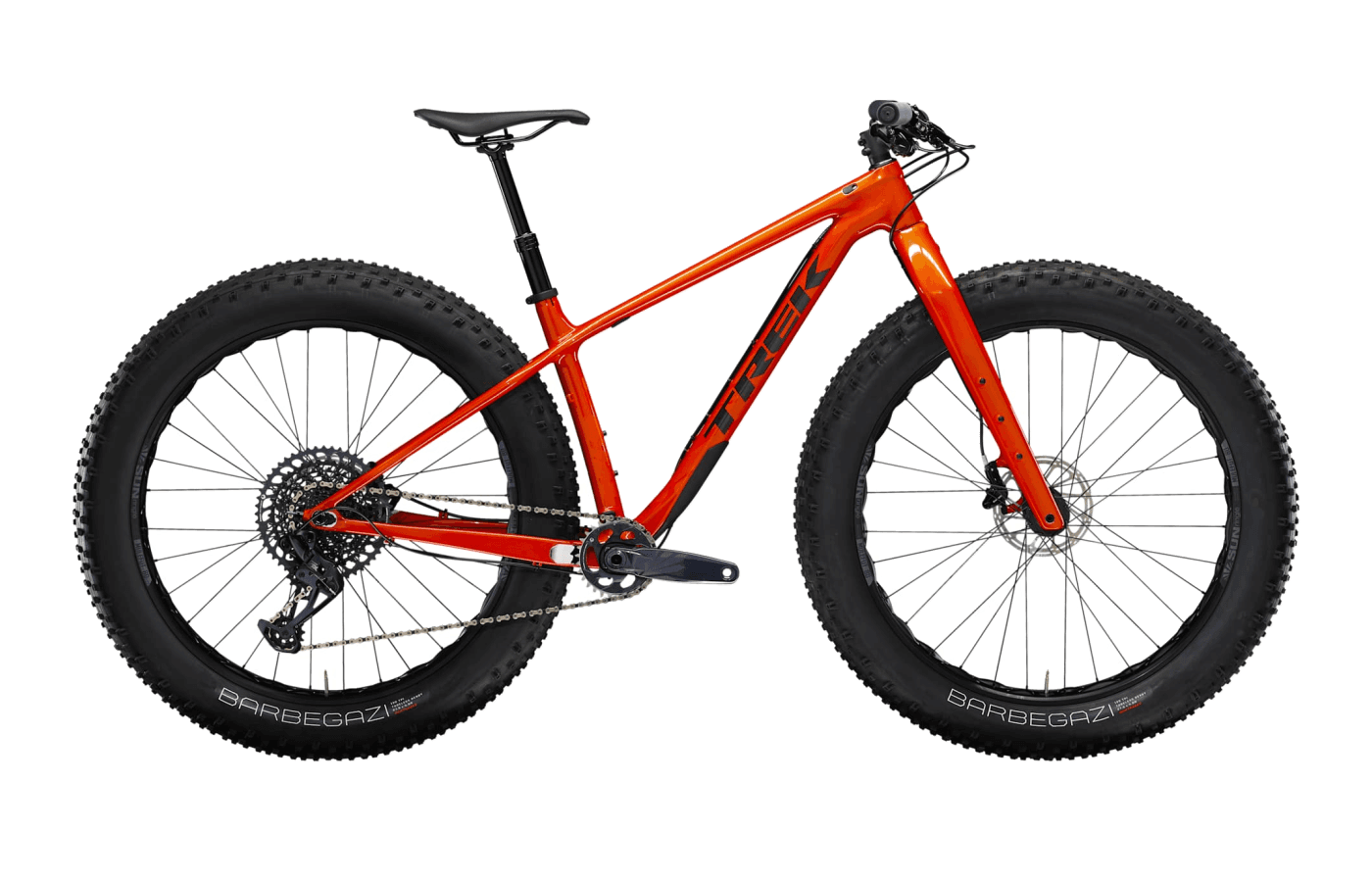

Farley 9.6
Gallery
Images
No images available yet.
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Stack | 619mm | 605mm | 595mm | 633mm |
| Reach | 452mm | 421mm | 391mm | 487mm |
| Headtube length | 115mm | 100mm | 90mm | 130mm |
| Headtube angle | 67.7deg | 67.7deg | 67.7deg | 67.7deg |
| BB height | 326mm | 326mm | 326mm | 326mm |
| BB drop | 59mm | 59mm | 59mm | 59mm |
| Trail | 103mm | 103mm | 103mm | 103mm |
| Fork length | — | — | — | — |
| Fork offset | 51mm | 51mm | 51mm | 51mm |
| Front center | — | — | — | — |
| Chainstay length | 450mm | 450mm | 450mm | 450mm |
| Wheelbase | 1182mm | 1147mm | 1113mm | 1223mm |
| Top tube | 635mm | 609mm | 568mm | 675mm |
| Standover height | 768mm | 748mm | 738mm | 787mm |
| Seat tube length | 450mm | 420mm | 380mm | 490mm |
| Seat tube angle | 71.7deg | 71.7deg | 71.7deg | 71.7deg |
Spec geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Crank length | 175mm | 170mm | 170mm | 175mm |
| Stem length | 80mm | 70mm | 60mm | 90mm |
| Handlebar width | 750mm | 750mm | 750mm | 750mm |
| Handlebar reach | — | — | — | — |
| Handlebar drop | — | — | — | — |
| Saddle width | 145mm | 145mm | 145mm | 145mm |
| Dropper post travel | 130mm | 120mm | 100mm | 130mm |
| Seatpost offset | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
OCLV Mountain Carbon, tapered head tube, internal derailleur & dropper post routing, PressFit 121mm BB, 197x12mm adjustable horizontal sliding dropouts
Suspension
Fork
Farley carbon, tapered alloy steerer, crown rack mounts, lower leg cage mounts, 150x15mm thru axle
Brakes
Front brake
SRAM Level Bronze 4-piston hydraulic disc
Rear brake
SRAM Level Bronze 4-piston hydraulic disc
Front rotor
SRAM CenterLine, 6-bolt, round edge, 160mm
Rear rotor
SRAM CenterLine, 6-bolt, round edge, 160mm
Drivetrain
Shift levers
SRAM GX Eagle, 12 speed
Rear derailleur
SRAM GX Eagle
Cassette
SRAM Eagle XG-1275, 10-52T, 12 speed
Chain
SRAM GX Eagle, 12 speed
Crankset
SRAM GX Eagle, DUB, 30T alloy FAT 5 ring; Size S, M: 170mm length; Size L, XL: 175mm length
Bottom bracket
SRAM DUB, 121mm, PressFit
Cockpit
Stem
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree; Size S: 60mm length; Size M: 70mm length; Size L: 80mm length; Size XL: 90mm length
Handlebars
Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
Grips
ESI Chunky
Saddle
Bontrager Verse Elite, austenite rails, 145mm width
Seatpost
TranzX JD-YSP18, internal routing, 31.6mm; Size S: 100mm travel, 361mm length; Size M: 120mm travel, 403mm length; Size L, XL: 130mm travel, 425mm length
Wheels & Tires
Front wheel
SUNRingle Mulefut 80 SL, 32-hole cutout; Bontrager alloy, sealed bearing, 6-bolt, 15x150mm thru axle
Rear wheel
SUNRingle Mulefut 80 SL, 32-hole cutout; Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, SRAM XD driver, 197x12mm thru axle
Front tire
Bontrager Barbegazi Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x4.50"
Rear tire
Bontrager Barbegazi Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x4.50"
Weight
Weight
M - 13.11 kg / 28.91 lbs
