Specialized

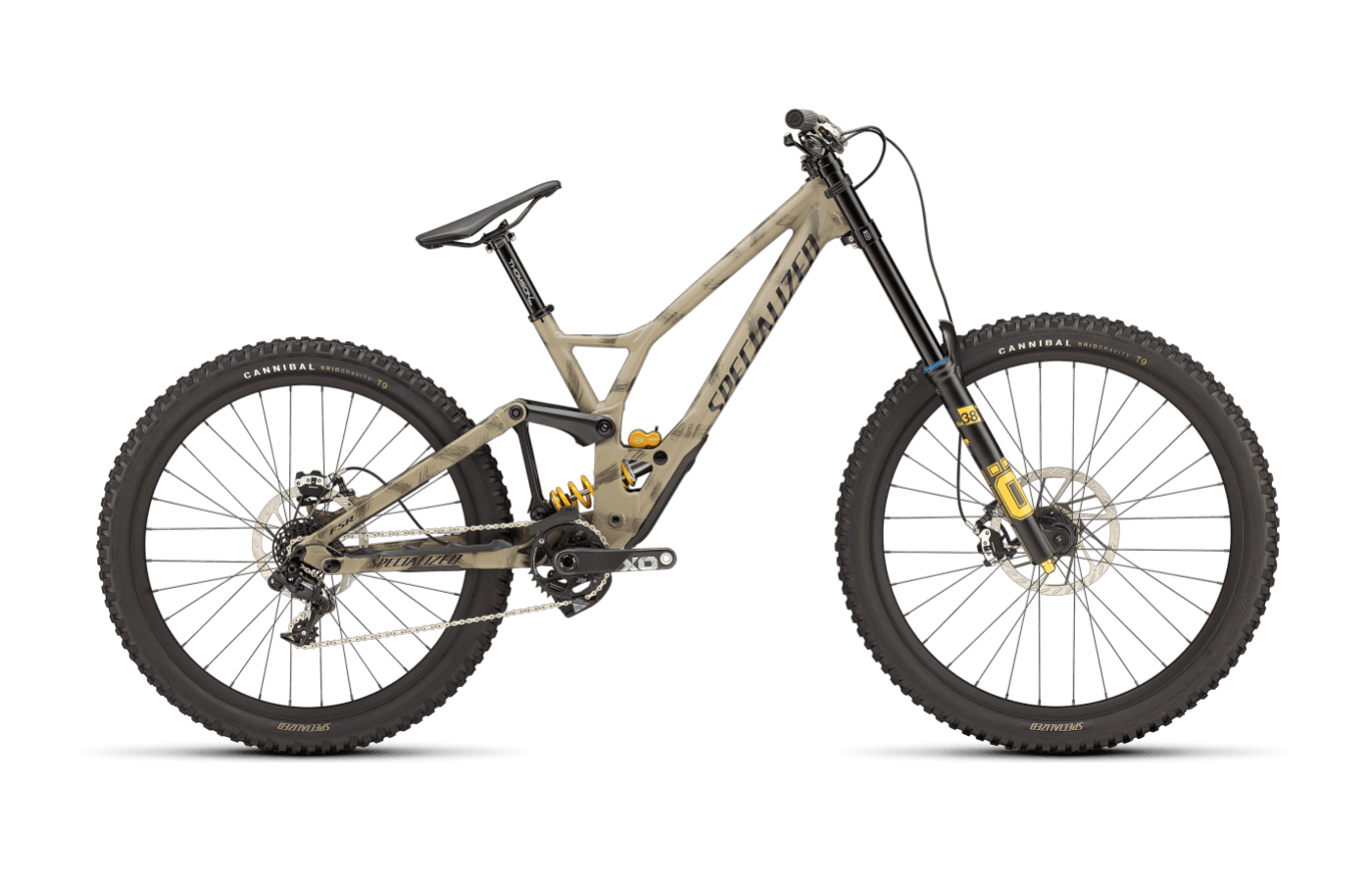

Demo Race
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | S2 | S3 | S4 |
|---|---|---|---|
| Stack | 632mm | 632mm | 632mm |
| Reach | 426mm | 446mm | 466mm |
| Headtube length | 105mm | 105mm | 105mm |
| Headtube angle | 62.8deg | 62.8deg | 62.8deg |
| BB height | 350mm | 350mm | 350mm |
| BB drop | 25mm | 25mm | 25mm |
| Trail | 130mm | 130mm | 130mm |
| Fork length | — | — | — |
| Fork offset | 56mm | 56mm | 56mm |
| Front center | 801mm | 821mm | 841mm |
| Chainstay length | 443mm | 443mm | 443mm |
| Wheelbase | 1244mm | 1264mm | 1284mm |
| Top tube | — | — | — |
| Standover height | — | — | — |
| Seat tube length | 394mm | 420mm | 420mm |
| Seat tube angle | 78.2deg | 76.8deg | 76.8deg |
Spec geometry
| Geometry | S2 | S3 | S4 |
|---|---|---|---|
| Crank length | 165mm | 165mm | 165mm |
| Stem length | 45mm | 45mm | 45mm |
| Handlebar width | 800mm | 800mm | 800mm |
| Handlebar reach | — | — | — |
| Handlebar drop | — | — | — |
| Saddle width | 130mm | 130mm | 130mm |
| Dropper post travel | — | — | — |
| Seatpost offset | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
M5 alloy, Style-Specific DH Geometry, Horst pivot flip chip for 27.5 or 29 rear wheel, BSA threaded BB, full internal cable routing with option for full external brake, 148mm rear spacing, sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm travel
Suspension
Rear shock
Öhlins TTX22M.2 Coil, external rebound adjust, external high/low-speed compression adjust, Trunnion mount, 225x75
Fork
Öhlins DH38 M.1 29, TTX Twin Tube Damping, external low-speed rebound adjust, external high/low-speed compression adjust, 20x110mm, 58mm offset, 200mm travel
Brakes
Front brake
SRAM Maven Ultimate, 4-piston hydraulic disc
Rear brake
SRAM Maven Ultimate, 4-piston hydraulic disc
Front rotor
220mm
Rear rotor
200mm
Drivetrain
Shift levers
SRAM X01 DH, trigger, 7-speed
Rear derailleur
SRAM X01 DH, 7-speed
Cassette
SRAM X01 DH, 7-speed, 10-24T
Chain
SRAM PC1130 w/ Powerlink, 11-speed
Crankset
SRAM X01 DH, DUB, carbon, direct-mount ring, 165mm
Bottom bracket
SRAM DUB, 83mm
Cockpit
Stem
Renthal Integra 35 direct-mount stem, 45mm length
Handlebars
Renthal Fatbar 35, 5° upsweep, 7° backsweep, 30mm rise, 800mm, 35.0mm clamp
Grips
Deity Lockjaw
Saddle
Body Geometry Henge DH, hollow titanium rails, 130mm
Seatpost
Thomson, alloy, straight, 12-degree clamp
Wheels & Tires
Front wheel
Roval Traverse Alloy, 32h, 28mm internal width (29"); DT Swiss 350, 20x110mm; Sapim D-Light
Rear wheel
Roval Traverse Alloy, 32h, 28mm internal width (27.5"); DT Swiss 350, 12x148mm; Sapim D-Light
Front tire
Specialized Cannibal, GRID GRAVITY casing, GRIPTON T9, 2Bliss Ready, 29x2.4
Rear tire
Specialized Cannibal, GRID GRAVITY casing, GRIPTON T9, 2Bliss Ready, 27.5x2.4
Weight
Weight
17.62 kg (38 lb 13.5 oz), size S3
