Specialized

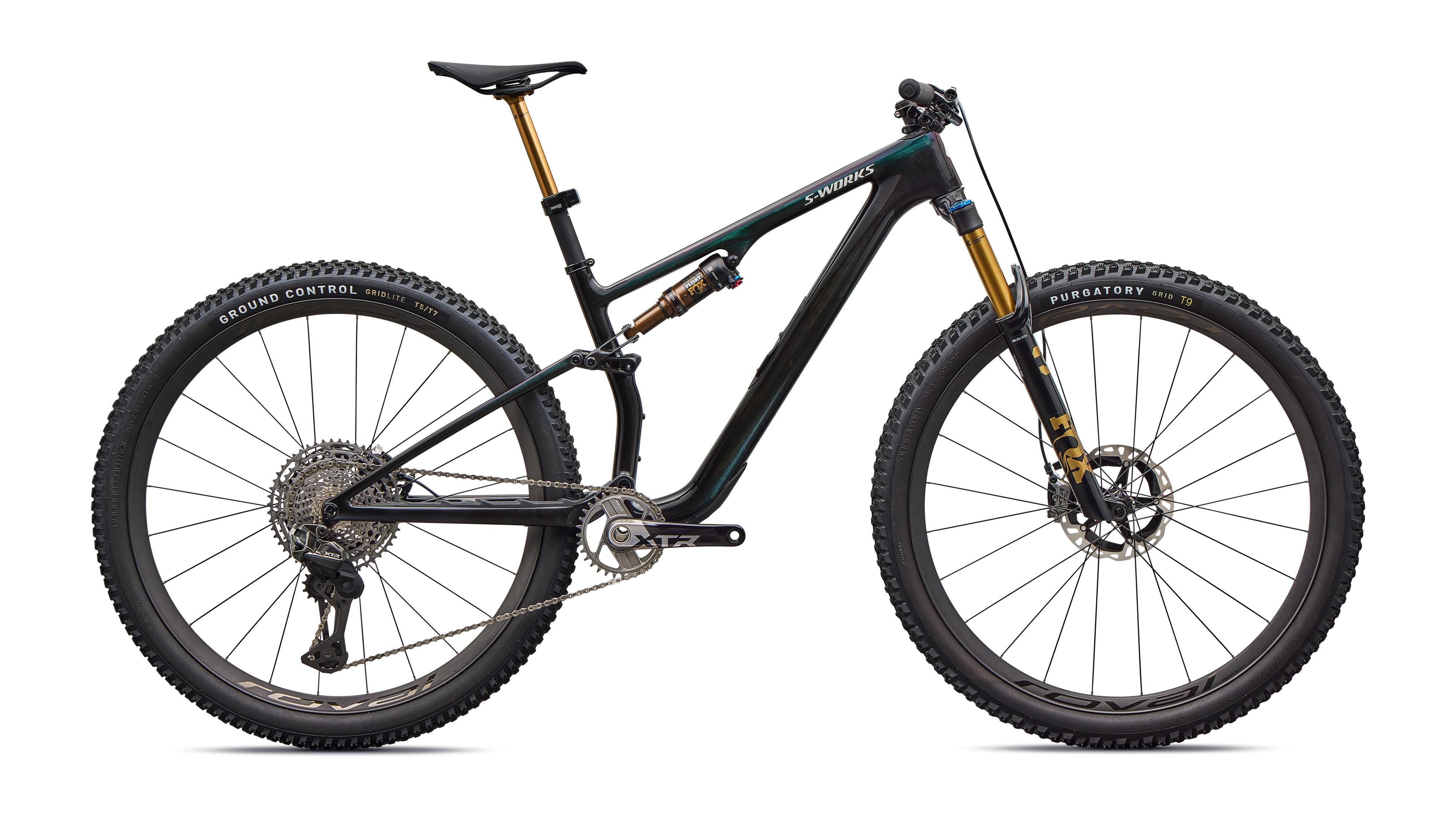

Epic Evo S-Works 8 EVO
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL | XS |
|---|---|---|---|---|---|
| Stack | 613mm | 601mm | 600mm | 632mm | 606mm |
| Reach | 470mm | 445mm | 415mm | 495mm | 385mm |
| Headtube length | 110mm | 95mm | 92mm | 130mm | 92mm |
| Headtube angle | — | — | — | — | — |
| BB height | — | — | — | — | — |
| BB drop | 39mm | 41mm | 43mm | 39mm | 49mm |
| Trail | 120mm | 120mm | 120mm | 120mm | 120mm |
| Fork length | 540mm | 540mm | 540mm | 540mm | 540mm |
| Fork offset | 44mm | 44mm | 44mm | 44mm | 44mm |
| Front center | 782mm | 751mm | 720mm | 815mm | 690mm |
| Chainstay length | 435mm | 435mm | 435mm | 435mm | 435mm |
| Wheelbase | 1214mm | 1183mm | 1151mm | 1247mm | 1121mm |
| Top tube | 633mm | 605mm | 569mm | 662mm | 535mm |
| Standover height | 775mm | 766mm | 761mm | 779mm | 754mm |
| Seat tube length | 450mm | 410mm | 390mm | 500mm | 370mm |
| Seat tube angle | 75deg | 75deg | 75.5deg | 75deg | 76deg |
Spec geometry
| Geometry | L | M | S | XL | XS |
|---|---|---|---|---|---|
| Crank length | 170mm | 170mm | 170mm | 170mm | 170mm |
| Stem length | 50mm | 50mm | 50mm | 50mm | 50mm |
| Handlebar width | 780mm | 780mm | 780mm | 780mm | 780mm |
| Handlebar reach | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — |
| Saddle width | 143mm | 143mm | 155mm | 143mm | 155mm |
| Dropper post travel | 170mm | 150mm | 125mm | 170mm | 125mm |
| Seatpost offset | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
S-Works FACT 12m Carbon with Carbon Shock Extension, Progressive XC Race Geometry, Rider-First Engineered™, SWAT downtube storage, threaded BB, 12x148mm UDH compatible rear dropout, internal cable routing, 120mm travel, optimized for wireless drivetrain and seatpost
Suspension
Rear shock
FOX FLOAT Factory, EVOL LV, Ride Dynamics Tuned, 2-position compression adjust, 190x45mm
Fork
FOX 34 SL Factory, GRIP X Damper, HSC/LSC/LSR adjust, 130mm travel, 44mm offset, 15x110mm
Brakes
Front brake
Shimano XTR 9220, 4-piston hydraulic disc
Rear brake
Shimano XTR 9220, 4-piston hydraulic disc
Front rotor
180mm
Rear rotor
180mm
Drivetrain
Shift levers
Shimano XTR Di2
Rear derailleur
Shimano XTR Di2, 12-speed
Cassette
Shimano XTR, 12-speed, 10-51T
Chain
Shimano XTR, 12-speed
Crankset
Shimano XTR 9200, 4iiii power meter, 170mm, 32T chainring
Bottom bracket
Shimano BB-MT801, threaded
Cockpit
Stem
Industry Nine A35, 50mm, 35mm clamp
Handlebars
Roval Control Rise Carbon Handlebar, 780mm width, 20mm rise, 35mm clamp
Grips
Specialized Trail Grips
Saddle
Specialized S-Works Power, carbon rails
Seatpost
FOX Factory Transfer Neo, 30.9mm (S: 125mm, M: 150mm, L/XL: 175mm)
Wheels & Tires
Front wheel
Roval Control SL VI, hookless carbon, 29mm internal width, tubeless ready, 24H, Industry 9 Solix hub, Roval carbon spokes w/ Ti end pieces, Center Lock
Rear wheel
Roval Control SL VI, hookless carbon, 29mm internal width, tubeless ready, 24H, Industry 9 Solix hub, Roval carbon spokes w/ Ti end pieces, Center Lock
Front tire
Specialized Purgatory, GRID casing, T9 compound, TLR, 29x2.4
Rear tire
Specialized Ground Control, Grid Lite casing, T5/T7 compound, TLR, 29x2.35
Weight
Weight
11.17 kg (24 lb 10.0 oz), size MD
