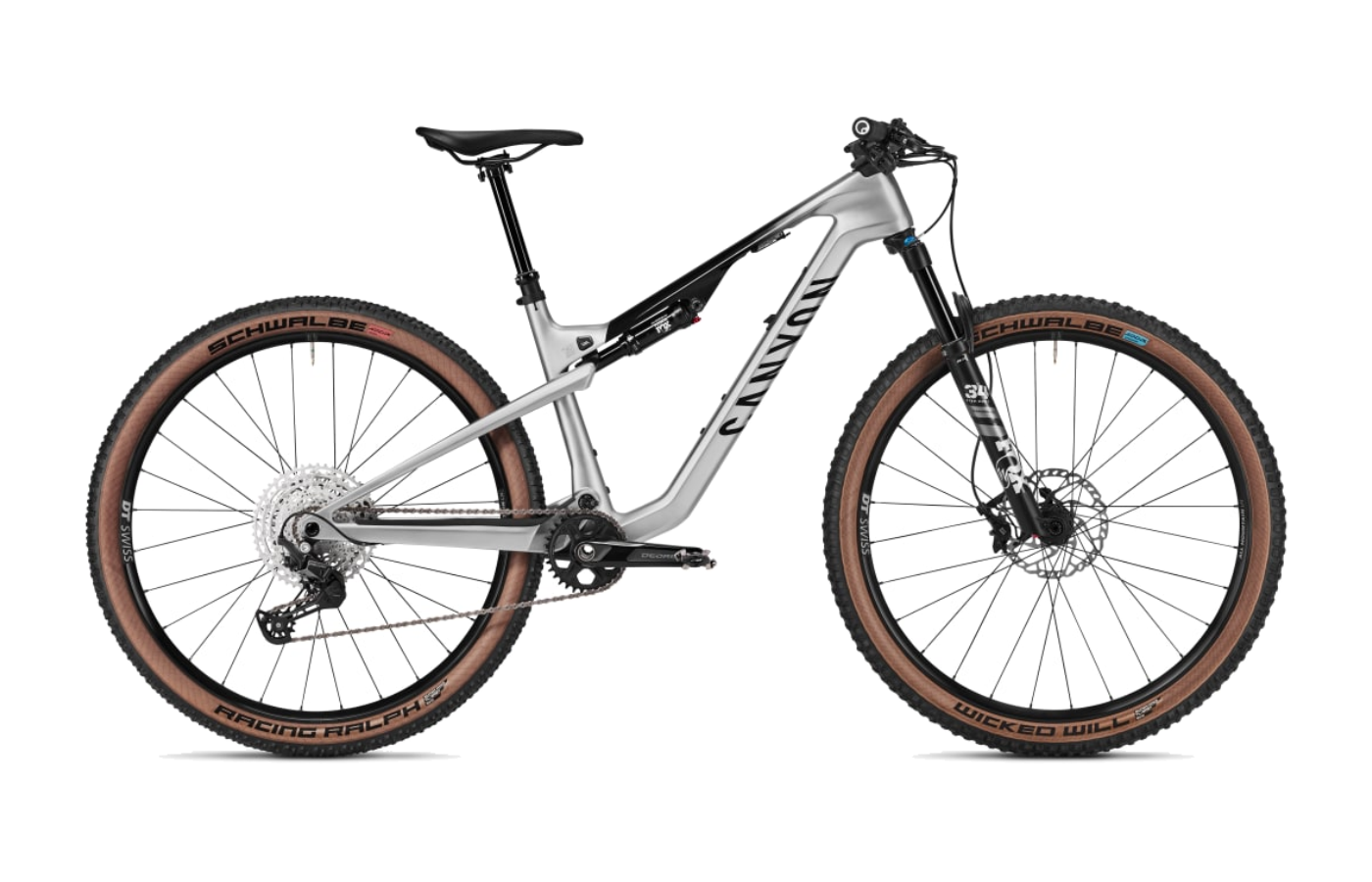

Lux Trail CF 6 Shimano Deore M6100 12-Speed (3993)

The second-generation Canyon Lux Trail is a dedicated 120mm-front, 115mm-rear cross-country platform built for marathon racing and long-distance trail riding. Rather than adapting the existing Lux World Cup race frame, Canyon designed this chassis from the ground up to handle rougher terrain without sacrificing pedaling efficiency. It suits riders who prioritize covering ground quickly but want more suspension depth and stability than a traditional XC race bike provides. Visually, the current frame is defined by its new hanging rocker linkage and a prominent downtube storage hatch. Canyon also integrated a comprehensive on-bike tool system, including a top-tube multi-tool mount and optional bar-end tire plugs, catering to self-sufficient riders tackling extended backcountry routes.

$3,499SKU 3993 (Chrome / Mirage Blue)Gen 2nd generation

Canyon Lux Trail CF 6 Shimano Deore M6100 12-Speed (3993)

Build

Size

Stack	598mm
Reach	460mm
Top tube	609mm
Headtube length	100mm
Standover height	772mm
Seat tube length	420mm

Fit and geometry

Canyon revised the Lux Trail’s geometry to address the stretched-out seated position of the previous generation. By steepening the seat tube angle to 76 degrees, the frame places the rider in a more centered, upright posture that improves comfort on long rides and keeps weight balanced over the bottom bracket during steep climbs.

The head tube angle has been slackened to 67 degrees, which strikes a deliberate balance between cross-country agility and trail stability. Paired with a relatively long reach and a short 50mm stem across most sizes, the steering remains direct and precise. This setup requires the rider to actively weight the front wheel to maintain traction in flat corners, rewarding an engaged riding style. The chainstays are kept at a moderate 435mm across all sizes, ensuring the rear wheel tucks in tightly for quick maneuvering through switchbacks without sacrificing climbing traction.

Full specs

Frameset

Frame

Canyon Lux Trail CF (carbon), 12x148mm rear axle

Fork

FOX 34 Stepcast Performance, 120mm travel, 3-position remote, 44mm offset, 15x110mm axle, tapered 1 1/8"–1.5" steerer

Rear shock

FOX Float SL Performance Elite Remote

Groupset

Shift levers

Shimano Deore M6100, 12-speed

Rear derailleur

Shimano Deore M6100, 12-speed (long cage)

Cassette

Shimano Deore M6100, 12-speed, 10-51T

Chain

Shimano Deore M6100, 12-speed

Crankset

Shimano Deore M6120, 1x

Bottom bracket

Token TK878EX, BSA 68/73

Front brake

Shimano SLX M7120, 4-piston hydraulic disc

Rear brake

Shimano SLX M7110, 2-piston hydraulic disc

Front rotor

Shimano RT66, 180mm

Rear rotor

Shimano RT66, 160mm

Wheelset

Front wheel

DT Swiss AM LN 370, alloy rim, 30mm internal, 15x110mm, 6-bolt

Rear wheel

DT Swiss AM LN 370, alloy rim, 30mm internal, 12x148mm, 6-bolt

Front tire

Schwalbe Wicked Will SR TLE EVO, 2.4"

Rear tire

Schwalbe Racing Ralph SG TLE EVO, 2.35"

Cockpit

Stem

Race Face Ride, 35.0mm clamp

Handlebars

Race Face Ride Riserbar, 35.0mm clamp, 10mm rise

Saddle

Ergon SM10 Sport (Men)

Seatpost

FOX Transfer SL Performance Elite, 31.6mm (aluminium)

Grips

Ergon GXR

Builds

The Lux Trail lineup is built entirely around carbon frames, utilizing Canyon’s direct-to-consumer model to deliver highly competitive component specifications at lower price points. The available builds focus on reliable, workhorse parts rather than ultra-lightweight race day compromises.

The entry points into the range, such as the CF 6 and CF 7, feature Shimano Deore or SLX 12-speed drivetrains paired with Fox 34 Step-Cast Performance forks and Float SL Performance Elite shocks. These models roll on DT Swiss alloy wheels and utilize standard two-piston Shimano brakes. A notable spec choice across these builds is the Fox Transfer SL dropper post, which saves weight but operates with a strict two-position mechanism that some riders find limiting on undulating terrain.

All builds share the same Schwalbe Wicked Will and Racing Ralph tire combination. While fast-rolling and efficient for marathon distances, reviewers frequently note that this lightweight rubber limits the bike's braking and cornering grip on wet or highly technical trails, making tires a common first upgrade for aggressive riders.

CF 6 Shimano Deore M6100 12-Speed

$3,299

SKU 3513 (Chrome)

CF 6 Shimano Deore M6100 12-Speed (3993)

$3,499

SKU 3993 (Chrome / Mirage Blue)Selected

CF 7 Shimano Deore SLX M7100

$3,499

SKU 3442 (Chrome / Late Sunset)

Reviews

Reviewers consistently praise the Lux Trail for its energetic pedaling platform and highly active rear suspension. The updated linkage provides a surprisingly plush stroke for a short-travel bike, offering a "slingshot effect out of berms and corners" (Mountain Bike Rider) while maintaining excellent traction on technical climbs. On flowing singletrack, the stiff carbon frame and low overall weight make the bike highly responsive, allowing riders to "slice up corners with gusto" (Flow Mountain Bike).

However, opinions diverge when the trail points down steep, rugged fall lines. While some testers found the bike stable at speed, others felt the handling could be "sharp and a bit squirrelly" (PinkBike) when pushed beyond typical cross-country terrain. The consensus indicates the bike demands an assertive, precise riding style to maximize its descending capabilities.

Reviewers also highlight a few practical tradeoffs. While the threaded bottom bracket is universally welcomed by mechanics, the headset-routed cables draw widespread criticism for complicating routine maintenance. Additionally, multiple testers noted that the downtube storage door can warp over time, occasionally allowing water into the frame.
