Evil

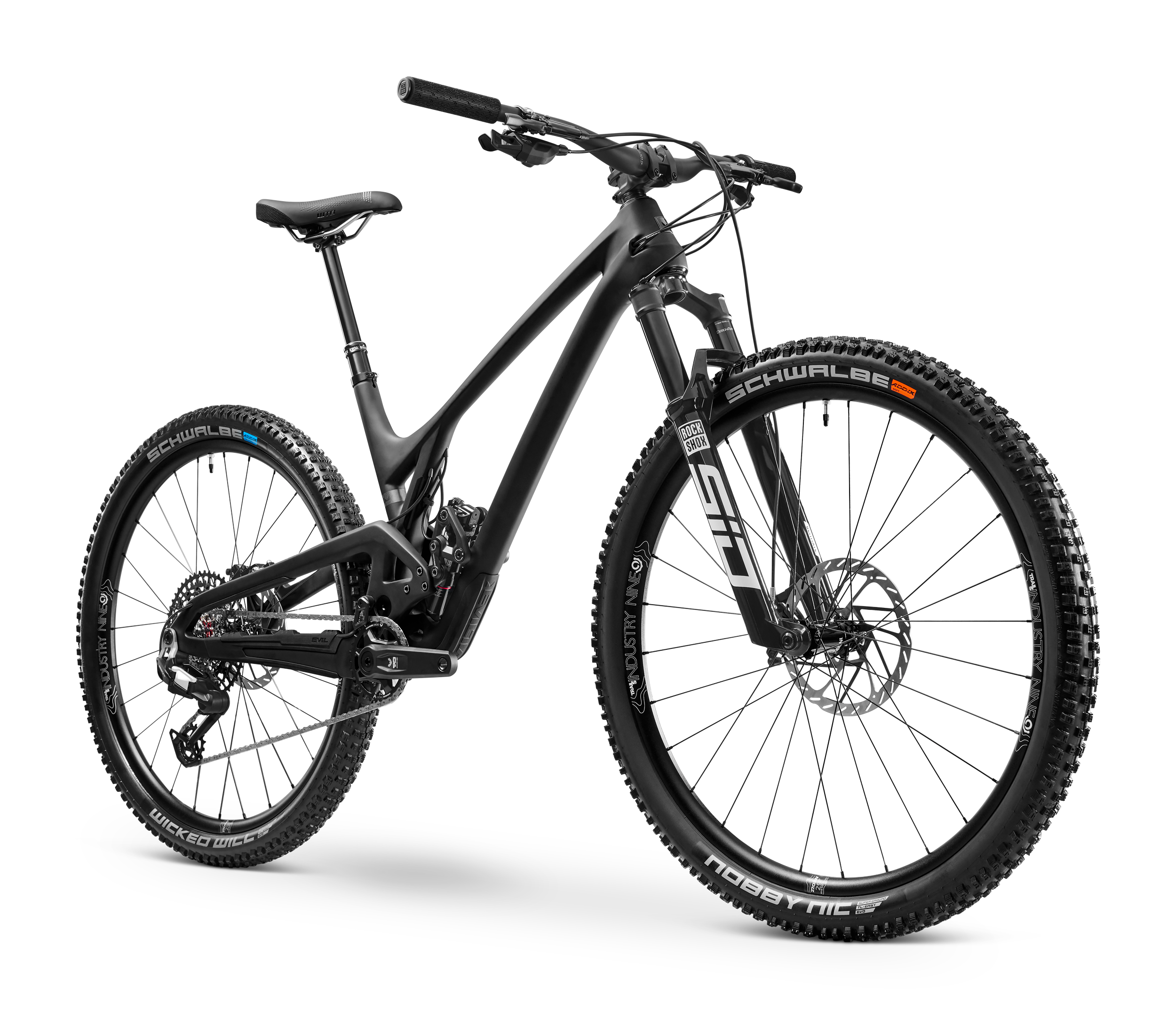

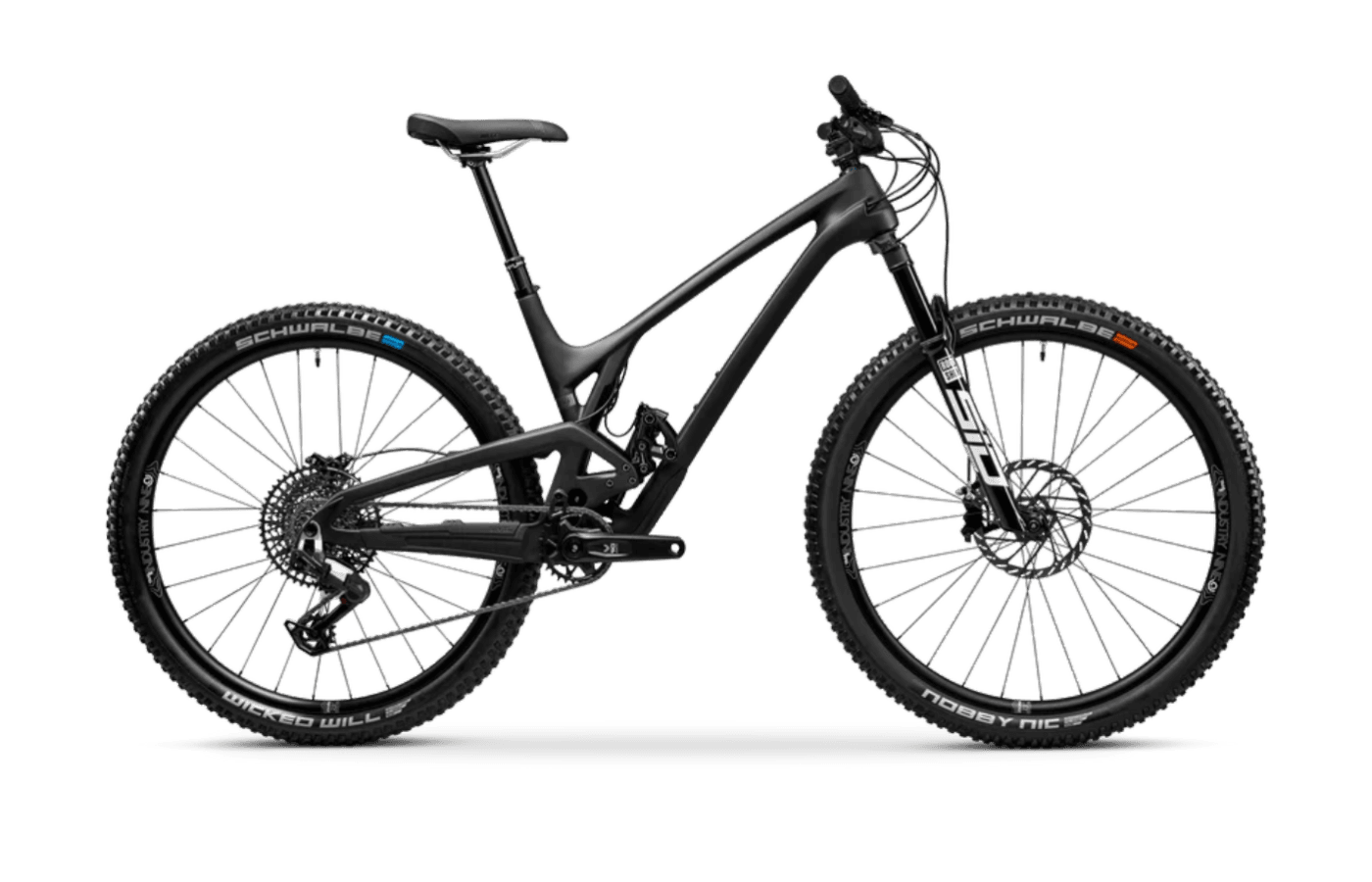

Following Eagle 90
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | LARGE | MEDIUM | SMALL | XLARGE | Large | Medium | Small | X-Large |
|---|---|---|---|---|---|---|---|---|
| Stack | 604mm | 604mm | 586mm | 614mm | — | — | — | — |
| Reach | 480mm | 460mm | 440mm | 500mm | — | — | — | — |
| Headtube length | 110mm | 110mm | 90mm | 120mm | — | — | — | — |
| Headtube angle | 66.6deg | 66.6deg | 66.6deg | 66.6deg | — | — | — | — |
| BB height | — | — | — | — | — | — | — | — |
| BB drop | 36mm | 36mm | 36mm | 36mm | — | — | — | — |
| Trail | — | — | — | — | — | — | — | — |
| Fork length | 531mm | 531mm | 531mm | 531mm | — | — | — | — |
| Fork offset | 44mm | 44mm | 44mm | 44mm | — | — | — | — |
| Front center | 765mm | 745mm | 717mm | 788mm | — | — | — | — |
| Chainstay length | — | — | — | — | — | — | — | — |
| Wheelbase | — | — | — | — | — | — | — | — |
| Top tube | 629mm | 612mm | 587mm | 651mm | — | — | — | — |
| Standover height | 675mm | 664mm | 650mm | 689mm | — | — | — | — |
| Seat tube length | 470mm | 432mm | 381mm | 508mm | — | — | — | — |
| Seat tube angle | — | — | — | — | — | — | — | — |
Spec geometry
| Geometry | LARGE | MEDIUM | SMALL | XLARGE | Large | Medium | Small | X-Large |
|---|---|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | 170mm | 170mm | 170mm | 170mm |
| Stem length | — | — | — | — | 45mm | 45mm | 45mm | 45mm |
| Handlebar width | — | — | — | — | 810mm | 780mm | 780mm | 810mm |
| Handlebar reach | — | — | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | 185mm | 150mm | 125mm | 185mm |
| Seatpost offset | — | — | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Evil Following LS Frameset
Suspension
Rear shock
RockShox SIDLuxe Ultimate 2P Lever Lockout Shock
Fork
RockShox SID Ultimate 2P Lever Lockout Fork, 29in, 120mm
Brakes
Front brake
SRAM Code RSC
Rear brake
SRAM Code RSC
Front rotor
SRAM HS2 Rotor - 200mm
Rear rotor
SRAM HS2 Rotor - 180mm
Drivetrain
Shift levers
SRAM Eagle 90 T-Type Trigger
Rear derailleur
SRAM Eagle 90 T-Type
Cassette
SRAM XS-1275 T-Type, 12-speed, 10-52T
Chain
SRAM GX Eagle T-Type Flattop Chain
Crankset
SRAM Eagle 90, 32T, 170mm
Bottom bracket
SRAM DUB, 73mm BSA
Cockpit
Stem
Evil 12 Gauge Stem - 45mm
Handlebars
Evil Boomstick Carbon Bar - S/M: 780mm; L/XL: 810mm x 35mm
Grips
RockShox TwistLoc Ultimate - Curved Hose
Saddle
WTB Volt Pro - Medium
Seatpost
Bike Yoke Revive 2.0 Dropper Seatpost - 30.9mm (S: 125mm, M: 150mm, L/XL: 185mm)
Wheels & Tires
Front wheel
Industry Nine Enduro S Hydra2 Wheelset (Front) - 30.5mm internal width, 110x15mm (unless upgrade selected)
Rear wheel
Industry Nine Enduro S Hydra2 Wheelset (Rear) - 30.5mm internal width, 157x12mm (unless upgrade selected)
Front tire
Schwalbe Nobby Nic Evo SG TLE
Rear tire
Schwalbe Wicked Will Evo ST TLE
