Frameset
Frame
Crux FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Fork
S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Weight
7.64 kg (16 lb, 13.5 oz) (size 56)

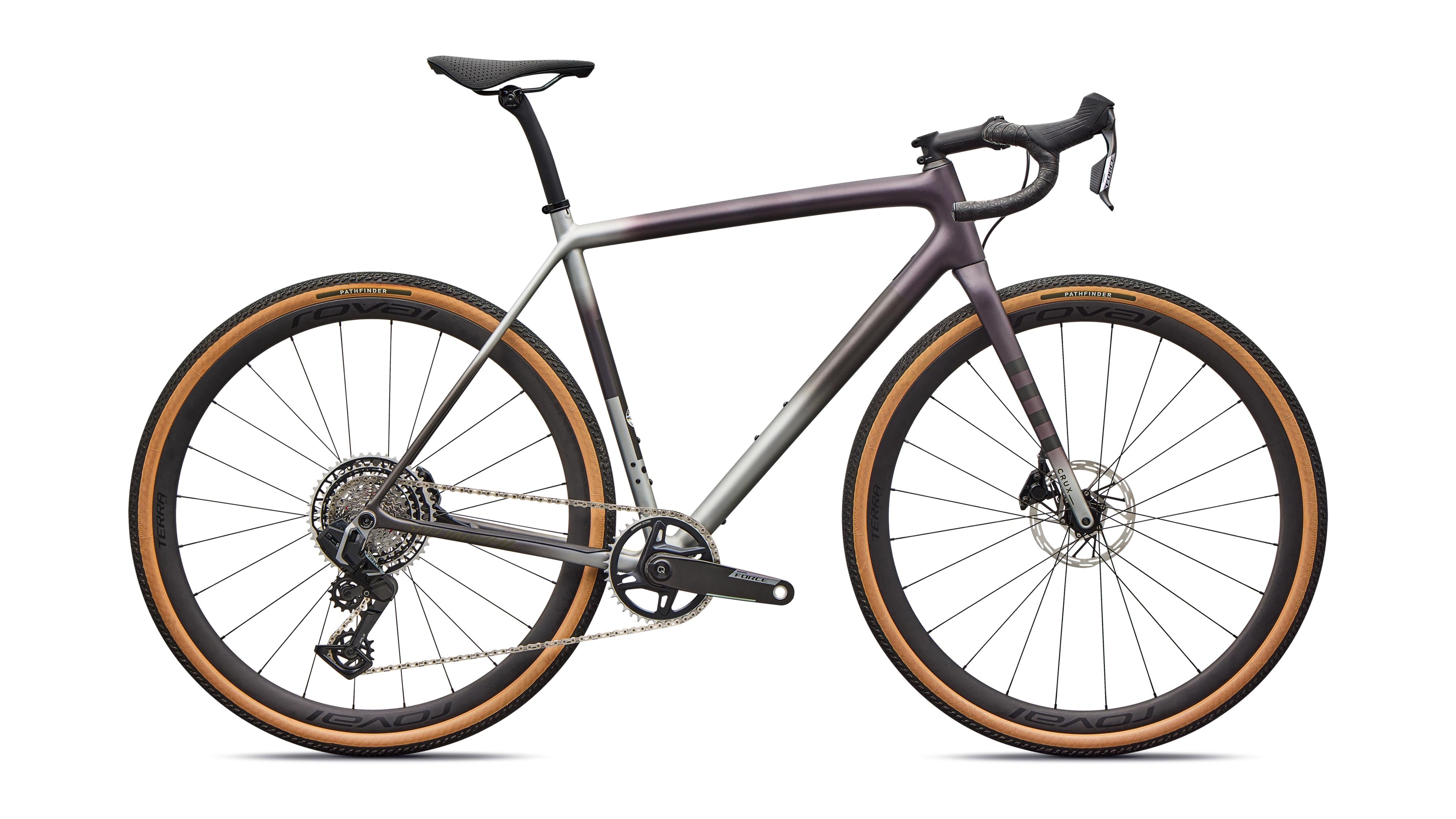

The current Specialized Crux represents a major pivot for the platform, shifting from a dedicated cyclocross machine into a lightweight gravel race bike. Drawing heavily on the tube shapes and carbon layup techniques developed for the Aethos road bike, the Crux prioritizes minimal weight and ride quality over aerodynamic integration or bikepacking utility. It retains a clear cyclocross DNA but expands its capability with massive tire clearance. This is a bike built for riders who want to move fast across mixed surfaces, appealing to gravel racers, cyclocross privateers, and road cyclists looking for a highly responsive off-road chassis. It eschews cargo mounts and suspension in favor of a pure, stripped-back pedaling experience.

| Stack | 560mm |
| Reach | 388mm |
| Top tube | 549mm |
| Headtube length | 130mm |
| Standover height | 794mm |
| Seat tube length | 521mm |
The Crux utilizes a performance-oriented geometry that blends its cyclocross heritage with modern gravel stability. Compared to the previous generation, the frame features a longer reach paired with a shorter stem, which keeps the steering sharp while pushing the front wheel slightly further out for better high-speed tracking. The bottom bracket drop sits around 72mm to 74mm depending on size, lowering the rider's center of gravity for improved cornering stability without sacrificing pedal clearance on off-road obstacles.
Rider posture leans toward the aggressive side. The stack is relatively low, placing the rider in a stretched, aerodynamic position typical of a road or cyclocross race bike. This forward-leaning stance aids in power transfer and front-wheel traction but requires more core engagement than an upright touring fit. The cockpit relies on a traditional two-piece bar and stem rather than an integrated system, allowing for easy fit adjustments. Most builds feature handlebars with a modest flare, offering a secure stance in the drops without feeling overly wide or cumbersome on the road.
Frameset
Frame
Crux FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Fork
S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Weight
7.64 kg (16 lb, 13.5 oz) (size 56)
Groupset
Shift levers
NEW SRAM Force AXS E1 HRD
Rear derailleur
NEW SRAM Force XPLR AXS E1
Cassette
NEW SRAM Force XPLR XG-1371, 13-speed, 10-46T
Chain
NEW SRAM Force E1
Crankset
NEW SRAM Force E1 XPLR, DUB WIDE, 40T, Quarq Power Meter
Bottom bracket
SRAM DUB BSA
Front brake
NEW SRAM Force AXS E1, hydraulic disc
Rear brake
NEW SRAM Force AXS E1, hydraulic disc
Front rotor
160mm
Rear rotor
160mm
Wheelset
Front wheel
Roval Terra CL Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 350 hub, Centerlock disc, DT Swiss Competition Race spokes
Rear wheel
Roval Terra CL Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 350 hub, Centerlock disc, DT Swiss Competition Race spokes
Front tire
Pathfinder 700x40, Tubeless Ready
Rear tire
Pathfinder 700x40, Tubeless Ready
Cockpit
Stem
Specialized Pro SL, alloy, 4-bolt
Handlebars
Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
Saddle
Power Pro Mirror, Hollow Ti rails
Seatpost
Roval Terra Carbon Seat Post, 20mm Offset
Grips
Supacaz Super Sticky Kush (bar tape)
The Crux lineup spans a wide pricing spectrum, anchored by the premium S-Works model and extending down to the alloy DSW Comp. The primary differentiator across the carbon tiers is the frame layup. The S-Works utilizes Specialized’s lightest FACT 12r carbon, while the Pro, Expert, and Comp models use the slightly heavier FACT 10r carbon. The DSW models offer an aluminum alternative that maintains the same geometry and tire clearance at a much lower price point.
Builds are heavily focused on 1x drivetrains, largely utilizing SRAM’s XPLR ecosystem. Mechanical shifting is found on the entry-level Comp models, while the Expert, Pro, and S-Works tiers upgrade to wireless electronic shifting. A Shimano GRX Di2 option also exists at the Expert level. Wheel spec is a major factor in the pricing ladder; lower-tier models roll on aluminum DT Swiss rims, whereas the Expert level and above feature lightweight Roval Terra carbon wheelsets. Value is a frequent point of contention among reviewers, as the lower-tier carbon models carry premium price tags despite utilizing mid-range mechanical groupsets and alloy wheels. However, the standardized components—including a threaded bottom bracket and 27.2mm seatpost—make the platform highly upgradeable over time.

DSW Comp
$2,800

DSW Comp
$2,800

Comp
$3,800

Comp
$4,000

Expert
$5,000

Expert
$5,800

Expert
$6,300

Pro
$7,500

Pro
$8,000

S-Works
$12,000
Critics consistently praise the Crux for its exceptional acceleration and climbing prowess, traits directly tied to its minimal mass. On hardpack and pavement, the bike is highly efficient, with testers noting it is "an absolute rocket over smoother gravel surfaces" (Cycling News). The lack of weight makes it easy to maneuver at low speeds, allowing riders to easily lift the front wheel over obstacles or navigate tight switchbacks.
However, the rigid, race-focused frame presents tradeoffs on technical or heavily rutted trails. Because it lacks the mechanical suspension found on adventure-oriented models, the ride can feel harsh on larger impacts. Reviewers point out that the bike demands a skilled hand on rough descents, where its stiff chassis can bounce rather than absorb hits. One tester noted it has an "addictive and lively feel" (BikeRadar), but others warn that riders might quickly feel underbiked if they venture onto root-heavy singletrack.
Ultimately, the consensus points to a highly engaging, fast-paced ride. It rewards aggressive pedaling and precise line choices, making it ideal for those who want a bike that "goes like a rocket when you sprint" (Granfondo) rather than a plush cruiser for multi-day touring.
