Salsa

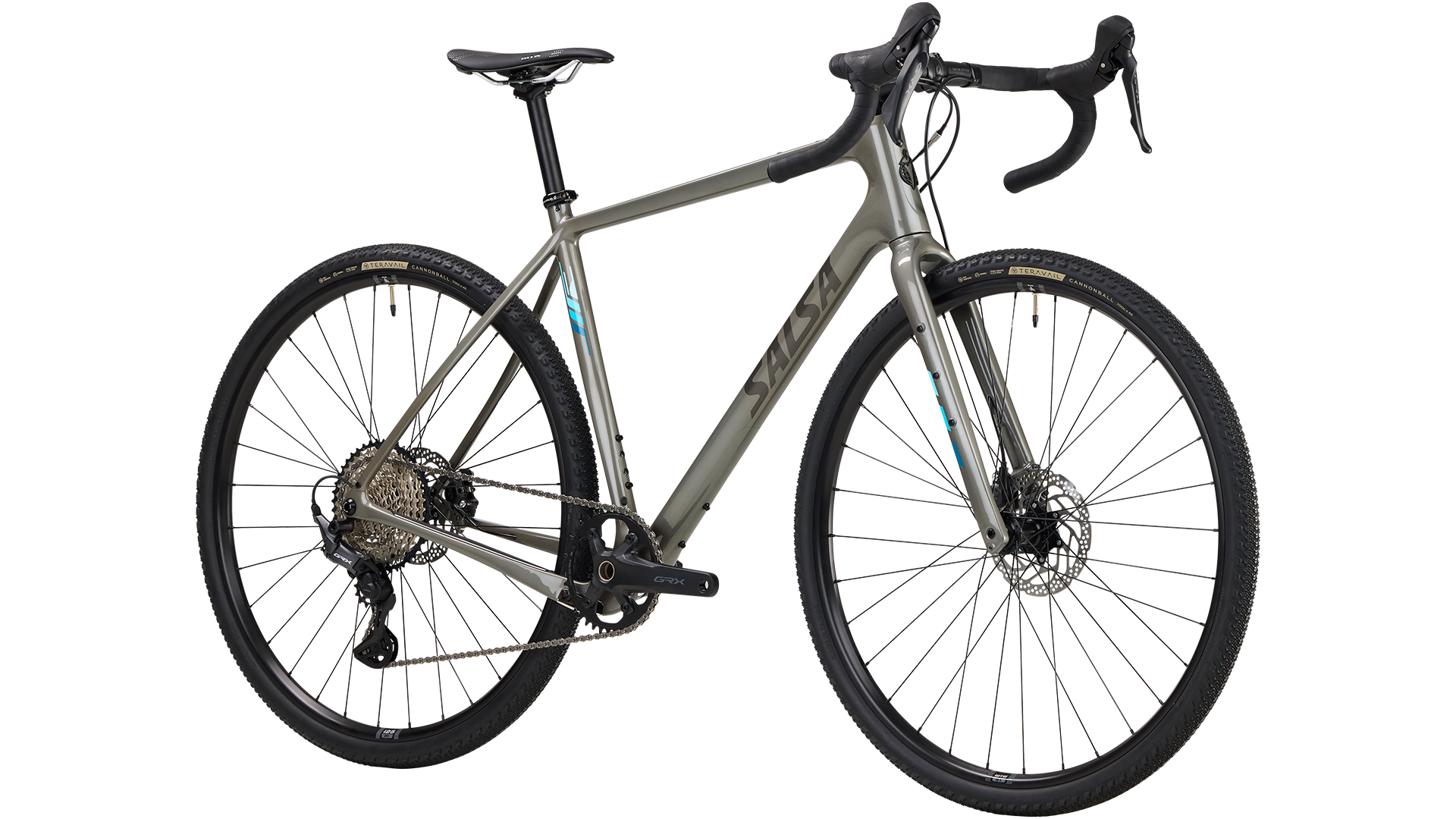

Warbird C GRX 610 1x
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 49cm | 52.5cm | 54.5cm | 56cm | 57.5cm | 59cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack | 517.85mm | 547.09mm | 565.97mm | 584.85mm | 603.73mm | 622.61mm | 641.5mm |
| Reach | 360.24mm | 368.13mm | 371.97mm | 381.19mm | 390.42mm | 399.65mm | 407.74mm |
| Headtube length | 90mm | 120mm | 140mm | 160mm | 180mm | 200mm | 220mm |
| Headtube angle | 71deg | 70.75deg | 70.75deg | 70.75deg | 70.75deg | 70.75deg | 70.75deg |
| BB height | 279mm | 279mm | 279mm | 279mm | 279mm | 279mm | 279mm |
| BB drop | 70mm | 70mm | 70mm | 70mm | 70mm | 70mm | 70mm |
| Trail | — | — | — | — | — | — | — |
| Fork length | 405mm | 405mm | 405mm | 405mm | 405mm | 405mm | 405mm |
| Fork offset | 50mm | 50mm | 50mm | 50mm | 50mm | 50mm | 50mm |
| Front center | — | — | — | — | — | — | — |
| Chainstay length | 430mm | 430mm | 430mm | 430mm | 430mm | 430mm | 430mm |
| Wheelbase | 996.14mm | 1011.96mm | 1022.39mm | 1038.21mm | 1054.03mm | 1069.85mm | 1084.54mm |
| Top tube | 499mm | 525mm | 545mm | 560mm | 575mm | 590mm | 610mm |
| Standover height | 670.2mm | 714.48mm | 744.3mm | 770.11mm | 785.96mm | 808.4mm | 830.55mm |
| Seat tube length | 390mm | 440mm | 475mm | 510mm | 520mm | 545mm | 570mm |
| Seat tube angle | 75deg | 74deg | 73deg | 73deg | 73deg | 73deg | 72.5deg |
Spec geometry
| Geometry | 49cm | 52.5cm | 54.5cm | 56cm | 57.5cm | 59cm | 61cm |
|---|---|---|---|---|---|---|---|
| Crank length | 165mm | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem length | 60mm | 70mm | 80mm | 90mm | 90mm | 100mm | 110mm |
| Handlebar width | 380mm | 400mm | 420mm | 440mm | 460mm | 460mm | 460mm |
| Handlebar reach | — | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — | — |
| Saddle width | 142mm | 142mm | 142mm | 142mm | 142mm | 142mm | 142mm |
| Dropper post travel | — | — | — | — | — | — | — |
| Seatpost offset | 0mm | 0mm | 0mm | 0mm | 0mm | 0mm | 0mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Salsa Warbird (Gray)
Suspension
Fork
Salsa Waxwing Deluxe V2
Brakes
Front brake
Shimano GRX RX400 hydraulic disc brake caliper with Shimano GRX RX610 brake lever
Rear brake
Shimano GRX RX400 hydraulic disc brake caliper with Shimano GRX RX610 brake lever
Front rotor
Shimano RT30 Center Lock, 160mm
Rear rotor
Shimano RT30 Center Lock, 160mm
Drivetrain
Shift levers
Shimano GRX RX610
Rear derailleur
Shimano GRX RX822 GS
Cassette
Shimano Deore M7100, 12-speed, 10-45T
Chain
Shimano Deore M7100, 12-speed
Crankset
Shimano GRX RX610-1, 40T
Bottom bracket
Shimano RS500-PB
Cockpit
Stem
Salsa Guide
Handlebars
Salsa Cowbell
Grips
Anti-slip, shock-proof silicone tape
Saddle
WTB Gravelier Medium, Cromoly SL, 142 x 250mm
Seatpost
Salsa Guide, zero offset
Wheels & Tires
Front wheel
WTB ST i25, TCS 2.0, 700c, 25mm internal, 28h (taped w/ WTB tubeless valve; sealant included); Shimano TC500, 12x100mm, Center Lock; 2.0/1.8 gauge, black
Rear wheel
WTB ST i25, TCS 2.0, 700c, 25mm internal, 28h (taped w/ WTB tubeless valve; sealant included); Shimano TC500, 12x142mm, Center Lock; 2.0/1.8 gauge, black
Front tire
Teravail Cannonball 700c x 42mm, Durable casing, tubeless-ready
Rear tire
Teravail Cannonball 700c x 42mm, Durable casing, tubeless-ready
Weight
Weight
21 lb 13 oz (56cm)
