Specialized

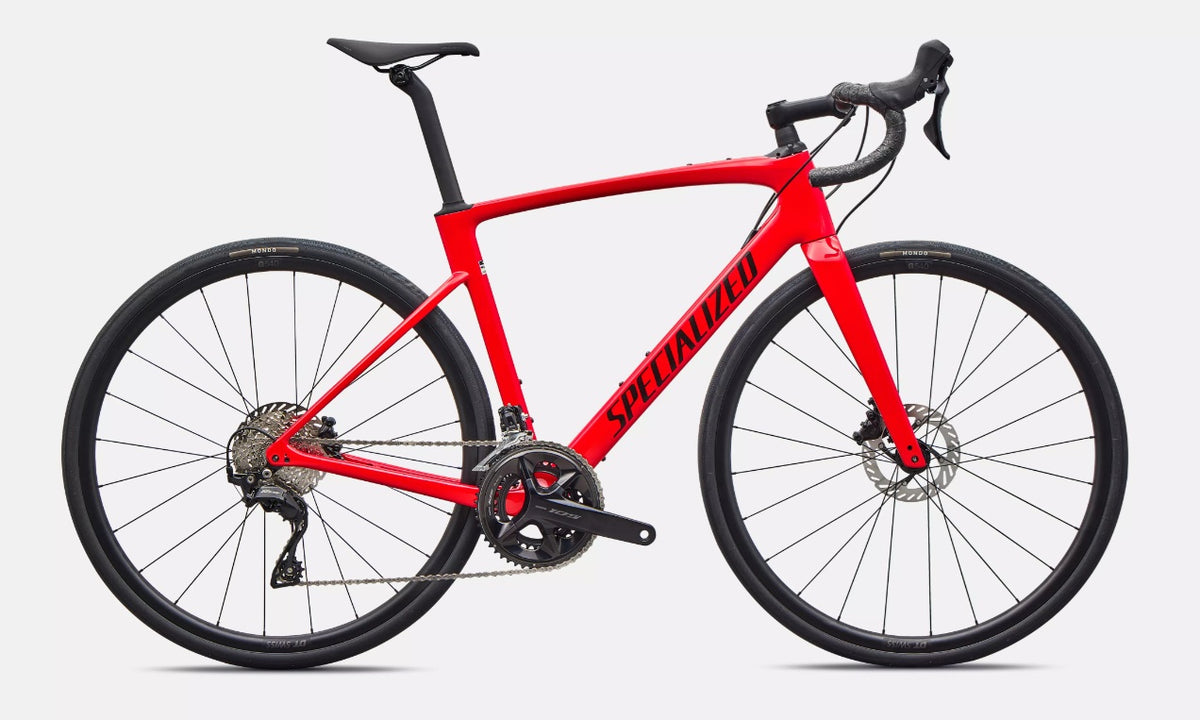

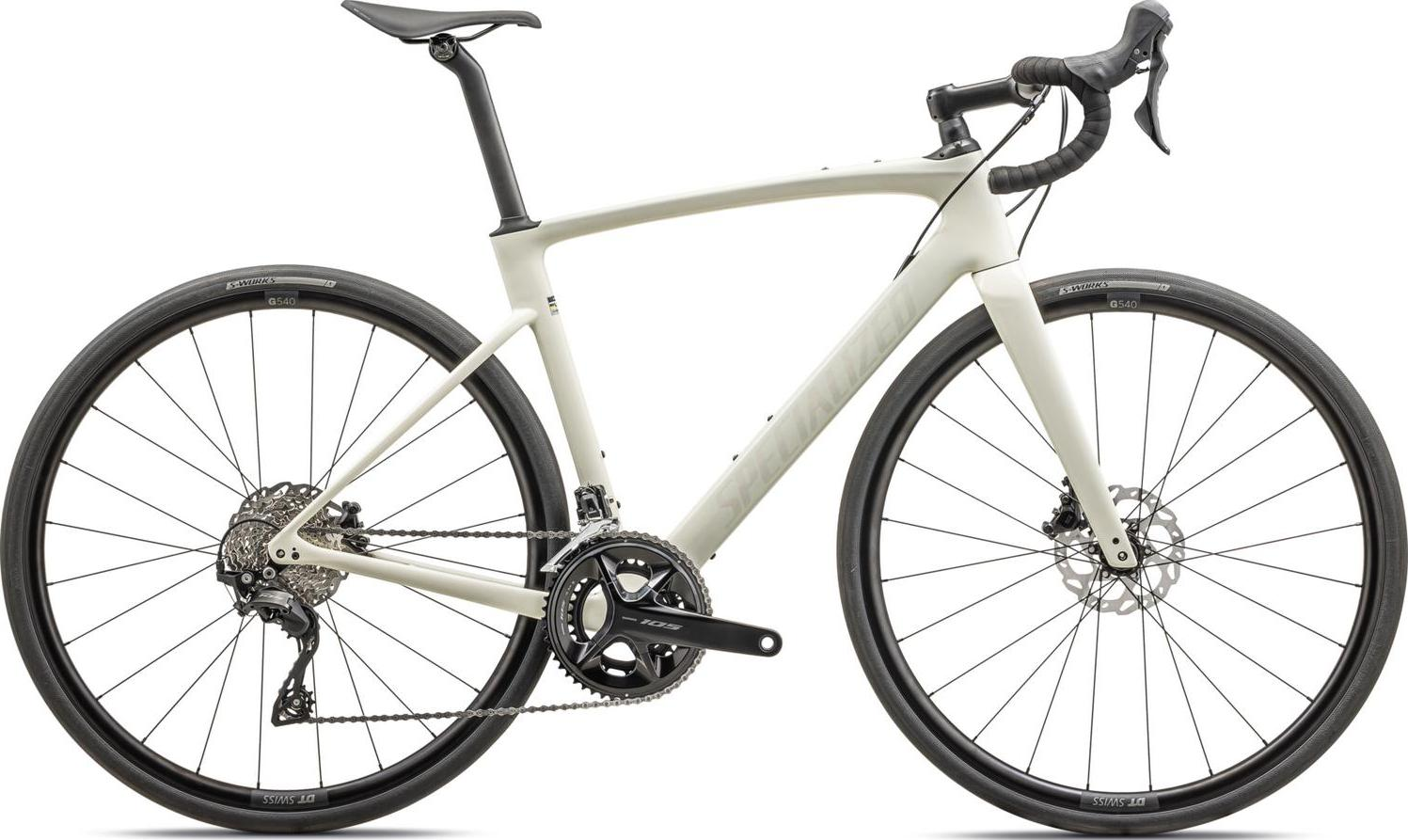

Roubaix SL8 Sport
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 44 | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Stack | 543mm | 549mm | 566mm | 585mm | 605mm | 630mm | 665mm |
| Reach | 353mm | 363mm | 370mm | 381mm | 389mm | 397mm | 403mm |
| Headtube length | 90mm | 90mm | 105mm | 122mm | 140mm | 168mm | 202mm |
| Headtube angle | 69.3deg | 70.8deg | 71.5deg | 72.3deg | 73deg | 73deg | 73.5deg |
| BB height | 269mm | 269mm | 269mm | 270mm | 270mm | 271mm | 271mm |
| BB drop | 80mm | 80mm | 80mm | 78mm | 78mm | 78mm | 78mm |
| Trail | 76mm | 66mm | 62mm | 61mm | 57mm | 57mm | 54mm |
| Fork length | 375mm | 375mm | 375mm | 375mm | 375mm | 375mm | 375mm |
| Fork offset | 52mm | 52mm | 52mm | 47mm | 47mm | 47mm | 47mm |
| Front center | 593mm | 598mm | 604mm | 620mm | 631mm | 589mm | 587mm |
| Chainstay length | 418mm | 418mm | 418mm | 420mm | 420mm | 423mm | 423mm |
| Wheelbase | 992mm | 988mm | 1005mm | 1012mm | 1031mm | 1042mm | 994mm |
| Top tube | 503mm | 523mm | 534mm | 550mm | 569mm | 584mm | 600mm |
| Standover height | 686mm | 719mm | 747mm | 766mm | 787mm | 809mm | 847mm |
| Seat tube length | 365mm | 410mm | 445mm | 465mm | 485mm | 505mm | 545mm |
| Seat tube angle | 75deg | 74deg | 74deg | 74deg | 73.5deg | 73.5deg | 73.5deg |
Spec geometry
| Geometry | 44 | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Crank length | 165mm | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem length | 70mm | 80mm | 90mm | 100mm | 100mm | 110mm | 110mm |
| Handlebar width | 360mm | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
| Handlebar reach | 75mm | 75mm | 75mm | 75mm | 75mm | 75mm | 75mm |
| Handlebar drop | 125mm | 125mm | 125mm | 125mm | 125mm | 125mm | 125mm |
| Saddle width | 155mm | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Dropper post travel | — | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
FACT 10R, Rider First Engineered™ (RFE), FreeFoil Shape Library tubes, threaded BB, 12x142mm thru-axle, flat-mount disc
Suspension
Fork
Future Shock 3.2 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Brakes
Front brake
Shimano 105 Hydraulic Brake
Rear brake
Shimano 105 Hydraulic Brake
Front rotor
null
Rear rotor
null
Drivetrain
Shift levers
Shimano 105 R7120, Hydraulic Disc
Rear derailleur
Shimano 105 R7100, 12-speed
Front derailleur
Shimano 105, braze-on
Cassette
Shimano 105, 12-speed, 11-36T
Chain
Shimano SLX M7100, 12-speed
Crankset
Shimano 105, 12-speed 50/34T
Bottom bracket
Shimano Threaded BSA BB
Cockpit
Stem
Future Stem, Comp
Handlebars
Specialized Hover Comp, Alloy, 125mm Drop, 75mm Reach w/Di2 Hole
Grips
Supacaz Super Sticky Kush (bar tape)
Saddle
Body Geometry Power Sport, steel rails
Seatpost
S-Works Pave
Wheels & Tires
Front wheel
DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h; Specialized full sealed bearing thru axle hub, centerlock disc; DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Rear wheel
DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h; Specialized full sealed bearing thru axle hub, centerlock disc; DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Front tire
Mondo Folding Endurance Tire, 700x32c, GRIPTON T5
Rear tire
Mondo Folding Endurance Tire, 700x32c, GRIPTON T5
Weight
Weight
9.03 kg (19 lb, 14.5 oz)
