Trek

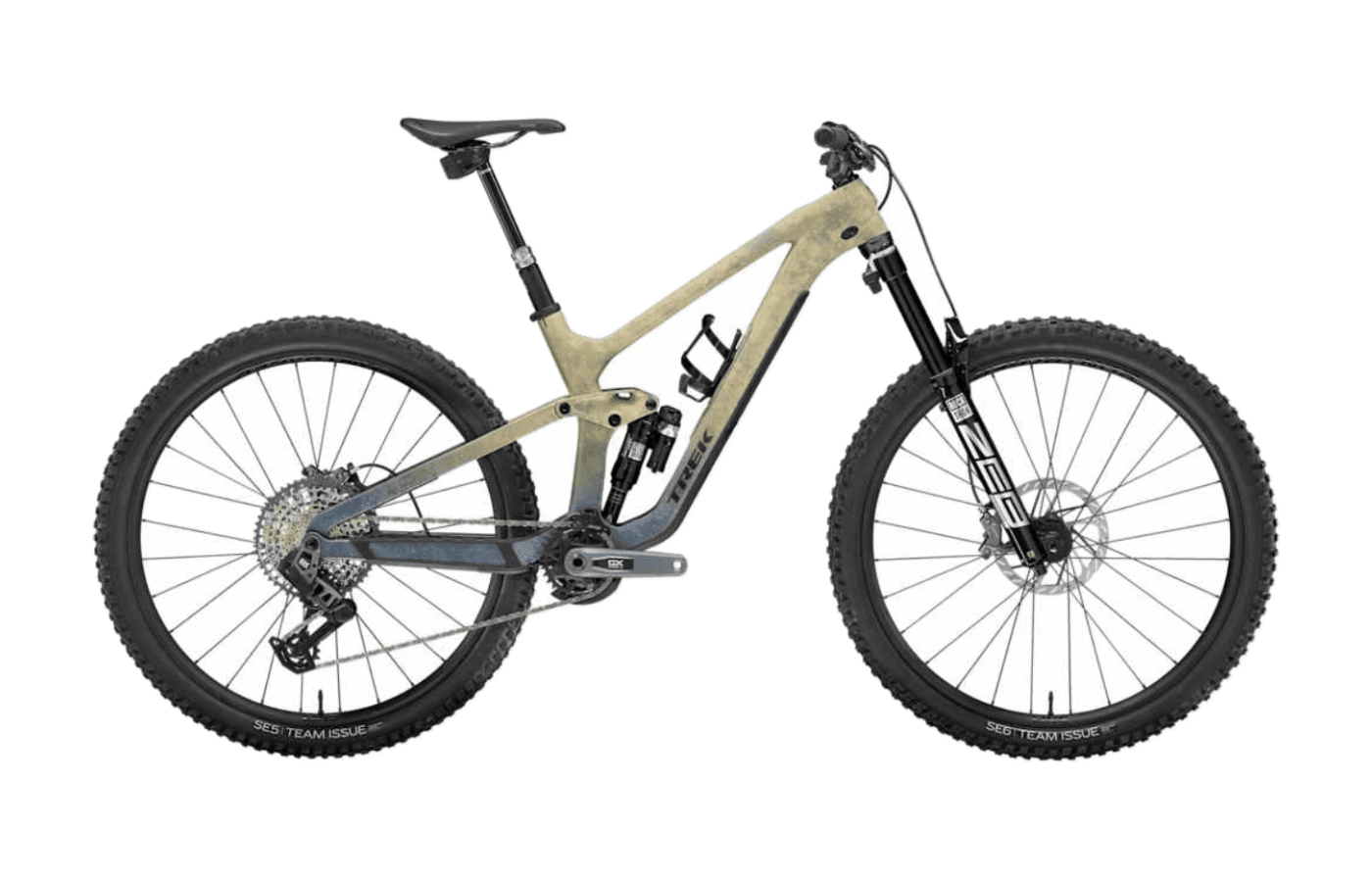

Slash SE Gen 5
Gallery
Images
No images available yet.
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | ML | S | XL |
|---|---|---|---|---|---|
| Stack | 641mm | 623mm | 632mm | 588mm | 659mm |
| Reach | 488mm | 448mm | 468mm | 430mm | 513mm |
| Headtube length | 120mm | 100mm | 110mm | 100mm | 140mm |
| Headtube angle | 63.3deg | 63.3deg | 63.3deg | 63.5deg | 63.3deg |
| BB height | 351mm | 351mm | 351mm | 352mm | 351mm |
| BB drop | 27mm | 27mm | 27mm | 1mm | 27mm |
| Trail | 143mm | 143mm | 143mm | 132mm | 143mm |
| Fork length | — | — | — | — | — |
| Fork offset | 43mm | 43mm | 43mm | 43mm | 43mm |
| Front center | — | — | — | — | — |
| Chainstay length | 434mm | 429mm | 434mm | 429mm | 439mm |
| Wheelbase | 1278mm | 1224mm | 1253mm | 1195mm | 1312mm |
| Top tube | 628mm | 578mm | 605mm | 548mm | 658mm |
| Standover height | 767mm | 766mm | 766mm | 727mm | 768mm |
| Seat tube length | 435mm | 400mm | 420mm | 390mm | 470mm |
| Seat tube angle | 73.8deg | 73.8deg | 73.8deg | 74deg | 73.8deg |
Spec geometry
| Geometry | L | M | ML | S | XL |
|---|---|---|---|---|---|
| Crank length | 165mm | 165mm | 165mm | 165mm | 165mm |
| Stem length | 35mm | 35mm | 35mm | 35mm | 35mm |
| Handlebar width | 780mm | 780mm | 780mm | 780mm | 780mm |
| Handlebar reach | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — |
| Saddle width | 138mm | 138mm | 138mm | 138mm | 138mm |
| Dropper post travel | 170mm | 150mm | 150mm | 100mm | 170mm |
| Seatpost offset | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
OCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block 2.0, Control Freak internal routing, Carbon Armor, shuttle guard, threaded BB, ISCG 05, 34.9mm seat tube, magnesium rocker link, Mino Link, ABP, Boost148, 160mm travel
Suspension
Rear shock
RockShox Super Deluxe Ultimate Flight Attendant, 230mm x 62.5mm
Fork
RockShox ZEB Ultimate, Flight Attendant, DebonAir spring, Charger 2.1 RCT3 AXS damper, 1.5" tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 170mm travel
Brakes
Front brake
SRAM CODE Bronze 4-piston hydraulic disc
Rear brake
SRAM CODE Bronze 4-piston hydraulic disc
Front rotor
SRAM HS2, 6-bolt, 200mm
Rear rotor
SRAM HS2, 6-bolt, 200mm
Drivetrain
Shift levers
SRAM AXS POD
Rear derailleur
SRAM GX Eagle AXS, T-Type
Cassette
SRAM Eagle XS-1275, T-Type, 10-52, 12 speed
Chain
SRAM GX Eagle, T-Type, 12 speed
Crankset
SRAM GX Eagle, DUB MTB Wide, T-Type, 30T, 55mm chainline, 165mm length
Bottom bracket
SRAM DUB MTB Wide, 73mm, BSA threaded
Cockpit
Stem
Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 35mm length
Handlebars
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
Grips
Bontrager XR Trail Pro, alloy lock-on
Saddle
Bontrager Arvada Elite, stainless steel rails, 138mm width
Seatpost
RockShox Reverb AXS (size-dependent travel: S 100mm/340mm; M/ML 150mm/440mm; L/XL 170mm/480mm), wireless, 34.9mm
Wheels & Tires
Front wheel
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29"
Rear wheel
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12mm thru axle
Front tire
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Rear tire
Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Weight
Weight
M - 15.53 kg / 34.24 lbs (with TLR sealant, no tubes)
