Cannondale

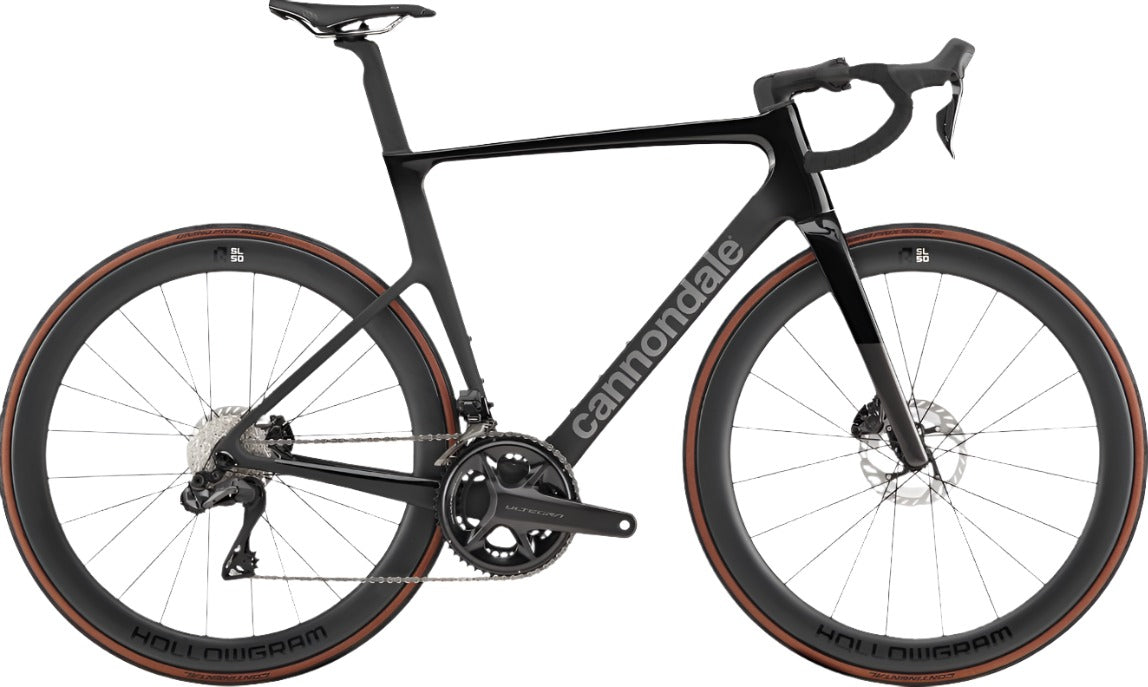

SuperSix EVO Hi-Mod 2
Gallery
Images
detail
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 44 | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Stack | 505mm | 520mm | 535mm | 555mm | 575mm | 595mm | 625mm |
| Reach | 370mm | 374mm | 378mm | 384mm | 389mm | 395mm | 403mm |
| Headtube length | 100mm | 114mm | 130mm | 154mm | 165mm | 188mm | 220mm |
| Headtube angle | 70.9deg | 71.2deg | 71.2deg | 71.2deg | 73deg | 73deg | 73deg |
| BB height | 268mm | 268mm | 268mm | 271mm | 271mm | 273mm | 273mm |
| BB drop | 74mm | 74mm | 74mm | 72mm | 72mm | 69mm | 69mm |
| Trail | 60mm | 58mm | 58mm | 58mm | 58mm | 58mm | 58mm |
| Fork length | — | — | — | — | — | — | — |
| Fork offset | 55mm | 55mm | 55mm | 55mm | 45mm | 45mm | 45mm |
| Front center | 582mm | 589mm | 598mm | 611mm | 594mm | 607mm | 624mm |
| Chainstay length | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm |
| Wheelbase | 981mm | 987mm | 996mm | 1010mm | 994mm | 1007mm | 1024mm |
| Top tube | 512mm | 520mm | 528mm | 546mm | 562mm | 578mm | 603mm |
| Standover height | 698mm | 727mm | 756mm | 788mm | 807mm | 836mm | 866mm |
| Seat tube length | 400mm | 438mm | 477mm | 515mm | 534mm | 567mm | 600mm |
| Seat tube angle | 74.3deg | 74.3deg | 74.3deg | 73.7deg | 73.3deg | 72.9deg | 72.3deg |
Spec geometry
| Geometry | 44 | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — | — |
| Stem length | — | — | — | — | — | — | — |
| Handlebar width | — | — | — | — | — | — | — |
| Handlebar reach | — | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — | — |
| Seatpost offset | 0mm | 0mm | 20mm | 20mm | 20mm | 20mm | 20mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Cannondale SuperSix EVO Hi-MOD Carbon, integrated cable routing w/ Switchplate, 12x142 Syntace thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense compatible
Suspension
Fork
Cannondale SuperSix EVO Hi-MOD Carbon fork, integrated crown race, 12x100mm Syntace thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm) / 45mm offset (56-61cm)
Brakes
Front brake
Shimano Ultegra Di2 R8170 hydraulic disc
Rear brake
Shimano Ultegra Di2 R8170 hydraulic disc
Front rotor
160mm Shimano CL800 (Center Lock)
Rear rotor
140mm Shimano CL800 (Center Lock)
Drivetrain
Shift levers
Shimano Ultegra Di2 R8170, wireless, 12-speed
Rear derailleur
Shimano Ultegra Di2 R8150
Front derailleur
Shimano Ultegra Di2 R8150
Cassette
Shimano Ultegra R8100, 12-speed, 11-30T
Chain
Shimano Ultegra, 12-speed
Crankset
Shimano Ultegra R8100, 52/36
Bottom bracket
Shimano BSA 68
Cockpit
Stem
Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
Handlebars
Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
Grips
Fizik Tempo Bondcush Soft, 3mm
Saddle
Prologo Dimension TiRox NDR
Seatpost
Cannondale C1 Aero 40 Carbon, 0mm offset (44-48cm) / 20mm offset (51-61cm)
Wheels & Tires
Front wheel
HollowGram R-SL 50, Carbon, 20h, 50mm deep, 21mm inner width, tubeless ready; HollowGram, sealed bearing, 12x100mm, Center Lock; DT Swiss Aerolite, straight pull
Rear wheel
HollowGram R-SL 50, Carbon, 24h, 50mm deep, 21mm inner width, tubeless ready; HollowGram, 12x142mm, Center Lock (DT Swiss 240 internals); DT Swiss Aerolite, straight pull
Front tire
Vittoria Corsa N.EXT, 700x28c, tubeless ready
Rear tire
Vittoria Corsa N.EXT, 700x28c, tubeless ready
