Specialized

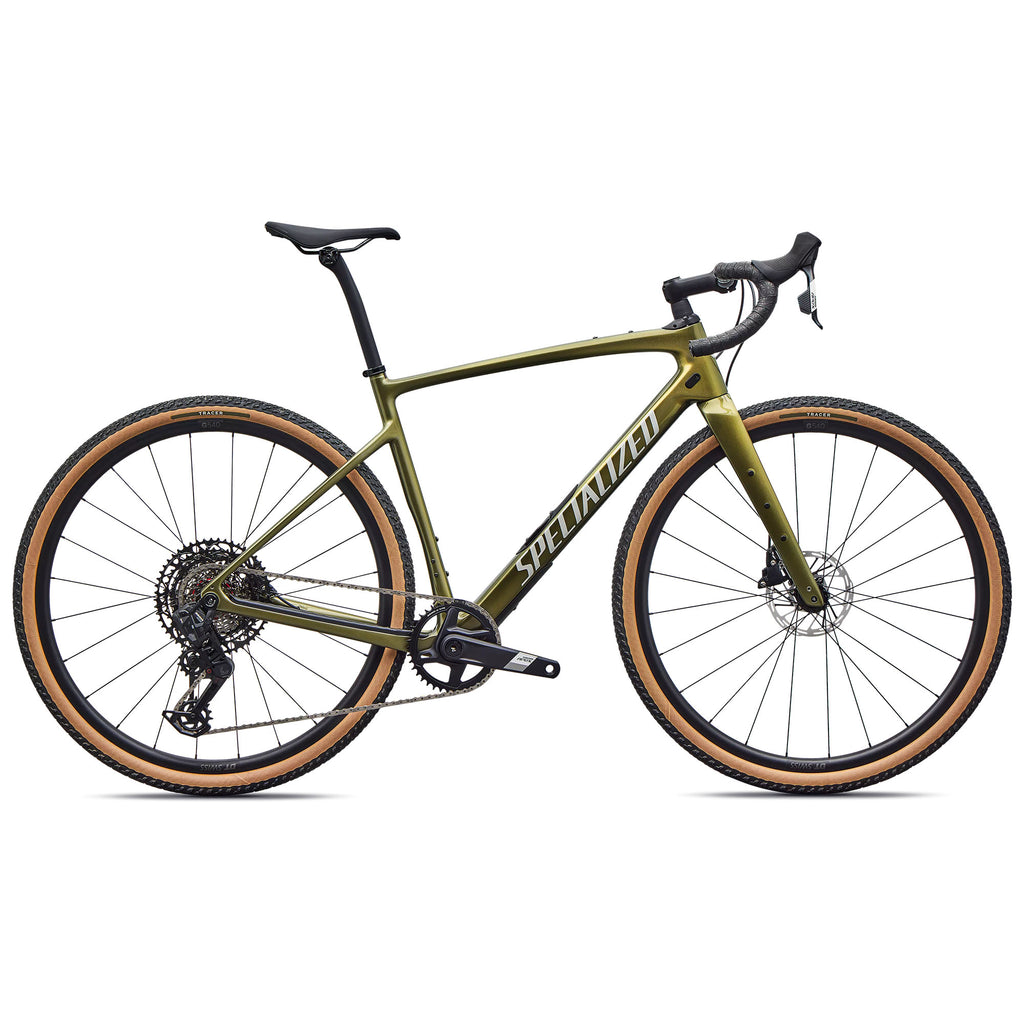

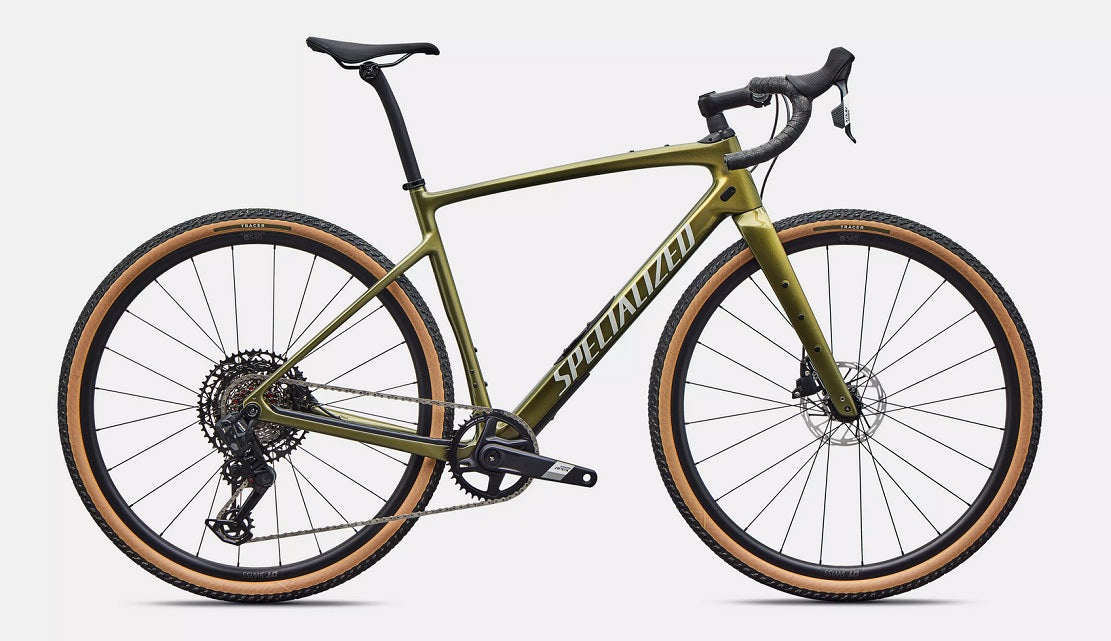

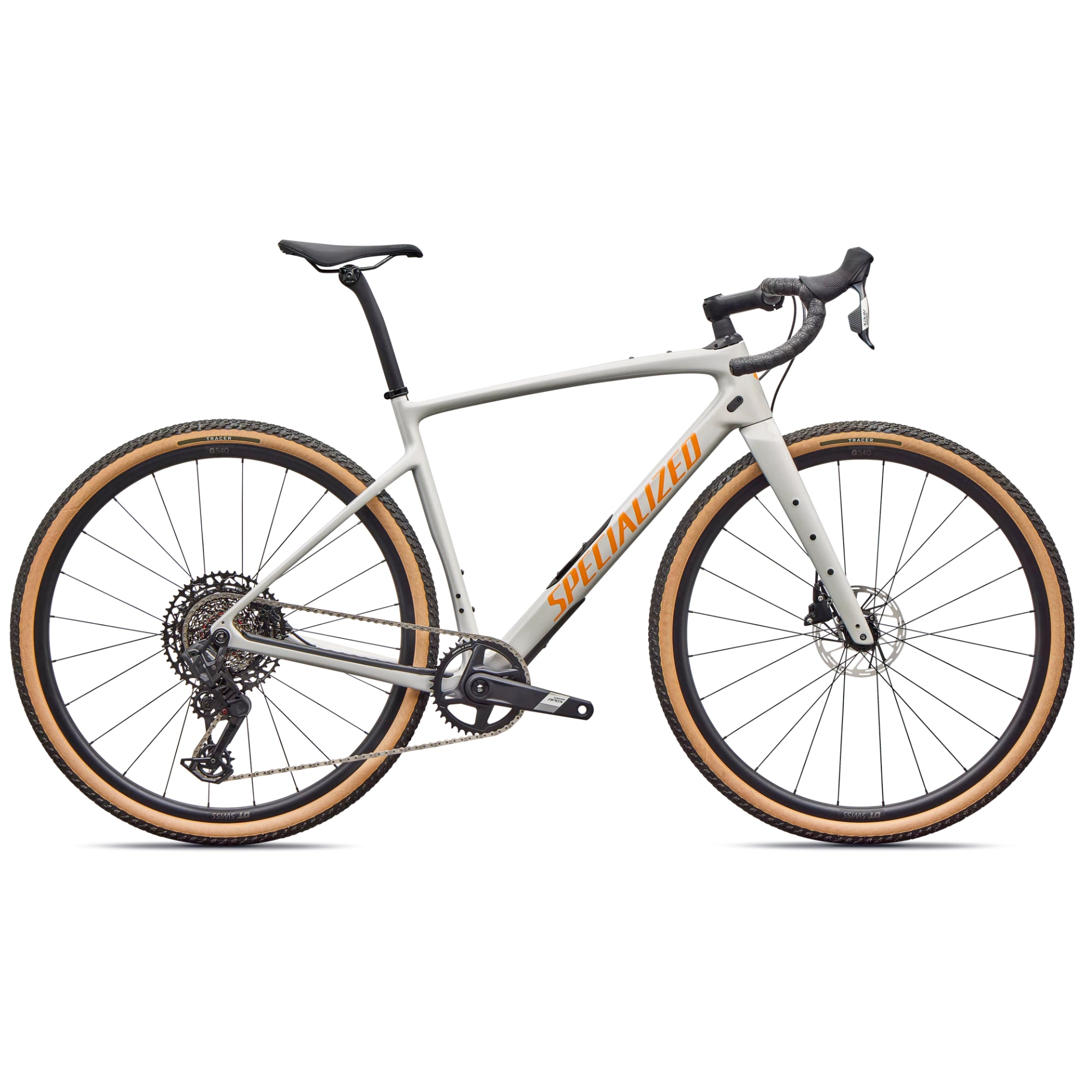

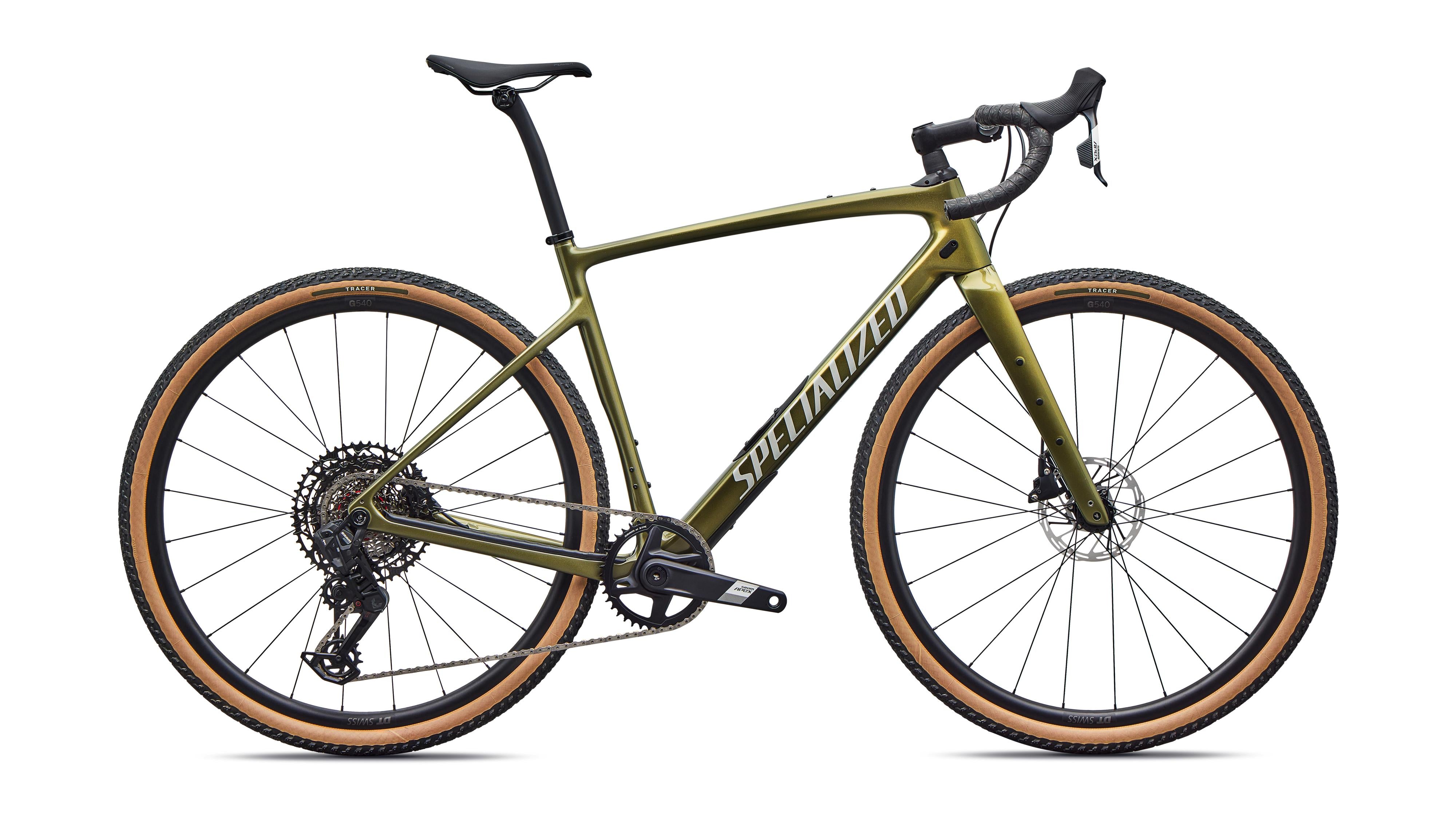

Diverge 4 Comp Carbon
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Stack | 563mm | 578mm | 592mm | 610mm | 634mm | 659mm |
| Reach | 365mm | 374mm | 387mm | 400mm | 412mm | 425mm |
| Headtube length | 90mm | 104mm | 116mm | 135mm | 161mm | 187mm |
| Headtube angle | 70deg | 70.5deg | 71deg | 71deg | 71deg | 71deg |
| BB height | — | — | — | — | — | — |
| BB drop | 85mm | 85mm | 85mm | 85mm | 85mm | 85mm |
| Trail | 72mm | 68mm | 65mm | 65mm | 65mm | 65mm |
| Fork length | 391mm | 391mm | 391mm | 391mm | 391mm | 391mm |
| Fork offset | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm |
| Front center | 604mm | 613mm | 626mm | 645mm | 665mm | 686mm |
| Chainstay length | 430mm | 430mm | 430mm | 430mm | 430mm | 430mm |
| Wheelbase | 1019mm | 1031mm | 1041mm | 1060mm | 1081mm | 1102mm |
| Top tube | 521mm | 537mm | 556mm | 575mm | 593mm | 613mm |
| Standover height | 700mm | 725mm | 754mm | 779mm | 805mm | 832mm |
| Seat tube length | 400mm | 430mm | 470mm | 500mm | 530mm | 560mm |
| Seat tube angle | 74.5deg | 74deg | 74deg | 74deg | 74deg | 74deg |
Spec geometry
| Geometry | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Crank length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem length | 60mm | 70mm | 80mm | 90mm | 100mm | 100mm |
| Handlebar width | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
| Handlebar reach | 70mm | 70mm | 70mm | 70mm | 70mm | 70mm |
| Handlebar drop | 103mm | 103mm | 103mm | 103mm | 103mm | 103mm |
| Saddle width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
Fork
Future Shock 3.2 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Brakes
Front brake
SRAM Apex, hydraulic disc
Rear brake
SRAM Apex, hydraulic disc
Front rotor
null
Rear rotor
null
Drivetrain
Shift levers
SRAM Apex AXS
Rear derailleur
SRAM S-1000 Eagle AXS Transmission
Cassette
SRAM 1270 Transmission Cassette, 12 Spd, 10-52t
Chain
SRAM GX T-Type 12 speed
Crankset
SRAM Apex DUB Wide, 40t
Bottom bracket
SRAM DUB BSA 68 Wide
Cockpit
Stem
Future Stem, Comp
Handlebars
Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
Grips
Supacaz Super Sticky Kush (bar tape)
Saddle
Body Geometry Power Sport, steel rails
Seatpost
Roval Terra Carbon Seat Post, 20mm Offset
Wheels & Tires
Front wheel
DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Rear wheel
DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Front tire
Tracer 700x45, Tan Sidewall, Tubeless Ready
Rear tire
Tracer 700x45, Tan Sidewall, Tubeless Ready
Weight
Weight
9.7 kg (21 lb, 6.2 oz) (size 56)
