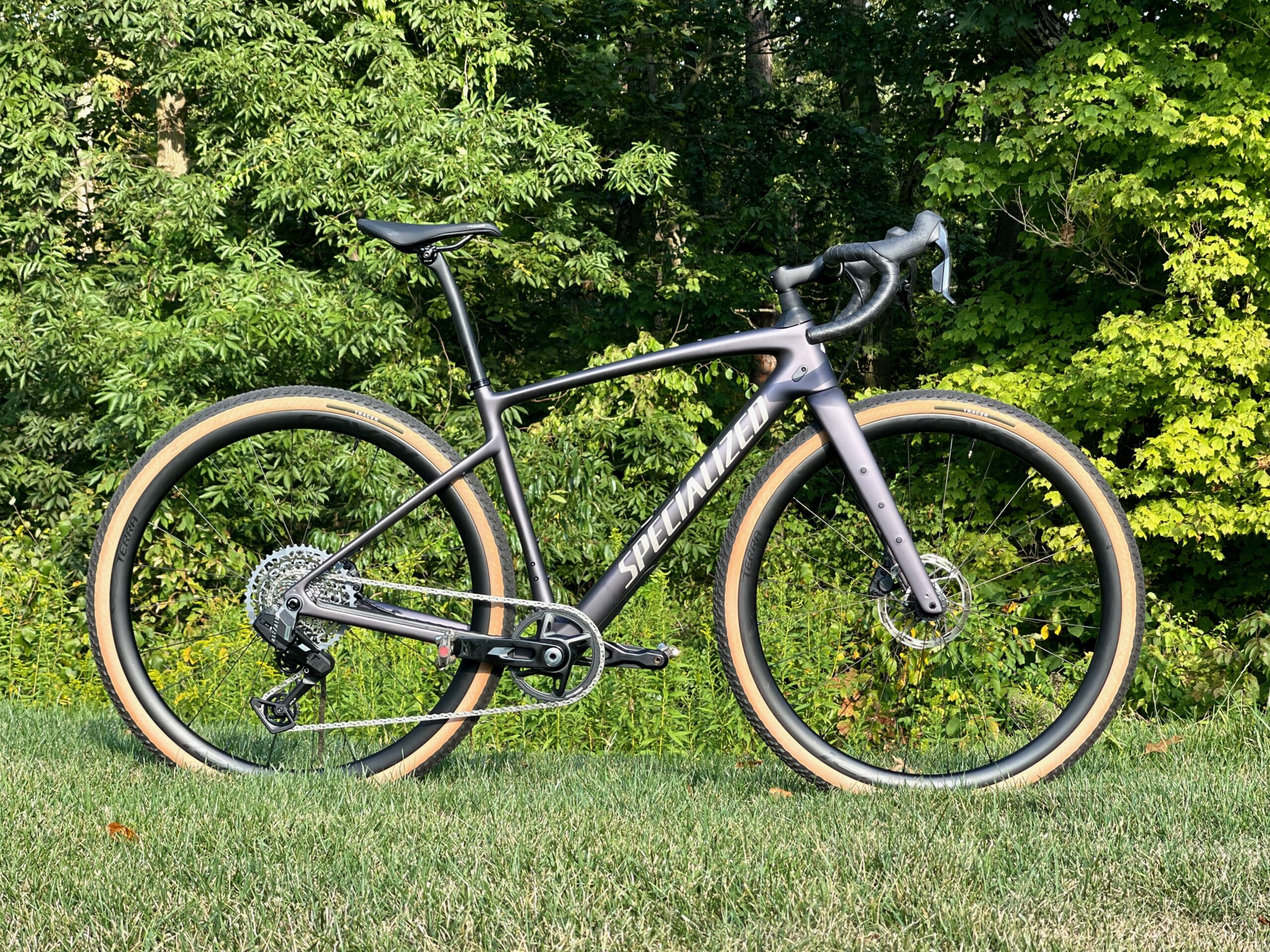

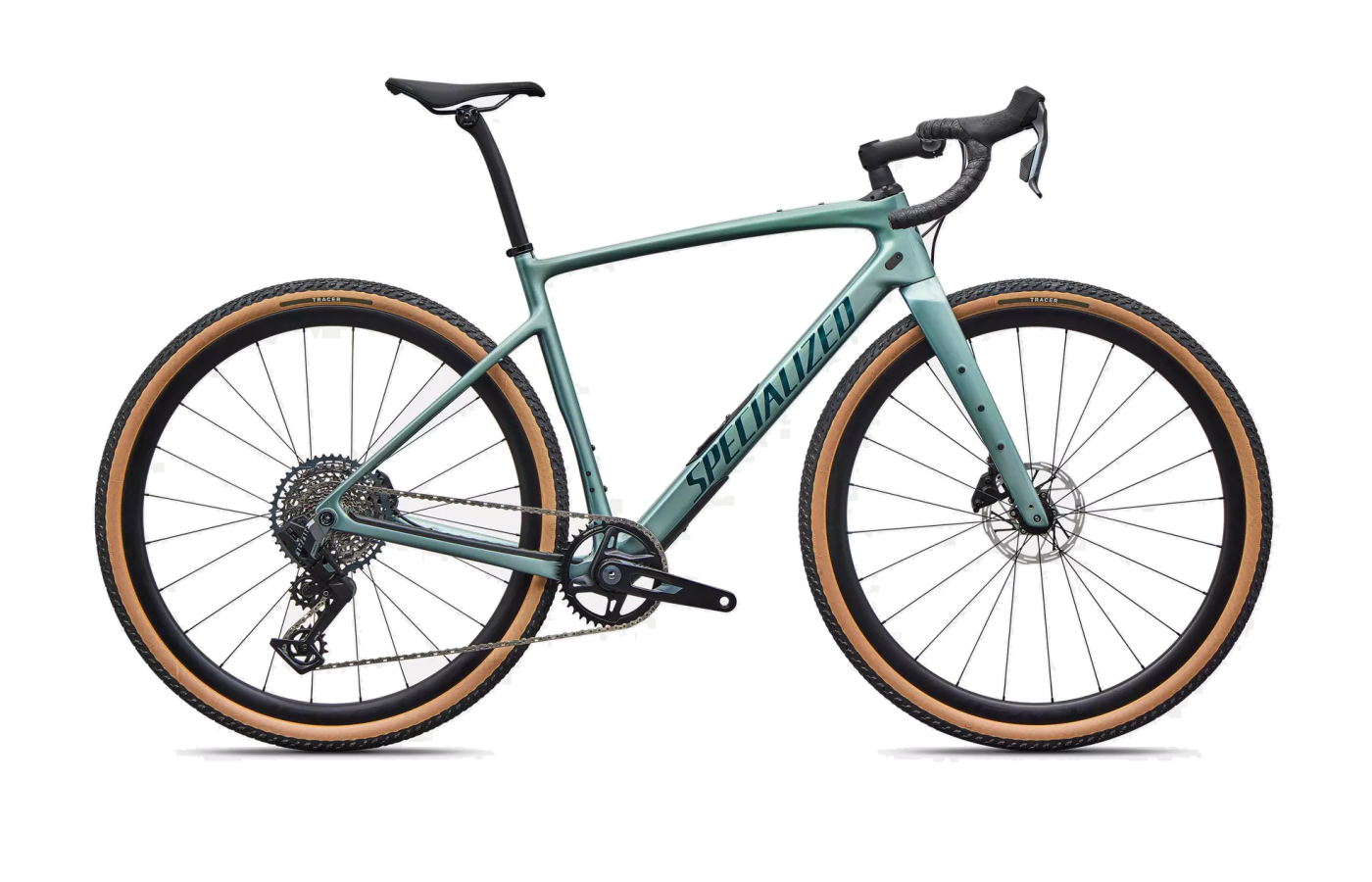

Diverge 4 Expert

The Specialized Diverge 4 is a dedicated adventure gravel platform that leans heavily into off-road capability rather than attempting to split the difference with tarmac. Introduced for the 2026 model year, this fourth generation adopts mountain bike design cues to handle increasingly rough terrain. The defining feature remains the Future Shock front suspension, now updated to the 3.0 generation across the entire lineup to isolate the rider from high-frequency chatter. Specialized pairs this with a revised frame that expands tire clearance to a generous 50mm, or even a 2.2-inch mountain bike tire. Practical updates like Universal Derailleur Hanger compatibility and an enlarged internal downtube storage compartment—now available on both carbon and aluminum frames—cement its status as a rugged, self-sufficient machine. It suits long-distance explorers and rough-course racers who prioritize stability and momentum over razor-thin aerodynamic margins.

$6,000SRAM Rival XPLRGen Diverge 4

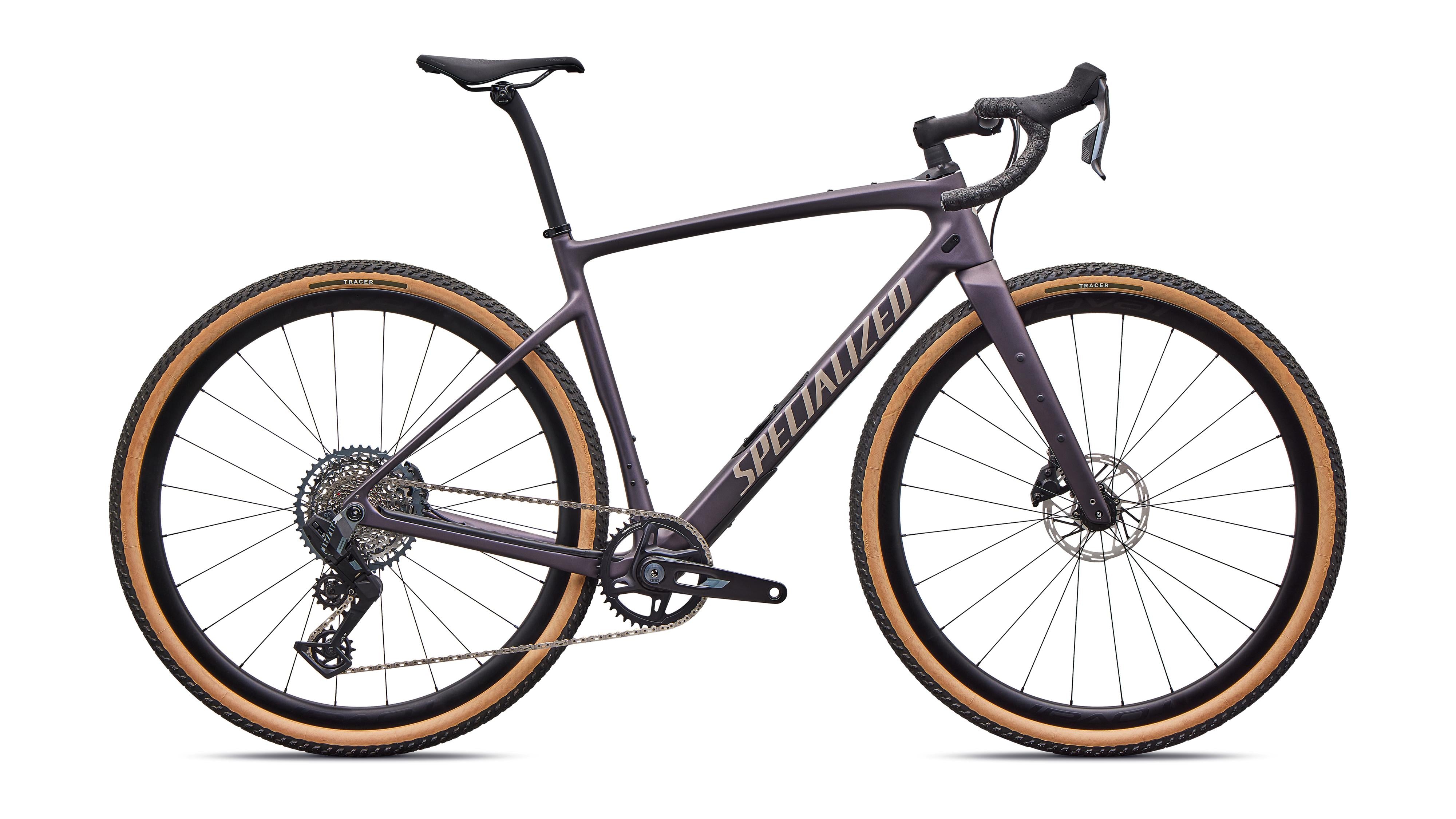

Specialized Diverge 4 Expert
Build
Size

Inventory

Stack592mm
Reach387mm
Top tube556mm
Headtube length116mm
Standover height754mm
Seat tube length470mm

Fit and geometry

The Diverge 4 geometry borrows heavily from modern mountain bike trends to prioritize high-speed stability and descending control. Specialized lengthened the reach across all sizes and paired it with shorter stems. This keeps the rider’s mass centered while slowing down the steering input. A slacker head tube angle and extended chainstays further stretch the wheelbase, creating a highly composed platform that tracks predictably through loose corners.

To offset the taller front end created by the Future Shock unit, the frame features a deeply dropped bottom bracket. This places the rider lower inside the bike rather than perched on top of it, fostering a secure posture during steep descents. While this long and low stance excels at maintaining momentum on open gravel roads, it requires more deliberate steering input in tight, slow-speed singletrack. The stock cockpit includes a subtle riser handlebar with a moderate flare, encouraging a comfortable, upright position on the hoods while keeping the drops accessible for rougher sectors.

Full specs

Frameset

Frame

Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout

Fork

Future Shock 3.2 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc

Weight

8.9 kg (19 lb, 9.9 oz)

Groupset

Shift levers

SRAM Rival AXS E1

Rear derailleur

SRAM Rival AXS E1 XPLR

Cassette

SRAM Rival E1 XPLR 10-46t, 13sp

Chain

SRAM Rival E1

Crankset

SRAM Rival E1 XPLR, DUB Wide, 40t

Bottom bracket

SRAM DUB BSA 68 Wide

Front brake

SRAM Rival E1, hydraulic disc

Rear brake

SRAM Rival E1, hydraulic disc

Front rotor

null

Rear rotor

null

Wheelset

Front wheel

Roval Terra C Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 370 hub, Centerlock disc, DT Swiss Competition Race spokes

Rear wheel

Roval Terra C Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 370 hub, Centerlock disc, DT Swiss Competition Race spokes

Front tire

Tracer 700x45, Tan Sidewall, Tubeless Ready

Rear tire

Tracer 700x45, Tan Sidewall, Tubeless Ready

Cockpit

Stem

Future Stem, Pro

Handlebars

Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare

Saddle

Body Geometry Power Expert

Seatpost

Roval Terra Carbon Seat Post, 20mm Offset

Builds

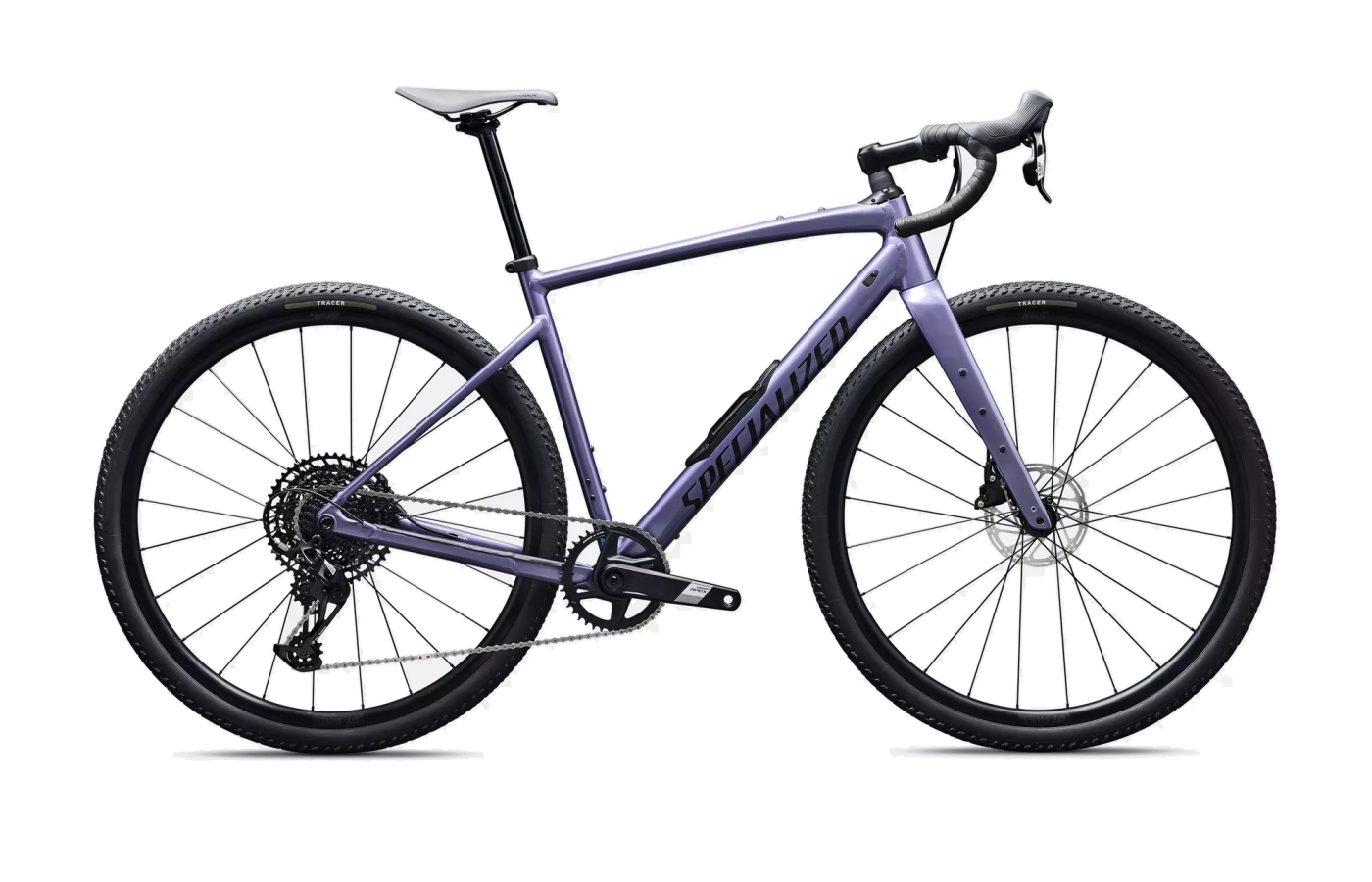

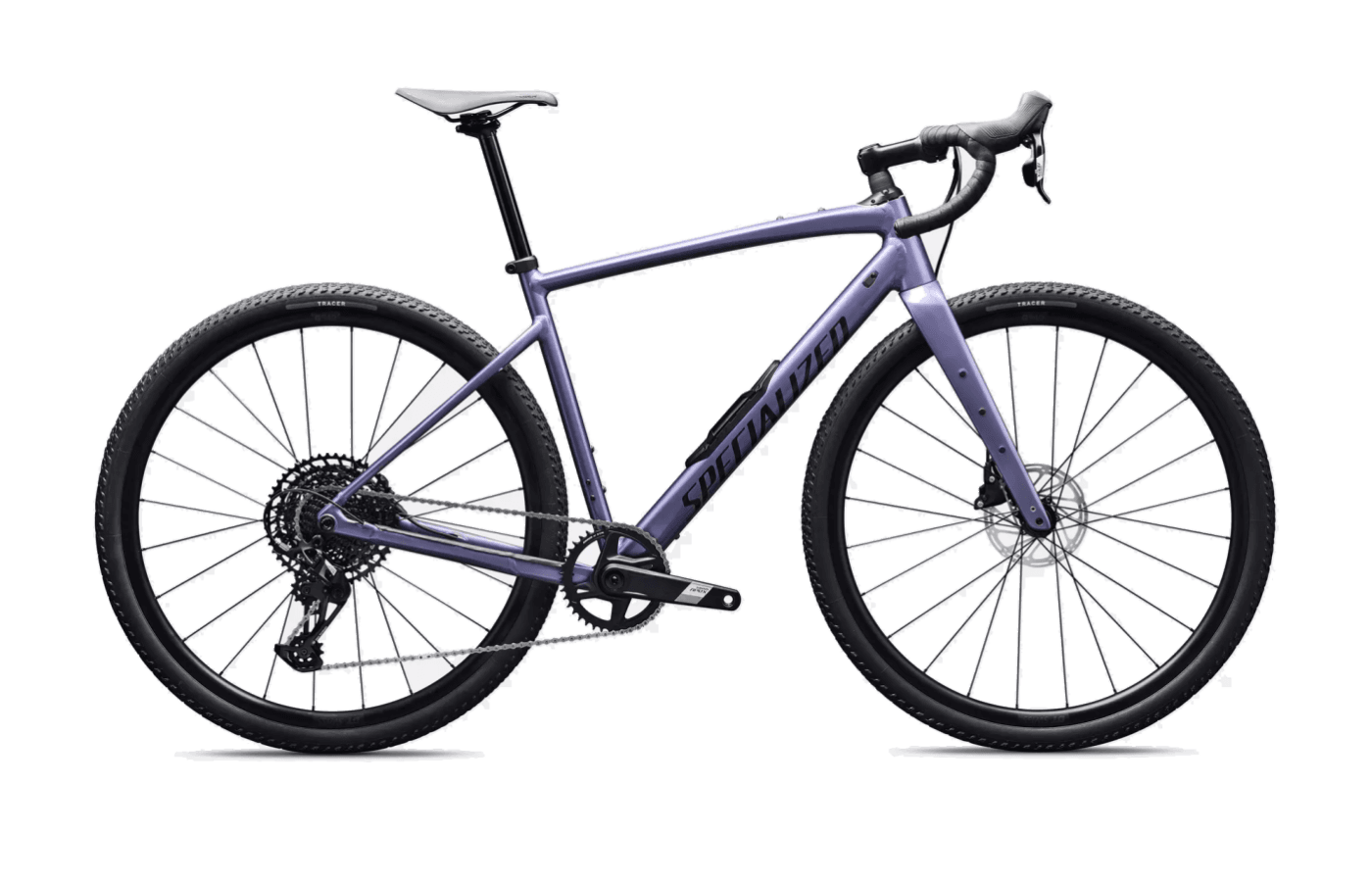

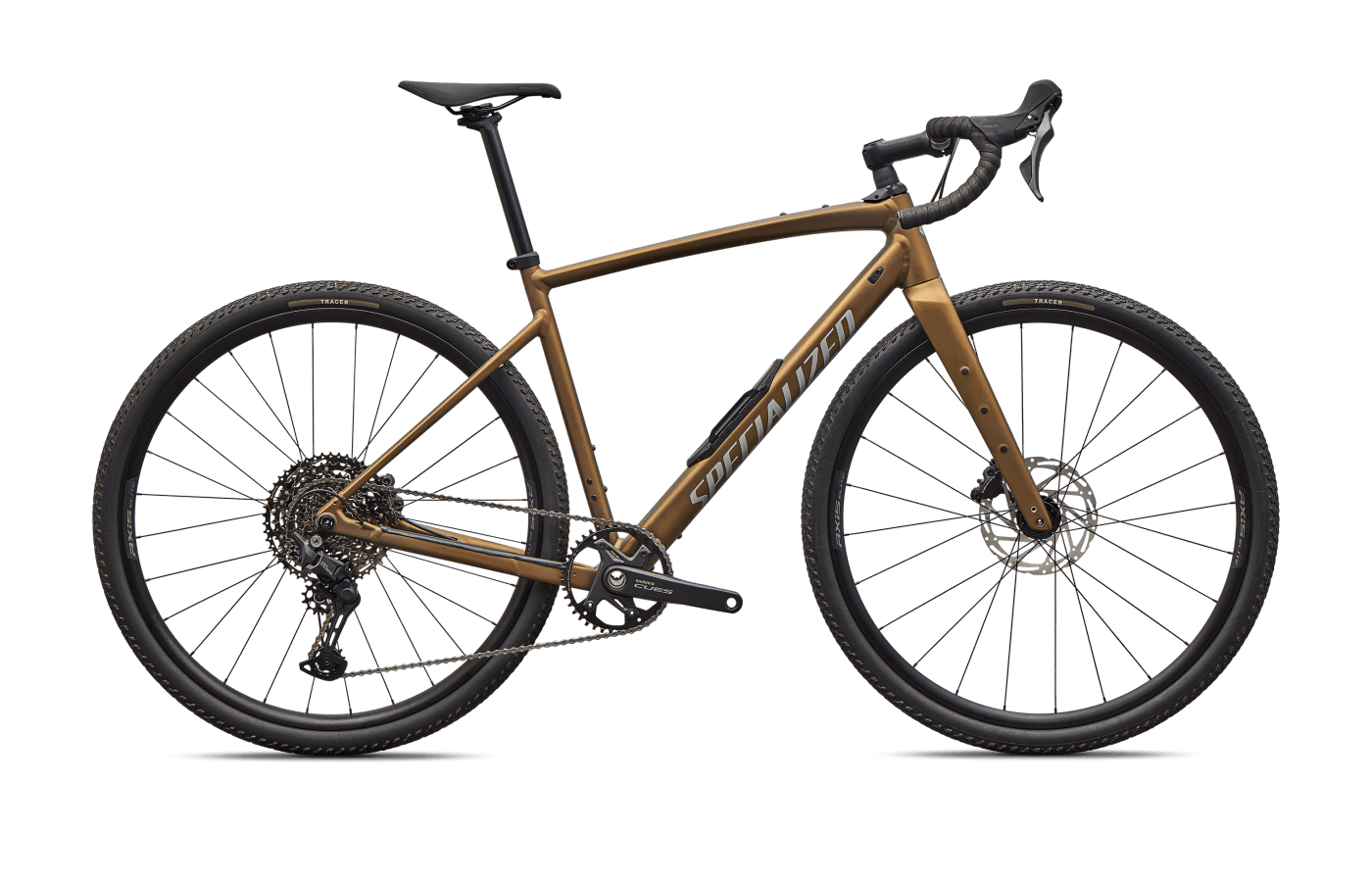

The Diverge 4 lineup spans eight builds, split between E5 aluminum and FACT 9r carbon frames. Notably, the alloy models inherit the internal downtube storage previously reserved for carbon, making the entry-level Sport and Comp Alloy builds highly practical options for budget-conscious bikepackers. These lower-tier models utilize the undamped Future Shock 3.1 and mechanical or entry-level electronic drivetrains.

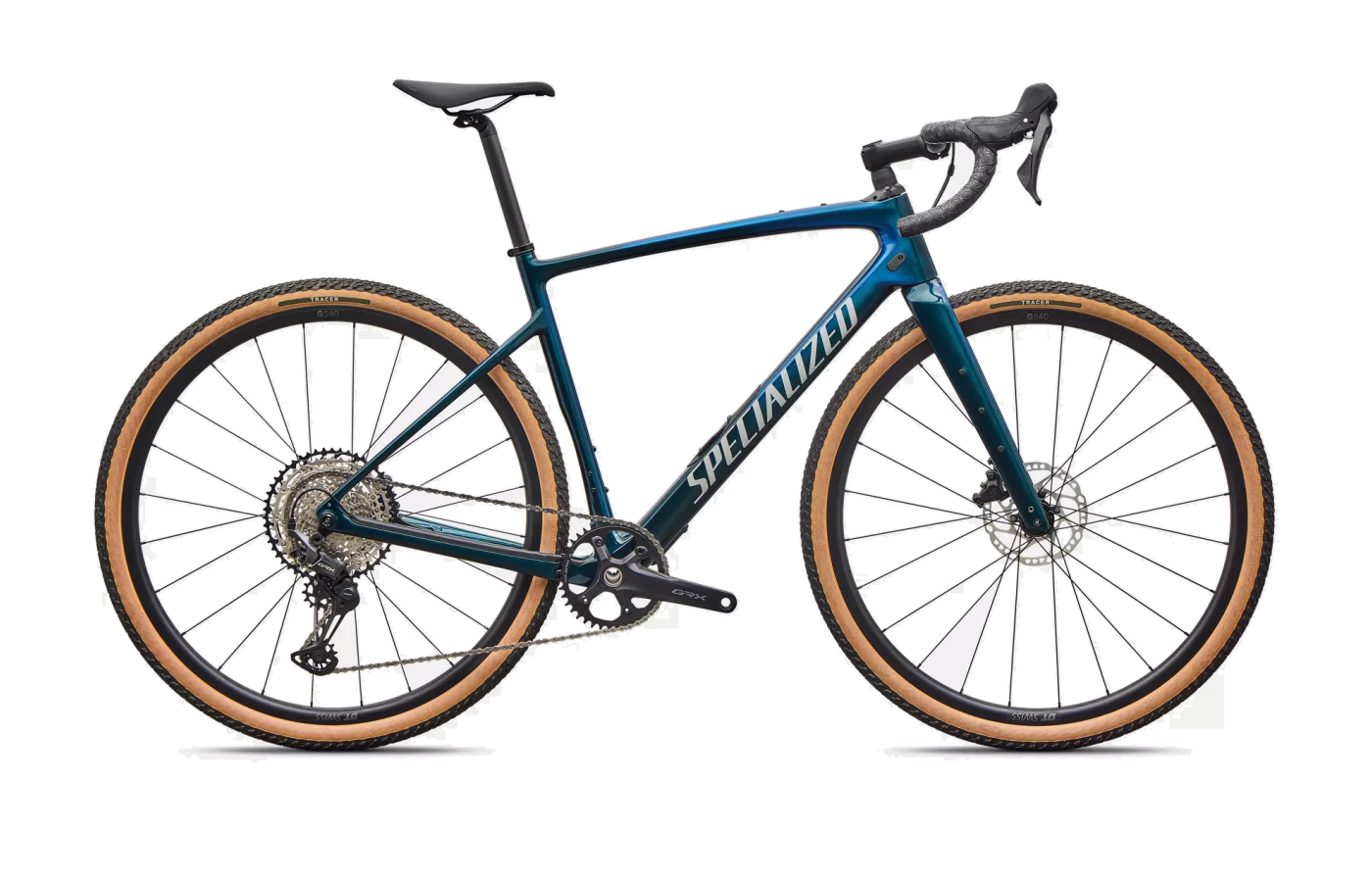

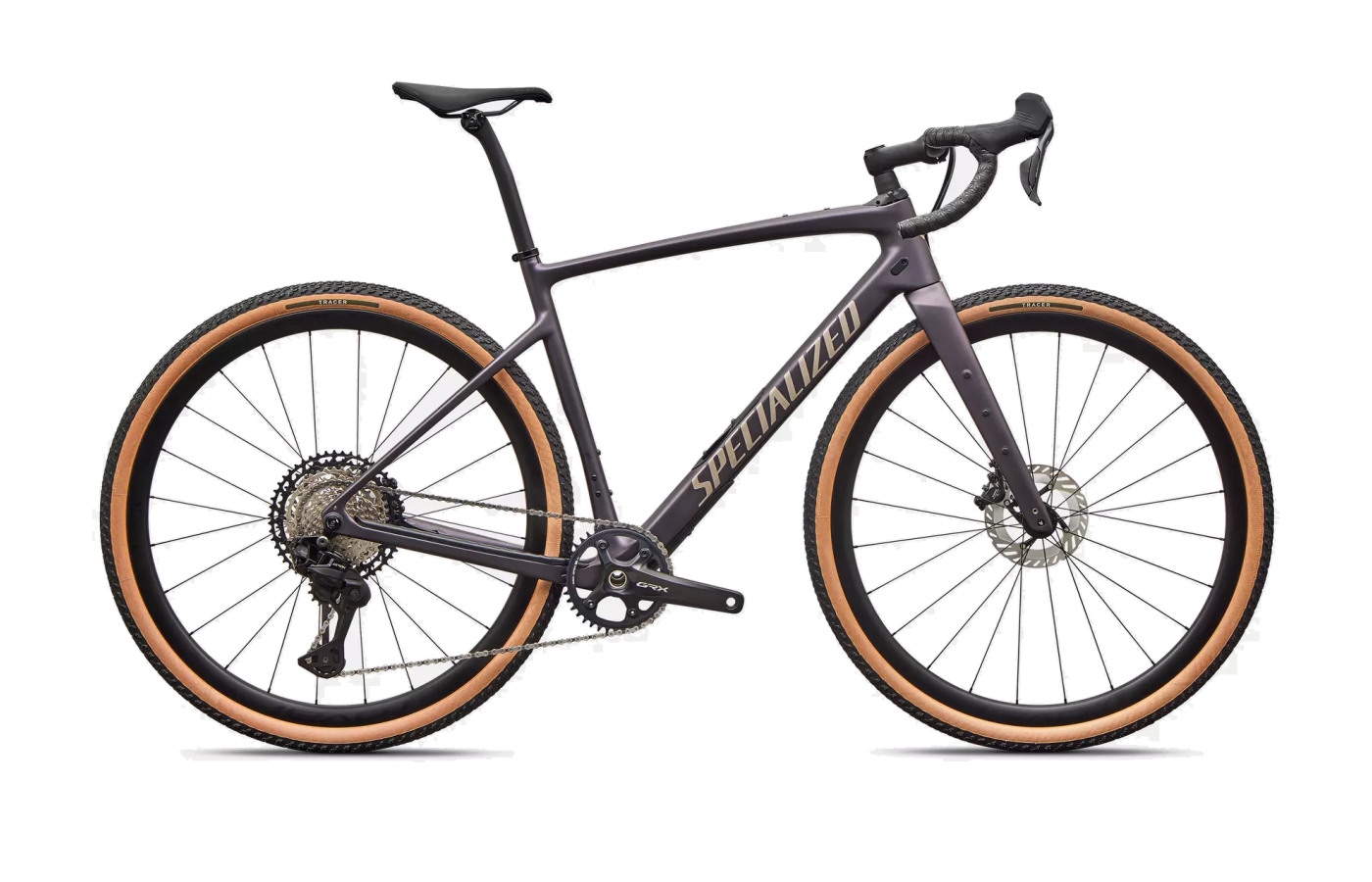

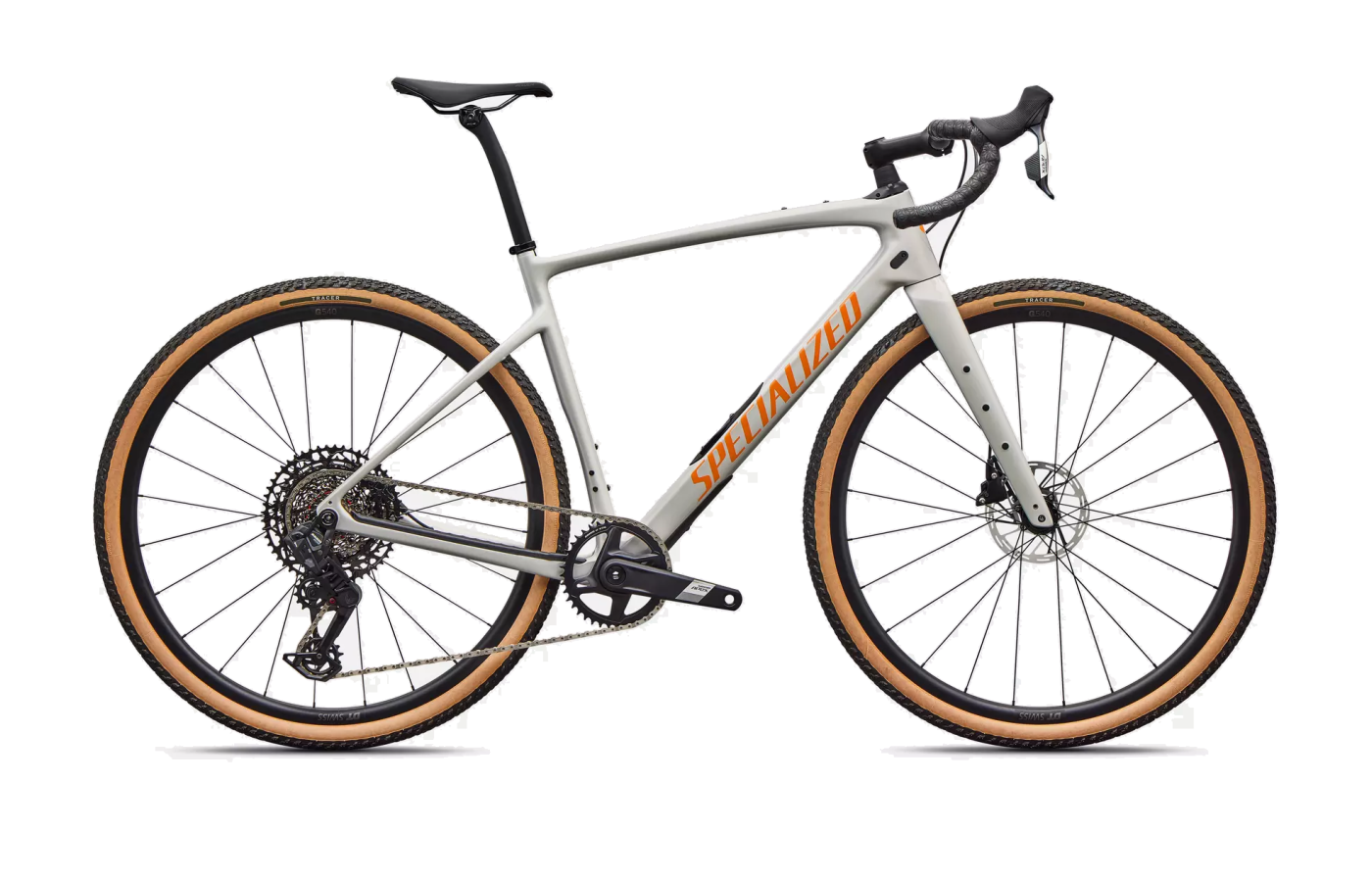

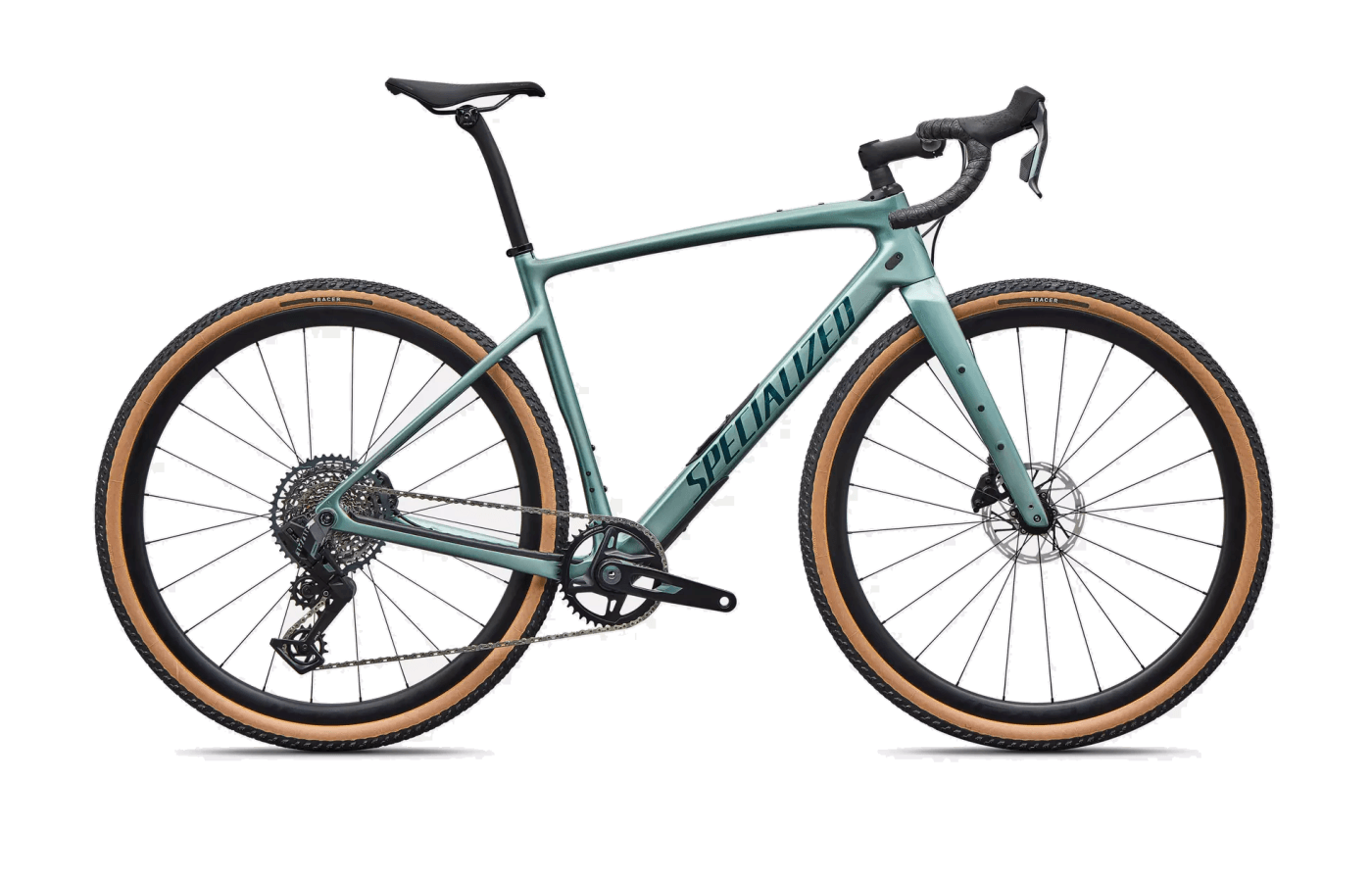

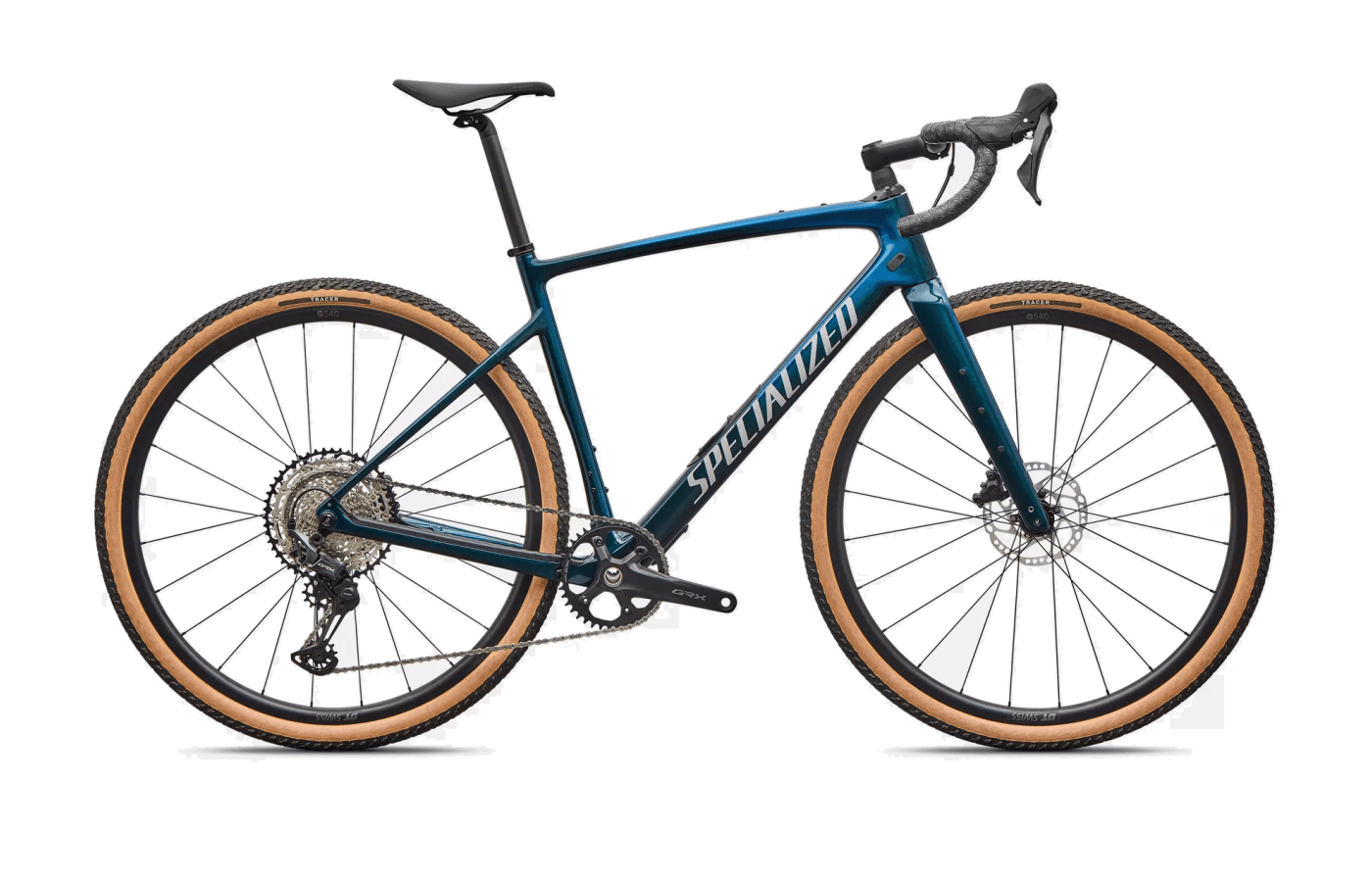

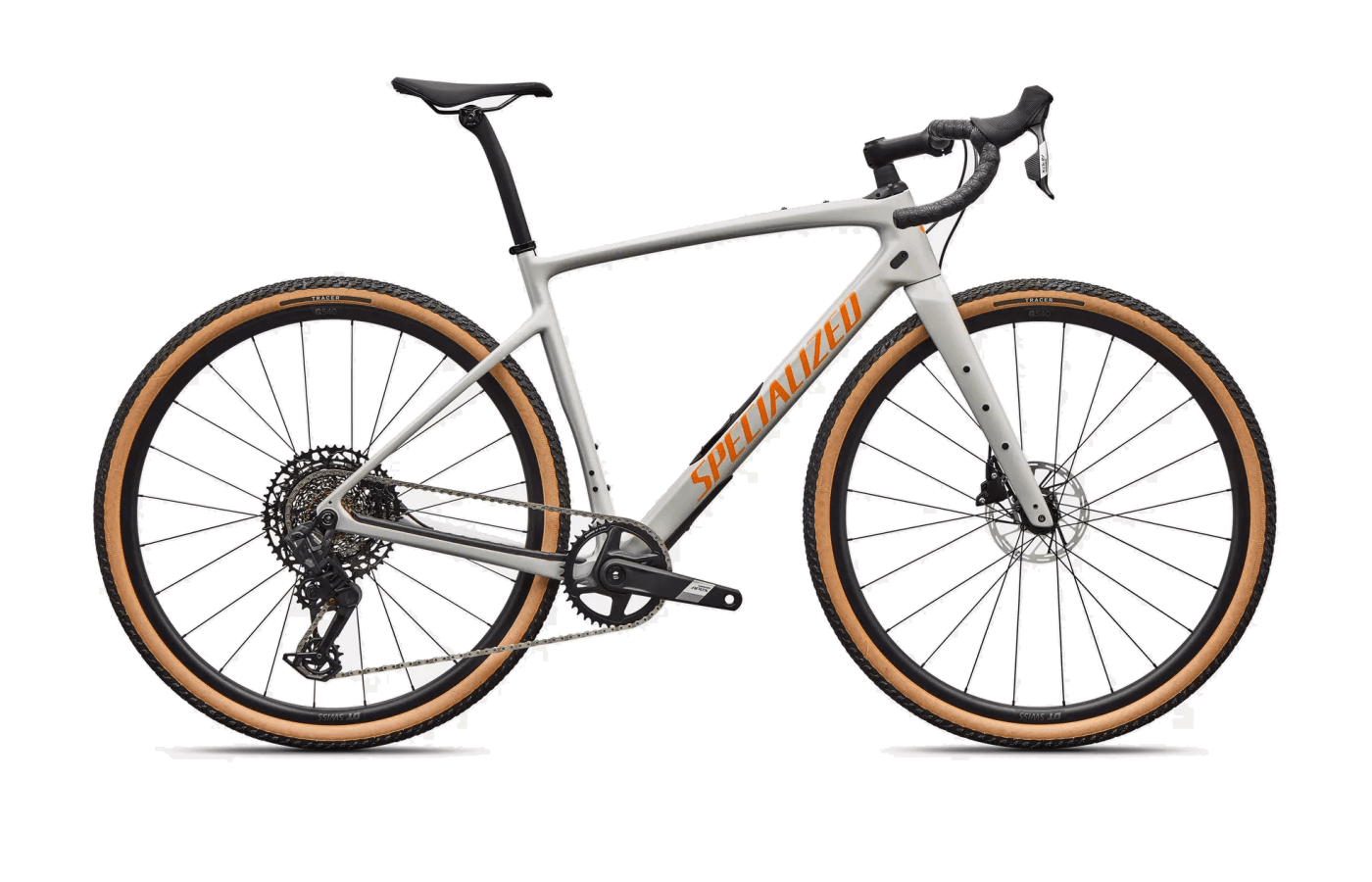

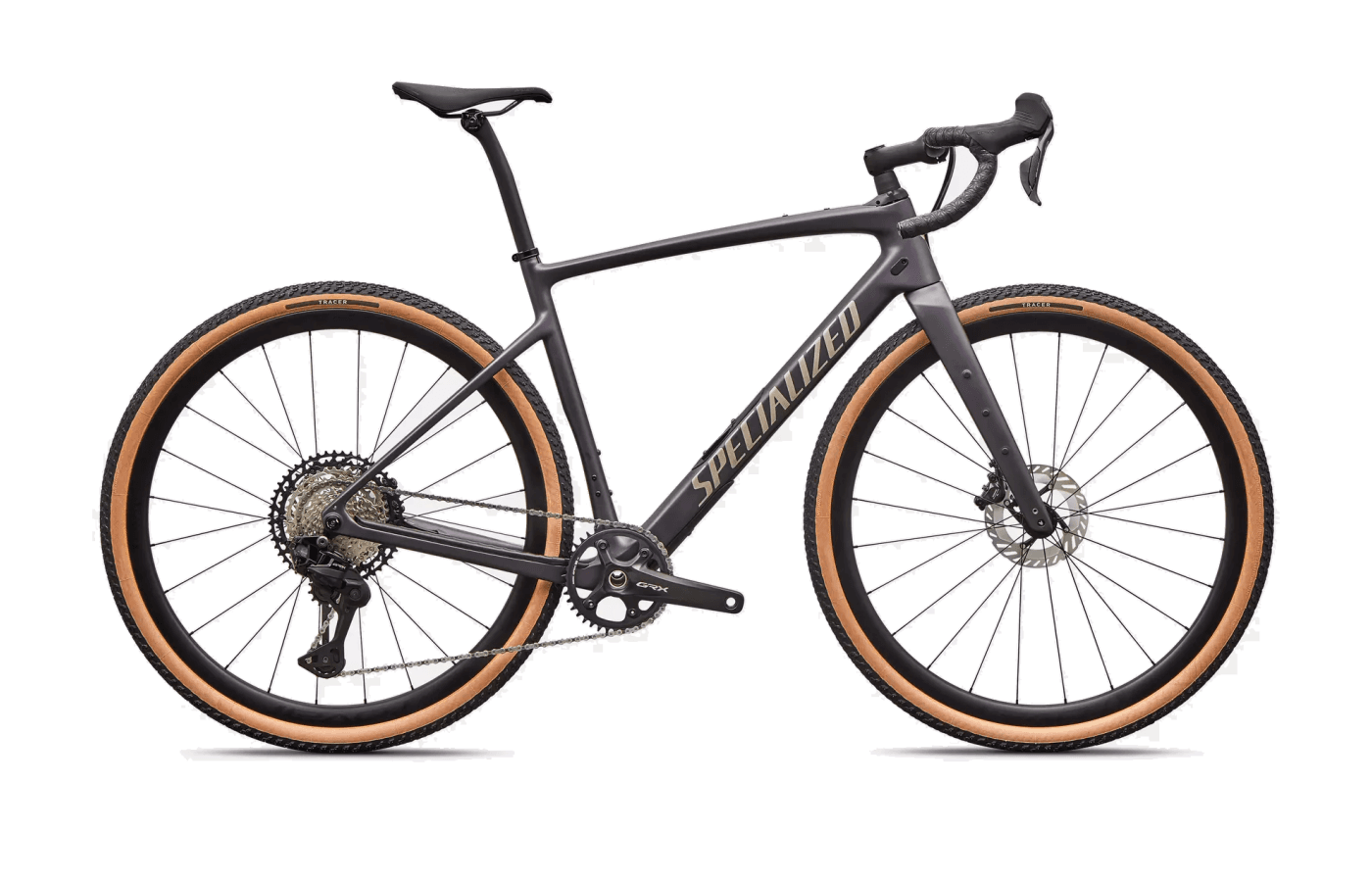

The carbon range begins with the Sport and Comp models before stepping up to the Expert tier, which represents a popular middle ground. Available with either SRAM Rival XPLR or Shimano GRX Di2, the Expert builds introduce carbon Roval Terra C wheels and the hydraulically damped Future Shock 3.2.

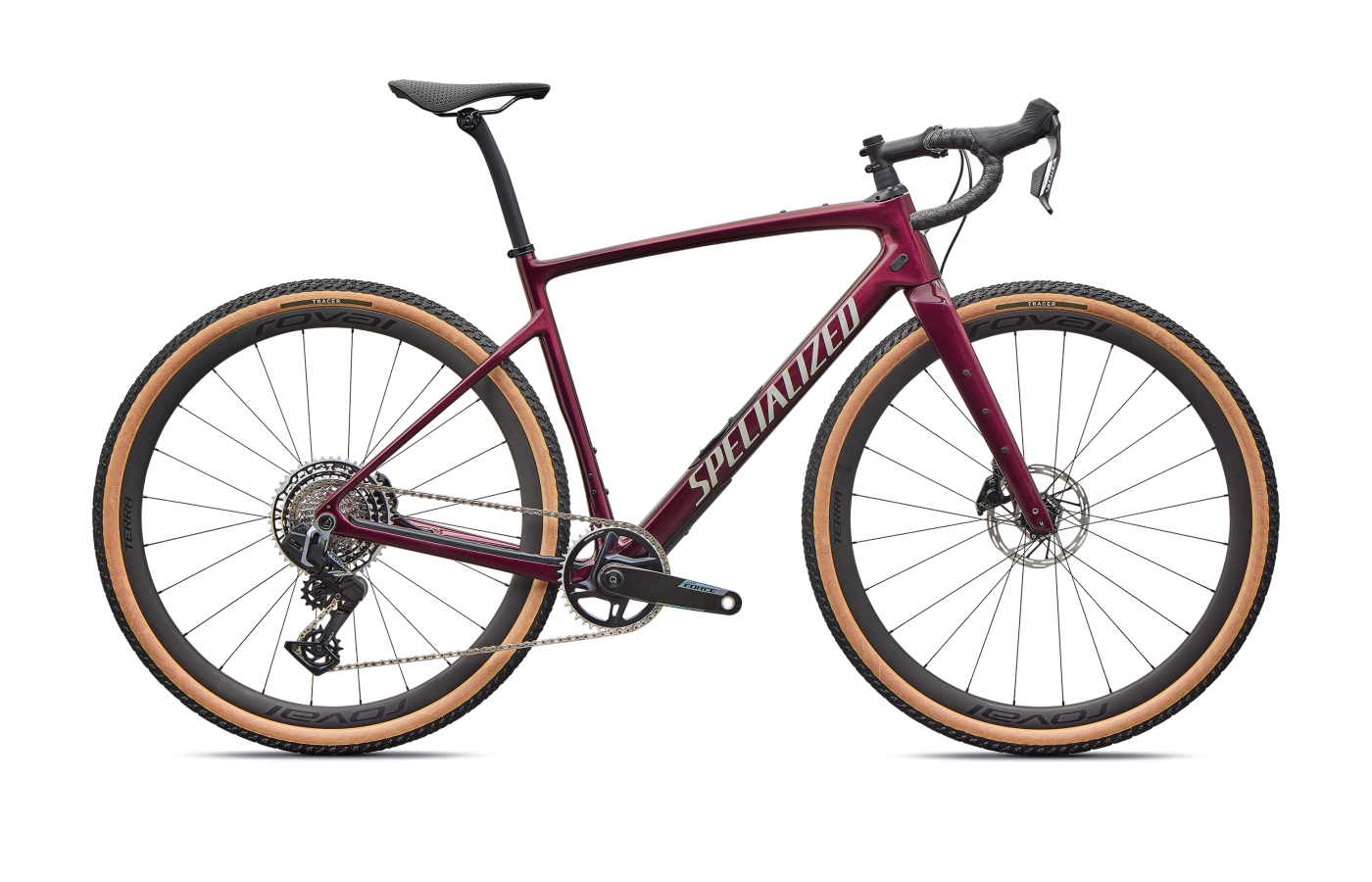

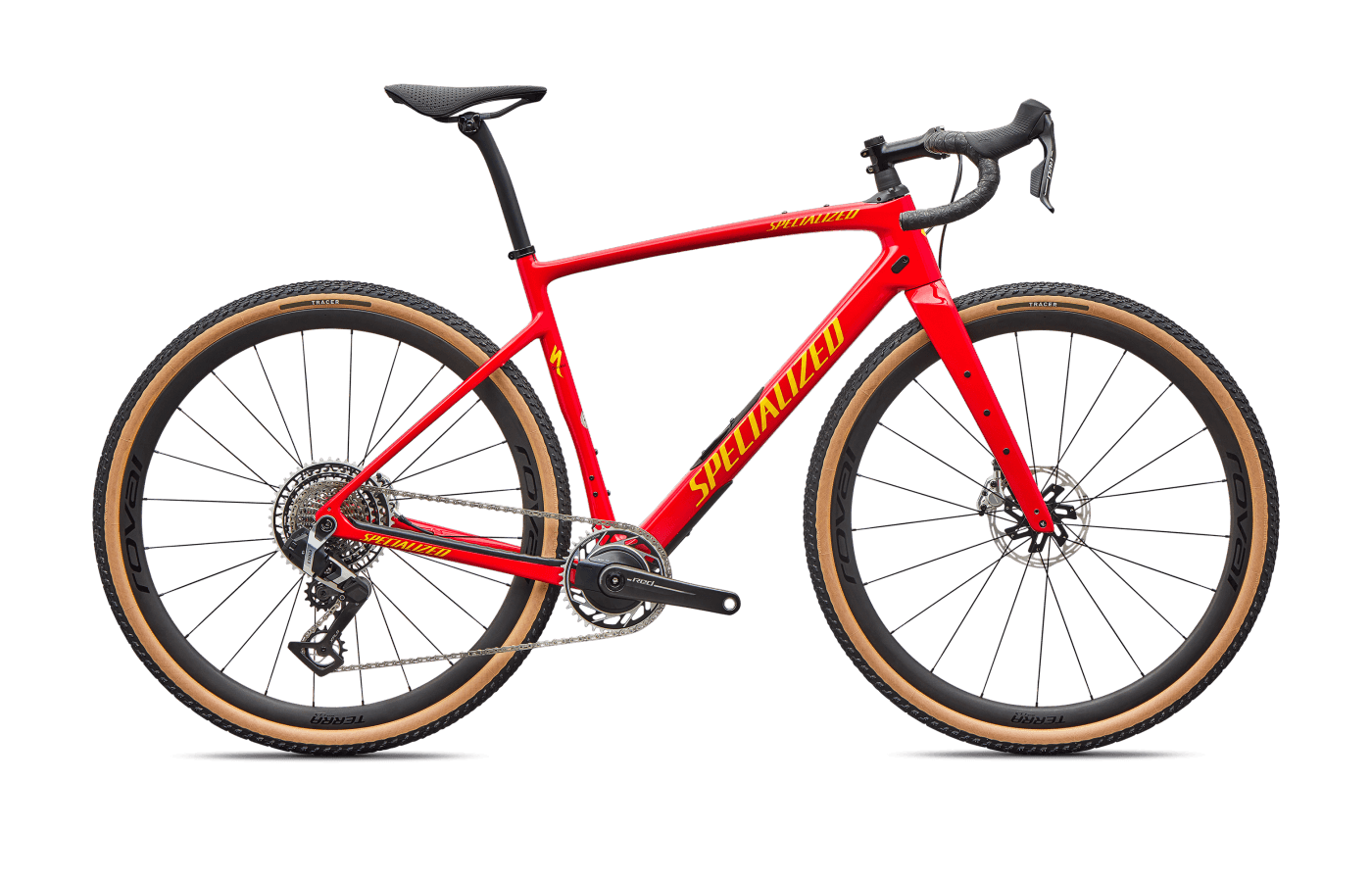

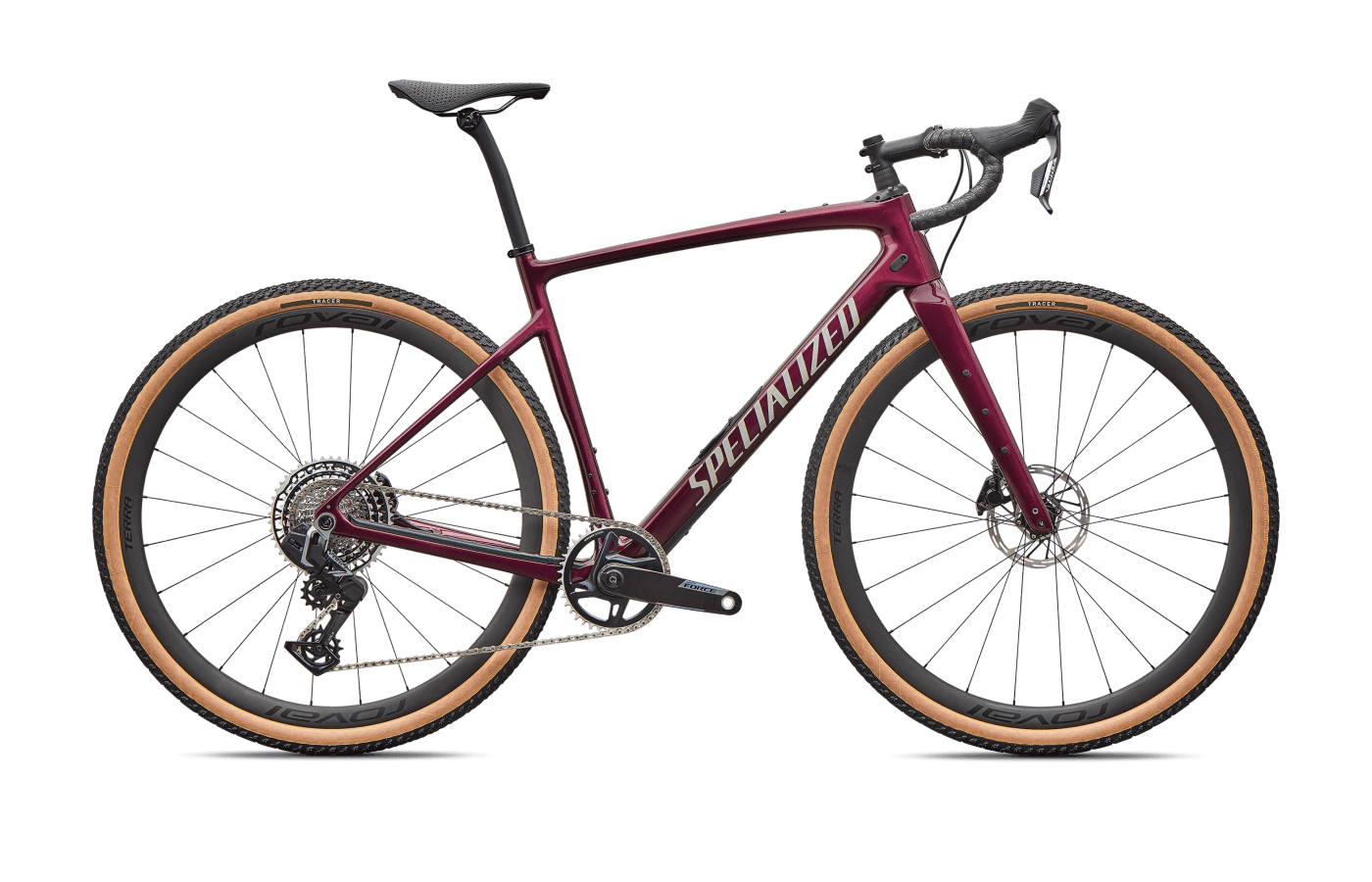

At the top of the ladder, the Pro and Pro LTD models upgrade to the fully adjustable Future Shock 3.3, allowing riders to lock out the front suspension for firm climbing. These premium builds feature SRAM Force or RED XPLR drivetrains, integrated Quarq power meters, and lighter Roval Terra CL or CLX II wheelsets with ceramic bearings. Across all price points, the bikes utilize a reliable threaded bottom bracket and ship with 45mm Specialized Tracer tires.

Reviews

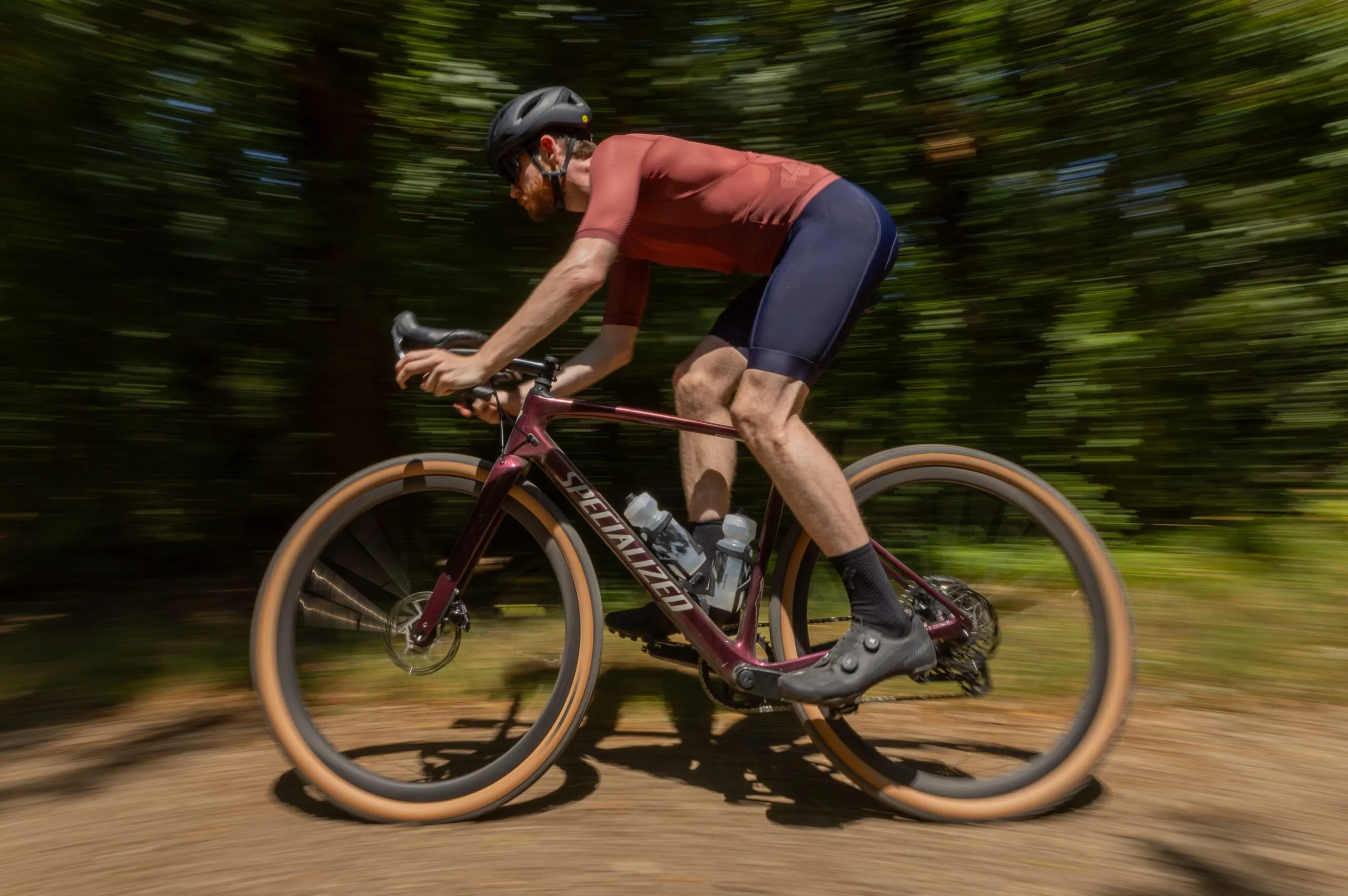

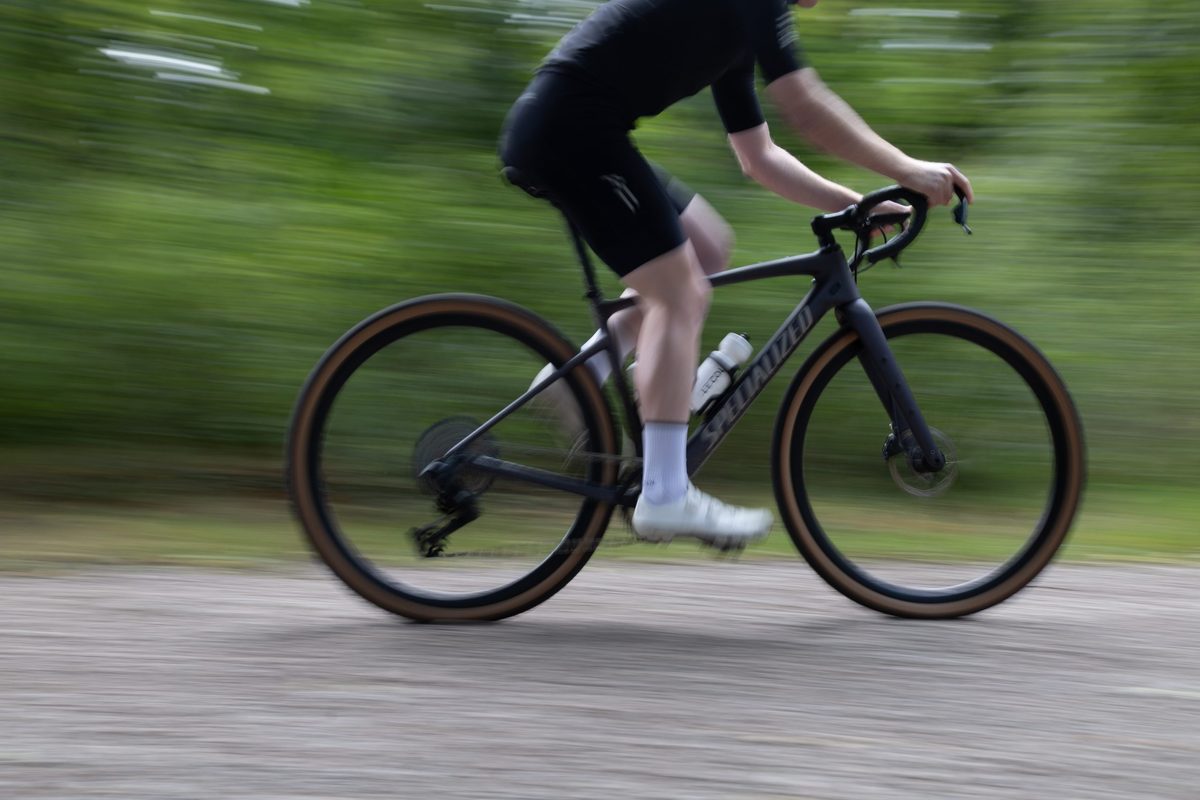

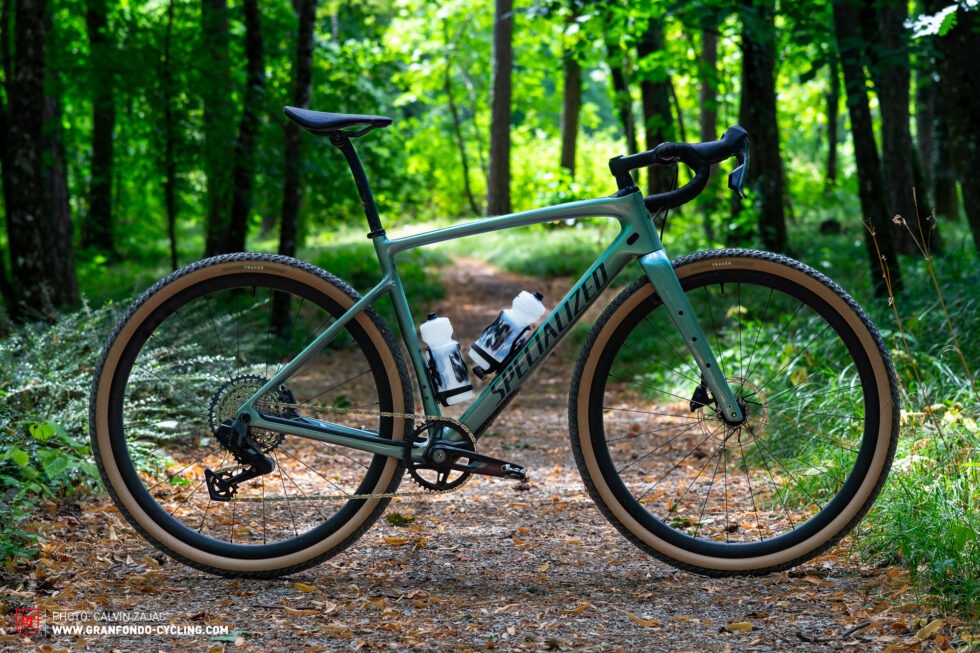

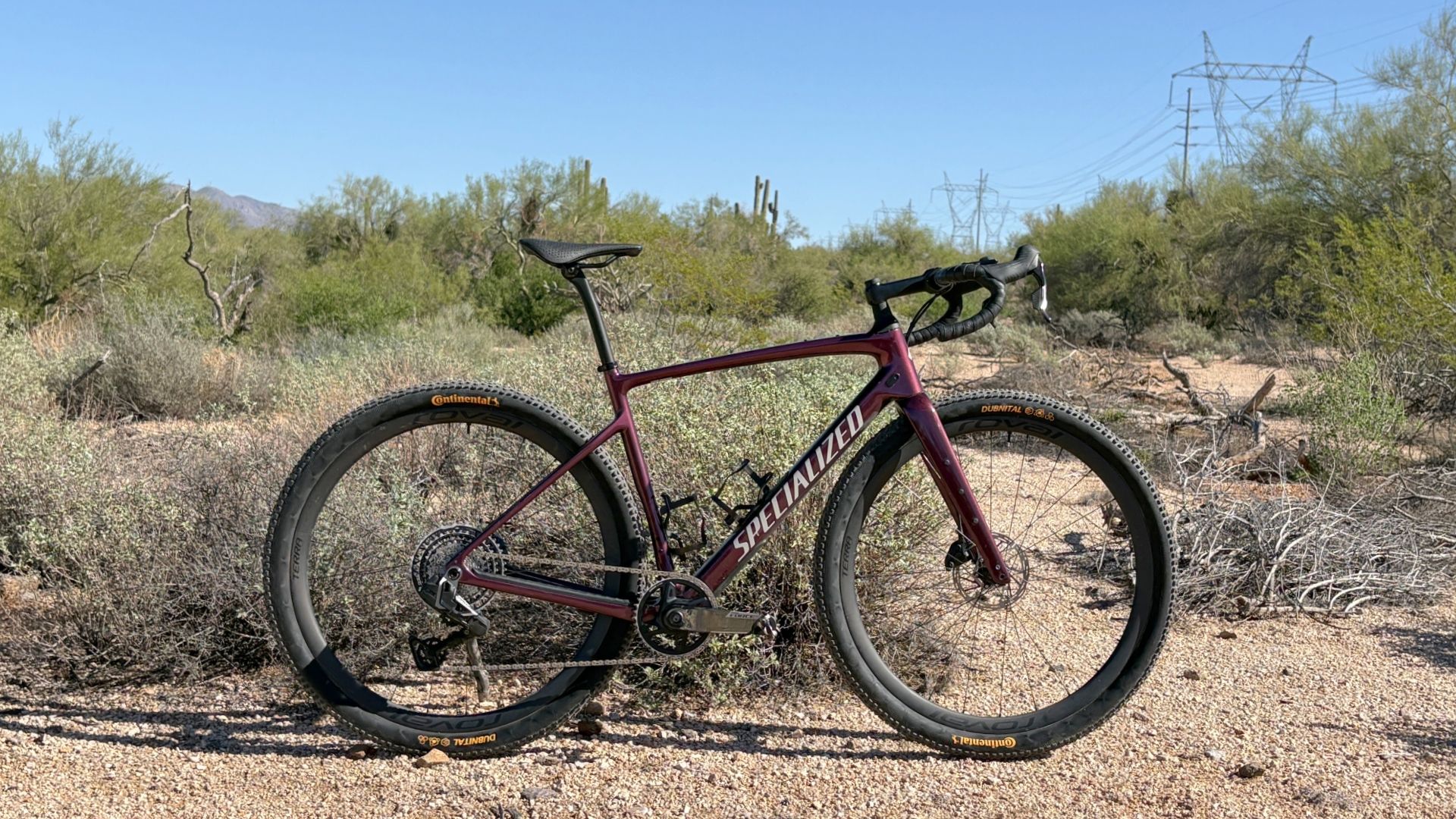

Reviewers consistently praise the Diverge 4 for its exceptional stability and composure on rough terrain, noting that the revised geometry and Future Shock suspension effectively mute harsh impacts. The front-end compliance significantly reduces upper body fatigue on long rides, helping the bike feel like a "freight train on gravel" (Cycling Weekly) when carrying speed through loose corners. While the suspension excels at smoothing out washboards, testers noted that the mid-tier, non-adjustable Future Shock 3.2 can feel slightly active during out-of-the-saddle climbing efforts, sacrificing a bit of immediate road-bike efficiency.

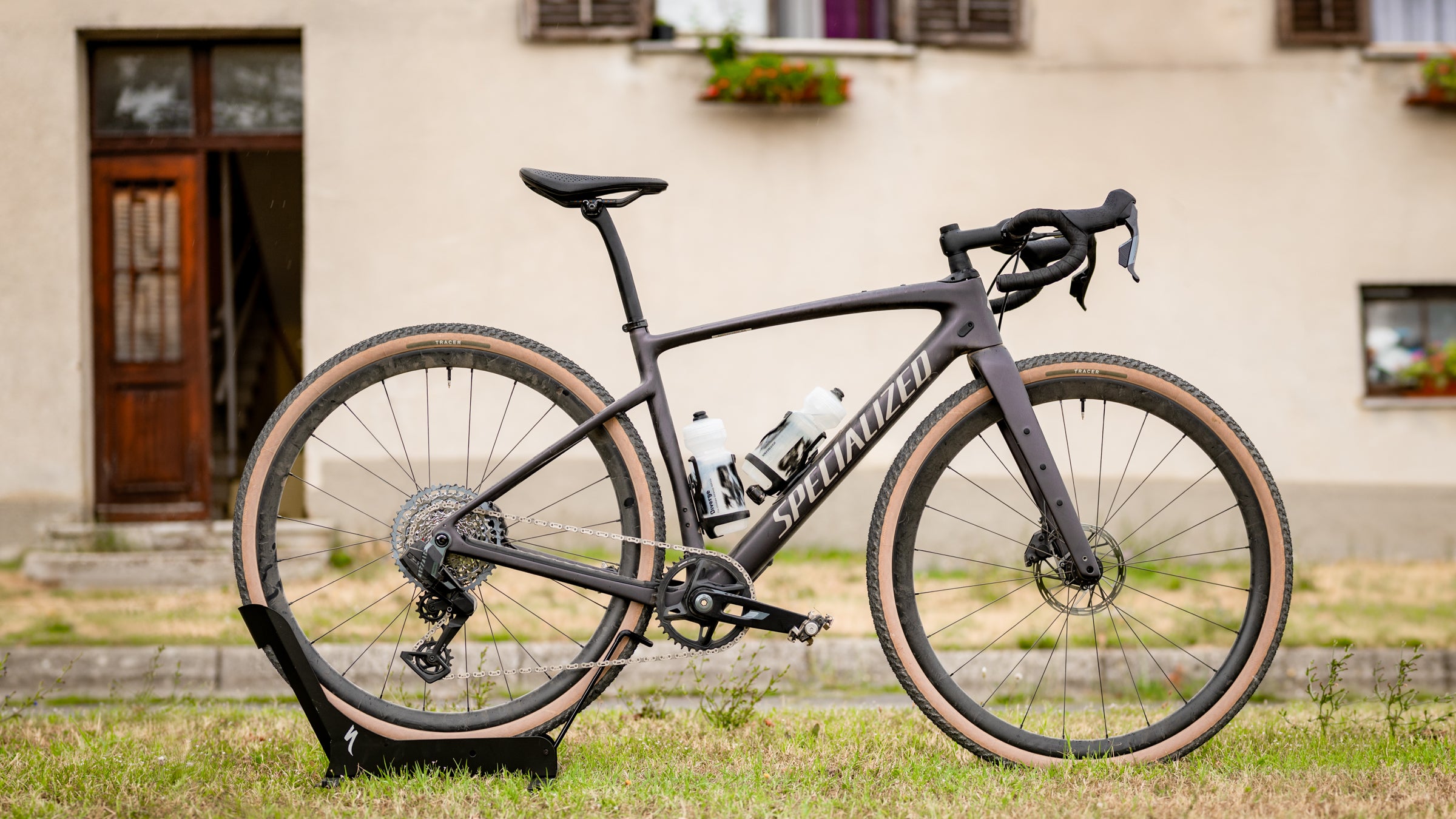

The most universal critique centers on the stock tire specification. Specialized equips the bike with 45mm tires, which testers found at odds with the frame's low bottom bracket. This combination resulted in frequent pedal strikes on uneven ground, with one reviewer noting they were "grounding the pedals" (BikeRadar) even on mild trails. The overwhelming consensus is that upgrading to a 50mm or 2.2-inch tire is essential to raise the ride height and fully utilize the frame's capabilities.

Despite the pedal strike issue, the platform is highly regarded for its descending prowess and overall reliability. On aggressive descents, the bike feels "planted and confident, letting you focus on line choice" (Bike Rumor). It is widely viewed as an outstanding option for riders who spend the vast majority of their time in the dirt and value sustained momentum over quick-flick agility.
